95W Outdoor Industrial IP67 Waterproof 802.3bt PoE+ Injector

Overview

E-link LNK-IPOE-95W Industrial IP67-rated Single-port 802.3bt PoE Injector provides a maximum of up to 95 watts for each PoE output port, transmitting both the Gigabit Ethernet data and 802.3bt PoE power over the UTP cable. It is specifically designed for such outdoor powered devices (PDs) as PTZ network cameras, PTZ speed dome cameras, multi-channel (11a/b/g/n) wireless LAN access points and other network devices that need a higher power to work stably.

With industrial-level IP67-rated aluminum case, the LNK-IPOE-95W provides a high level of immunity against electromagnetic interference, and is able to protect itself from dust and water ingress and to operate under the temperature range from -40 to 80 degrees C. All these features ensure the highest level of reliability for mission-critical applications in any difficult environment.

LNK-IPOE95W is designed for outdoor using, which works with 90-264VAC input. It has detection chip inside, which will detect and classify PD before powering it. It will not provide power until a standard-compliant PD is detected. The effective distance is 100 meters over Cat5e/Cat6 cables. It is especially suitable for working in complex power situations. It is easy to install with installation kit LNK-POT-MBK, no need to open equipment.

Features

► Support 10/100/1000Base-TX

► IEEE 802.3af/at/bt compliant

► Outdoor using, power directly

► PoE output up to 95W

► Power pins: 4/5(+),7/8(-) and 1/2(+),3/6(-)

► Provide signal and PoE output, lightning protection 6KV

► Wide temperature design: -40℃ to +80℃

► Metal casing, waterproof, dustproof, IP67

► Sealing gasket past extension, bearing, corrosion, aging test

► Plug-and-play installation

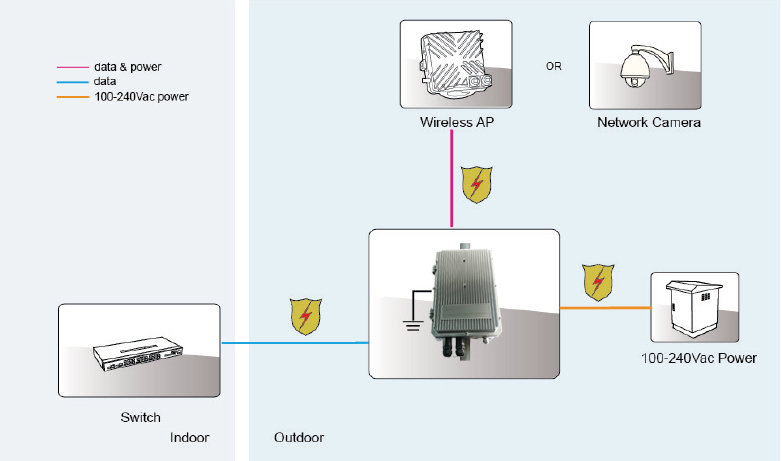

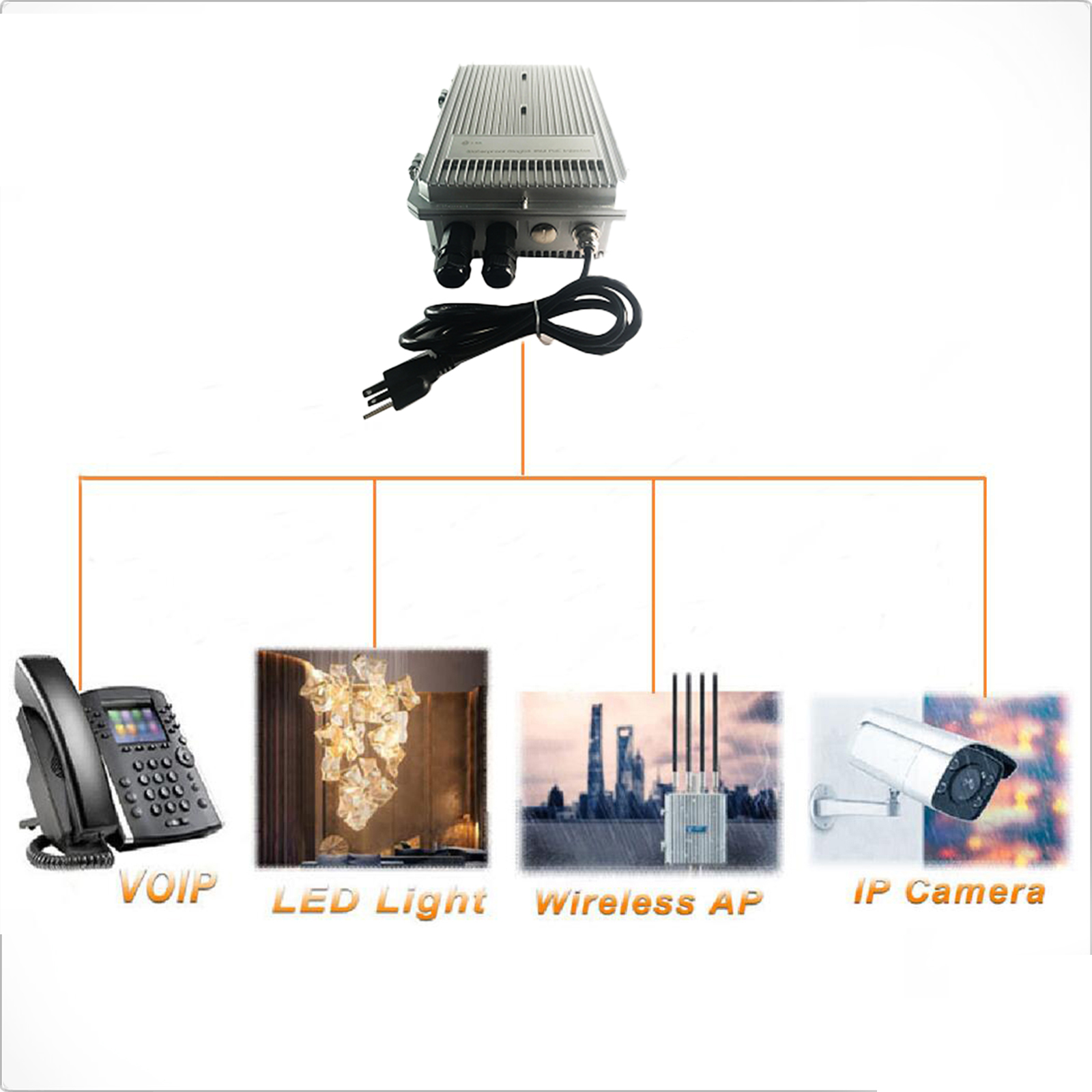

Application

Technical Indexes

Ethernet
Standards:	IEEE 802.3 10BASE-T Ethernet
	IEEE 802.3u 100BASE-TX Fast Ethernet
	IEEE 802.3ab 1000BASE-T Gigabit Ethernet
Processing Type:	Forward
Processing Type:	Half-duplex, Full-duplex
Forward Filter Rate:	1,488,000pps (1000Mbps)
Cabling:	10/100/1000Base-T

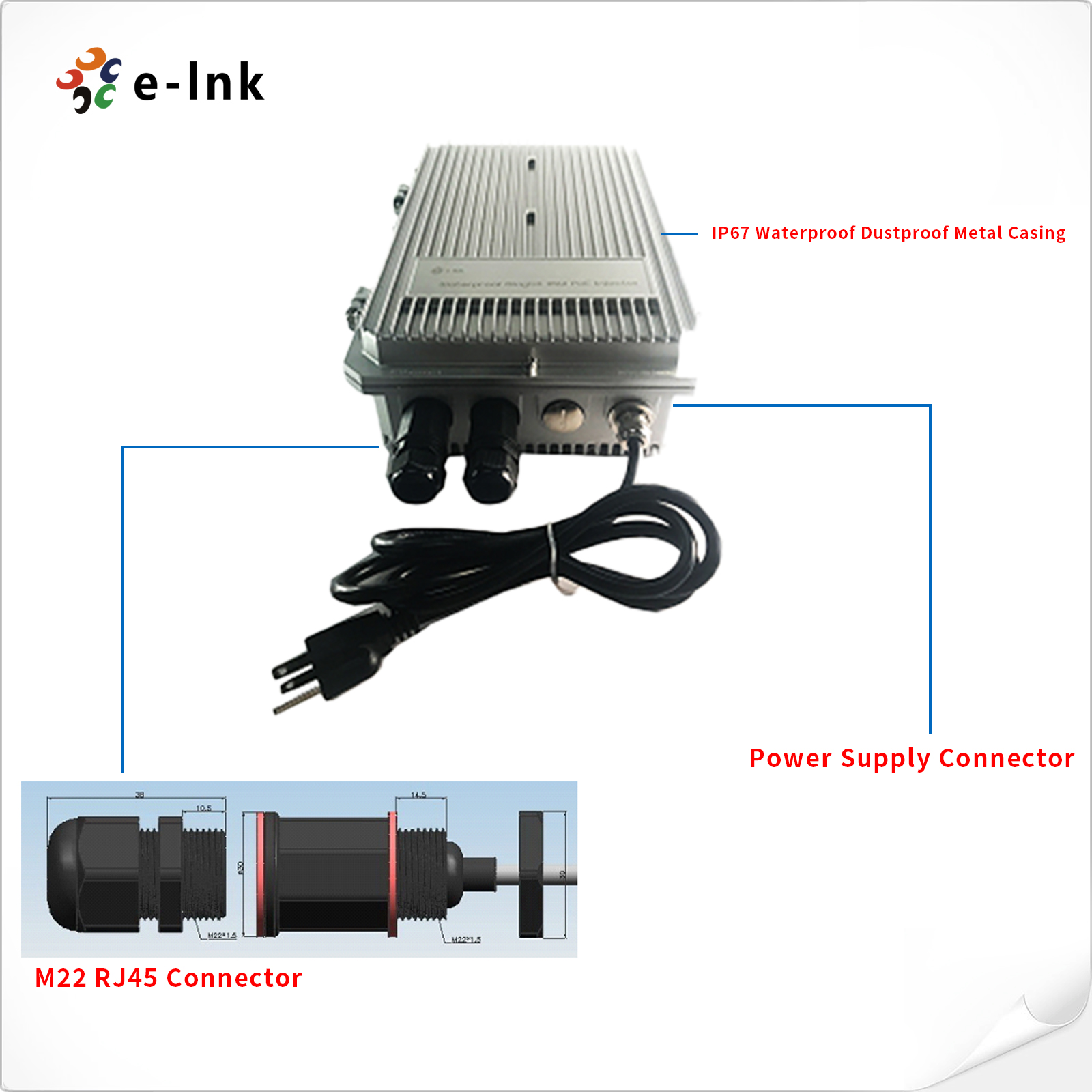

Connector:	2x M22Shielded RJ-45
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF:	>200,000hrs
Input & Output
Input Power:	90~264VAC
Output PoE Power:	55VDC 1750mA
Power Pins:	4/5(+),7/8(-) and 1/2(+),3/6(-)
PoE (Power over Ethernet)
Standard:	IEEE802.3af/at/bt
Port:	M22 Shielded RJ-45
Max. Power per Port:	95W Max
AC Surge Protection
Line-Earth 1.2/50us (8/20us):	6KV
Line-Line1.2/50us (8/20us):	4KV
PoE Surge Protection
Protected line:	1,2,3,4,5,6,7,8
Common mode surge protection(10/700us):	6KV
Differential mode surge protection (10/700us):	1.5KV
Mechanical

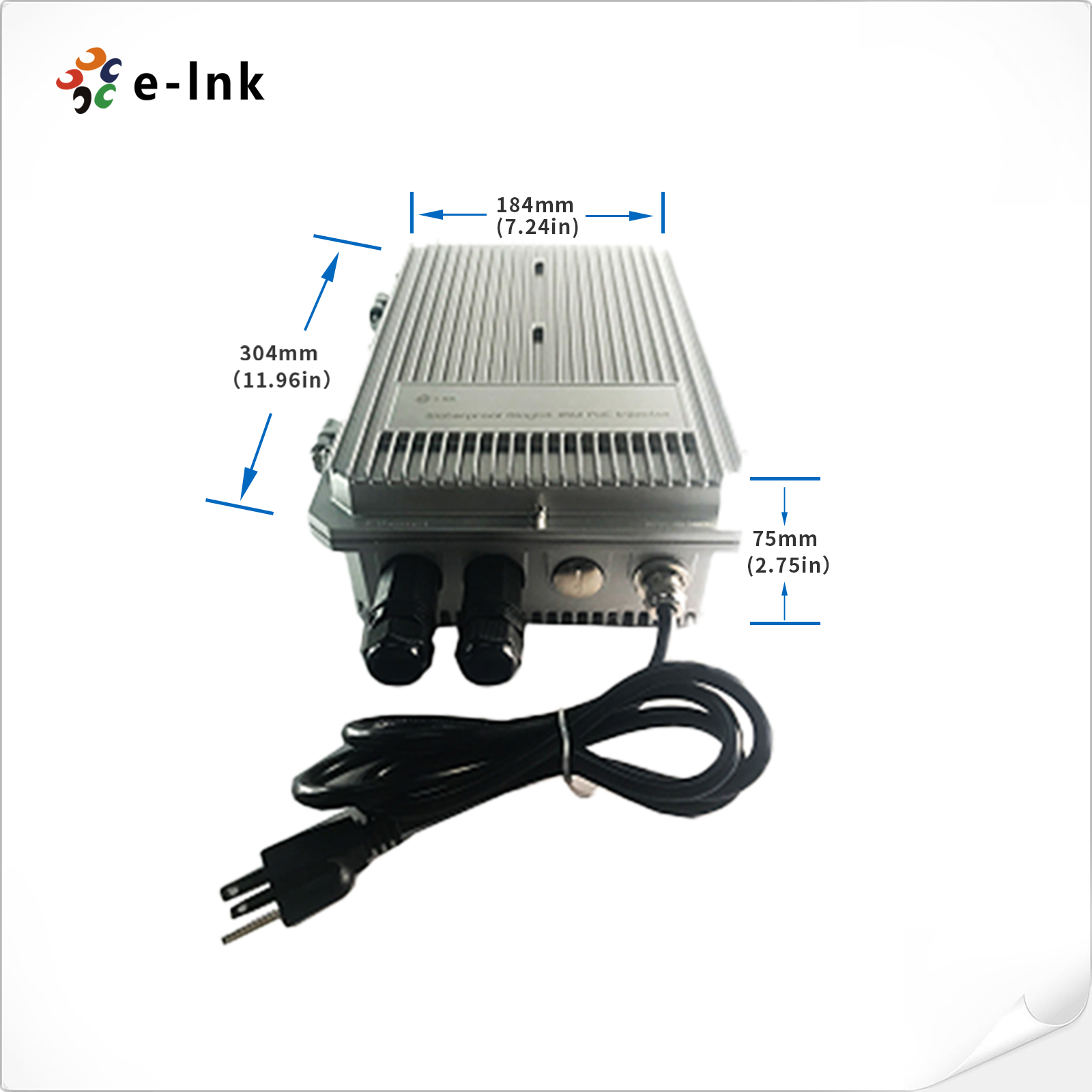

Dimensions (LxWxH):	304 x 184 x 75 mm (inner size)
Weight:	3.6Kg
Casing:	Aluminum Case
Color:	Silver
Mounting Options:	Pole-Mount
Regulatory Approvals
Safety Approvals: UL, CE
EMI: FCC CFR47 Part 15, EN55024, EN55032
EMS: IEC61000-4-2(ESD) ± 6kV(contact), ±8kV(air) IEC61000-4-3(RS) 10V/m(80MHz~2GHz) IEC61000-4-4(EFT) Power Port: ±2kV; Data Port: ±1kV IEC61000-4-5(Surge) Power Port: ±1kV/DM, ±2kV/CM IEC61000-4-6(CS) 10V(150kHz~80MHz)
Immunity: IEC60068-2-6(Vibration) IEC60068-2-27(Impact) IEC60068-2-32(Free Fall)

Download FileName：E-link LNK-IPOE-95W Outdoor Industrial Waterproof PoE Injector Datasheet V1.0.pdf Size： 885KB

Order Information

Model	Description
LNK-IPOE-95W	95W Outdoor Industrial IP67 Waterproof 802.3bt PoE+ Injector
Mounting Options	Pole-mounted (installation kit needs to be purchased separately)

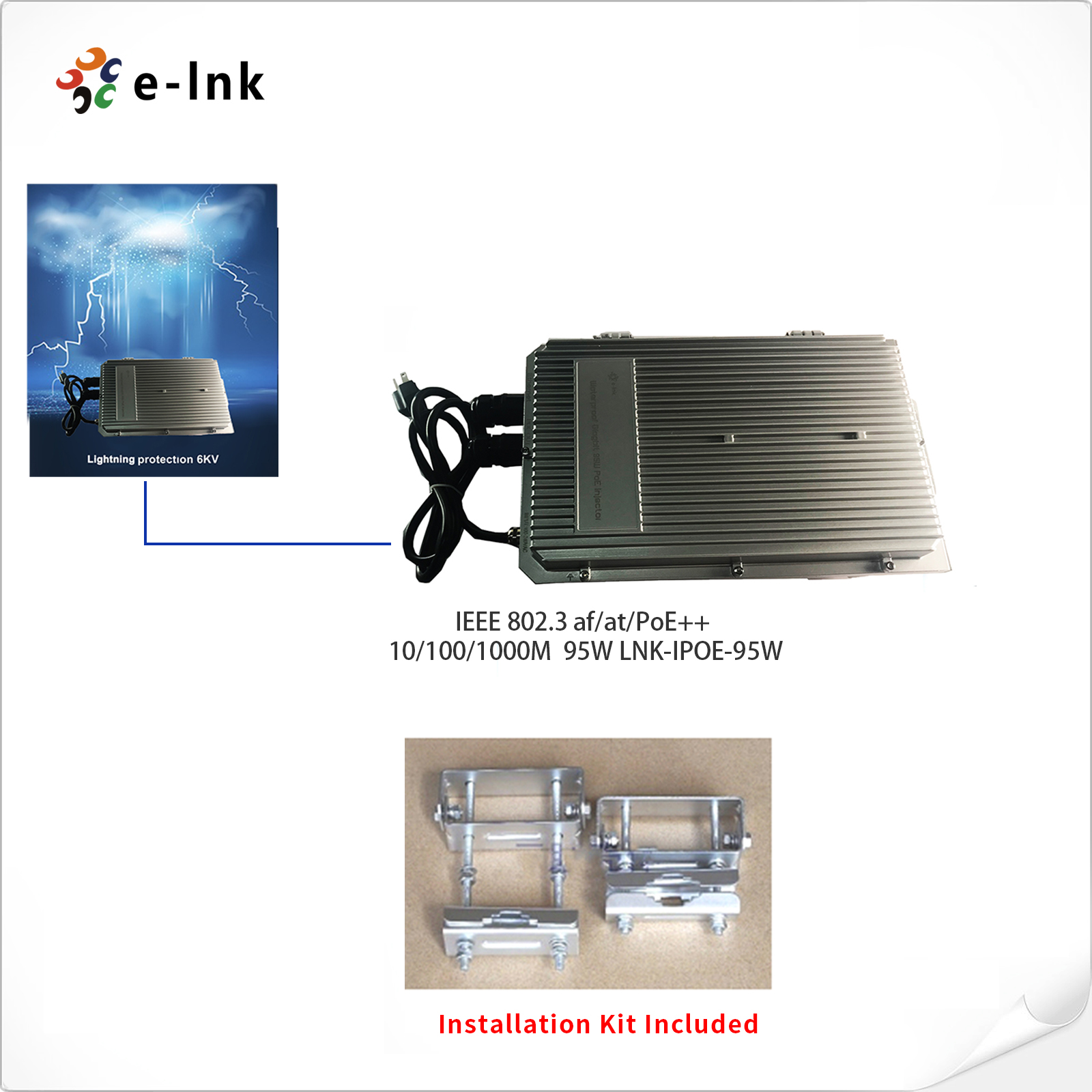

LNK-POT-MBK	Pole-Mount installation kit
