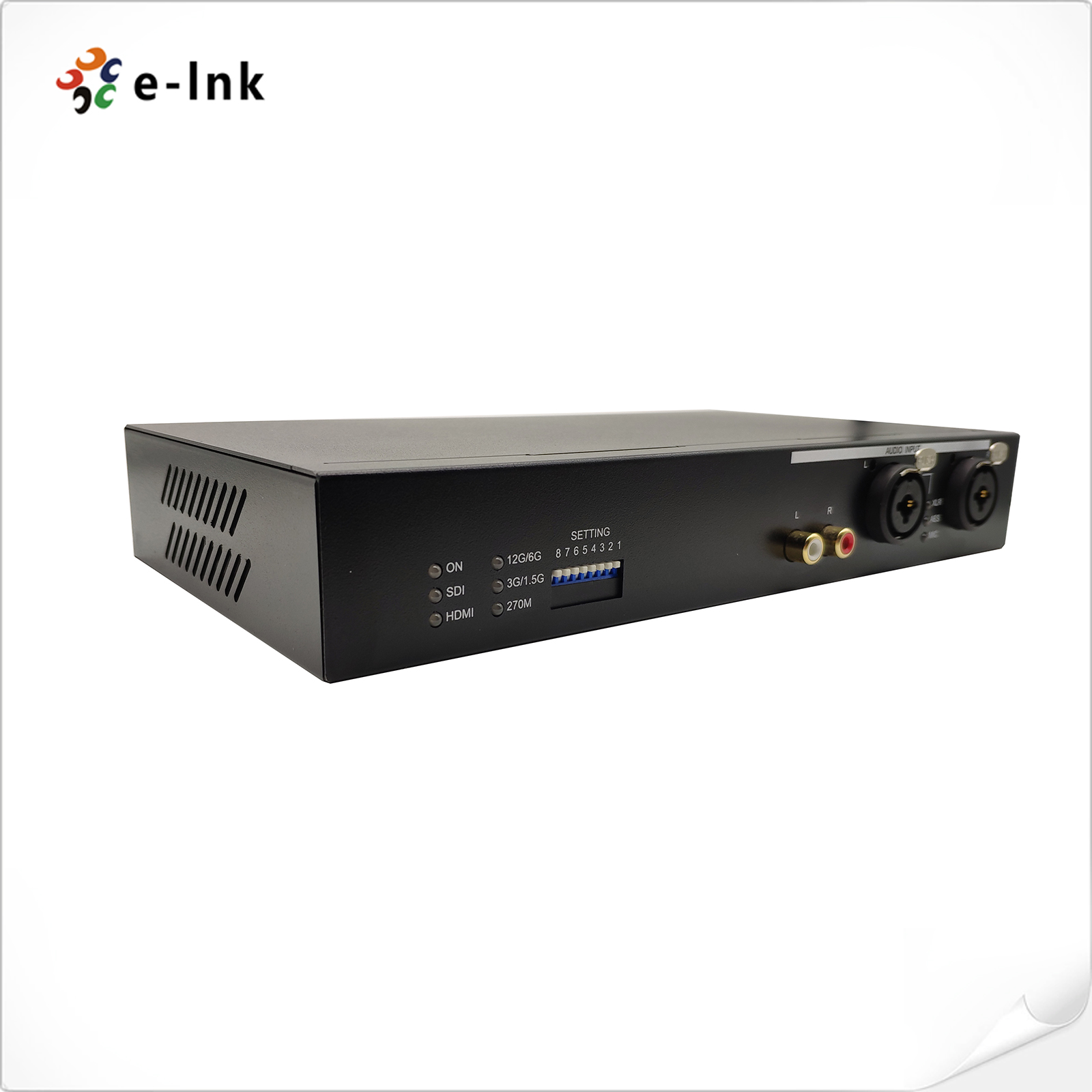

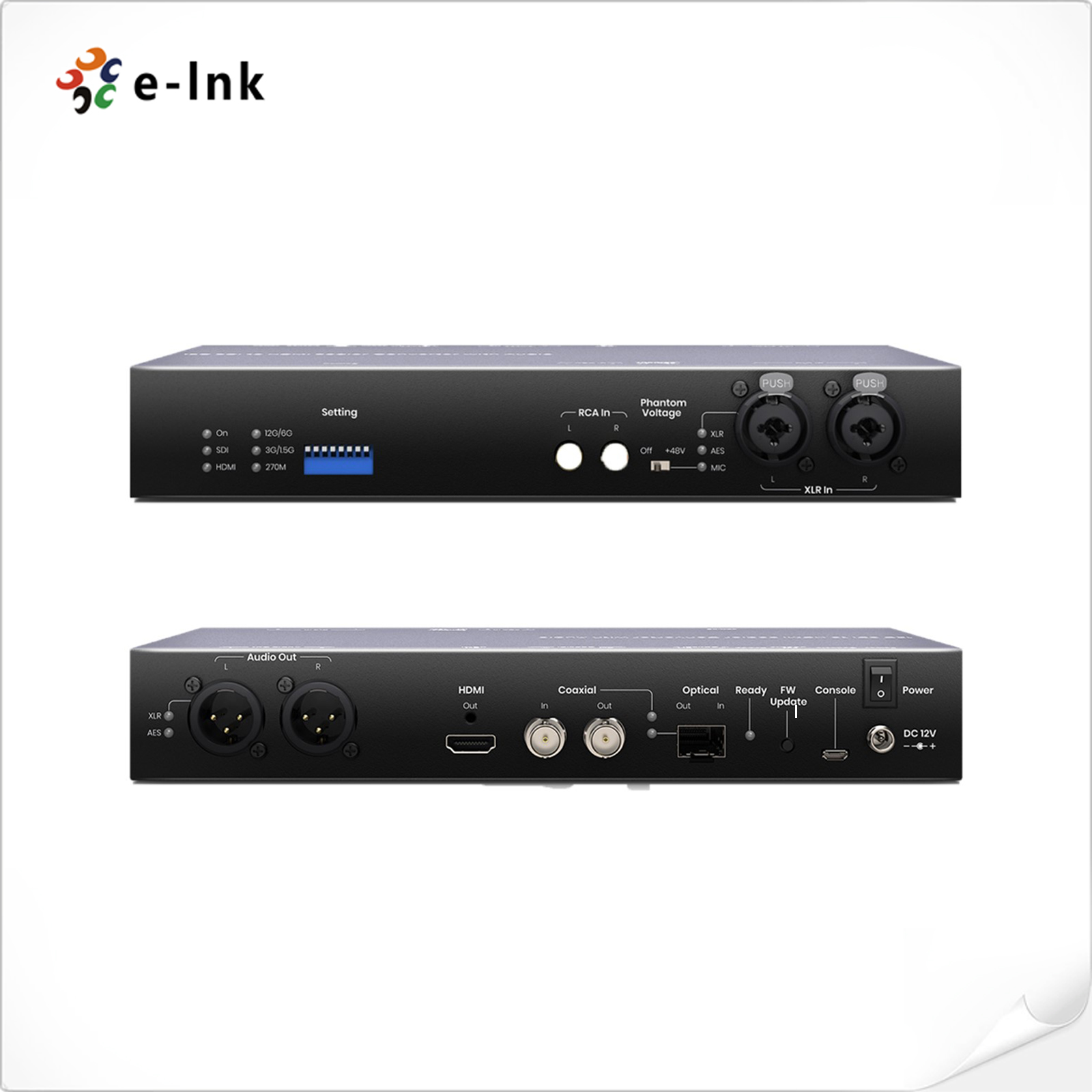

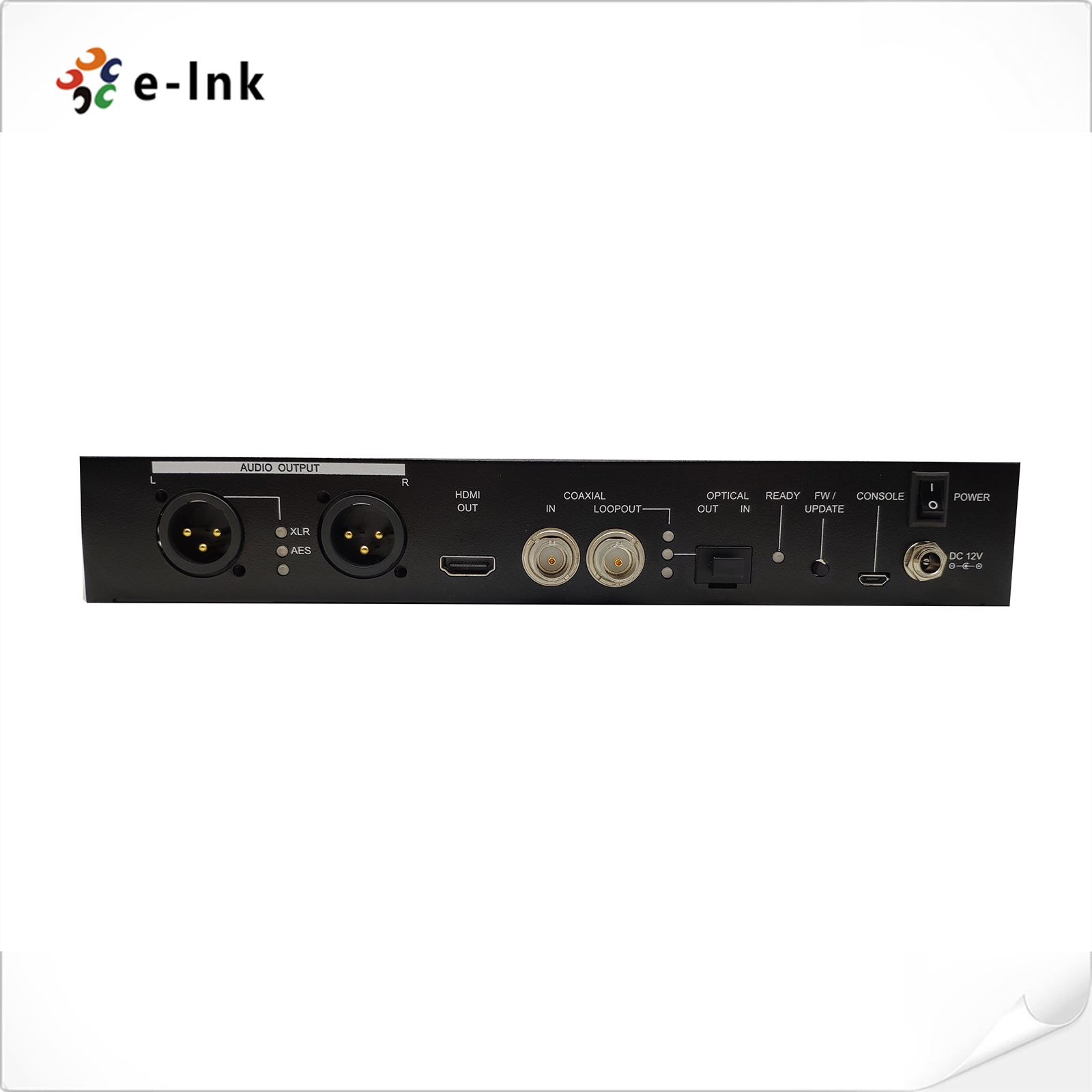

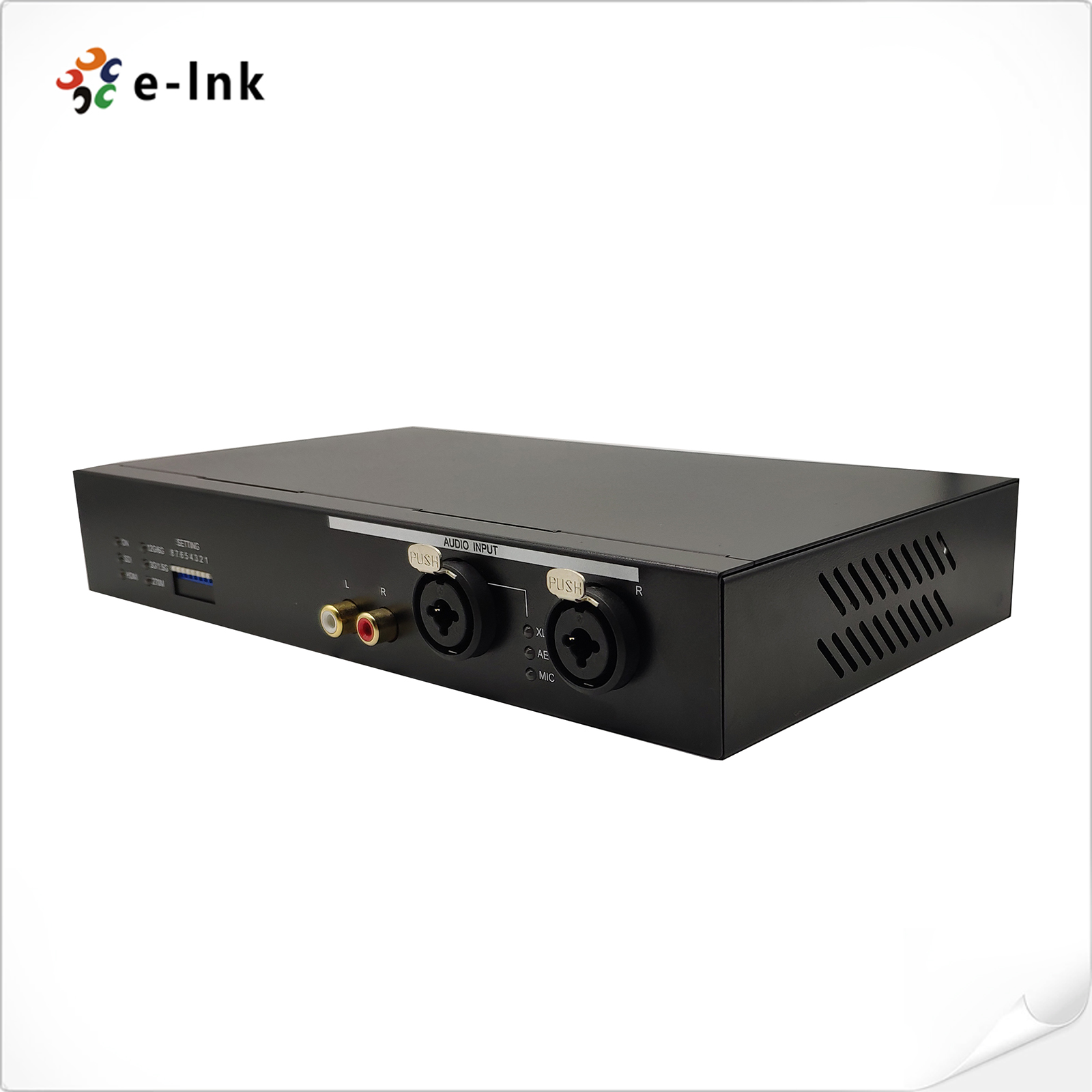

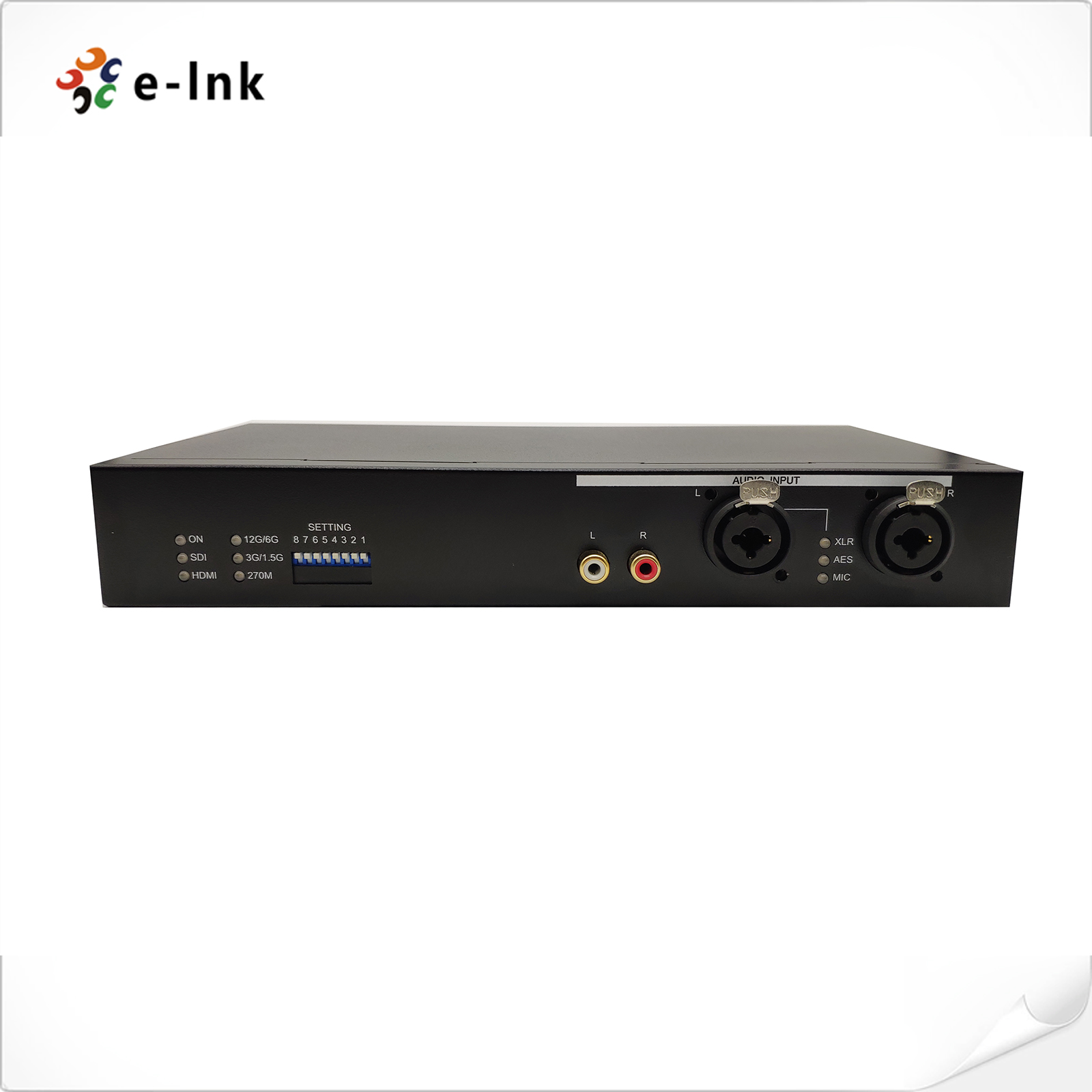

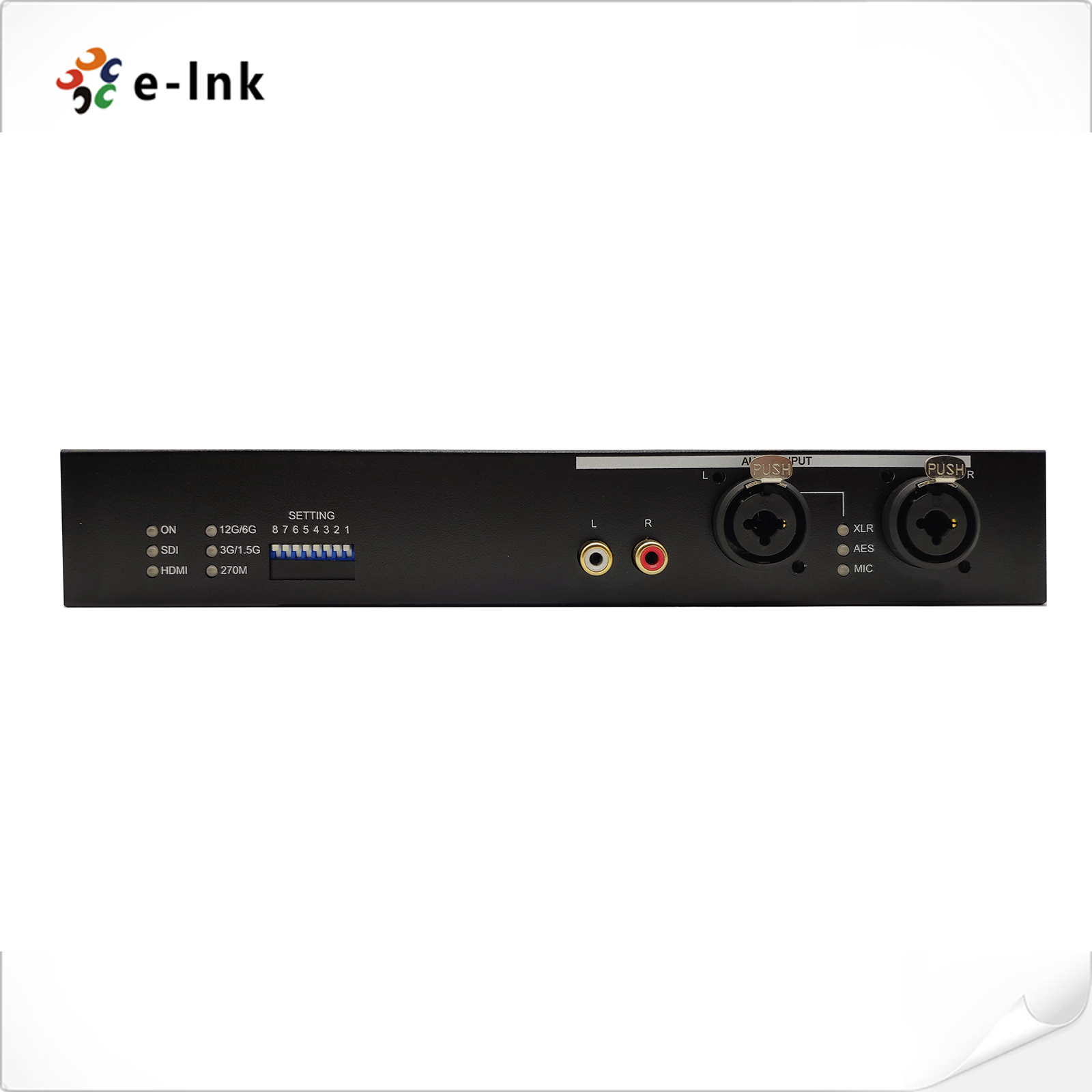

12G-SDI to HDMI 2.0 Converter
Model:LNK-CSH-12G
► Convert 12G-SDI to HDMI 2.0b at up to 4K 60p
► SDI supports up to 12G-SDI, support 4:2:2 HDMI2.0 output
► The highest resolution is 4K 60HZ, which can be down-converted to 1080P 60HZ
► Support audio embedding and de-embedding, compatible with AES/RCA audio
Overview

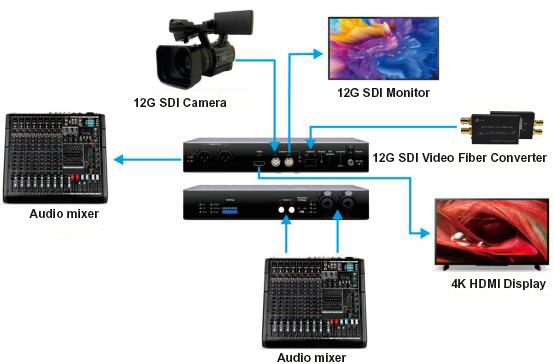

The LNK-CSH-12G is a 12G-SDI to HDMI 2.0 Converter that converts HD/3G/6G/12G-SDI input signals to an HDMI output in real time. It supports various transmission distances depending on different SDI formats, including 45 m (12G-SDI), 60 m (6G-SDI), 90 m(3G-SDI), and 150 m (HD-SDI), offering the flexibility for professional video projects. In addition, It’s with Fiber SFP port available, support 12G remote transmission. The LNK-CSH-12G is a perfect choice for converting SDI signal to HDMI for applications such as broadcasting, medical imaging and industrial inspection.
