Ethernet

Standards:

IEEE802.3af Power over Ethernet

IEEE802.3at Power over Ethernet

Processing Type:

Forward

Half-duplex, Full-duplex

Forward Filter Rate:

3,720,000pps (2.5Gbps)

Cabling:

10/100/1000/2.5G Base-T: Cat6A or above

Maximum Distance:

Cat6A UTP up to 100m

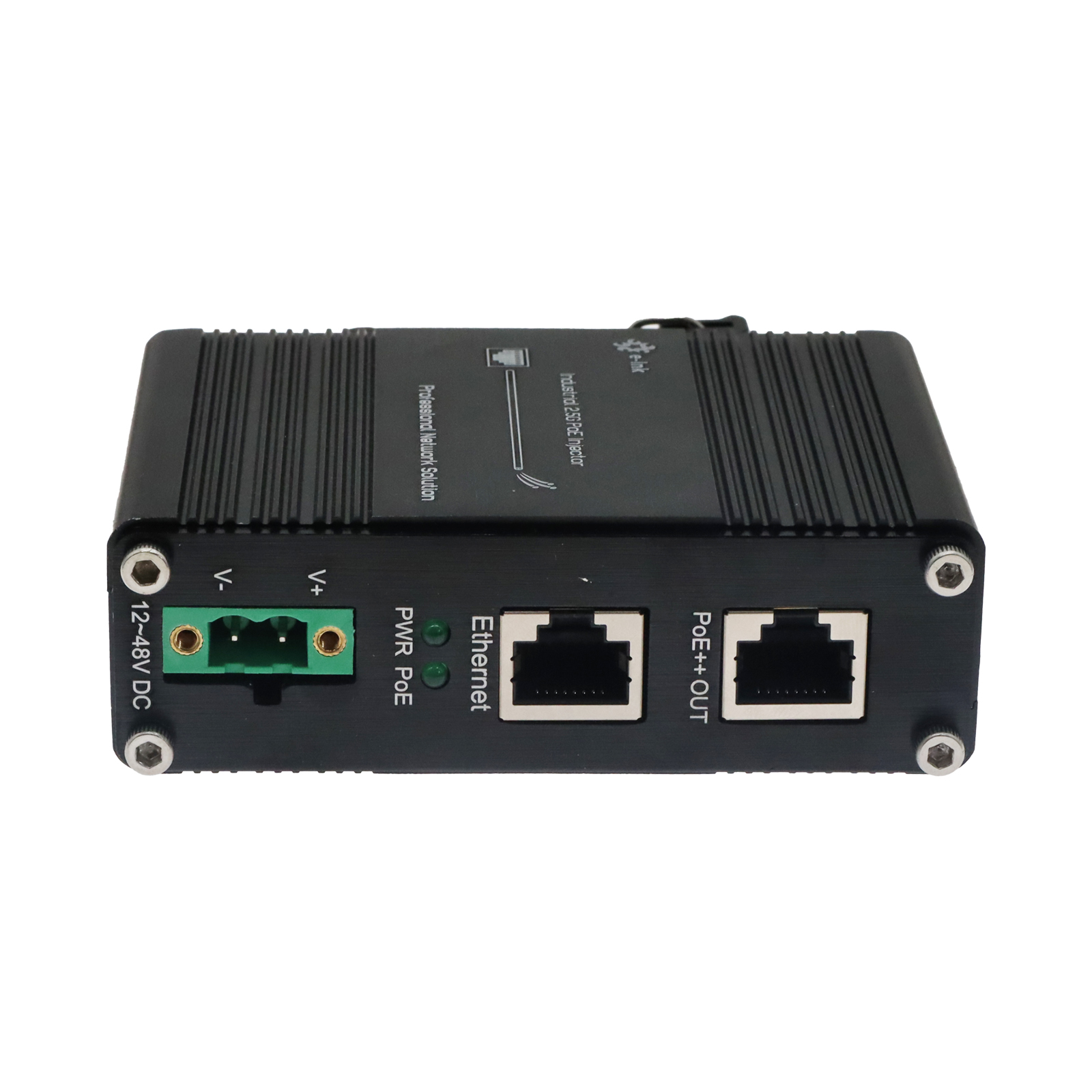

Connector:

2x RJ45

Environmental

Operating Temperature:

-40°C to 80°C (-40°F to 176°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

MTBF:

>200,000hrs

Electrical and Mechanical

Input Power:

12~48VDC (Terminal Block)

Power Consumption:

65W Max.

PoE (Power over Ethernet)

Standard:

IEEE802.3af/at

Port:

RJ45

Power Pin Assignment

4/5(+), 7/8(-)

Max. Power per Port:

60W Max per port (Alternative B Mode)

LED Indicators:

Power:

Power Status

PoE:

PoE Status

Dimensions (WxDxH):

95 x 70 x 30 mm

Weight:

0.25Kg

Casing:

Aluminum Case

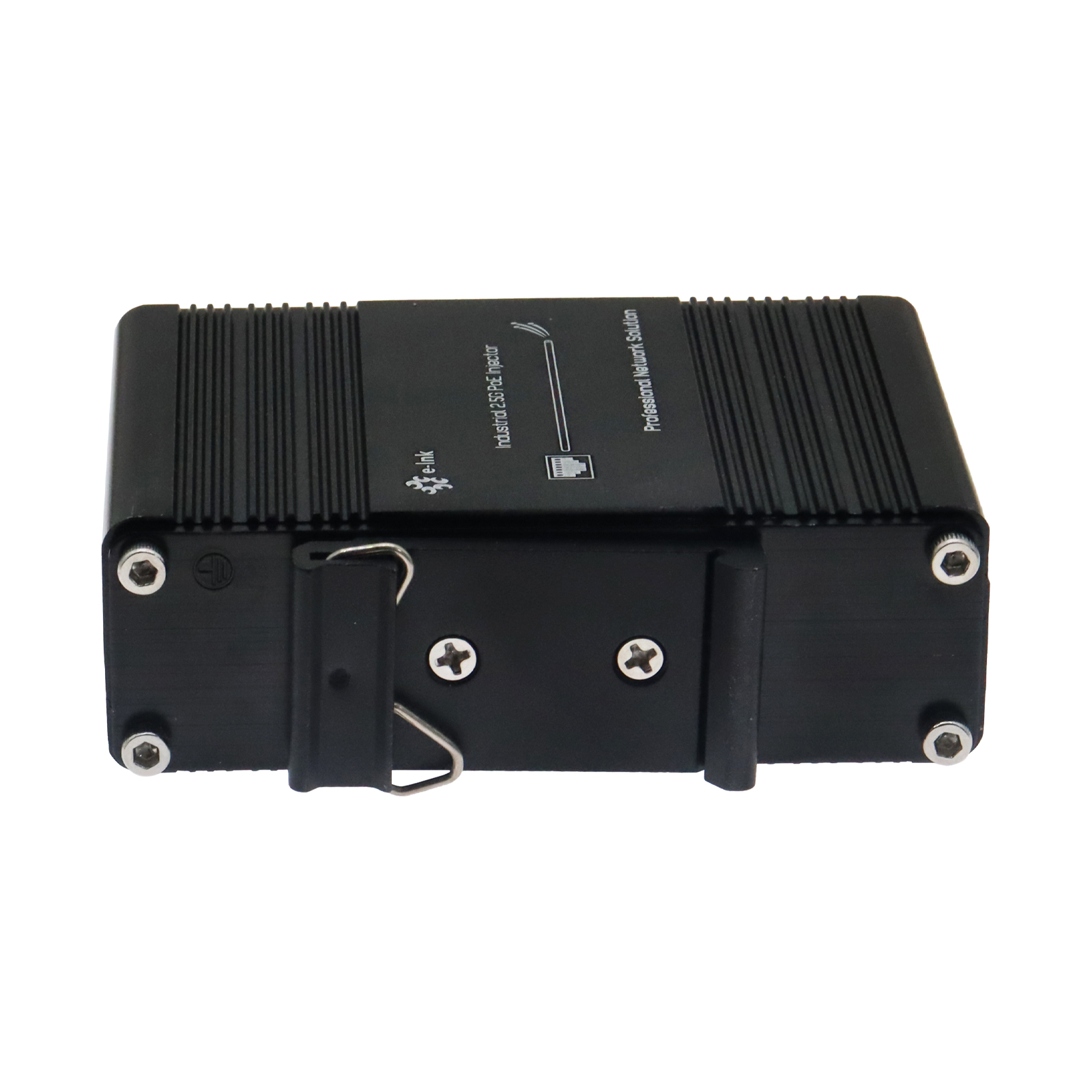

Mounting Options:

DIN-Rail / Wall-mount

Regulatory Approvals

ISO9001

FCC part 15, Class A

EN55022:2006+A1: 2007 Class A

Surge Protection:

RJ45: 1KV

Power: 500V

ESD: 4KV/8KV
