Ethernet

Standards:

10/100/1000/2.5G/5G BASE-T Ethernet

Processing Type:

Forward

Half-duplex, Full-duplex

Forward Filter Rate:

7,440,000pps (5Gbps)

Cabling:

10/100/1000/2.5G/5G BASE-T: CAT7 or above

Maximum Distance:

CAT7 UTP up to 30m

Connector:

2x RJ45

Environmental

Operating Temperature:

-40°C to 80°C (-40°F to 176°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

MTBF:

>200,000hrs

Electrical and Mechanical

Input Power:

12~48VDC (Terminal Block)

Power Consumption:

100W Max.

Power over Ethernet:

Standard:

IEEE 802.3bt 4-pair Power over Ethernet

IEEE 802.3at Power over Ethernet Plus

IEEE 802.3af Power over Ethernet

Port:

RJ45

Power Pin Assignment

Data provide over pairs 1,2TX and 3,6RX

Power over spare pairs 1,2,4,5(+) and 3,6,7,8(-)

PoE Budget:

Up to 95-watt PoE budget (48VDC)

Up to 95-watt PoE budget (24VDC)

Up to 60-watt PoE budget (12VDC)

LED Indicators:

Power:

Power Status

PoE:

PoE Status

Dimensions (WxDxH):

95 x 70 x 30 mm

Weight:

0.25Kg

Casing:

IP40 Aluminum Case

Mounting Options:

DIN-Rail / Wall-mount

Standard Accessories

Package Contents

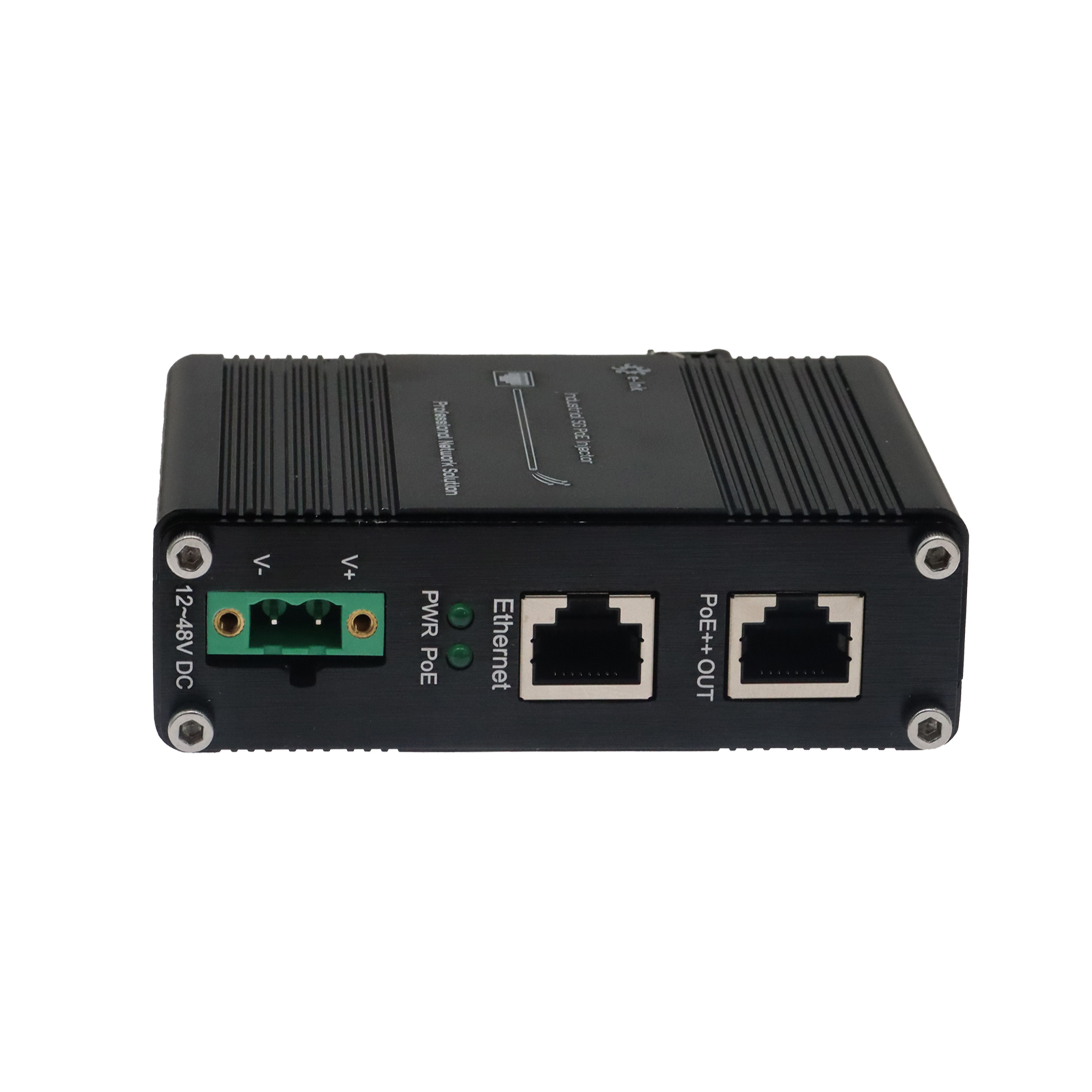

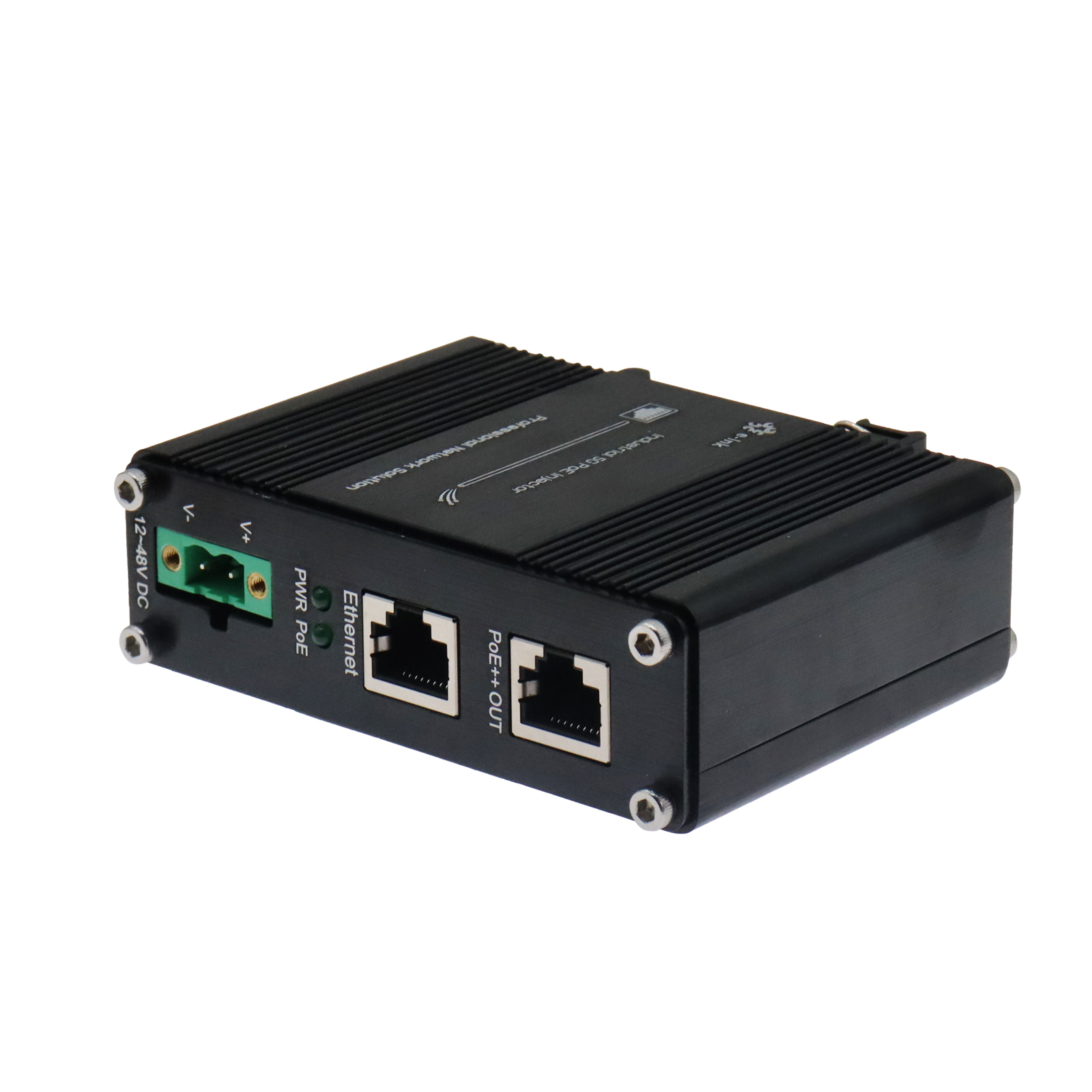

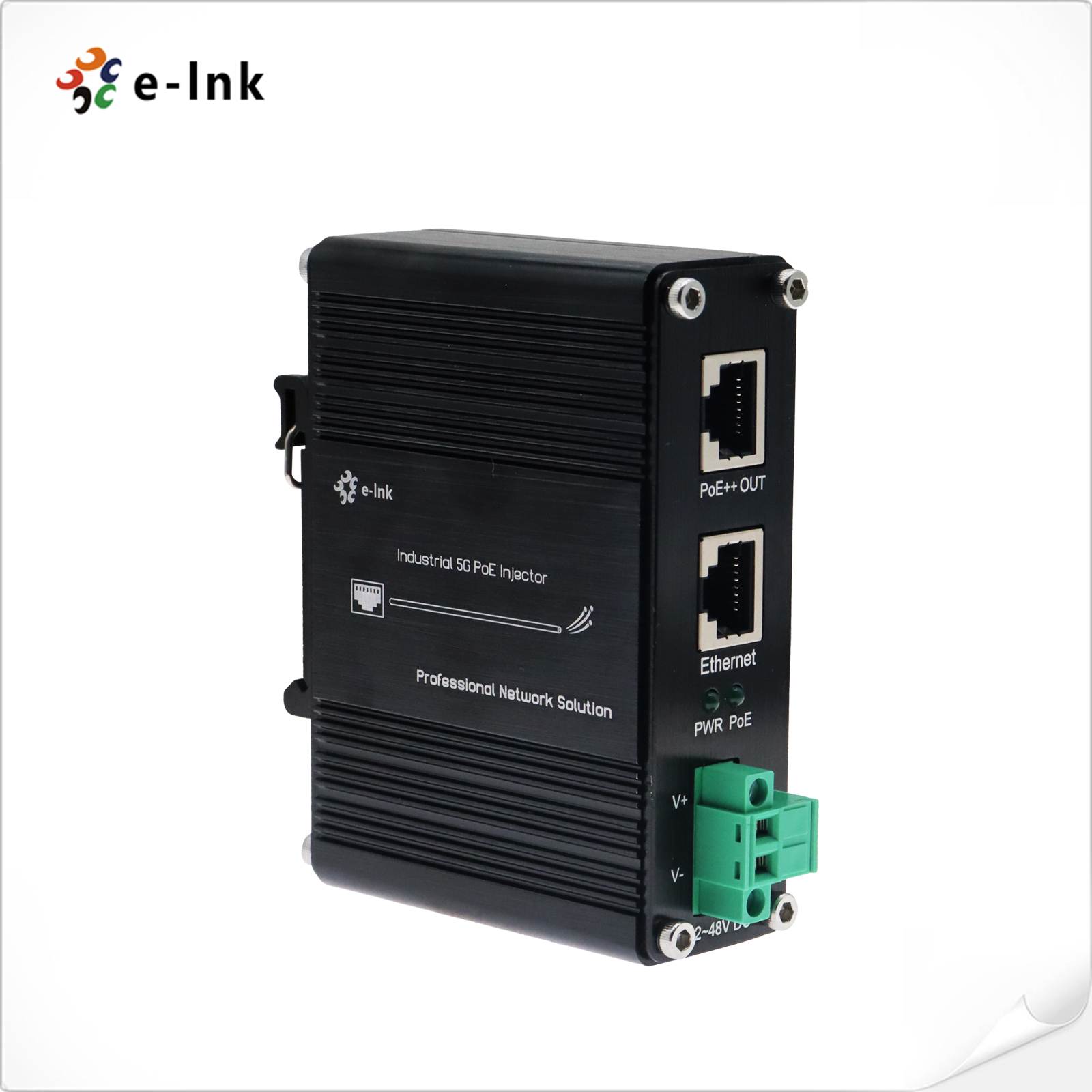

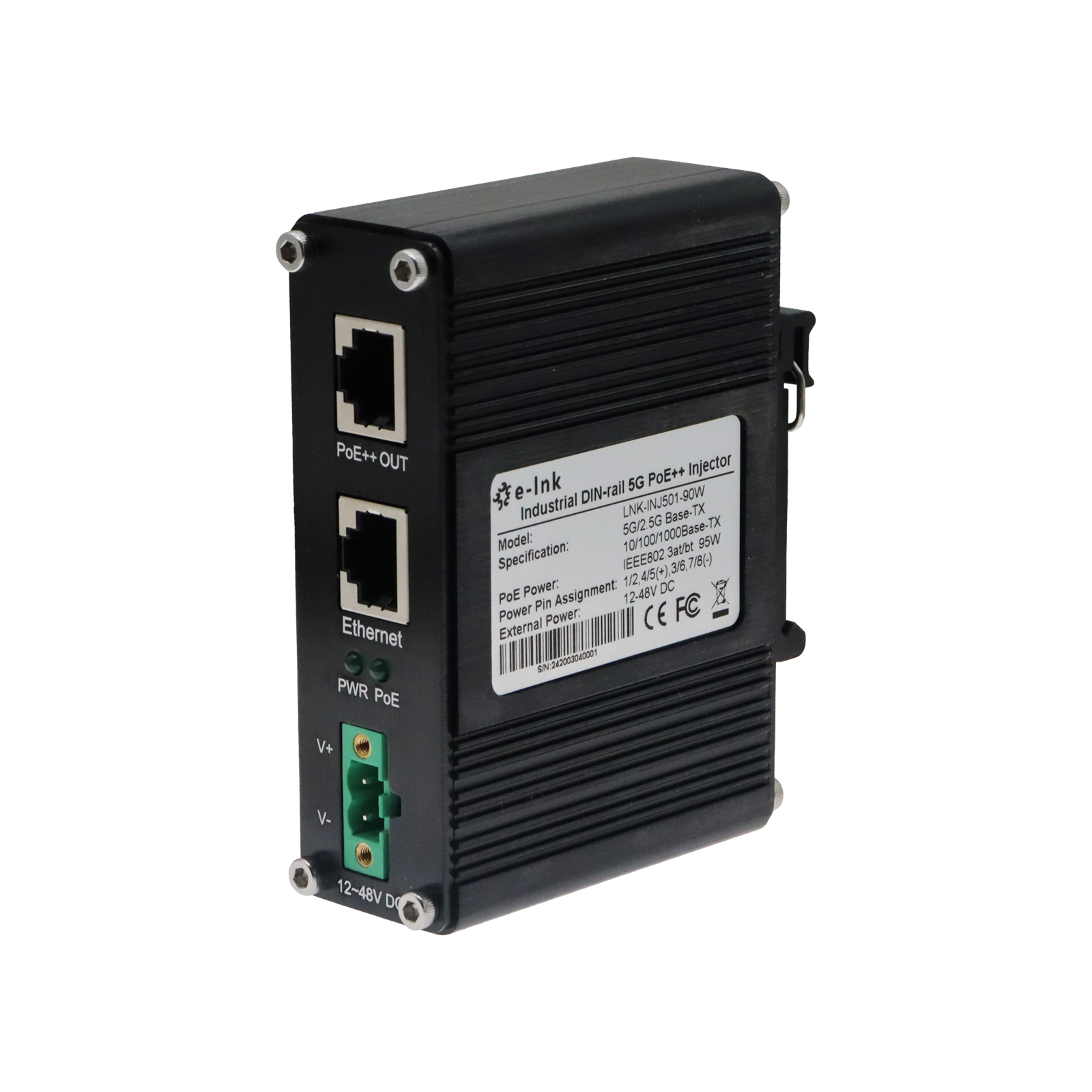

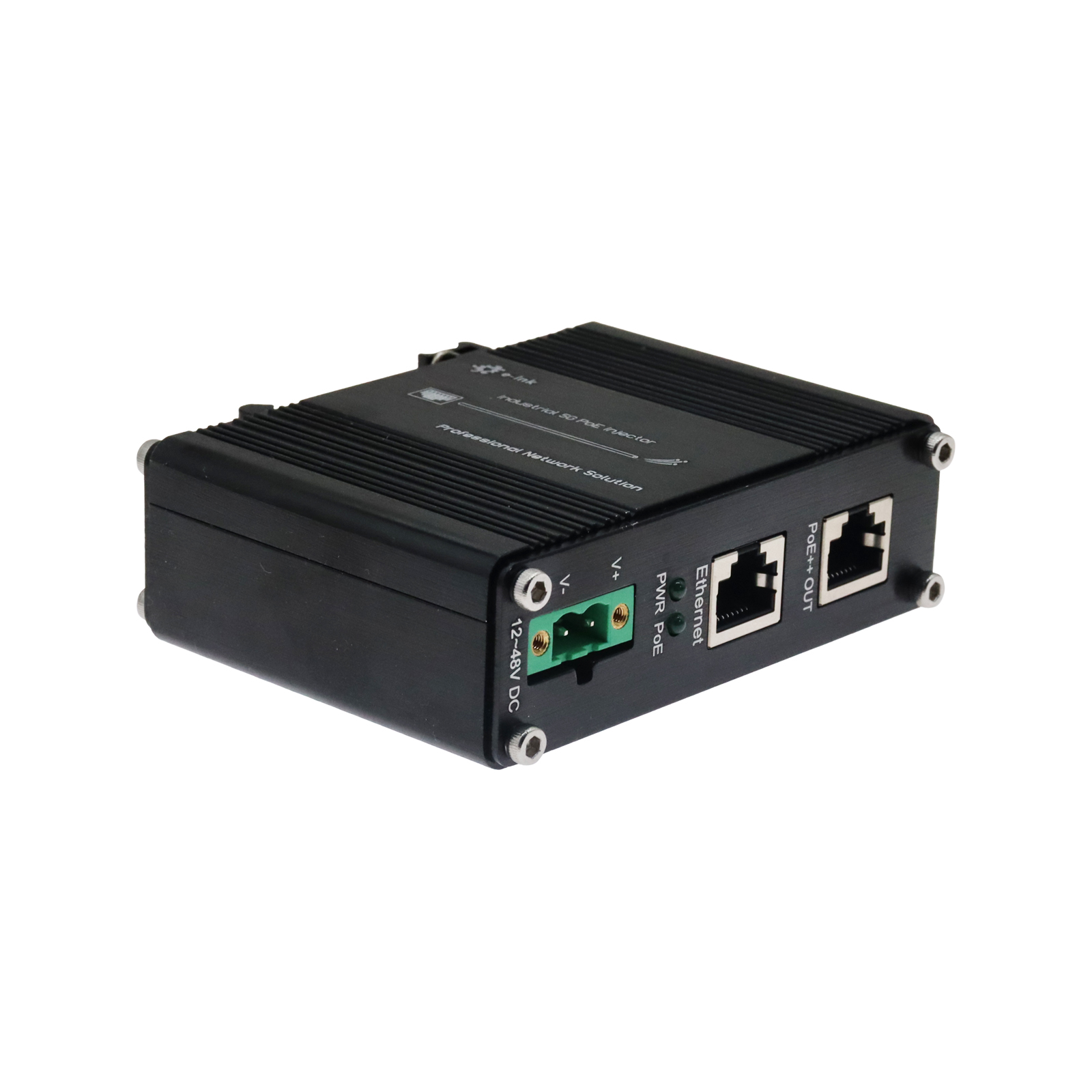

LNK-INJ401-90

User's manual

Wall-mount kit

DIN-mount kit

Regulatory Approvals

ISO9001

FCC part 15, Class A

EN55022:2006+A1: 2007 Class A

Surge Protection:

RJ45: 1KV

Power: 500V

ESD: 4KV/8KV
