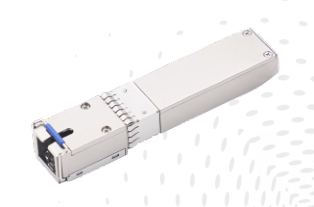

LNK-OM5270SF301 is a combination of XGS-PON OLT and GPON OLT optical transceiver in
an SFP+ housing, and it is compliant to ITU-T G.9807.1 XGS-PON and ITU-T G.984.2 GPON
standard. This module can support XGS-PON and GPON over a single fiber via coarse wave
division multiplexing. XGS-PON feature supports 9.953 Gbps continuous-
mode transmission by 1577 nm EMLlaser and 9.953/2.488 Gbps burst-mode reception by 1270nm APD/
TIA. GPON feature supports 2.488 Gbps continuous-mode transmission by 1490 nm DFB laser and 1.
244 Gbps burst-mode reception by 1310 nm APD/TIA.
It has been designed to meet the harshest external operating conditions that include temperature,
humidity and EMI interference. The module offers very high functionality and feature integration,
accessible via a two-wire serial interface.

● Single-fiber bi-directional transmission
● SFP+ package
● 2 x 11 SFP+ electrical interface
● Hot pluggable
● Typical power consumption 2.5 W
● SC receptacle optical connector
● Operating case temperature: 0°C to 70°C
● 3.3 V power supply
● ODN Class D
● RoHS 2 compliant
● ITU-T G.987.2 compliant
● ITU-T G.9807.1 compliant
● ITU-T G.984.2 compliant

● Gigabits Access Networks
● FTTH
● FTTC
● FTTB
● XGS-PON and GPON Combo Access Networks

Please see the datasheet in Download page

• Download FileName：E-link SFP XGS Combo PON OLT Class D 20km LNK-OM5270SF301 Databrief Rev1-1.pdf Size： 843KB

Part Number	Description
LNK-OM5270SF301	SFP+, 9.953&2.488 Gbps (Down)/9.953/2.488&1.244 Gbps (Up), XGS-PON&GPON OLT Class D, 20km
