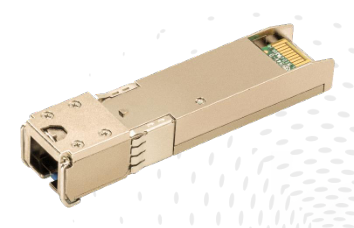

LNK-OM5070AX300 module is designed for 20 km optical communication applications, and it is compliant
with ITU-T G.984.2 GPON standard. This module can support 2.488 Gbps continuous-mode
transmission by 1490 nm DFB laser and 1.244 Gbps burst-mode reception by 1310 nm APD/TIA. The
module offers very high functionality and feature integration, accessible via a two-wire serial interface.
The optical signals are multiplexed to a single-mode fiber through a standard SC connector.

● Single-fiber bi-directional transmission
● SFP package
● 2 x 10 SFP electrical interface
● Hot pluggable
● Transmitter: 1490 nm DFB
● Receiver: 1310 nm APD/TIA
● Typical power consumption: 0.9 W
● SC receptacle optical connector
● Operating case temperature: 0°C to 70°C
● 3.3 V power supply
● ODN Class D
● RoHS 2 compliant
● ITU-T G.984.2 compliant

● FTTH
● FTTC
● FTTB
● GPON Access Networks

Please see the datasheet in Download page

• Download FileName：E-link SFP 2488M(Tx)1244M(Rx) GPON OLT Class D 20km (LNK-OM5070AX300) Datasheet Rev1.3.pdf Size： 1.86MB

Part Number	Description
LNK-OM5070AX300	SFP, 2.488G (Down)/1.244G (Up), GPON OLT Class D, 20 km
