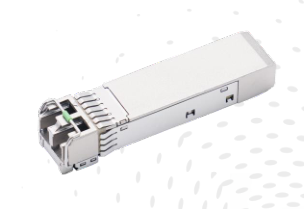

LNK-OM6363TX102 is a very compact 25 Gbps optical transceiver module for serial optical
communication applications at 25 Gbps. It converts a 25 Gbps serial electrical data stream to 25
Gbps optical output signal and a 25 Gbps optical input signal to 25 Gbps serial electrical data streams
. The high speed 25 Gbps electrical interface is fully compliant with SFI specification of SFF 8431.
LNK-OM6363TX102 is designed for CPRI (24.33 Gbps) and Ethernet LAN (25.78 Gbps) applications.
The high-performance DFB-LD transmitter and high sensitivity PIN receiver provide superior
performance for Ethernet applications at up to 20 km links.
The fully SFP compliant form factor provides hot pluggability, easy optical port upgrades and low EMI
emission.

● SFP28 MSA compliant
● Hot pluggable 20-pin electrical interface
● 25G electrical interface (OIF CEI-28G-VSR)
● Maximum power consumption 1.2 W
● Up to 25.78 Gbps data links
● Up to 20 km transmission on single mode fiber
● Operating case temperature: –40°C to +85°C
● Single 3.3 V power supply
● RoHS 2 compliant

● CPRI/eCPRI
● 10G/25G Ethernet switches and routers

Please see the datasheet in Download page

• Download FileName：E-link SFP28 25G 20km LNK-OM6363TX102 Databrief Rev1-3.pdf Size： 797KB

Part Number	Description
LNK-OM6363TX102	SFP28 25G 20 km
