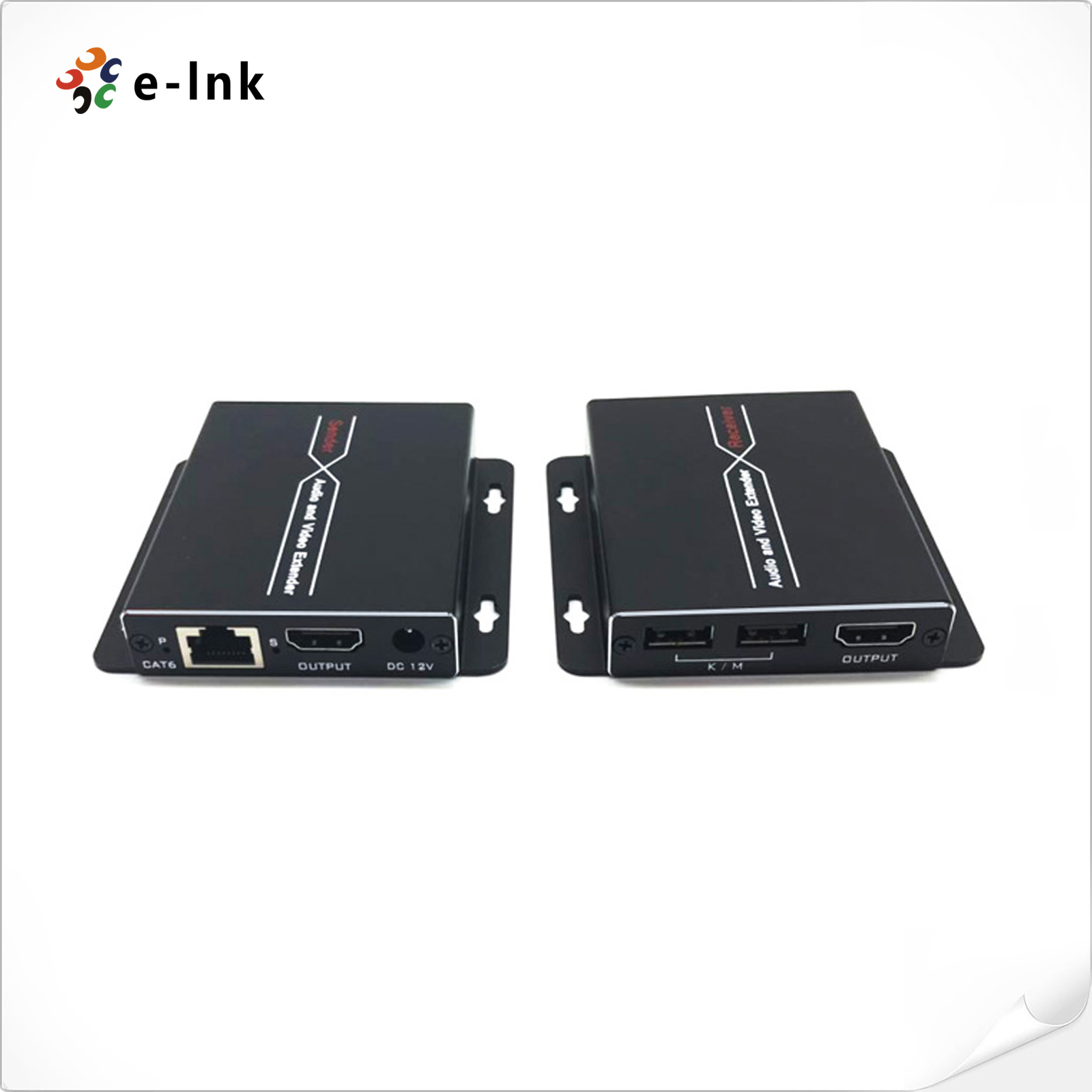

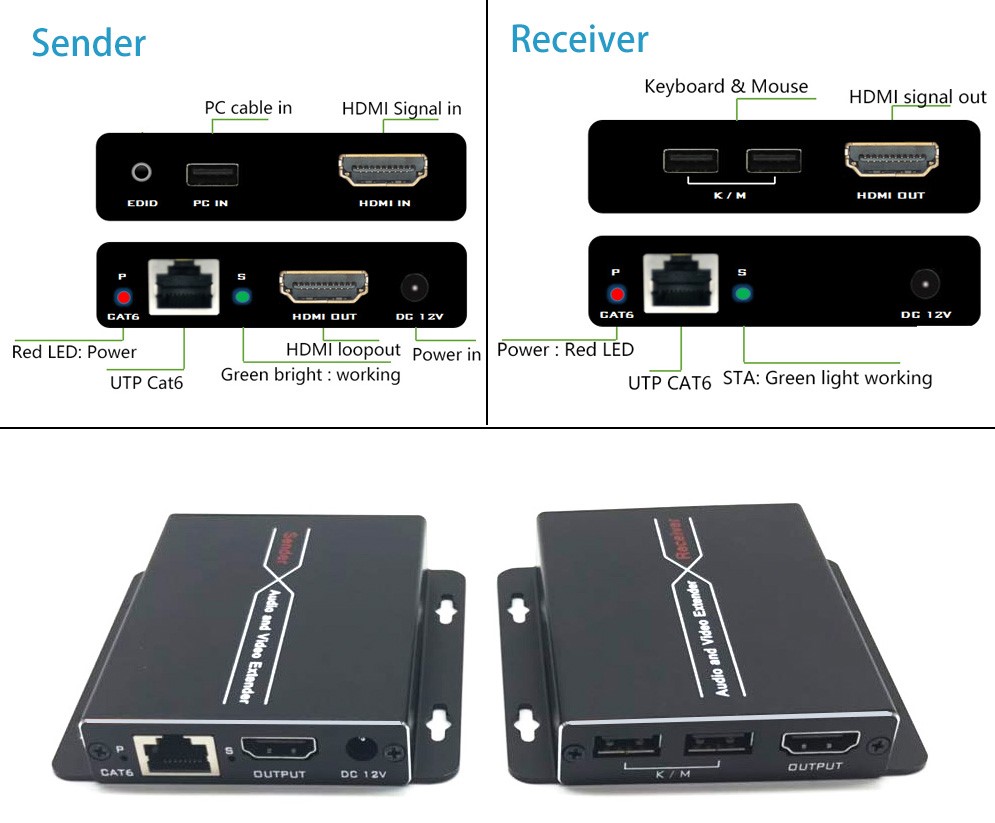

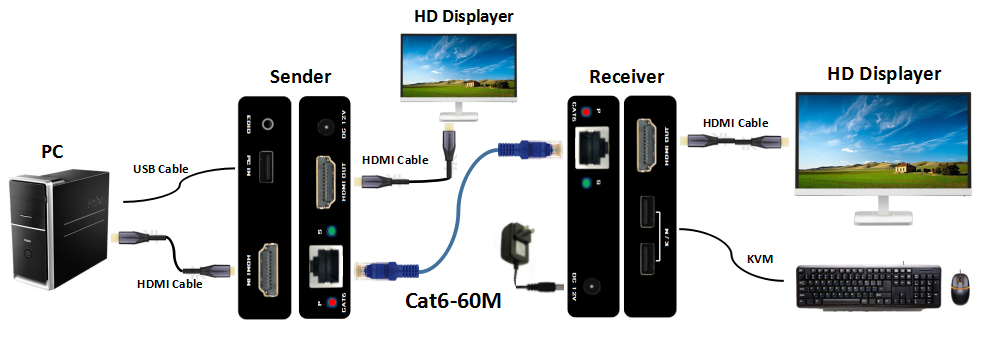

This HDMI Extender includes a transmitter unit (TX) and a receiver unit(RX), working as a pair. It allows for transmission and extension uncompressed full HD 1080p@60Hz HDMI signal via CAT6/6A/7 network cable, the transmission distance is up to 60 meters with zero latency. At the same time, the signal is stable, and the built-in EDID greatly improves the compatibility of the device. It supports keyboard & mouse remote control and local loop-out, also it supports PoE to power the sender/receiver (Connect power supply to the transmitter /receiver, each unit will power up, as the unit through network cable). This product is perfect for AV transmission in applications of HD conference system, HD video shooting, HD multimedia education system, HD digital advertising and signage etc. The device has a long transmission distance, low use cost, convenient installation and good compatibility, and it is a stable and efficient transmission method.

►    Aluminum shell, compact size and Slim design, more beautiful than iron shell, strong anti-interference, Wall-mounted type is more convenient;

►    Uncompressed transmits HDMI video and audio signals up to 60M over a single CAT6 cable;

►    Support video resolution up to 1920*1080@60Hz, 3D signal;

►    Support keyboard and mouse remoter control ;

►    Support local HDMI loop-out ;

►    Build-in EDID function, can match many kind display device;

►    Support POC unilateral power supply, need 1pc 12V power to TX/RX

►    Compliance with HDMI 1.3 and HDCP 1.3 standard;

►    Ethernet cables with a standard IEEE - 568b connection, convenient installation;

►    High compatibility, can auto-match source and display device;

►    Built-in automatic adjustment system, make the image smooth, clear and stable;

Parameter		Description
Video	Standards	HDMI 1.3, HDCP 1.3
	Maximum Pixel Clock	165MHz
	Max Data Rate	6.75Gbps
	Resolution	Max: 1920X1080@60Hz（backward-compatible）
	Connector	HDMI-A
	Impedance	100Ω
USB	Interface	PC: Standard MINI-USB or PS2 K/M: Standard USB, PS2 (optional)
	USB Signal	HID Signal
UTP	Interface	RJ45
	Transmission Distance	CAT6  Max: 60m
Other	Power Supply	DC 12V
	Power Dissipation	Max: 4W
	Temperature	Operating: -5℃ ~ +70℃
	Humidity	Operating: 5% ~ 90%
	Dimension	82*85*17mm
	The warranty	1 Year Free Warranty

Part No	Description of product
LNK-HDE-60KVM	60M 1080P HDMI KVM Extender With Loop-out

• Download FileName：E-link 60M 1080P HDMI KVM Extender With Loop-out Datasheet V1.0.pdf Size： 459KB
