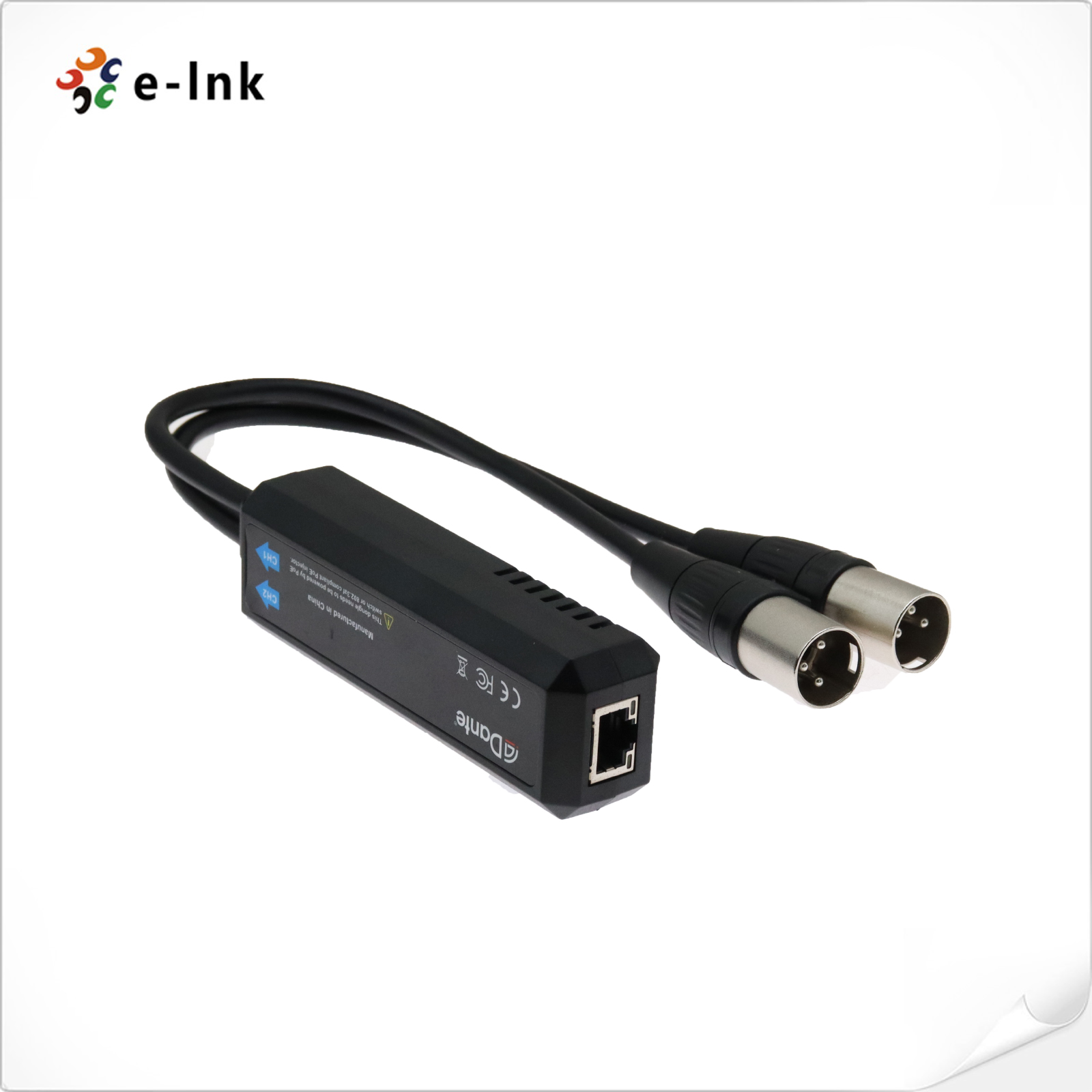

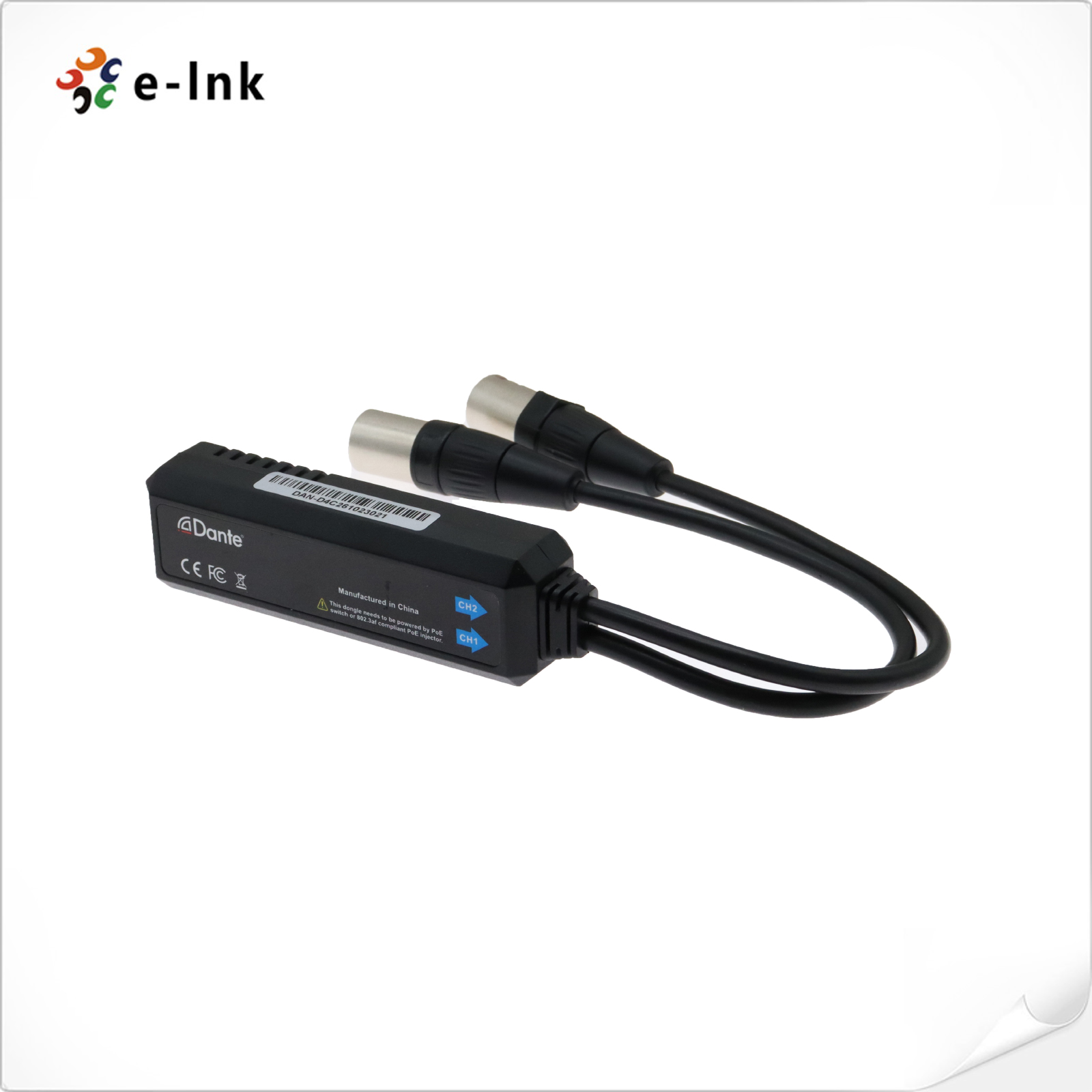

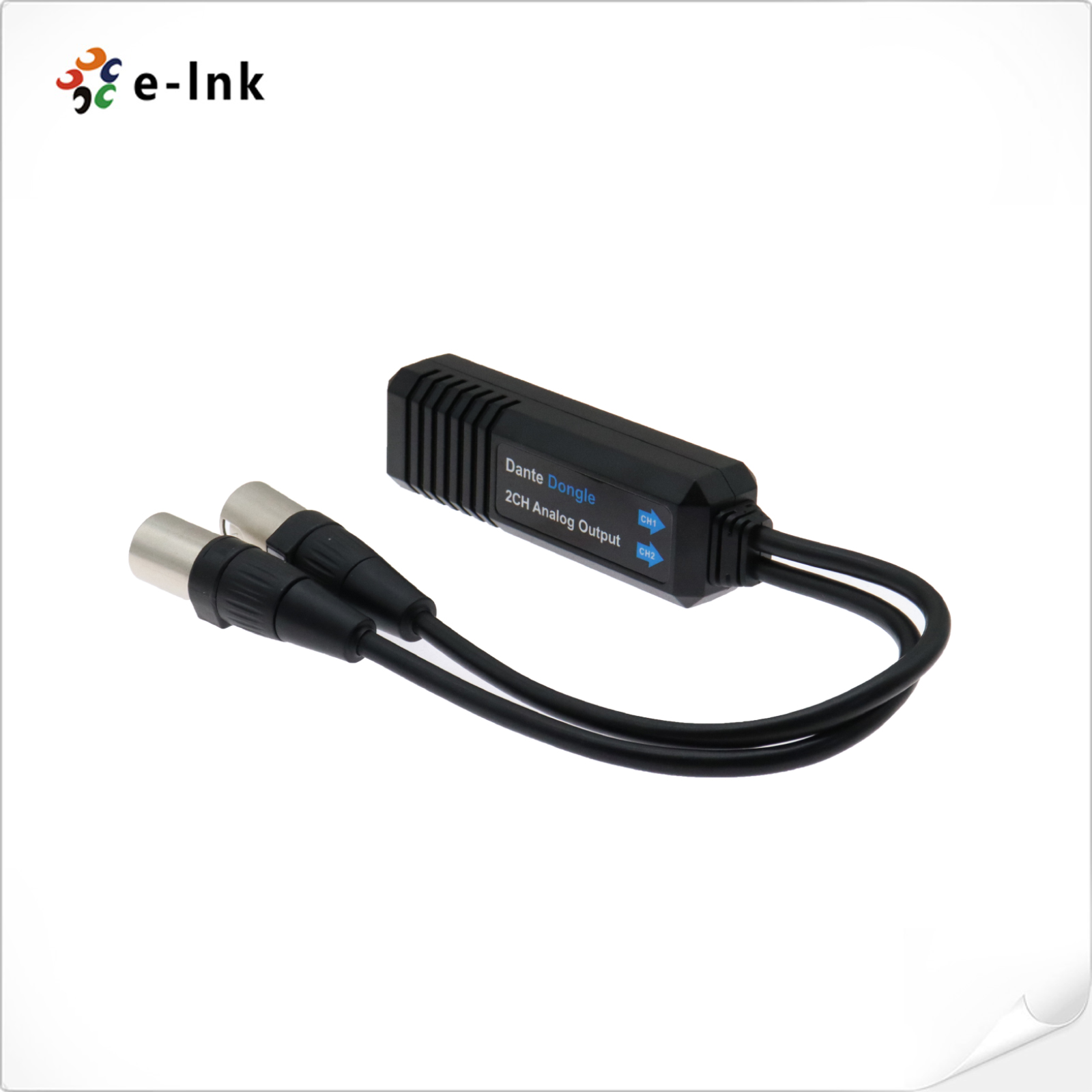

Dante 2Ch Analog Output Dongle Converter

Model:LNK-DAN-D4

► Plug and play.

► 24-bit audio support

► 0x2 Audio Channels

► Support power via PoE Injector (IEEE802.3af)

上一张

下一张

The LNK-DAN-D4 2Ch Analog Output Dongle Converter can connect Dante network and supports Analog 0X2 channels audio, allowing analog amplifier to your Dante audio network.

Port
RJ45 Port	Network communication port. Green light on indicates system is ready Yellow light flash indicates link/data traffic. When click the "Recognize" button (an eye-shaped symbol) on the Dante controller, Green light will flash to identify the device.
XLR Port	2 x XLR port, connect output device
Audio
Max signal level	+18 dBu
Output Gain	-6 dBu
Frequency Response	20Hz to 20kHz(-/+0.5dB)
Impedance	150 Ohm balanced, 75 Ohm unbalanced
Dynamic Range	>100 dB
Signal to Noise Ratio	>100 dB
THD	<0.01% @+4dBu
Dante
Sample Rate	44.1kHz, 48kHz, 96kHz
Bit Depth	24
Dante Device latency	1,2 or 5ms (configurable using Dante Controller)
Type	Analog 0X2
General
Operation Temperature	-5 to +55℃(+23° to +131°F)
Storage Temperature	-25 to +70℃(-13° to +158°F)
Power	802.3af PoE
Power Consumption	2.6W(Max)
Dimension (WHD)	114 x 30 x 28 mm
Cable length	30cm
Net Weight	145g

Model	Description
LNK-DAN-D4	Dante 2Ch Analog Output Dongle Converter
