Overview

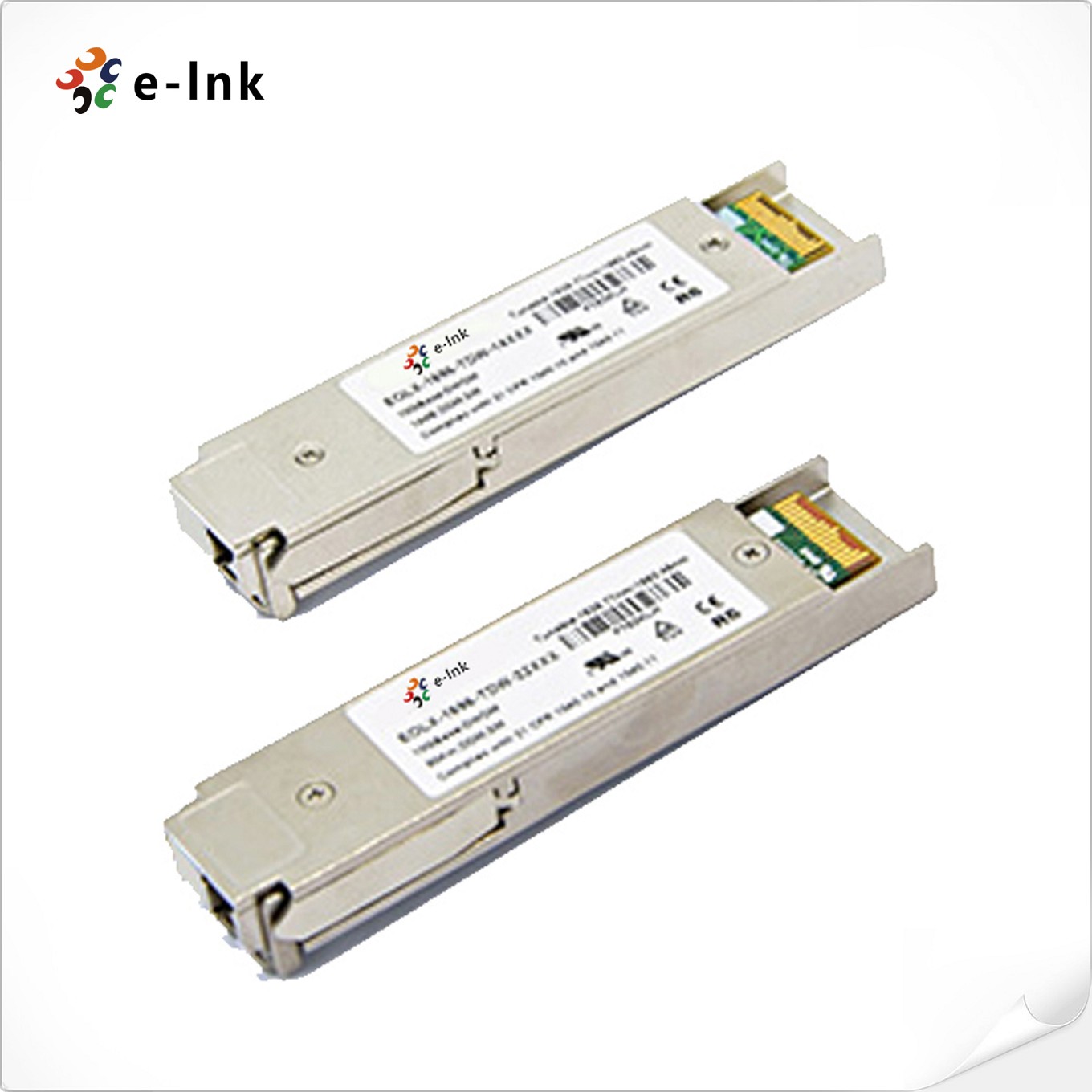

E-link LNK-BXFP-10G-20U/D is compliant with the IEEE803.3ae 10Gbase-Bx and transmission distance up to20km onSMF.The transceiver module comprises a transmitter with a 1270/1330nm DFB laser transmitter, an integrated 1330/1270nm detector preamplifier(IDP) mounted in an optical header and a limitingpost-amplifier IC. Transmitter and receiver are separate within a wide temperature range of 0℃  to +70℃

and offers optimum heat dissipation and excellent electromagnetic shielding thus enabling high port densities for 10GbE systems.

Features

►Supports 9.95Gb/s to 10.3Gb/s bit rates

►Hot-pluggable XFP footprint

►1270/1330nm DFB laser Transmitter and 1330/1270nm Receiver

►XFP MSA package with LC connector

►No reference clock required

►Loop Back Support

►+3.3V, +1.8V power supply

►Power dissipation <2W

►Compatible with RoHS

►Built-in digital diagnostic functions

►Temperature range 0°C to 70°C

Applications

►10G Ethernet
►SONET OC-192 IR-2/SONET OC-192 IR-3/SDH STM S-64.2b/SDH STM S-64.3b
►10G Fibre Channel

Technical Indexes

Part No.	Rate	Distance	Wavelength	Fiber	Voltage	DDM	Temp.	Connector
LNK-BXFP-10G-20U	10.3G	20km	1270T/1330R	SMF	3.3V	YES	0~70℃	Simplex LC
LNK-BSFP-10G-20D	10.3G	20km	1330T/1270R	SMF	3.3V	YES	0~70℃	Simplex LC
LNK-BXFP-10G-40U	10.3G	40km	1270T/1330R	SMF	3.3V	YES	0~70℃	Simplex LC
LNK-BXFP-10G-40D	10.3G	40km	1330T/1270R	SMF	3.3V	YES	0~70℃	Simplex LC
LNK-BXFP-10G-60U	10.3G	60km	1270T/1330R	SMF	3.3V	YES	0~70℃	Simplex LC
LNK-BXFP-10G-60D	10.3G	60km	1330T/1270R	SMF	3.3V	YES	0~70℃	Simplex LC

• Download FileName：E-link 10G BIDI XFP Transceiver 20KM Datasheet V1.0.pdf Size： 686KB
• Download FileName：E-link 10G BIDI XFP Transceiver 40KM Datasheet V1.0.pdf Size： 686KB
• Download FileName：E-link 10G BIDI XFP Transceiver 60KM Datasheet V1.0.pdf Size： 496KB

Order Information
