Overview

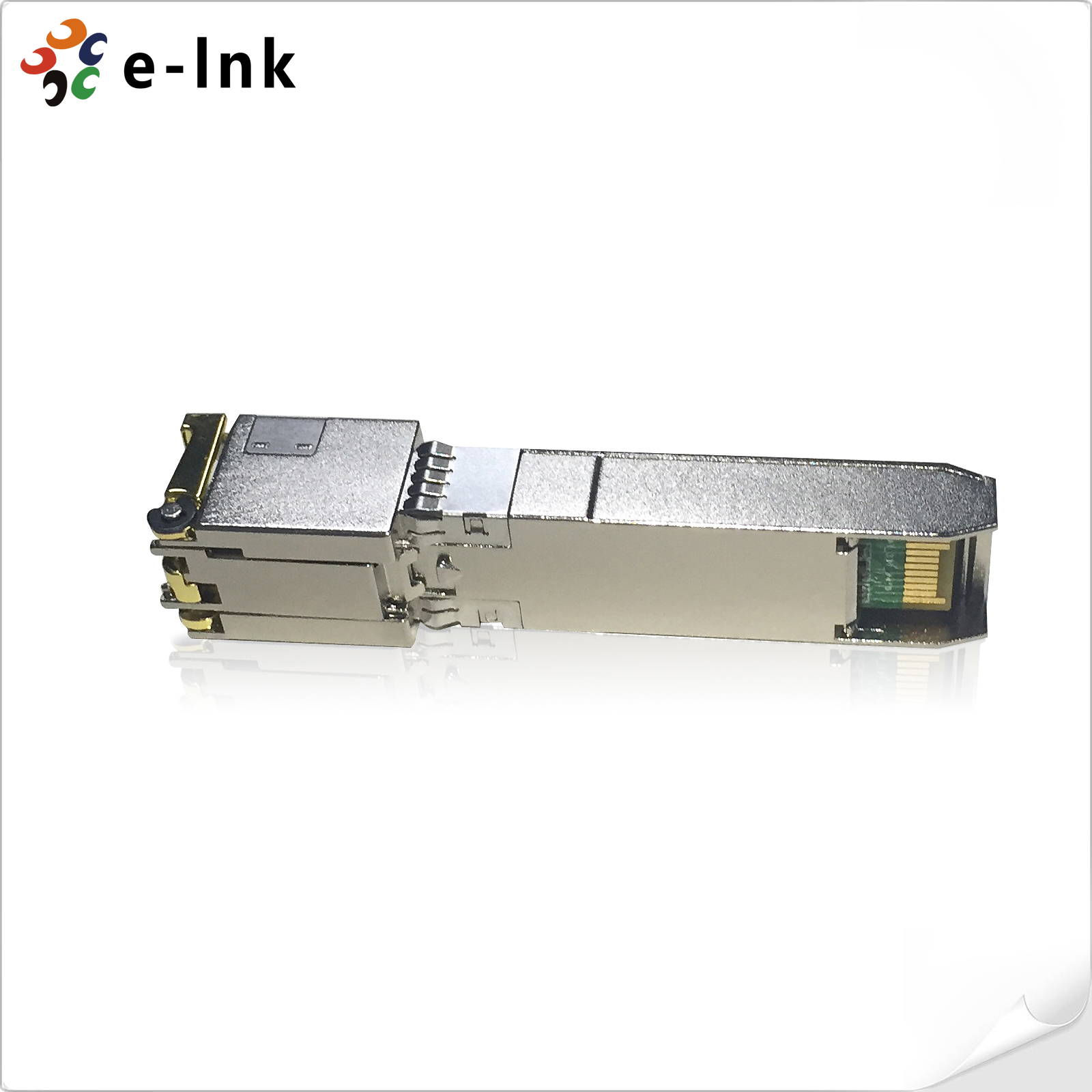

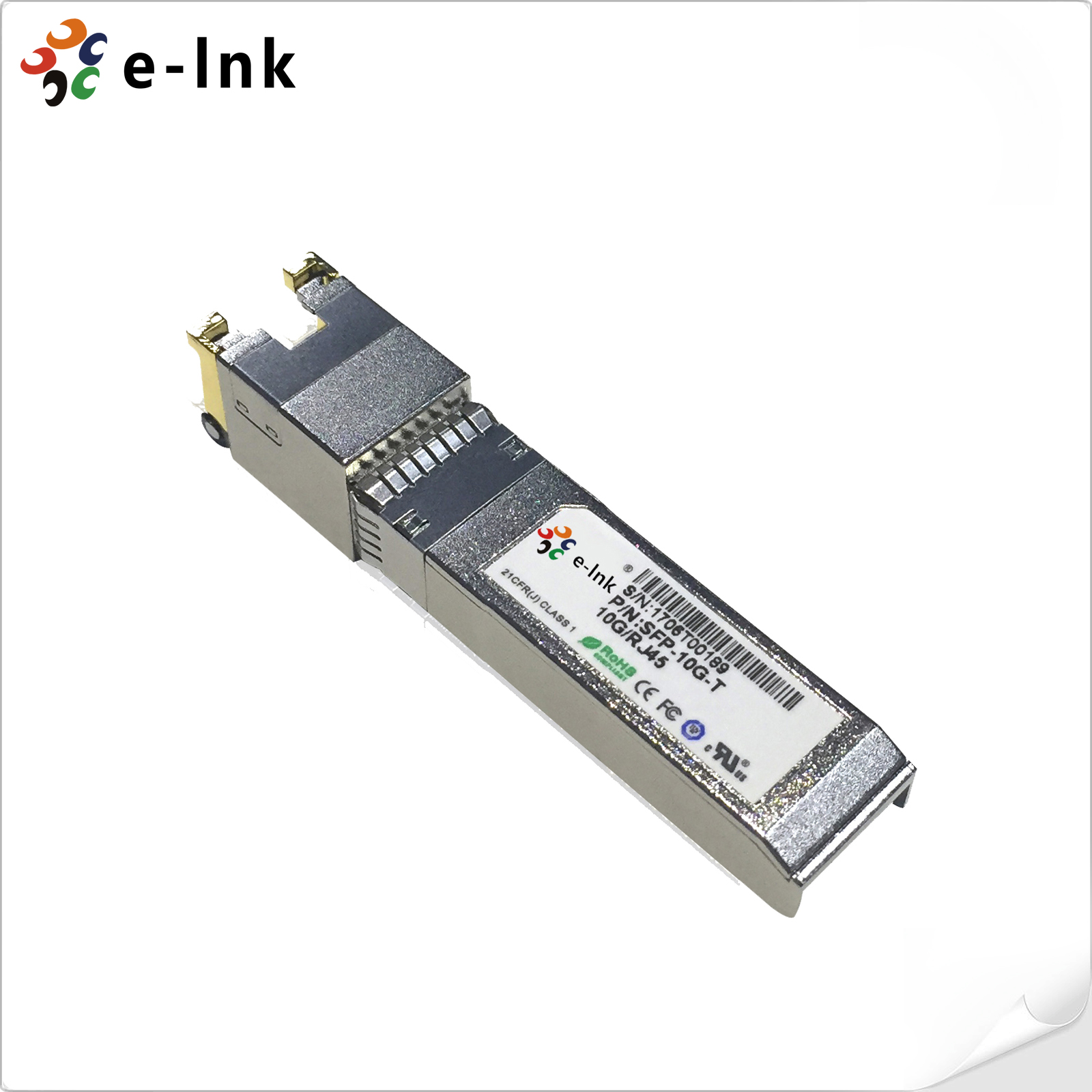

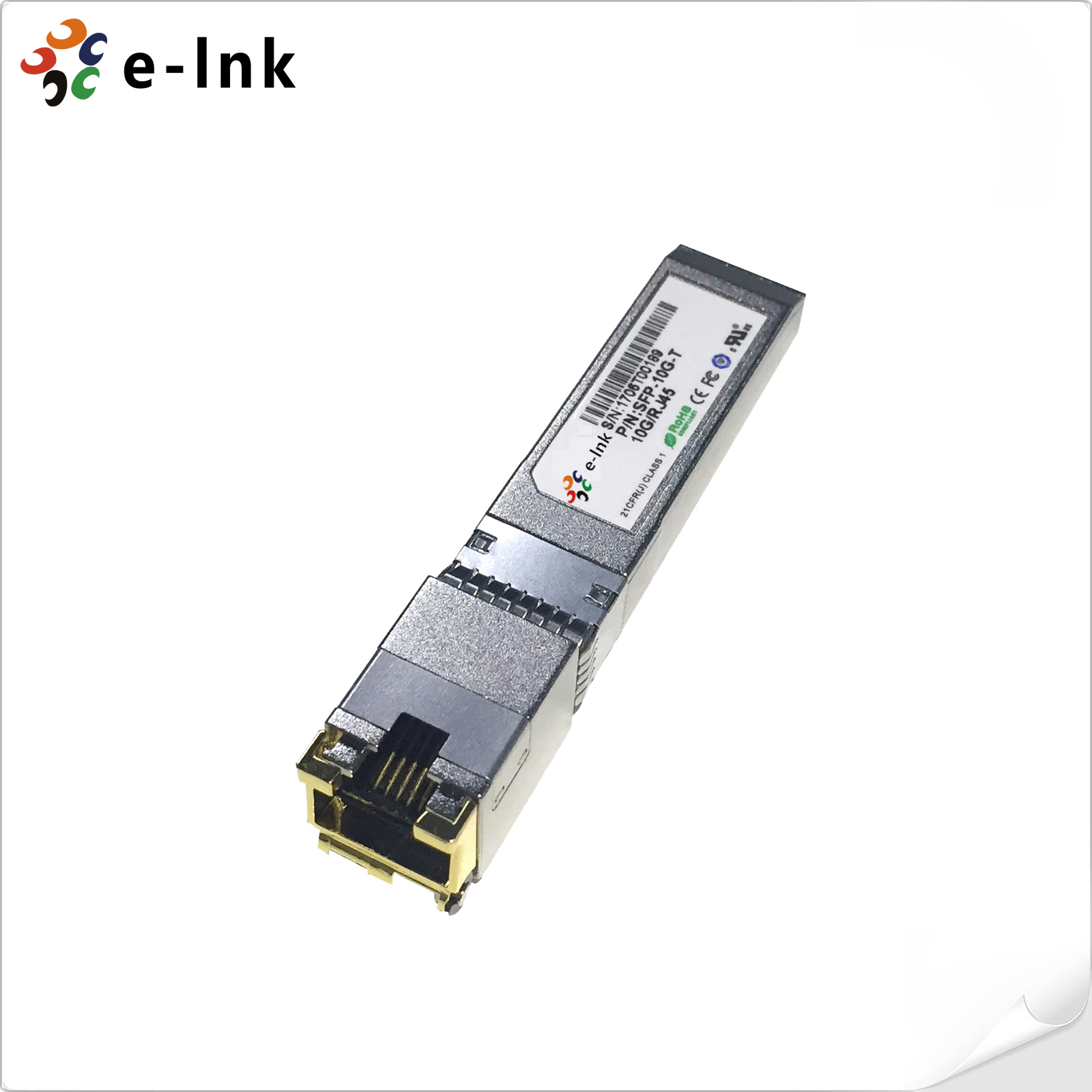

E-link 10GBASE-T SFP+ Copper Transceiver is specifically designed for high speed communication links that require 10 Gigabit Ethernet over Cat 6a/7 cable. This is the first SFP+ transceiver that offers 10Gb/s communication over this type of media.

Interoperability with legacy Ethernet equipment via auto-negotiation is of particular significance as it enables data center expansions and expenditures to occur incrementally. The added benefit is that is uses standards based technology that uses the familiar RJ45 connector and provides backward compatibility with legacy networks.

Features

►    Up to 10Gbps bi-directional data links

►    Supports Links up to 30m using Cat 6a/7 Cable

►    Fully metallic enclosure for low EMI

►    Compact RJ-45 Connector assembly

►    Hot-pluggable SFP footprint

►    Low power dissipation

►    Extended case temperature: 0℃ to 70℃

Applications

►   10 Gigabit Ethernet

Technical Indexes

Part Number	Rate	Interface	Distance	Connector	Voltage	Temp.
LNK-SFP-10G-T	10.3Gb/s	10GBASE-T	30m	RJ45	3.3V	0~70°C

• Download FileName：E-link 10G Copper SFP Transceiver Datasheet V1.0.pdf Size： 354KB

Ordering Information

Model	Description
LNK-SFP-10G-T	10Gbps Copper SFP Transceiver, Supports Links up to 30m using Cat 6a/7 Cable
