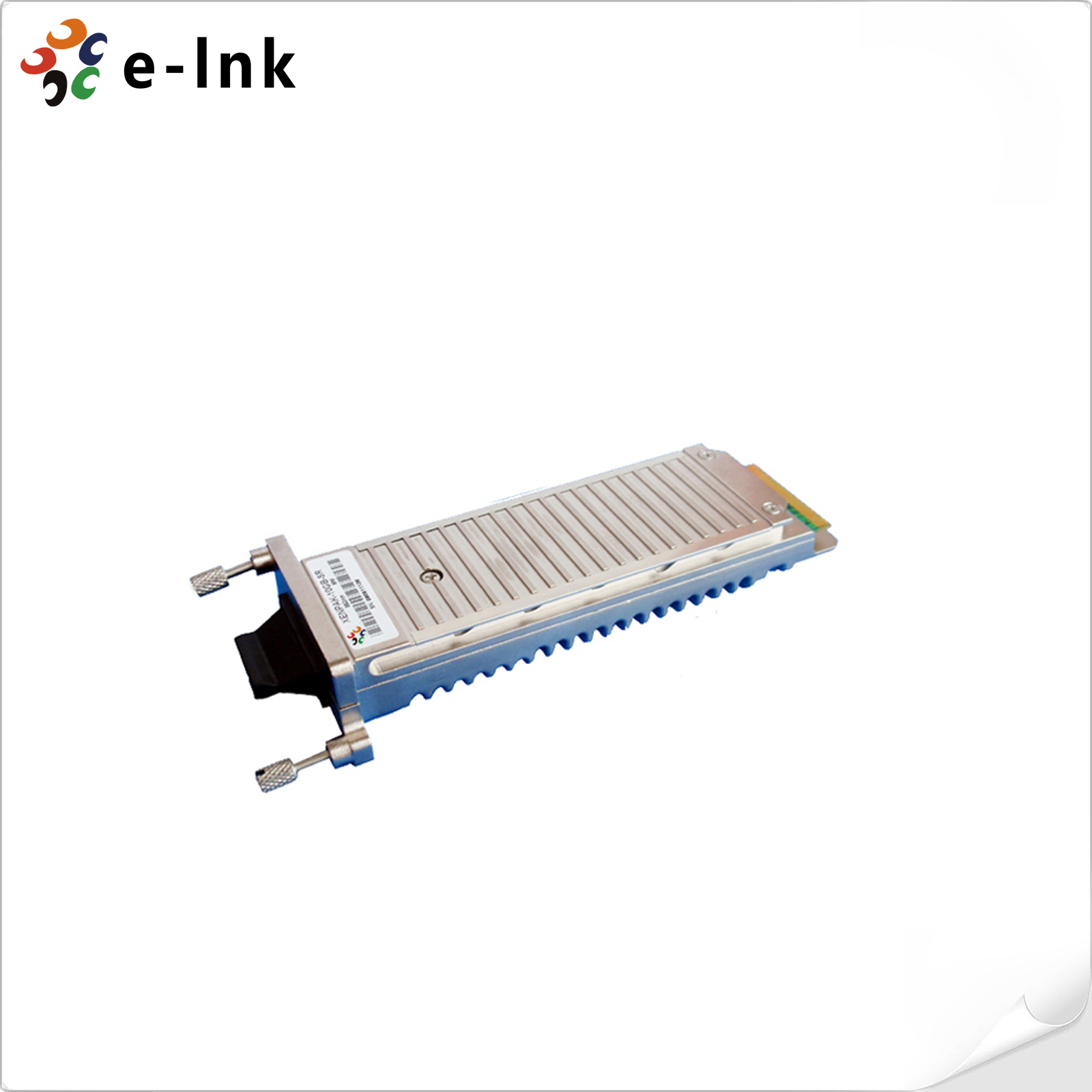

10G XENPAK Fiber Transceiver
Model:LNK-XENPAK-10G
►Compatible with XENPAK MSA
►Support of IEEE 802.3ae 10GBASE-SR at 10.3125Gbps
Overview
E-link's Xenpak is a standardized form factor for 10 Gb/s fiber optic transponders that is used for data transfer rates from 10.3 Gb/s to 10.5 Gb/s. It is protocol-specific: Either 10G Ethernet or 10G Fibre Channel versions are available. Xenpak transponders are used in datacom optical links only (not telecom). Its electrical interface to the host board is also standardized and is called XAUI (4 x 3.125 Gb/s). E-link offers the whole series of 10G XENPAK, including: Xenpak 10GBASE-SR 300M (MMF OM3); Xenpak 10GBASE-LRM MMF 220M; Xenpak 10GBASE-LR SMF 10-20KM; Xenpak 10GBASE-ER SMF 40KM; Xenpak 10GBASE-ZR SMF 80KM; 40 Channels DWDM Xenpak.
Features
►Compatible with XENPAK MSA
►Support of IEEE 802.3ae 10GBASE-SR at 10.3125Gbps
►SC Duplex Optical Connector
►Hot Pluggable 70-PIN Connector with XAUI Electrical Interface
►Management and control via MDIO 2-wire interface
►Power Supply :+3.3V, APS(+1.2V)
►Diagnostic Optics Monitoring
►Temperature Range: 0~ 70°C
►ROHS Compatible
Applications
►10GE Ethernet switches and routers
►10GE Core-routers
►10GE Storage
►Other 10Gbps Ethernet Transmission System
Technical Indexes
|
Part No. |
Rate |
Distance |
Wavelength |
Fiber |
Voltage |
DDM |
Temperature |
Connector |
|
LNK-XK-10G-SR |
10.3G |
300m |
850 |
MMF |
3.3V |
YES |
0~70℃ |
Duplex SC |
|
LNK-XK-10G-LR |
10.3G |
10km |
1310 |
SMF |
3.3V |
YES |
0~70℃ |
Duplex SC |
|
LNK-XK-10G-ER |
10.3G |
40km |
1550 |
SMF |
3.3V |
YES |
0~70℃ |
Duplex SC |
|
LNK-XK-10G-ZR |
10.3G |
80km |
1550 |
SMF |
3.3V |
YES |
0~70℃ |
Duplex SC |
Order Information
| LNK-XENPAK-10G-SR | XENPAK, 10GBASE-SR, SC, 850nm, multimode fiber (MMF OM3), Up to 300m, With Digital Diagnostic Monitoring, 0°C~+70°C |
| LNK-XENPAK-10G-LR | XENPAK, 10GBASE-LR, SC, 1310nm, supports a link length of 10kilometers on standard single-mode fiber, With Digital Diagnostic Monitoring, 0°C~+70°C |
