Description

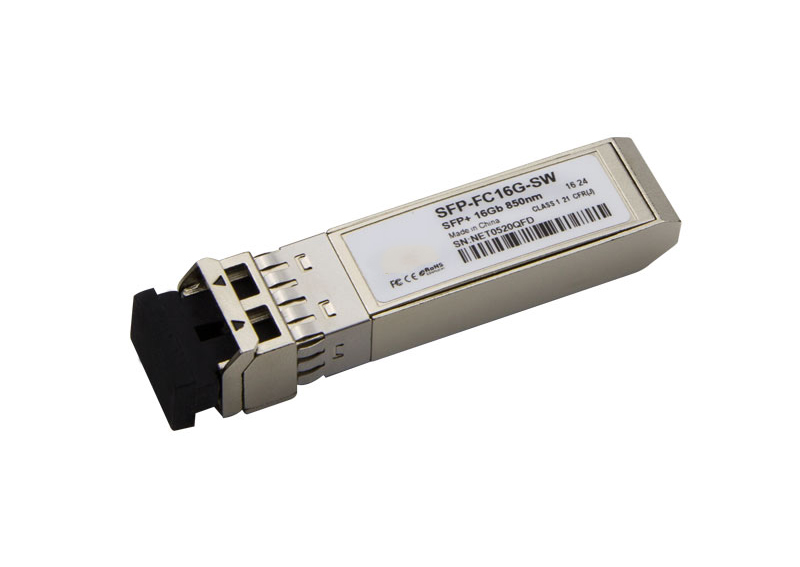

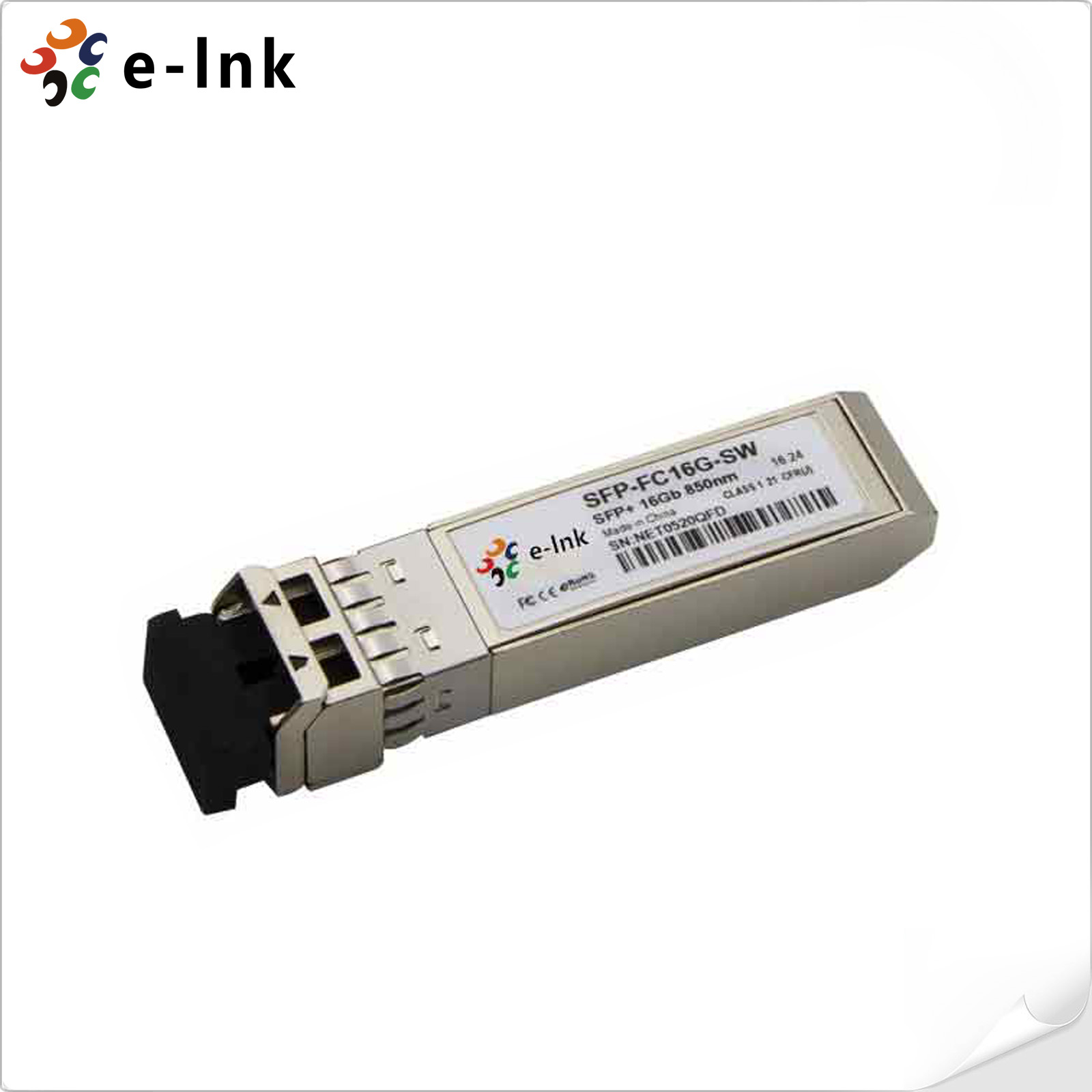

E-link’s 16G SW SFP+ transceivers are designed for use in Fibre Channel links up to 14.025Gb/s data rate over multimode fiber. They are compliant with FC-PI-5 Rev. 6.00a, SFF-8472 Rev 11.0c and SFF-8081h, and compatible with SFF-8432b and applicable portions of SFF-8431 Rev. The optical transceiver is compliant per the RoHS.

Features

►Up to 14.025 Gb/s bi-directional data links

►Hot-pluggable SFP+ footprint

►Built-in digital diagnostic functions

►Built-in CDR with shut off control

►850nm Oxide VCSEL laser transmitter

►Duplex LC connector

►RoHS compliant and Lead Free

►Metal enclosure, for lower EMI

►Single 3.3V power supply

►Operating temperature range: 0°C to 70°C

Applications

►Tri-Rate 14.025 Gb/s Fibre Channel

►Other optical links

E-link offers SFP+ 16G,  SFP 16G fibre channel transceivers that are SFP compliant. This fibre channel transceiver solution supports high-speed serial links over multimode optical fiber at signaling rates up to 14.025 GBd.

Using the 2-wire serial interface defined in the SFF-8472 MSA, these 16G fibre channel transceivers provide real-time temperature, supply voltage, laser bias current, laser average output power and received input power.

Compliant with Small Form Pluggable (SFP) Multi Source Agreement (MSA) mechanical and electrical specifications for LC Duplex transceivers, ANSI Fibre Channel transceiver for FC-PI-5 and FC-PI-2 gigabit applications.

• Download FileName：E-link 16G Fiber Channel SFP+ Transceiver Datasheet V1.0.pdf Size： 486KB
