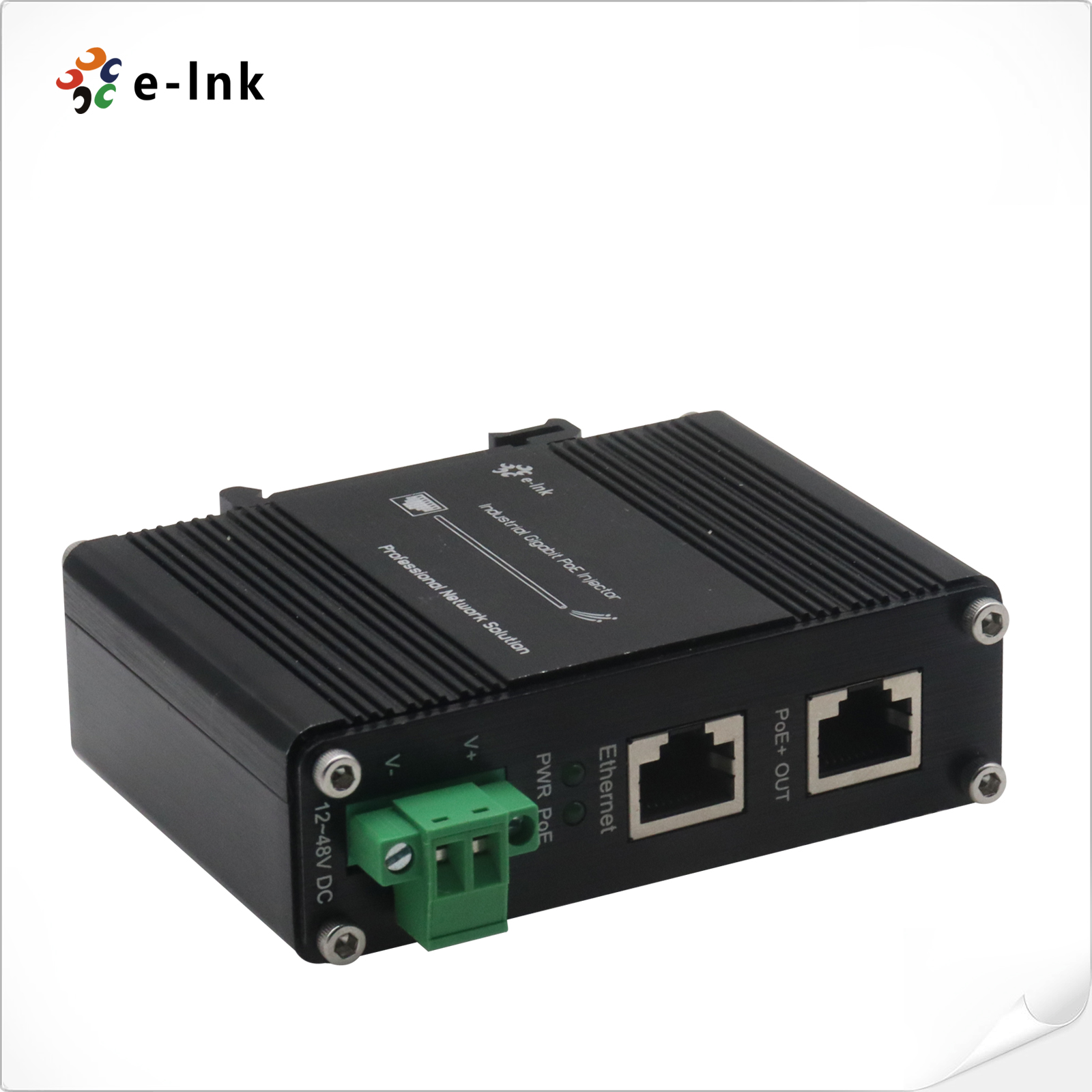

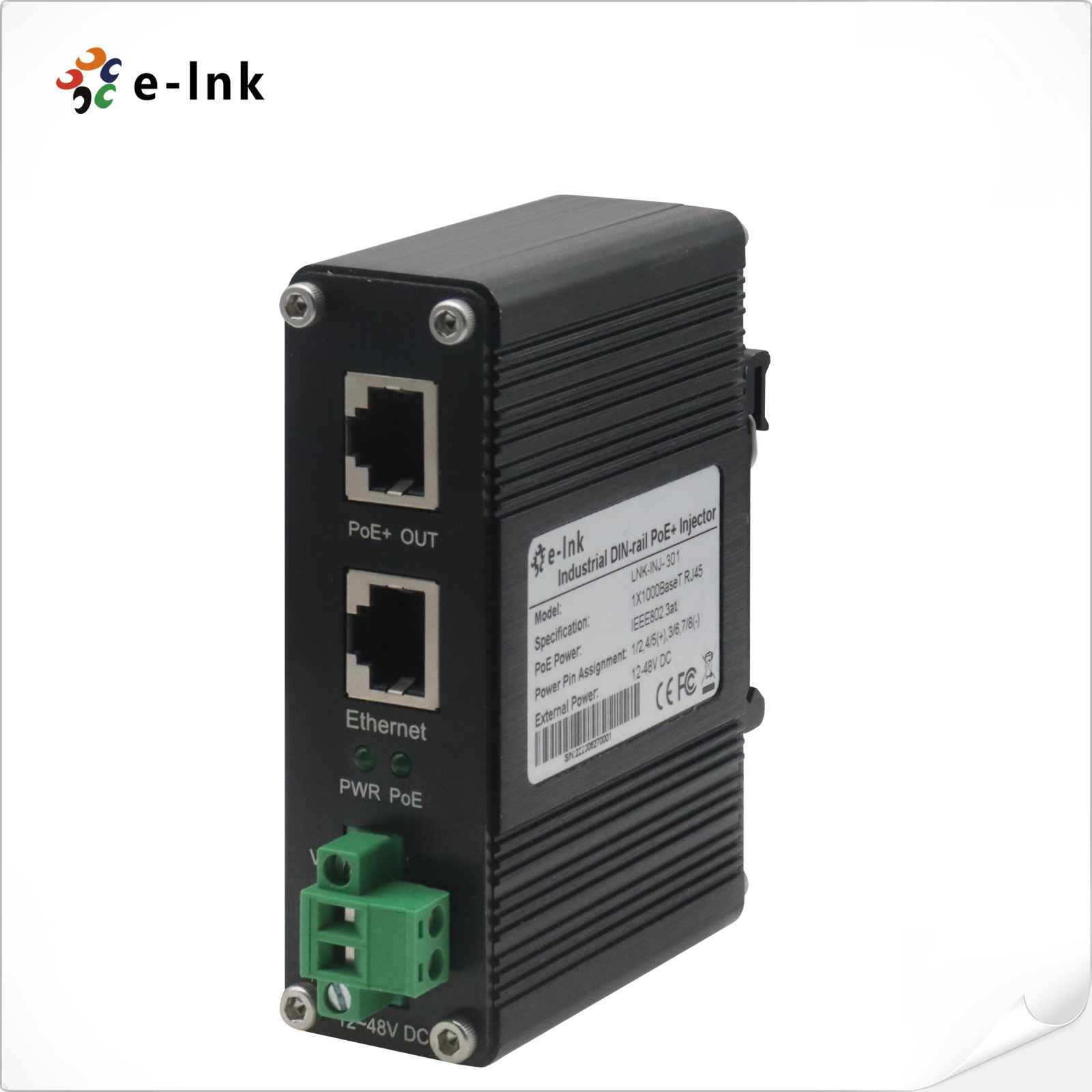

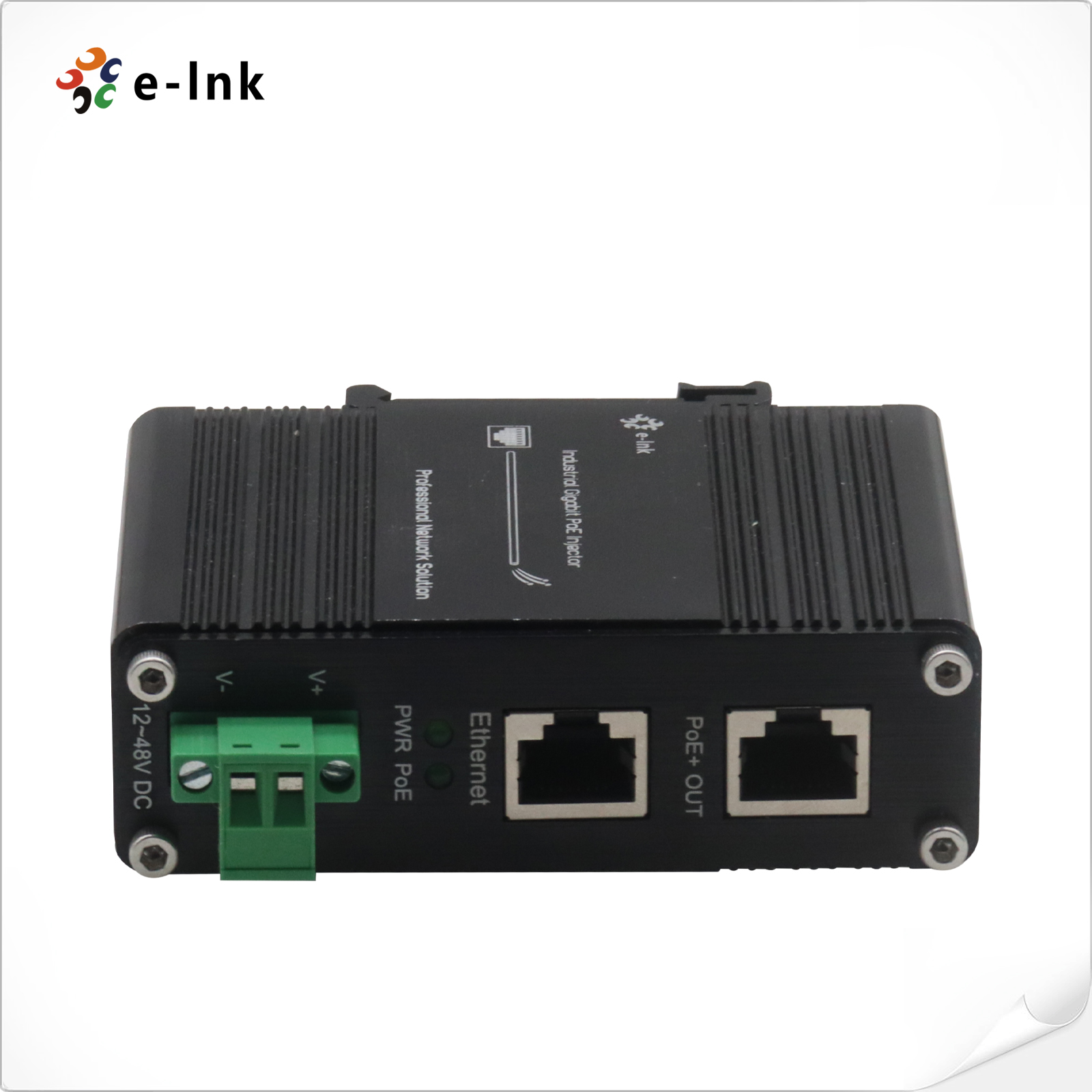

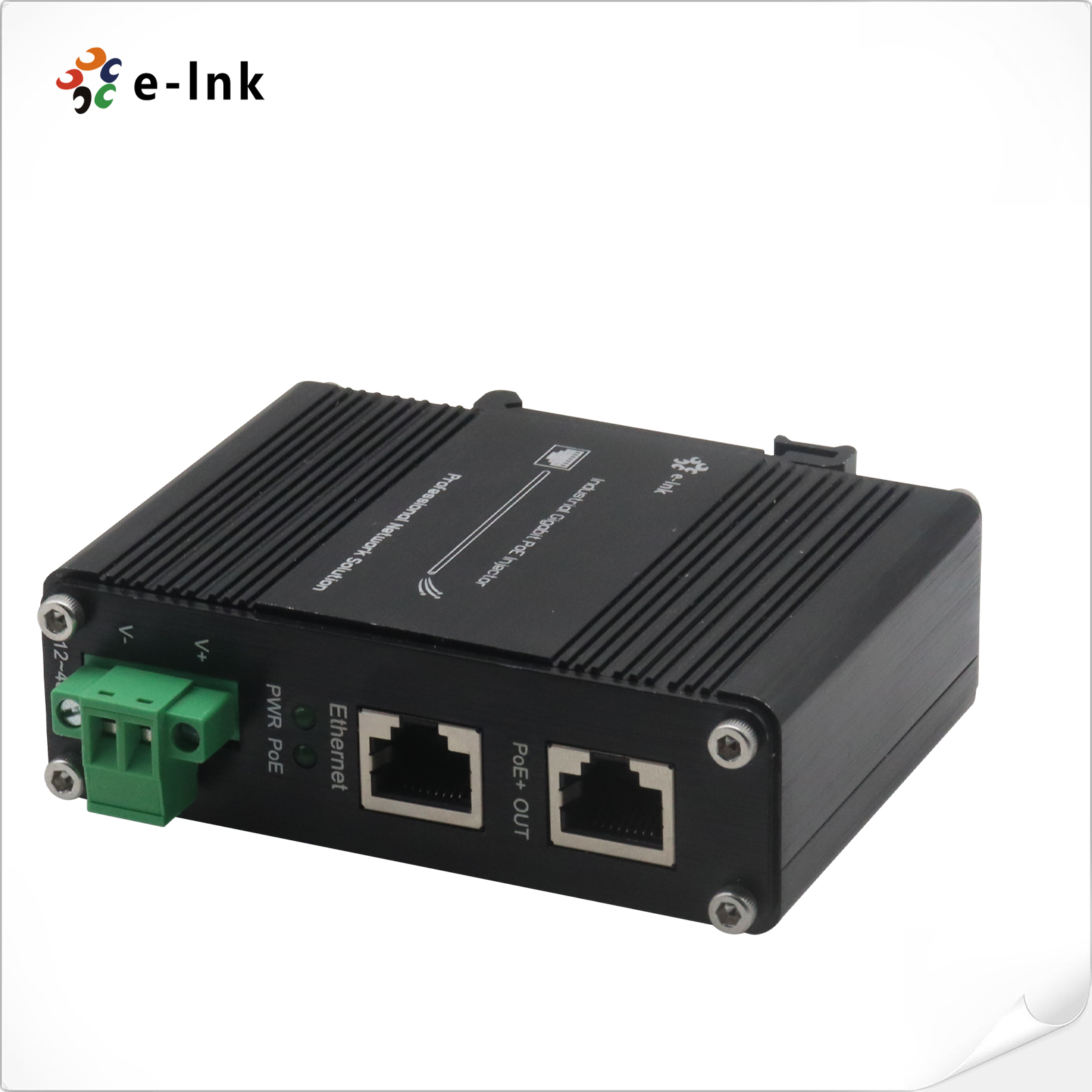

30W 12-48V Input Industrial Gigabit PoE+ Injector

Model:LNK-INJ301

► 12~48VDC Power Input

► Support IEEE802.3at Power over Ethernet (PoE+) Power Sourcing Equipment

► Support 10/100/1000Base-TX

Overview

The LNK-INJ301 product is a Hardened Gigabit High Power PoE Injector allows you to connect the IEEE 802.3 af/at PoE device such as camera and access point with a non PoE LAN switch within the distance of 100m. Both the Ethernet port (to switch) and the PoE Out port (to PoE device) support 10/100/1000Base-T and are compliant with IEEE 802.3ab. The PoE Out port is also compliant with IEEE 802.3at.

LNK-INJ301 provides an integrated power solution with a wide range voltage of 12~48VDC for high availability applications.

Hardened industrial poe power injector 48V DC 30W 60W 90W 95W 120W Power Over Ethernet Injectors
poe injector 48V 802.3 af
poe injector 48V 802.3 at
poe injector 24V
poe injector 12V
poe injector gigabit
1-Port Gigabit PoE Splitter
Passive PoE Injector Power Over Ethernet
Power Injector
1-Port Gigabit High-Power PoE+ Injector
POE Injector Adaptor
Gigabit Mid-Span POE+ Injector
PoE+ Injector DIN- Rail Wall Mount IP30  30W 60W 90W 95W 120W
Input 12-48V DC Output 12V 24V 48V
industrail poe injector usb
Gigabit PoE Splitter Adapter
公司名字:
E-link poe injector
Red Lion Controls poe injector
Procet poe injector
StarTech.com Industrial 1 Port Gigabit PoE+ Power over Ethernet Injector
TRENDnet Gigabit Ultra PoE+ Injector
PoE Injector
TP-Link
L-com.com
redline industrial poe injector
moxa industrial poe injector
cisco industrial poe injector
sixnet industrial poe power injector
industrial poe injector anixter
PLANET Gigabit PoE Injector

Features

► 12~48VDC Power Input

► 1 RJ45 Ethernet Data Input Port + 1 RJ45 Power Over Ethernet Output Port(Data + Power)

► Support IEEE802.3at Power over Ethernet(PoE+) Power Sourcing Equipment

► Support 10/100/1000Base-TX

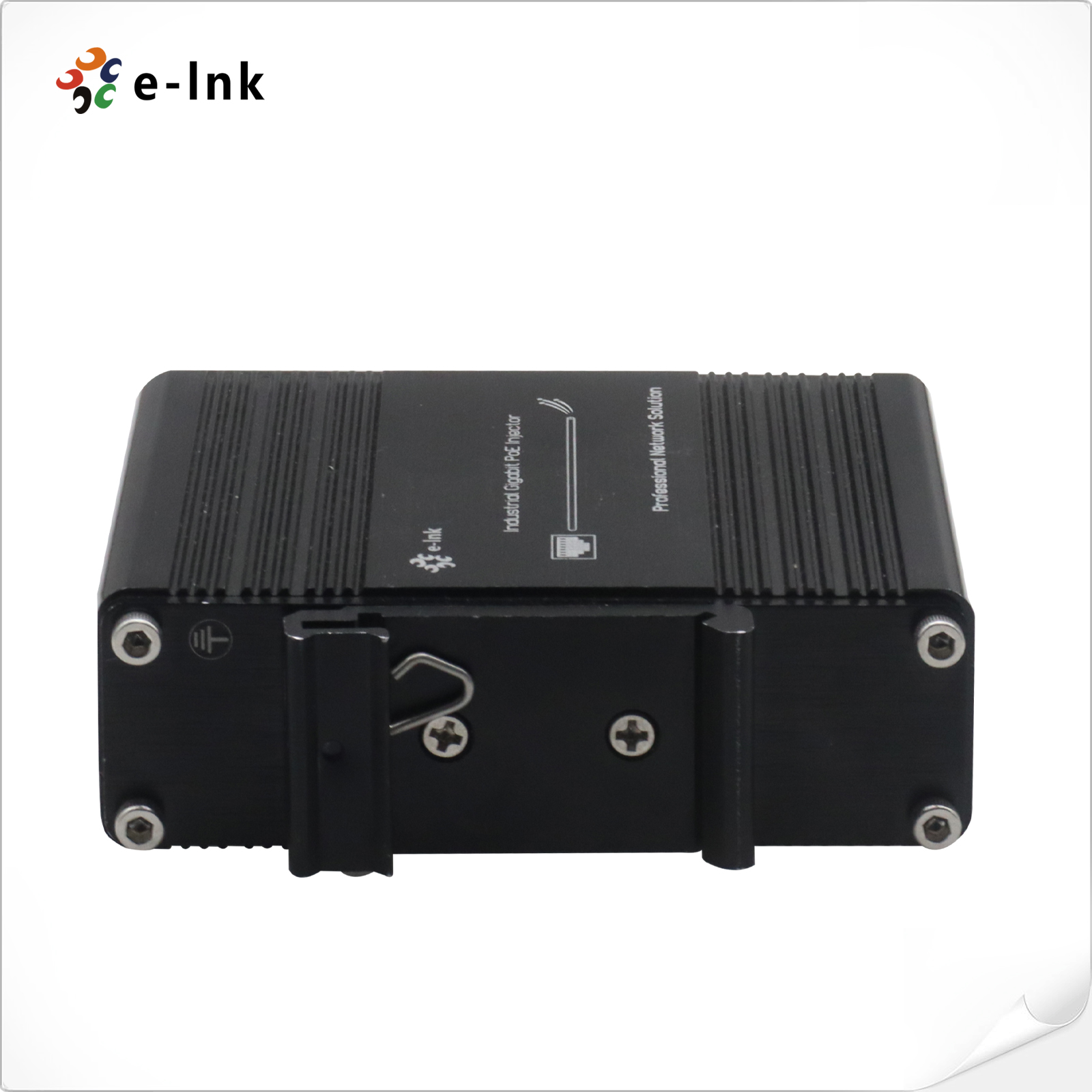

► Support DIN-Rail & Wall-mount installation.

► Extensive LED indicators for PoE diagnostics

► Environmentally Hardened-40°C to 80°C
     (-40°F to 176°F) operating temperature

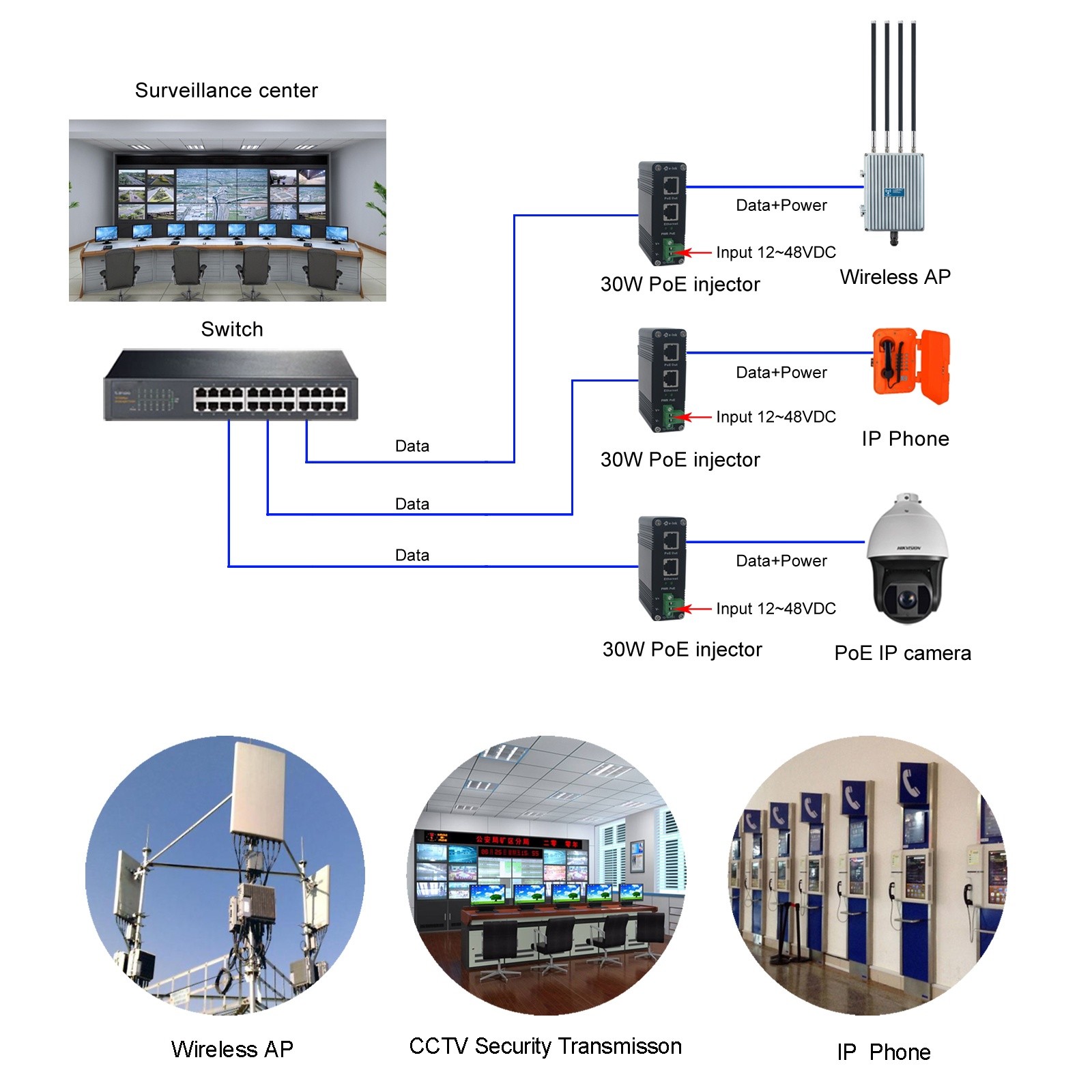

Typical Application

Technical Indexes

Ethernet

Standards:

IEEE802.3af Power over Ethernet

IEEE802.3at Power over Ethernet

Processing Type:

Forward

Half-duplex, Full-duplex

Forward Filter Rate:

1,488,000pps (1000Mbps)

Cabling:

10/100/1000Base-T: Cat5 or above

Maximum Distance:

Cat5 UTP up to 100m

Connector:

2x RJ45

Environmental

Operating Temperature:

-40°C to 80°C (-40°F to 176°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

MTBF:

>200,000hrs

Electrical and Mechanical

Input Power:

12~48VDC(Terminal Block)

Power Consumption:

36W Max.

PoE (Power over Ethernet)

Standard:

IEEE802.3af/at

Port:

RJ45

Power Pin Assignment

4/5(+), 7/8(-)

Max. Power per Port:

30W Max per port(Alternative B Mode)

LED Indicators:

Power:

Power Status

PoE:

PoE Status

Dimensions (WxDxH):

95 x 70 x 30 mm

Weight:

0.25Kg

Casing:

Aluminum Case

Mounting Options:

DIN-Rail / Wall-mount

Regulatory Approvals

ISO9001

FCC part 15, Class A

EN55022:2006+A1: 2007 Class A

Surge Protection:

RJ45: 1KV

Power: 500W

ESD: 4KV/8KV

  • Download FileName:E-link 12~48VDC Industrial 100M PoE Injector Datasheet V1.0.pdf Size: 274KB
  • Download FileName:LNK-INJ301 Hardened Gigabit High Power PoE Injector User Manual V1.0.pdf Size: 303KB

Ordering Information

Model

Description

LNK-INJ301

12~48VDC Power Input Industrial Gigabit PoE+ Injector

Mounting Options

► Default DIN-Rail Bracket installed, Wall Mount Bracket is included.

Power Options

► Power Supply is to be purchased separately
