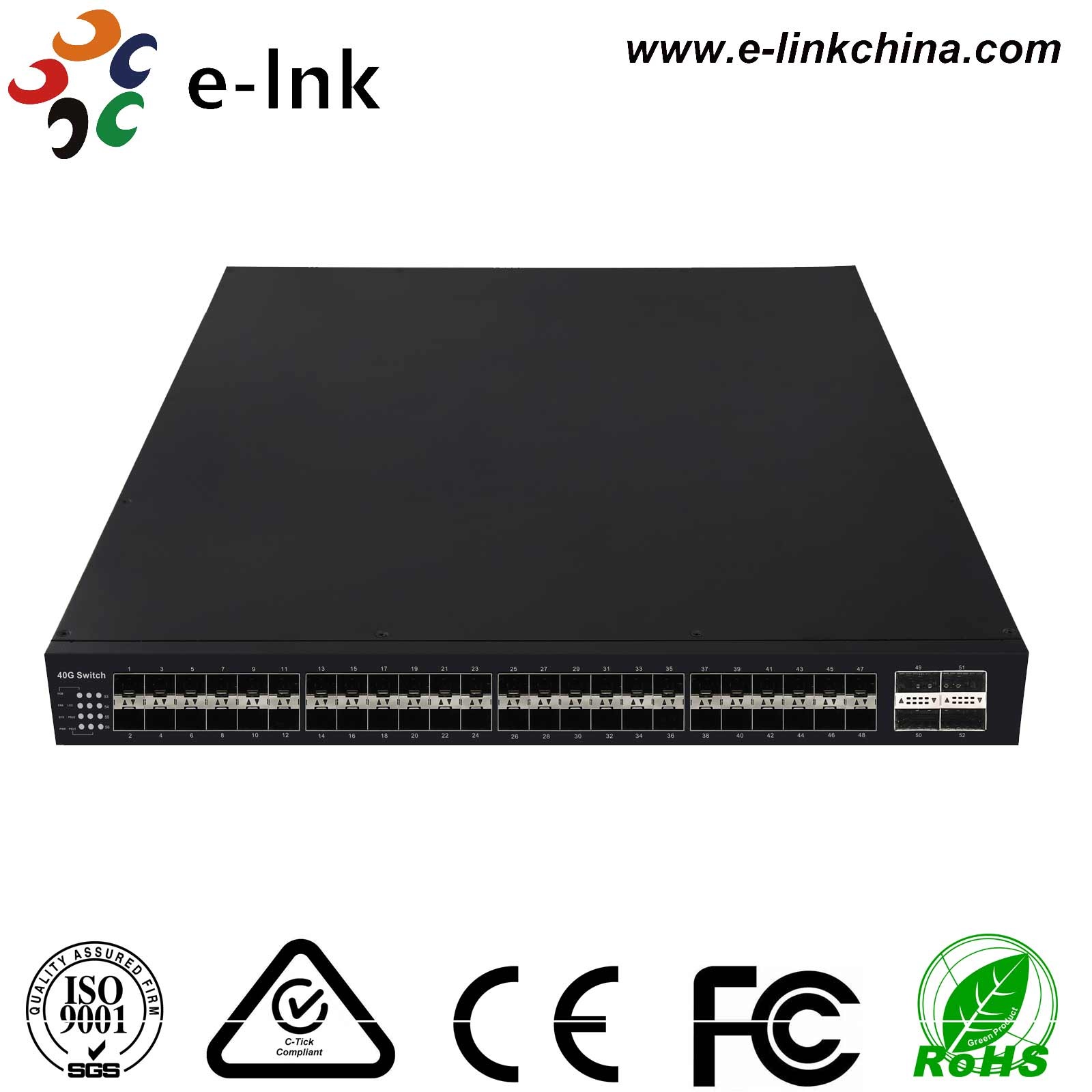

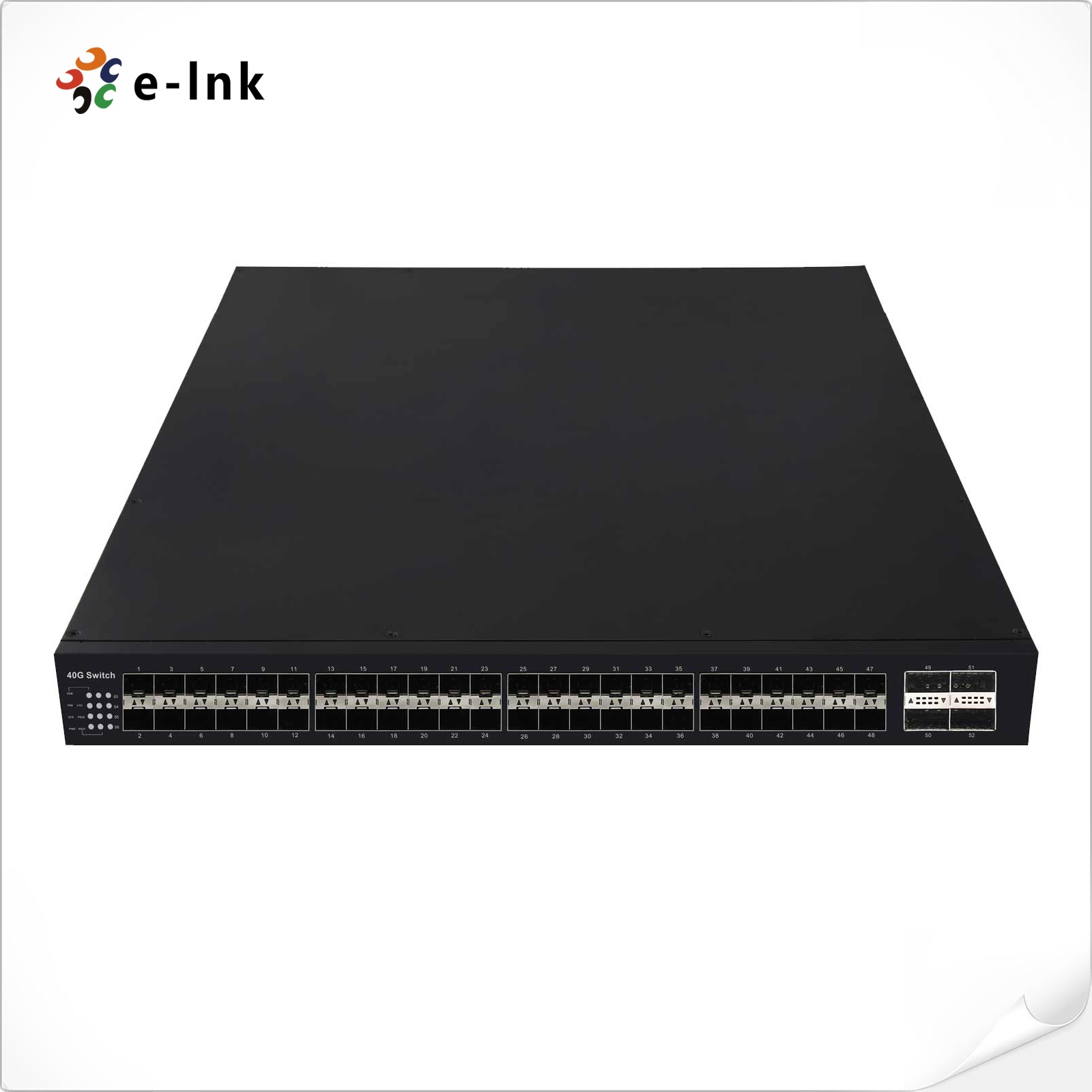

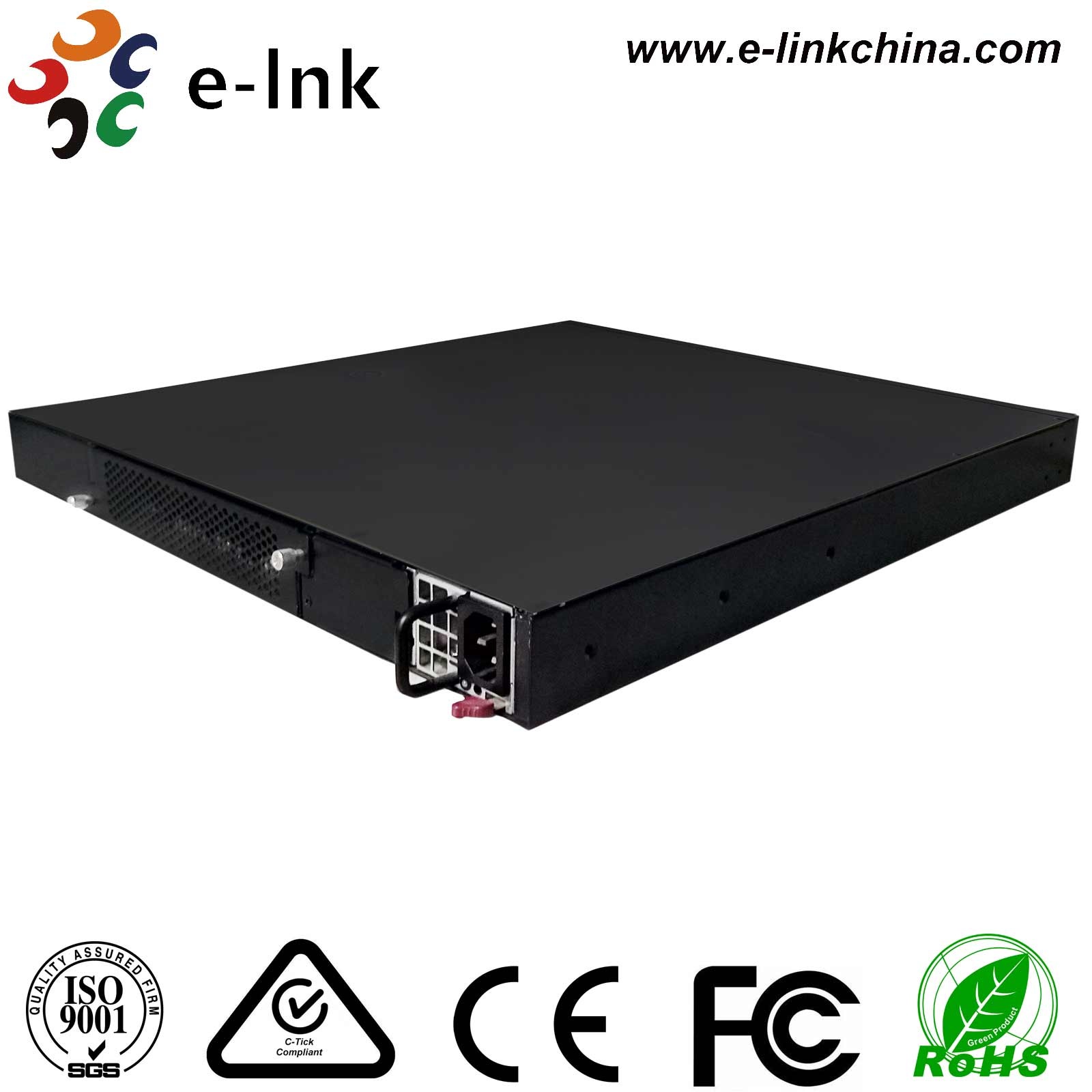

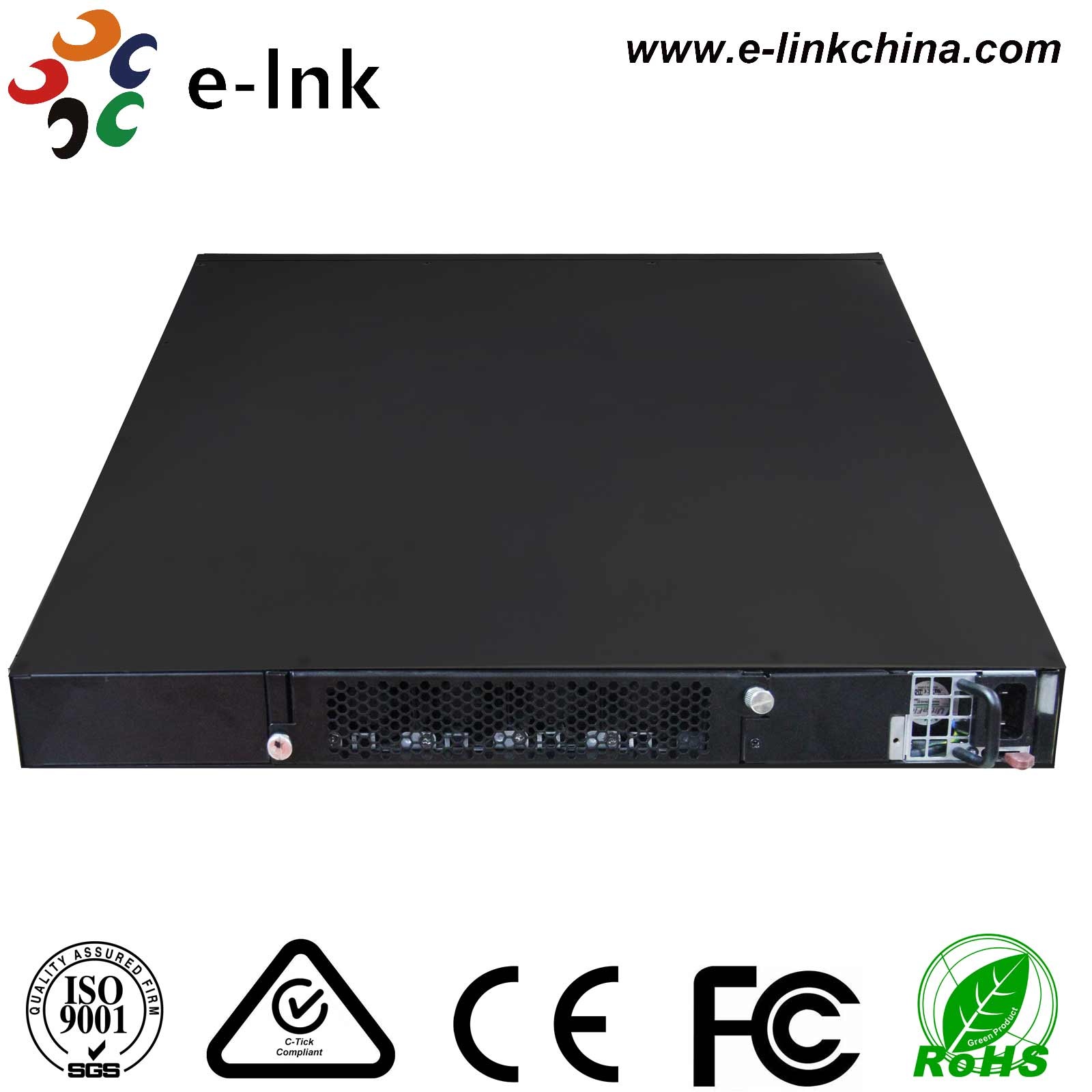

L3 Managed 48-Port 10G SFP + 4-Port 40G QSFP+ Fiber Switch
Model:LNK-FS4804HC-SI
►High density 10G access, performance is remarkable
►Wind direction flexible choice, green and energy saving
►Convenient in operation and maintenance
Overview
10Gigabit Data Center Switch LNK-FS4804HC-SI is a standard three-layer Non blocking switches. 650Gbps switch capacity, industry the highest performance (1U TOR); With 852.32Mpps forwarding performance, L2 / L2+ forward full speed; Extensible 48 biggest 10G interface, the highest density (1U TOR), meet the demand of high-density 10G server access. 4*40G QSFP+ interface allows for 4 to 10GE interface; Provide flexible network capacity; Ensure the stable operation of the network and link load balancing.S5600-52HC-SIadopts modular design, provides 48 10GE SFP+ ports, 4* 40G QSFP+ ports, 1 Console port: 1 OOB management. To gather and core data exchange to provide enough bandwidth, the user can according to demand to choose the appropriate 40G port in a flexible response network requirements. With high bandwidth and low latency, pipe network. LNK-FS4804HC-SI switches located in density of the next generation of data center and cloud computing network access, can also be used for large Internet cafes, the core of enterprise network, metropolitan area network, or gathering.
Features
►High density 10G access, performance is remarkable
►Wind direction flexible choice, green and energy saving
►Convenient in operation and maintenance
Application
LNK-FS4804HC-SIswitches located in density of the next generation of data center and cloud computing network access, can also be used for large Internet cafes, the core of enterprise network, metropolitan area network, or gathering.
Technical Indexes
|
Model |
LNK-FS4804HC-SI |
|
Basic Feature |
|
|
Fixed port |
48*10GE SFP+ Ports, 4*40G QSFP+ Ports |
|
Console port |
1 |
|
OOB management port |
1 |
|
Backplane bandwidth |
1292Gbps |
|
Packet forwarding rate |
852.32Mpps |
|
Jumbo frames |
9216 bytes |
|
Chip |
BCM |
|
Layer |
L2 /L3(Available) |
|
Transfer mode |
Support store-forward mode and cut-through mode |
|
IPv4/IPv6 route |
6k/8k |
|
MAC address table |
128K |
|
Packet Buffer |
9MB |
|
VLAN ID |
4K |
|
Flash |
32MB |
|
Memory |
1GB DDR3 SDRAM |
|
CPU |
PPC Dual-core 800MHz |
|
Soft Specification |
|
|
Security feature |
IP+MAC+PORT+VLAN binding ARP inspection DOS prevention Port protection IP source port protection |
|
VLAN |
Port based VLAN 802.1Q VLAN IP based VLAN MAC based VLAN |
|
MAC address table |
static MAC address table dynamic MAC address table |
|
Storm Control |
Broadcast suppression Multicast suppression DLF suppression Limiting rate |
|
Traffic Control |
Half-duplex control based on the back pressure type Full-duplex control based on the PAUSE frame |
|
Port Mirror |
Support port mirroring |
|
Port management |
General setting Port counting Configuring port Port trunking Port-isolation |
|
QoS |
IEEE 802.1Q Congestion mechanism Each port has 8 send queue mapping to 8 802.1p priority |
|
IP services |
Ping detection DHCP Snooping |
|
Spanning Tree Protocol |
MSTP(802.1s)、STP、RSTP |
|
Multicast management |
IGMP Snooping frame |
|
System management |
Support SNMP v1/v2 Support Console Support TELNET Support WEB |
|
Remote Upgrade |
Support version upgrading via web Support version upgrading via local |
|
Physical Characteristics |
|
|
External Dimension |
438.48mm*473mm*43.4mm |
|
Power Supply Features |
AC：90V～290V DC：-38.4V～-72V |
|
Power |
≤230W |
|
Indicator light |
Power indicator, system, connection/sending and receiving instructions |
|
Environment temperature/humidity |
operating temperature：0°C～50°C（0m～1800m）storage temperature：-40°C～+70°C，relative humidity：5%RH～95%RH，Non-condensing |
- Download FileName：E-link LNK-FS4804HC-SI Series Fiber Switch Datasheet V2.0.pdf Size： 276KB
