Overview

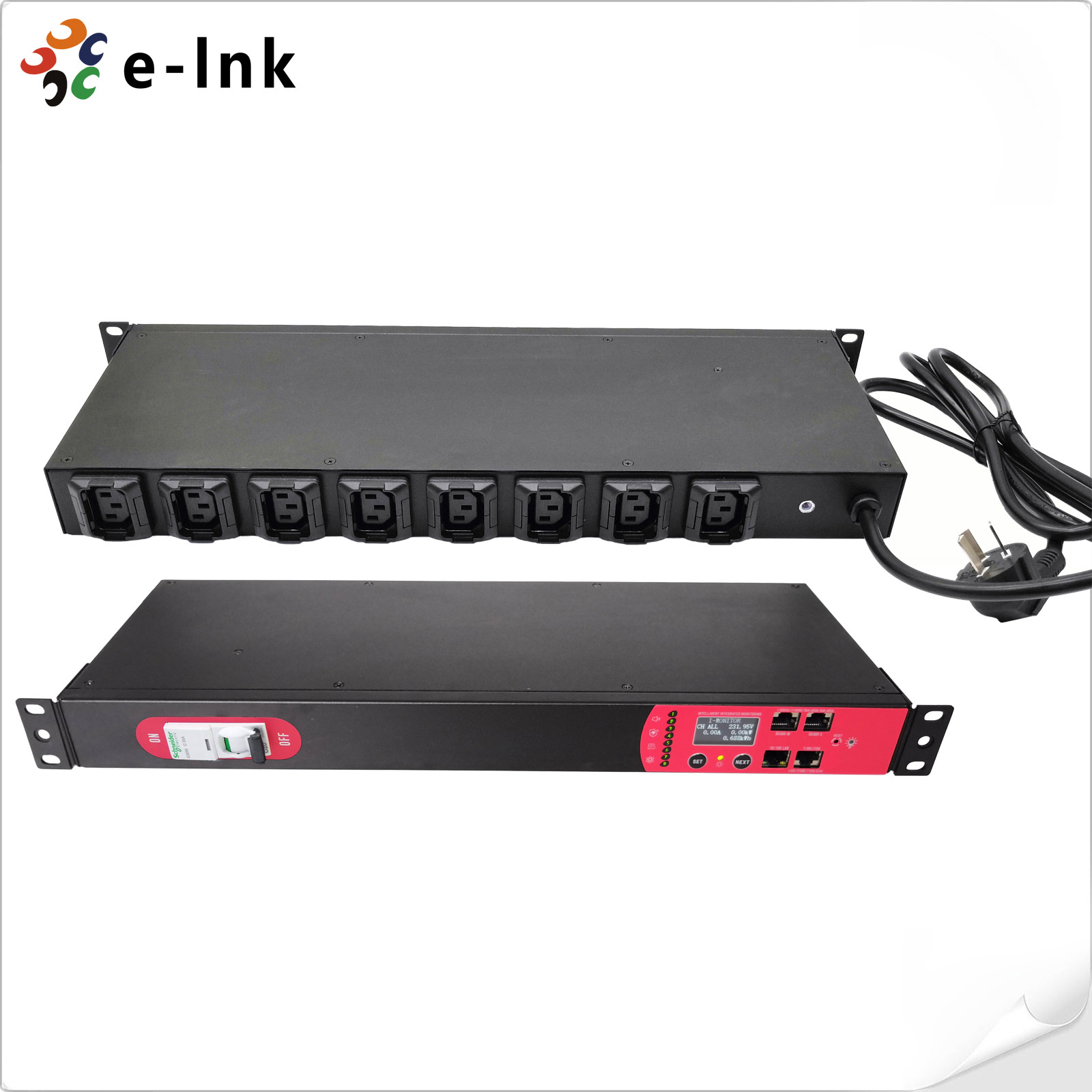

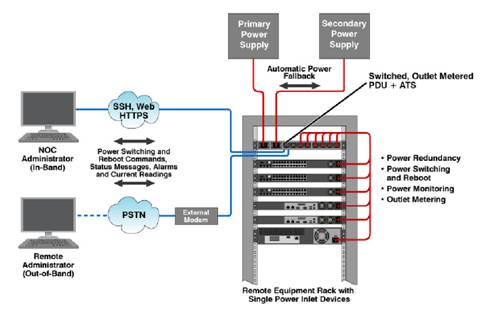

E-link's EPD Outlet Metered Switched PDU with automatic transfer switching is the perfect solution for critical network installations that require remote power control and power supply redundancy on85-265 ACequipment. E-link 's EPD series metered PDUs help you keep track of conditions at your data center, and can automatically notify you before things get out of hand. The EPD also allows you to automatically reboot outlets when attached devices cease to respond, disable outlets to reduce current consumption or switch on cooling devices to lower rack temperatures.
A comprehensive selection of monitoring features is also included; event alarms, outlet-specific metering, SNMP polling and other alarm functions help you to keep tabs on vital network elements, avoid costly service calls and maximize up time.
Features
► Use imported 32-bit ARM microprocessor (CPU) control and software programming technology for advanced embedded operating system;
► Use professional electric metering chip and high-precision, low-temperature drift, fully isolated sampling circuit to accurately collect branch voltage and current, and perform accurate calculation of active power and active energy through advanced software algorithm programs;
► Use internal precision temperature sensor to compensate and correct power data collection;
► Use special control drive circuit and high-reliability relay (branch 16Amax / 250Vac) to realize branch on / off operation, and equipped with relay protection circuit to ensure long-term reliable operation;
► Use 85 ~ 265Vac global applicable working power technology, achieved level 5 energy efficiency management, the output uses expensive solid capacitors to provide stable operating environment for the main control system;
► Provides two kinds of communication ports: Ethernet uplink communication port (optional for uplink and downlink) and isolated RS485 communication port. It adopts standard MODBUS-RTU specification protocol to facilitate user networking;

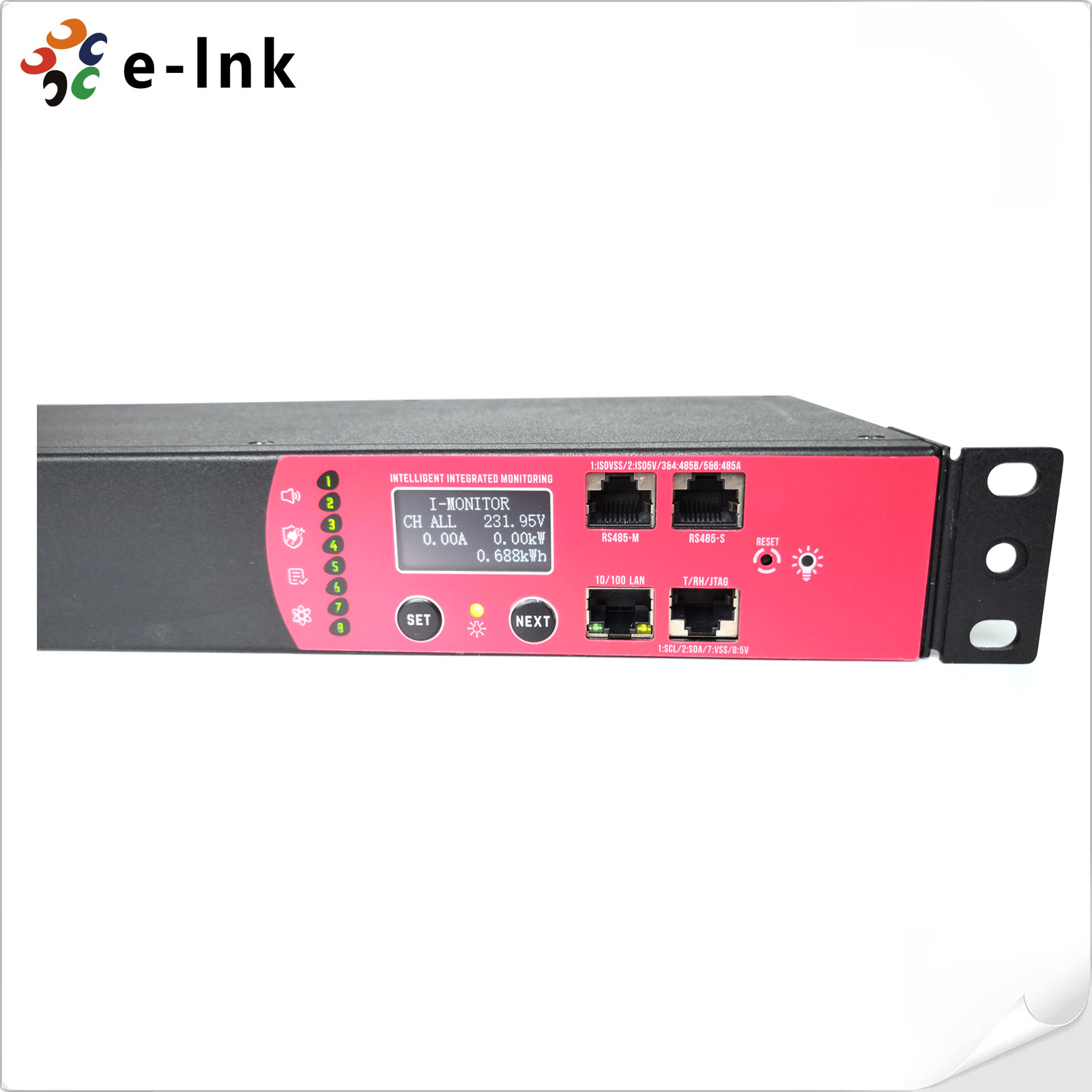

► Use 1.3-inch OLED screen with clear display;
► Built-in alarm buzzer;
► Built-in clock system and backup power supply;
► Built-in EEPROM memory, convenient for local storage of running data and setting data;
► The product provides a temperature and humidity sensor port, choose our temperature and humidity sensor, connect the product directly and read the temperature and humidity data;
► Provides data threshold settings and alarm functions for under-voltage, over-voltage, over-current, overload, low temperature, high temperature, low humidity, high humidity, etc.
► Provide local manual parameter setting and remote parameter setting;
► Some product has a built-in standard or intelligent D-level power lightning protection module, of which the intelligent lightning protection module provides degradation signal and lightning strike counting functions;
► Excellent chassis structure design, meeting the requirements of IEC60297 standards;
Application
Specification
Item |
Parameter Requirements |
Remark |
Working Power |
85V~265VAC |
|
Working Frequency |
50Hz |
|
Total Input |
Specification please see the product label |
According to Order Requirement |

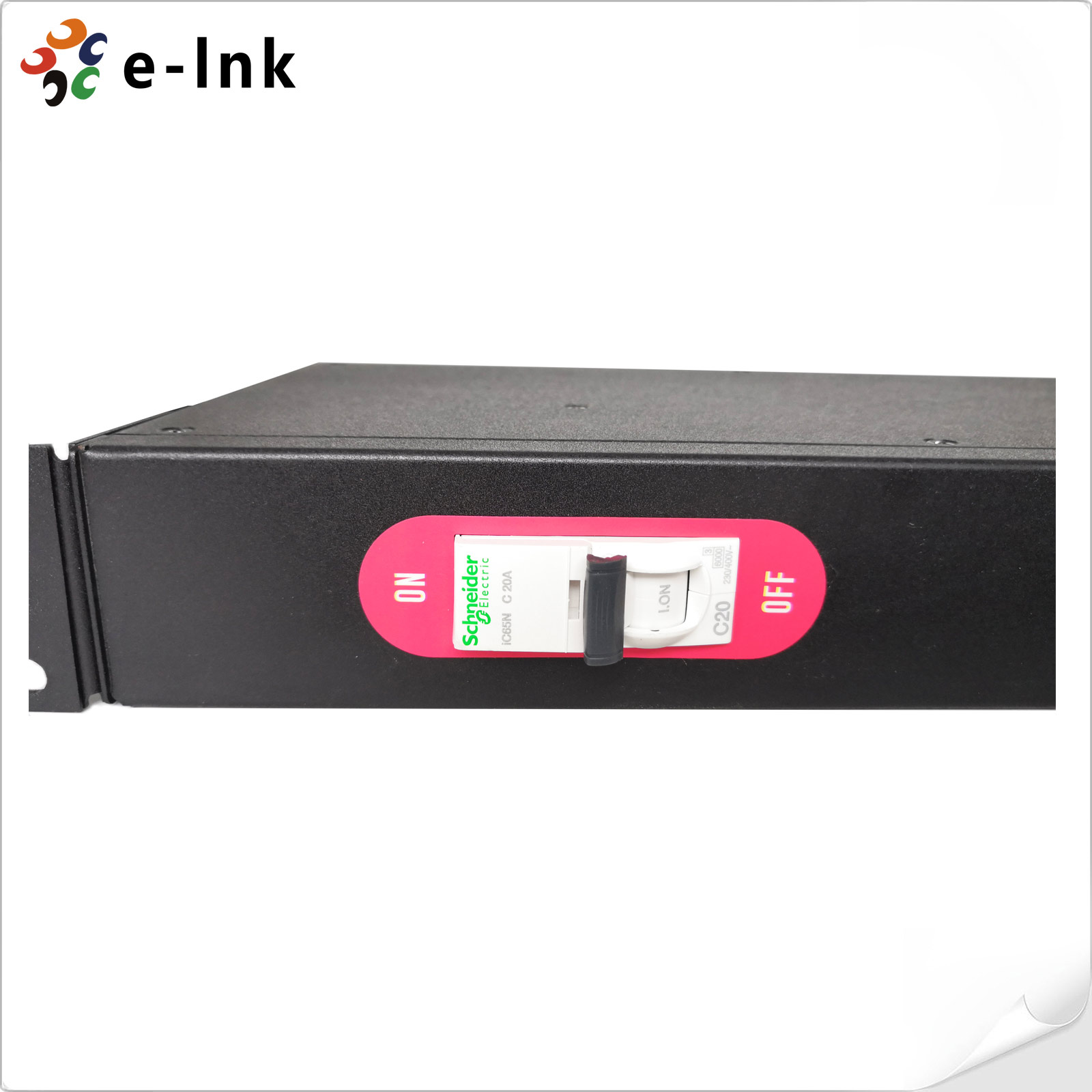

Master Switch |
Please see the product label |
According to Order Requirement |
Voltage Measurement |
Range:0~300V |
Isolated |
Display Digits:0.01V |
||
Current Measurement |
Input: Transformer |
Isolated |
Range:0~30mA |
Transformer output secondary current |
|
Display Digits:0.01A |
||
Branch off |
16A/250Vac Max. |
|
Power on Sequence |
Supports power-on sequence output from 1 to 8 branches |
|
Power Measurement |
Accuracy:Grade 1 |
Active measurement |
Display Digits:0.01kW |
||
Electricity Measurement |
Accuracy:Grade 1 |
Active measurement |
Display Digits:0.001kWh |
||
Temperature and Humidity Measurement |
Temperature:0.01℃ Humidity:0.01%RH |
Optional: But with sensors |
Communication Port |
RS485 port, Modbus RTU Communication Protocol |
Optional: uplink / downlink |
Display |
OLED Screen, Blue text on black / White text on black |
Optional |
Alarm Function 1 |
Under-voltage, over-voltage, over-current, power out-of-limit alarms |
Optional |
Alarm Function 2 |
Temperature and humidity alarm |
Optional: But with sensors |
Alarm Function 3 |
Access control 1, access control 2, smoke detection and flood alarms. |
Optional: But with sensors |
Alarm Function 4 |
Lightning protection failure detection and lightning protection count |
Optional, but with a lightning protection module |
Photosensitive Detection |
Normally used for automatic lighting with extended functions |
Optional, but with an interface expansion module |
Items |
Environment Requirements |
Working Environment |
Indoor |
Power Limit |
Derating should be used at altitudes above 2000 meters |

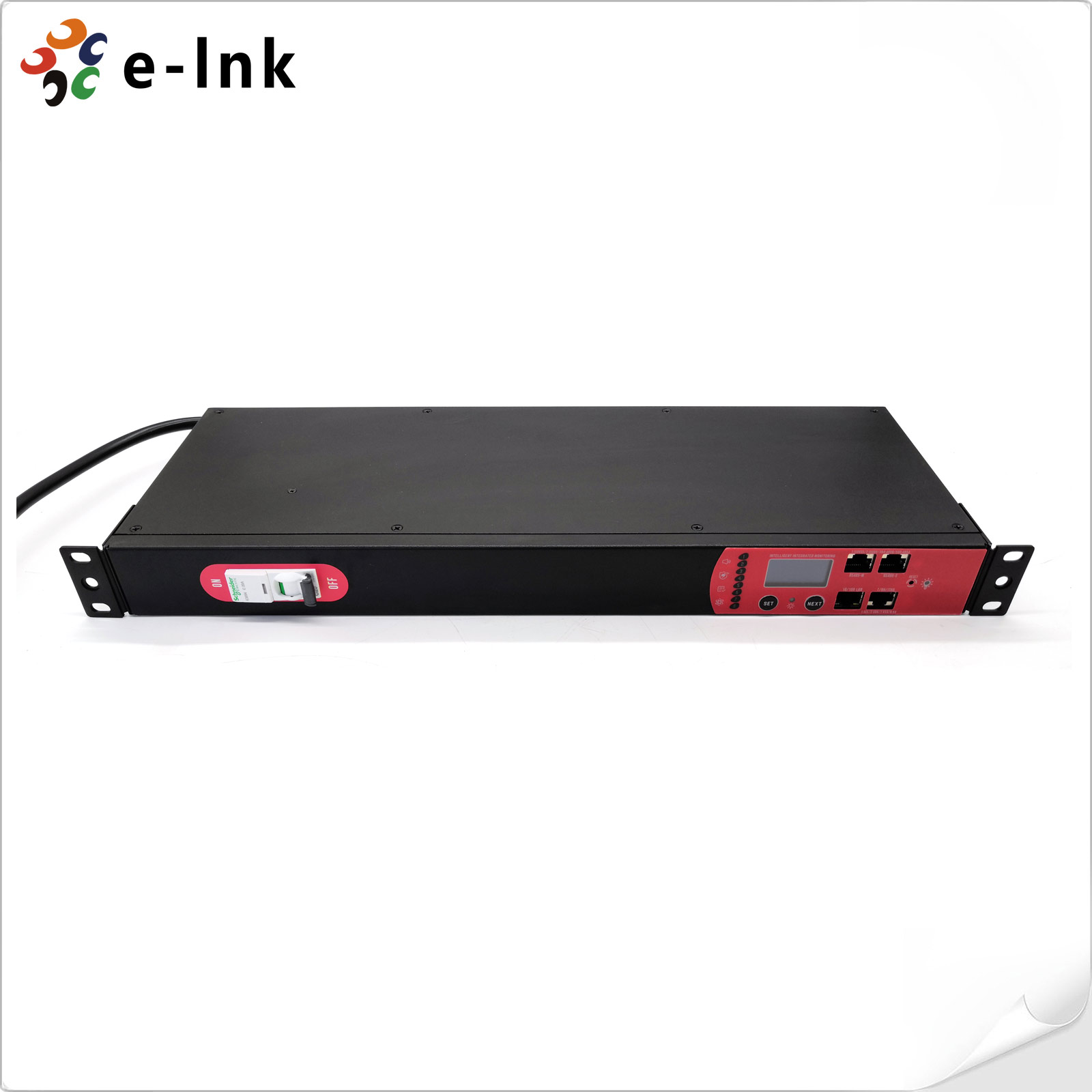

Physical |
Description |
Length |
PDU: 440mm; PDU length includingMounting Brackets482.6mm |
Height |
1U Standard (Actual Height: 44.2mm) |
Width |
163mm |
Order Information
Model | Spec | Input | Output | Output Interface |
Control | ||||
LNK-IPMU-HS19-1U-CR1.8-Q1-G10A8-MTX | 19’’1U | Micro Circuit Breaker 1P, 16A | GB2015, Max=13A, 8CH Control output |
GB1002 (10A/250V) |
LNK-IPMU-HS19-1U-CR1.8-Q1-C13A8-MTX | 19’’1U | Micro Circuit Breaker 1P, 16A | IEC320-C13 (Cable anti falling), Max=16A, 8CH Control output | IEC60320 C13 |
LNK-IPMU-HS19-1U-CR1.8-Q1-Y16A8-MTX | 19’’1U | Micro Circuit Breaker 1P, 16A | Universal plug Max=16A, 8CH Control output | Universal plug Max=16A, 8CH Control output |
