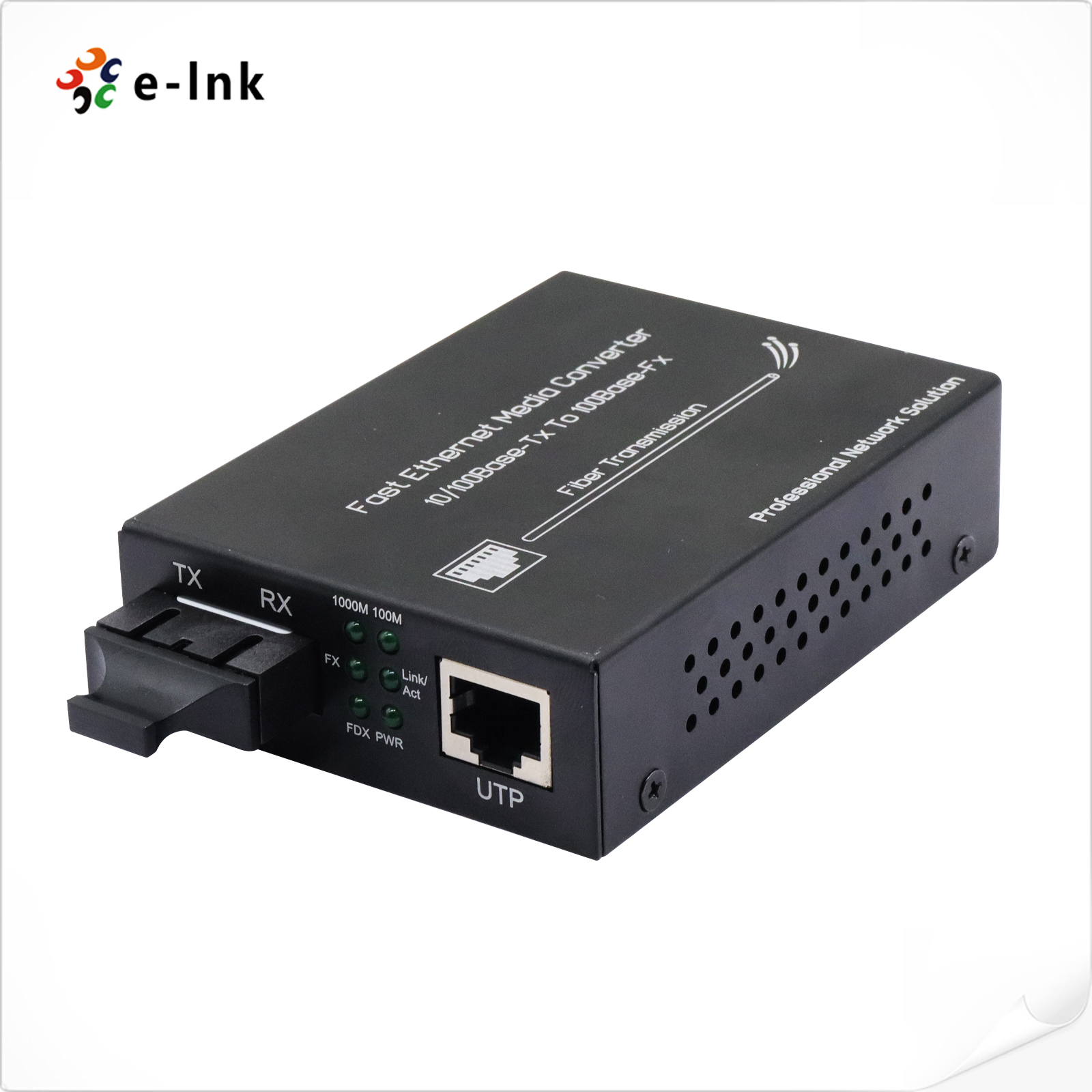

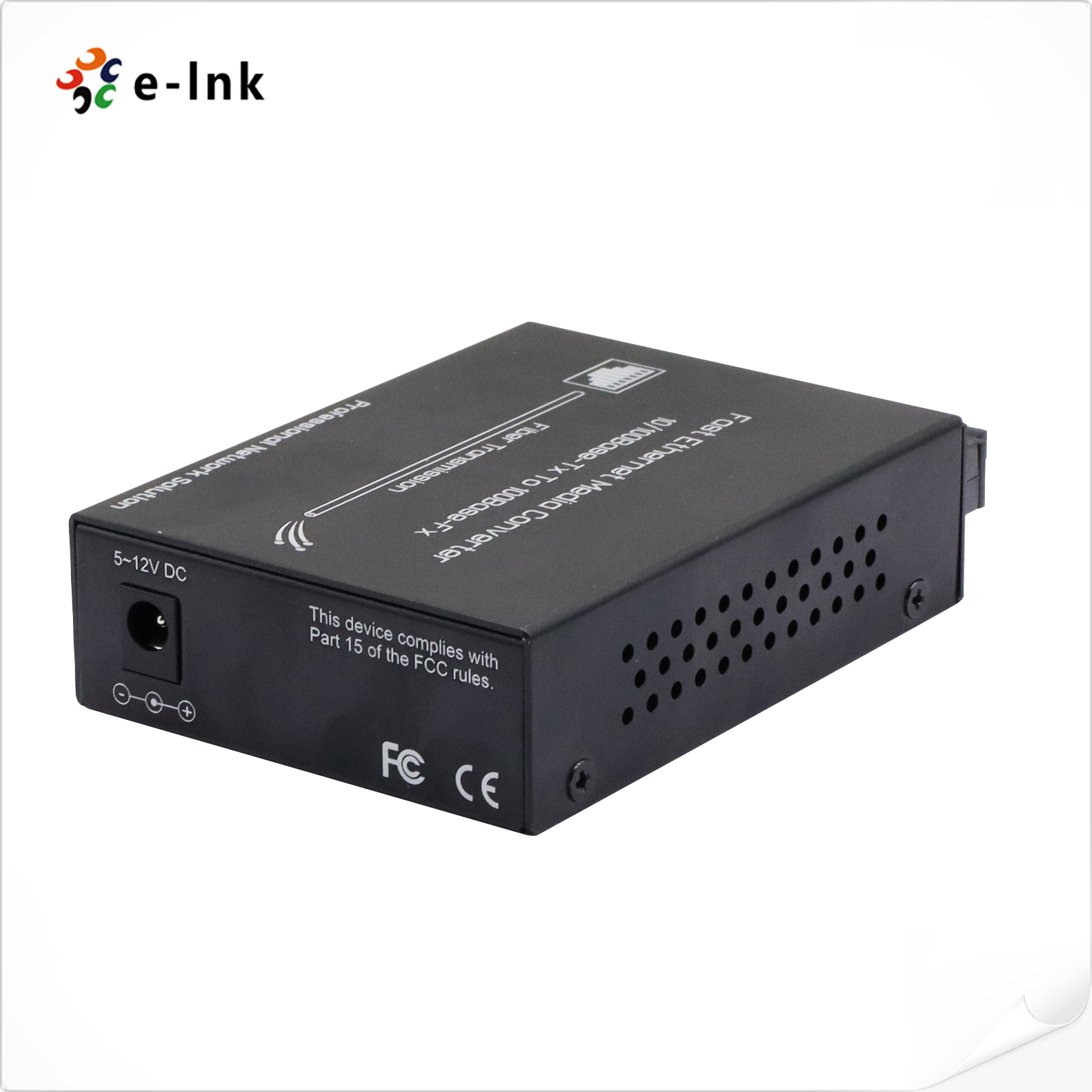

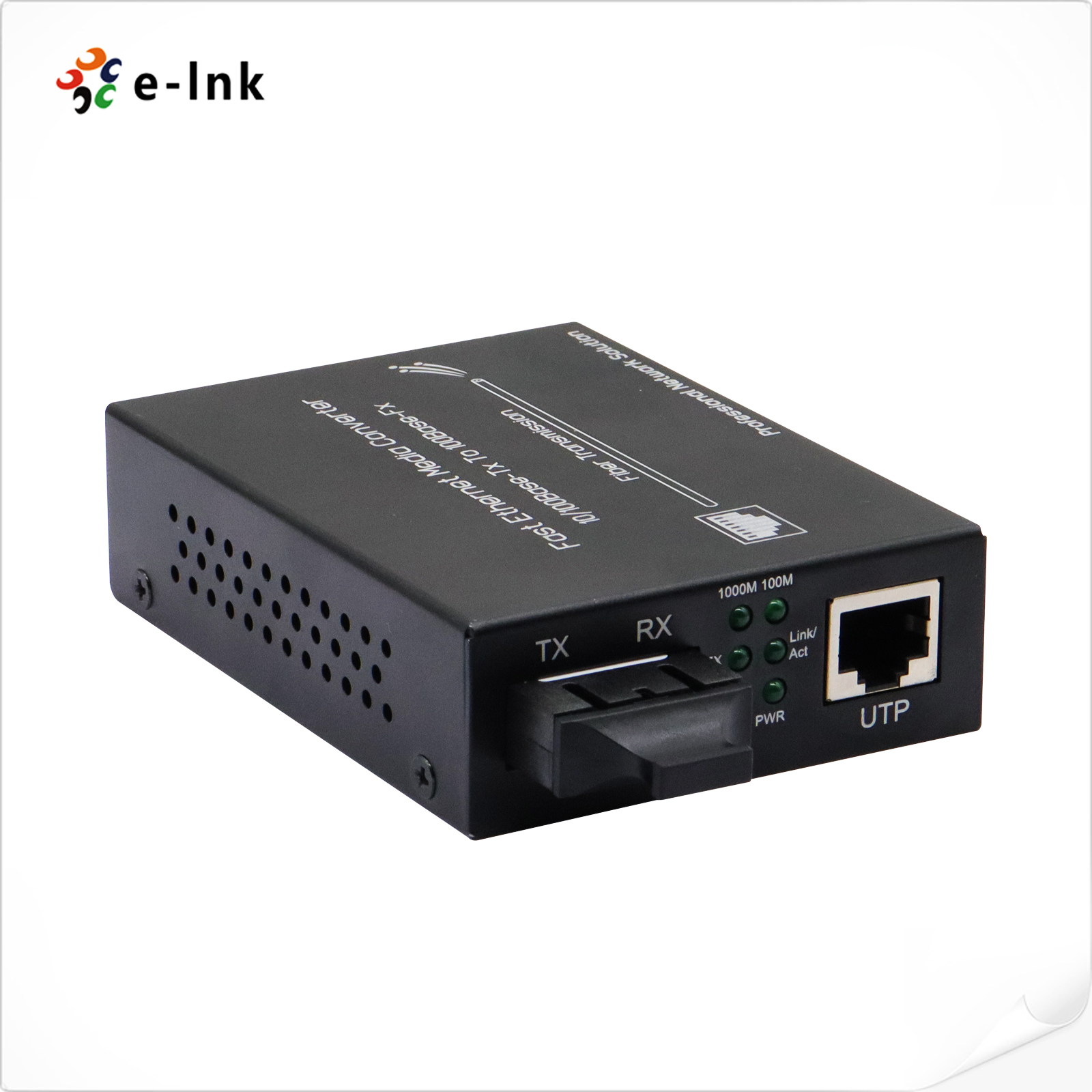

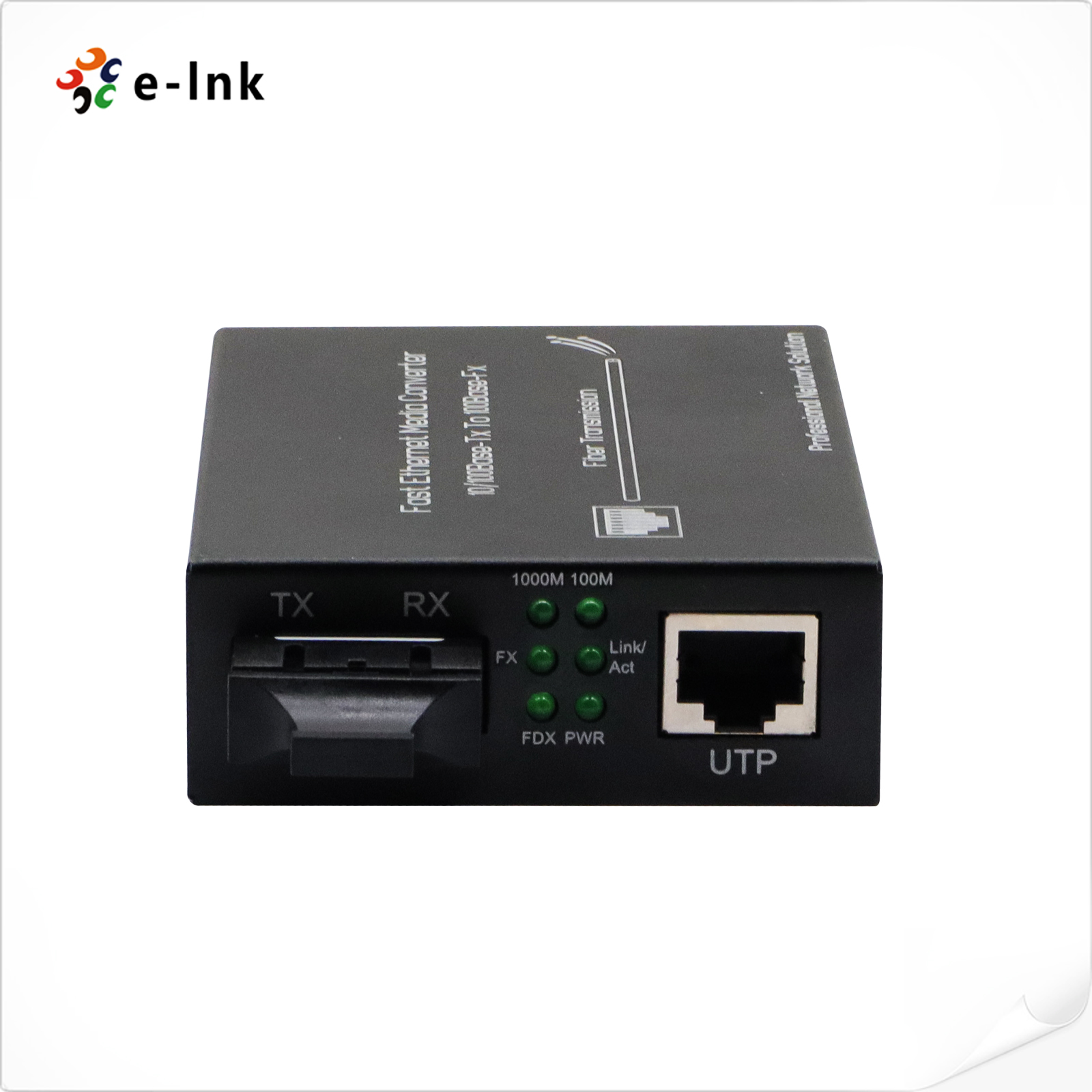

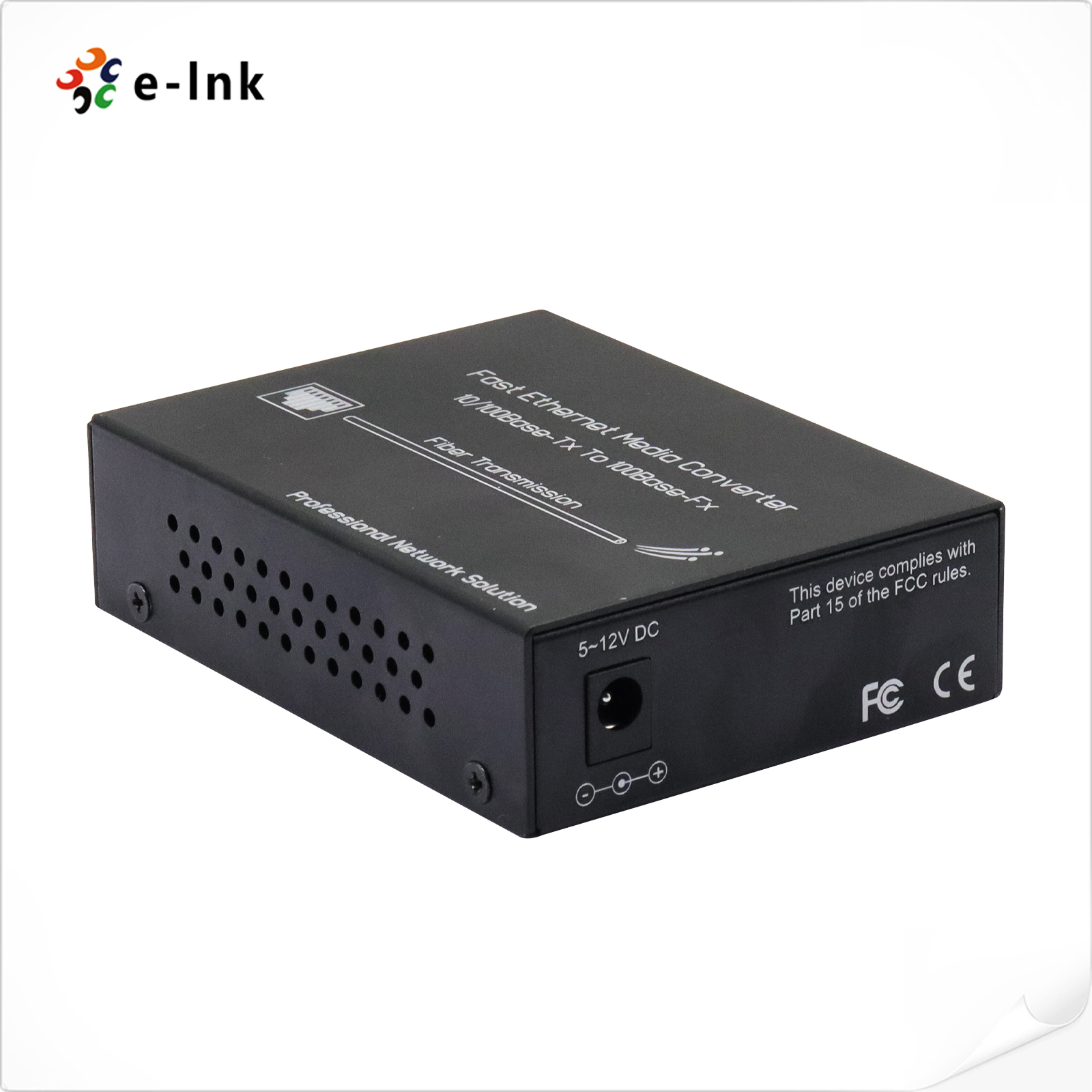

10/100M Fast Ethernet Media Converter (External PSU)
Model:LNK-1100 Series
► 10/100Mbps auto-sensed, facilitating network upgrade
► Built-in efficient switching core to implement flow control and reduce broadcast packets
► full-duplex and half-duplex auto-sensed
Overview
Due to its unique function of link failure alert between electrical port and optical one, the intelligent 10/100M adaptive fast Ethernet media converter can replace the media converter with network management to greatly reduce the system cost.
LNK-1100 Ethernet media converter can interconvert electrical signals of 10Base-T and 100Base–TX twisted pairs with optical signals of 100Base-FX. It extendsthe network transmission distance from 100m via copper cables to 120km via fiber optical cable. It enables the data to transmit in two different mediums of electrical and optical networks either by the technology of data link L2 store-and-forward, or by the one of PHY L1 cut-through). It supports transmission in multi-mode dual fiber, single mode dual fiber and single mode single fiber.Features
► 10/100Mbps auto-sensed, facilitating network upgrade
► Built-in efficient switching core to implement flow control and reduce broadcast packets
► full-duplex and half-duplex auto-sensed
► Supporting auto-sense of MDI/MDI-X, facilitating system commissioning and installation
► Supporting Link Failure Alert (LFA) optional
► Supporting half /full-duplex of FX and link failure alert with optional dip-switch
► Supporting 10/100Mbps store-and-forward and 100Mbps cut-through transmission with optional dip-switch
► Supporting the transmission of 100Base-Fx or STM-1, compatible with other devices
► Supporting low-time lag transmission
► Supporting the transmission of extra-long packets up to1600 bytes
► Supporting the transmission of extra-long VLAN packets
► Supporting Quality of Service (QoS) , ensuring the transmission of VoIP packets
► Extremely low power consumption (less than 2W), low heat, reliable and stable performance, and long lifetime
► Options in single mode dual fiber, multi-mode dual fiber, and single mode in single fiberApplication

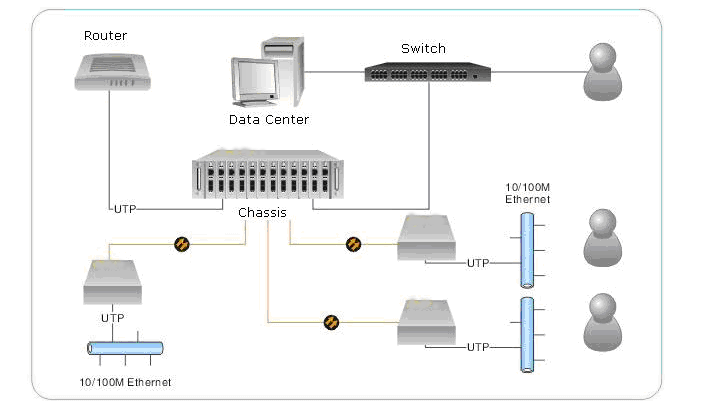

Technical Indexes
|
Parameter |
Specifications |
|
Access mode |
10/100Mbps |
|
Standard |
IEEE802.3 10Base-T Ethernet, IEEE802.3u,100Base-TX/FX Fast Ethernet, IEEE802.3x Flow control |
|
Wavelength |
850nm/1310nm/1550nm |
|
Transmission distance |
Dual-fiber multi-mode: 2 km; Dual-fiber single mode: 20/40/60/80/100/120 km; Single fiber single mode: 20/40/60/80/100 km Category-5 twisted pairs: 100m |
|
Port |
One RJ45 port: for connecting STP/UTP category-5 twisted pairs One optical port: Multi-mode, dual fiber: SC or ST (50, 62.5/125μm) Single mode, dual fiber: SC or FC (9/125μm) Single mode Single fiber: SC or FC (9/125μm) |
|
Conversion means |
Store and Forward mode or Cut-Through mode |
|
Buffer space |
Built in 128Kb RAM for data buffer |
|
Flow control |
Full duplex: flow control; Half duplex: back pressure |
|
BER |
<19-9 |
|
MTBF |
100,000 hours |
|
LED indicator |
POER (power supply); FX LINK/ACT (optical link action); FDX (FX full duplex), TX LINK/ACT (TP cable link/action); TX 100 (TP cable rate 100M), FX100(fiber cable rate 100M) |
|
Power supply |
DC 5V / 1A |
|
Power consumption |
<40W (the chassis at full load), <2W |
|
Operating temperature |
-10~55ºC |
|
Operating humidity |
5%~90% |
|
Maintaining temperature |
-40~70ºC |
|
Maintaining humidity |
5% ~ 90% non-condensing |
|
Dimensions (W x D x H) |
71 x 94 x 26 mm |
- Download FileName：E-link LNK-1100 Series Media Converter Datasheet V1.1.pdf Size： 1.68MB
Order Information
| Item | Description |
| LNK-1100 | 10/100Base-T to 100Base-F, multi-mode, 2km, 1310nm, SC, standalone, external power adaptor |
| LNK-1100S-20 | 10/100Base-T to 100Base-F, single mode, 20km, 1310nm, SC, standalone, external power adaptor |
| LNK-1100S-40 | 10/100Base-T to 100Base-F, single mode,40km, 1310nm, SC, standalone, external power adaptor |
| LNK-1100S-60 | 10/100Base-T to 100Base-F, single mode,60km, 1310nm, SC, standalone, external power adaptor |
| LNK-1100S-80 | 10/100Base-T to 100Base-F, single mode,80km, 1550nm, SC, standalone, external power adaptor |
| LNK-1100S-100 | 10/100Base-T to 100Base-F, single mode,100km, 1550nm, SC, standalone, external power adaptor |
| LNK-1100S-120 | 10/100Base-T to 100Base-F, single mode,120km, 1550nm, SC, standalone, external power adaptor |
| LNK-S1100-20 | 10/100Base-T to 100Base-F, WDM(single fiberbi-direction),20km, 1310/1550nm, SC, standalone, external power adaptor |
| LNK-S1100-40 | 10/100Base-T to 100Base-F, WDM(single fiberbi-direction),40km, 1310/1550nm, SC, standalone, external power adaptor |
| LNK-S1100-60 | 10/100Base-T to 100Base-F, WDM(single fiberbi-direction),60km, 1310/1550nm, SC, standalone, external power adaptor |
| LNK-S1100-80 | 10/100Base-T to 100Base-F, WDM(single fiberbi-direction),80km, 1310/1550nm, SC, standalone, external power adaptor |
| LNK-S1100-100 | 10/100Base-T to 100Base-F, WDM(single fiberbi-direction),100km, 1310/1550nm, SC, standalone, external power adaptor |
