1080P HDMI KVM Fiber Optic Extender

Model:LNK-1240KVM Series

►    Supports DVI 1.0 and HDMI v1.3

►    Supports resolutions up to 1920*1080/60P

►    Supports HDMI bit-rates up to 2.25Gbps color, 6.75Gbps total

►    Support USB Keyboard and USB Mouse

Overview

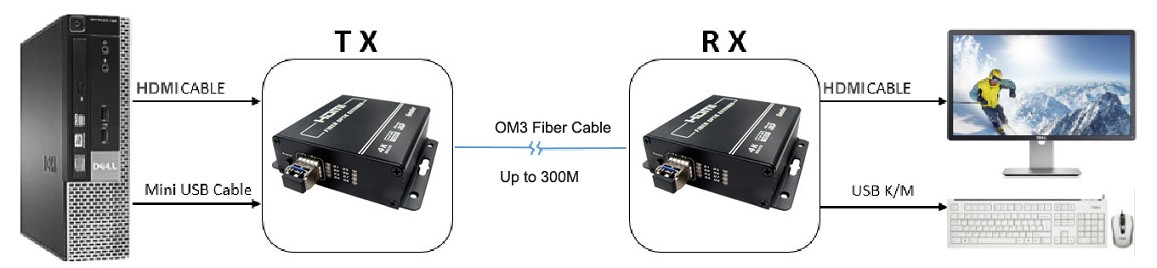

The LNK-1240KVM series is a high performance 1080P HDMI KVM Fiber Optic Extender that transmits high resolution DVI / HDMI signals over extreme distances using 2 cores fiber. This extender supports HDMI v1.3 signals with resolutions up to 1080P(1920x1080/60p) over cable distances up to 300m (Multimode Fiber) or 10km (Single Mode Fiber).

Features

►    Real Time Transmission

►    Supports DVI 1.0 and HDMI v1.3

►    Supports resolutions up to 1920*1080/60P

►    Supports 1920*1080/60P resolution with color depth up to 24 bits/pixel

►    Supports HDMI bit-rates up to 2.25Gbps color, 6.75Gbps total

►    HDCP 1.2 compliant

►    Support 3D TV pass-through

►    CEC are NOT supported!

►    Support EDID pass-through

►    Support USB Keyboard and USB Mouse

►    LPCM 7.1, Dolby® TrueHD, and DTS-HD Master Audio™

►    Plug and Play

►    Built-in EQ(Receiver)

►    Up to 300m distance by OM3-300 (Custom Available)

►    Low RFI / EMI profile for sensitive applications

►    Surface-mountable

Application

►    Digital Signage

►    LED signboards in streets and in stadiums

►    Medical Imaging Equipment

►    Airplane On-board Video System

►    Conference Room Video Equipment

►    Remote monitor for traffic, industrial, military control

►    LCD, Projector, Plasma display connection

►    Large video wall system

►    TV Broadcast Station

►    Home Theater



Technical Indexes

Performance

Compliance

HDMI v1.3

Maximum Pixel Clock Frequency

225 MHz

Maximum Video Bit Rate

2.25 Gbps

Supported Color Depth

24-bit

Supported Resolutions

1920x1080/60P

Digital Audio Support

7.1 channel LPCM, 192 kHz, 24-bit audio capability

Connections

Description

HDMI Input / Output

1x HDMI Type-AFemale connector

Optical

1x SFP+ port

Cable


Fiber Cable Type / Max. Length

50/125μ OM3-300 Multi-Mode Fiber:   ≤1,000 ft. (≤300 meters)

9/125μ OM3-300 Multi-Mode Fiber:   ≤10KM

Extended function


KM Support

USB Keyboard x 1 / USB Mouse x1

CEC Support

CEC are NOT supported!

DDC Support


EDID Pass-through Support

only 300 meters

HDCP Pass-through Support

only 300 meters

Mechanical


Construction

High-impact Alufer enclosure

Dimensions (L x W x H)

89mm x 104 mm x 28.3 mm

Net Weight

200 g

Environmental


Operating Temperature

32° to +122° F. (0° to +50° C)

Storage Temperature

-40° to +185° F. (-40° to +85° C)

Operating Humidity

5% to 80% (non-condensing)

Storage Humidity

5% to 95% (non-condensing)

Power Requirements


External AC Power Adapter

Input: 100-240VAC / 50-60Hz 0.2A
Output: 5VDC, 2.0A

Power Consumption

3 watts

Warranty


Limited Warranty

2 year warranty

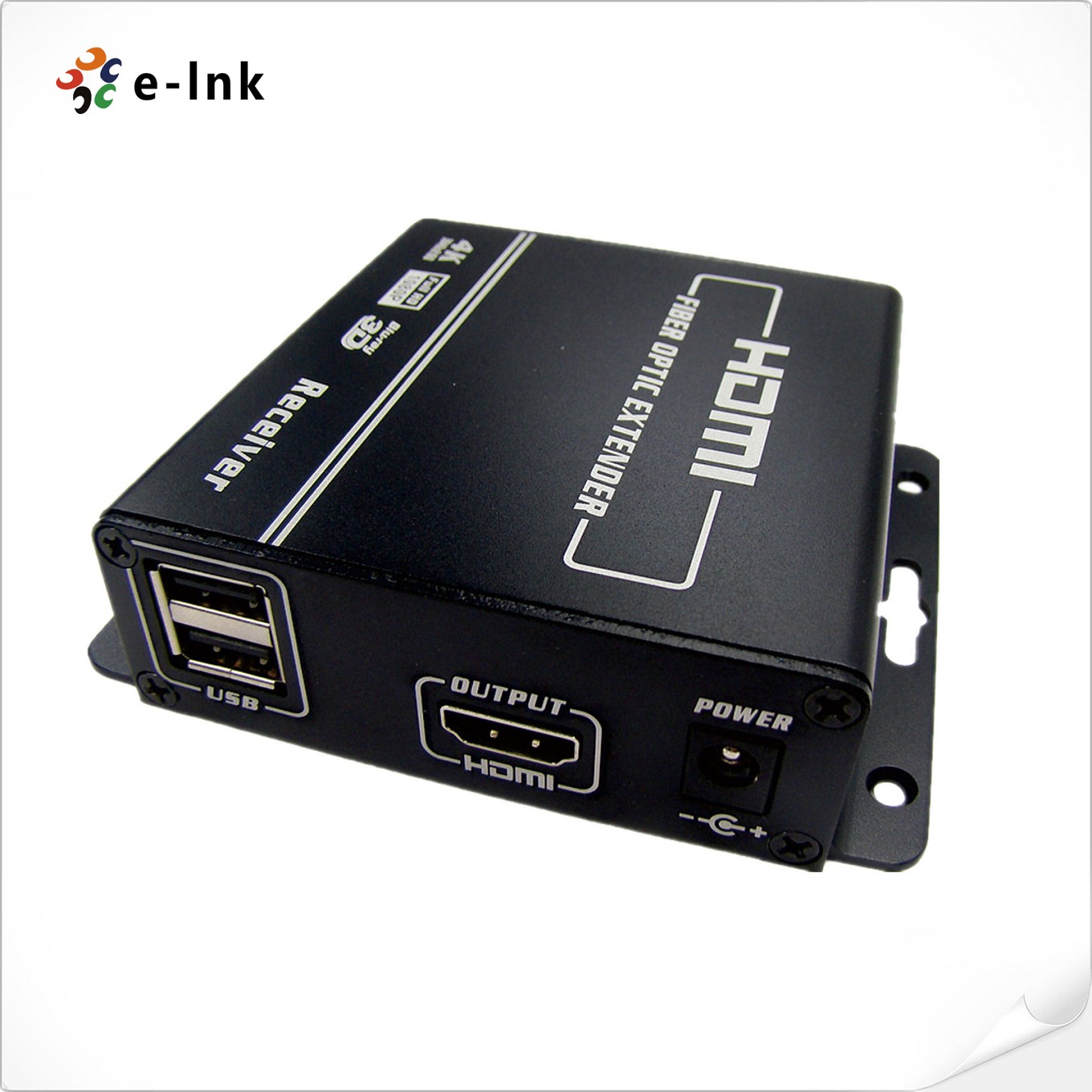

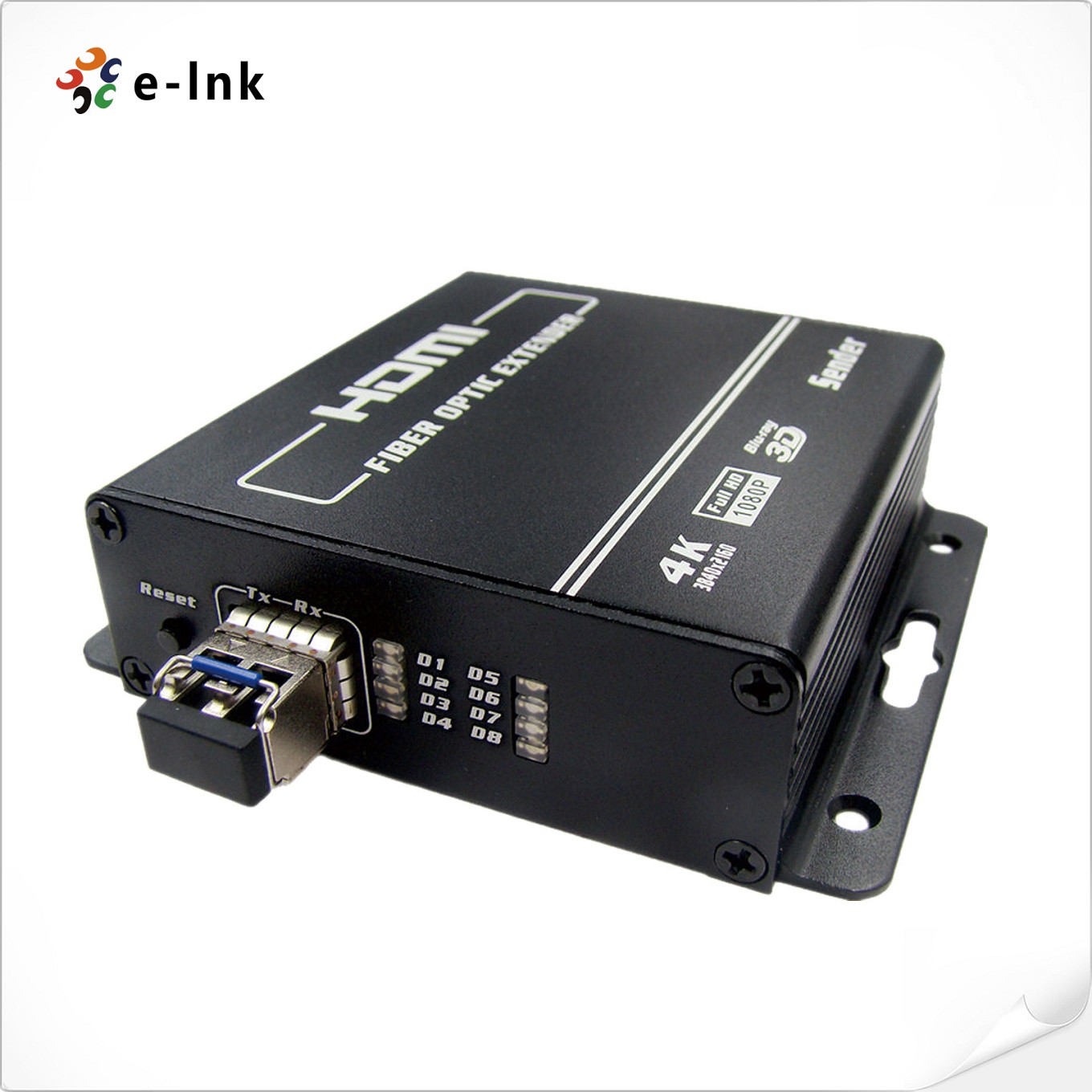

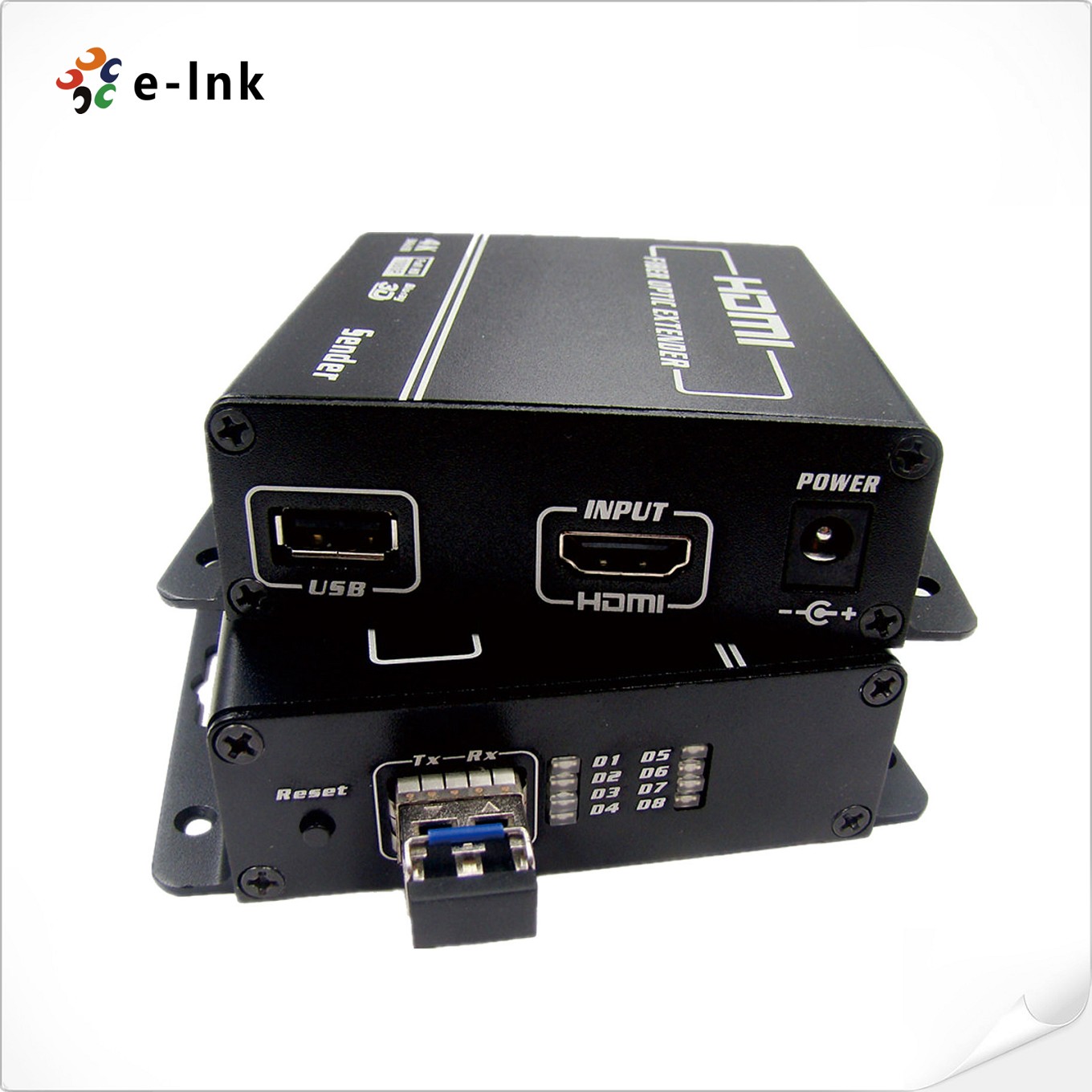

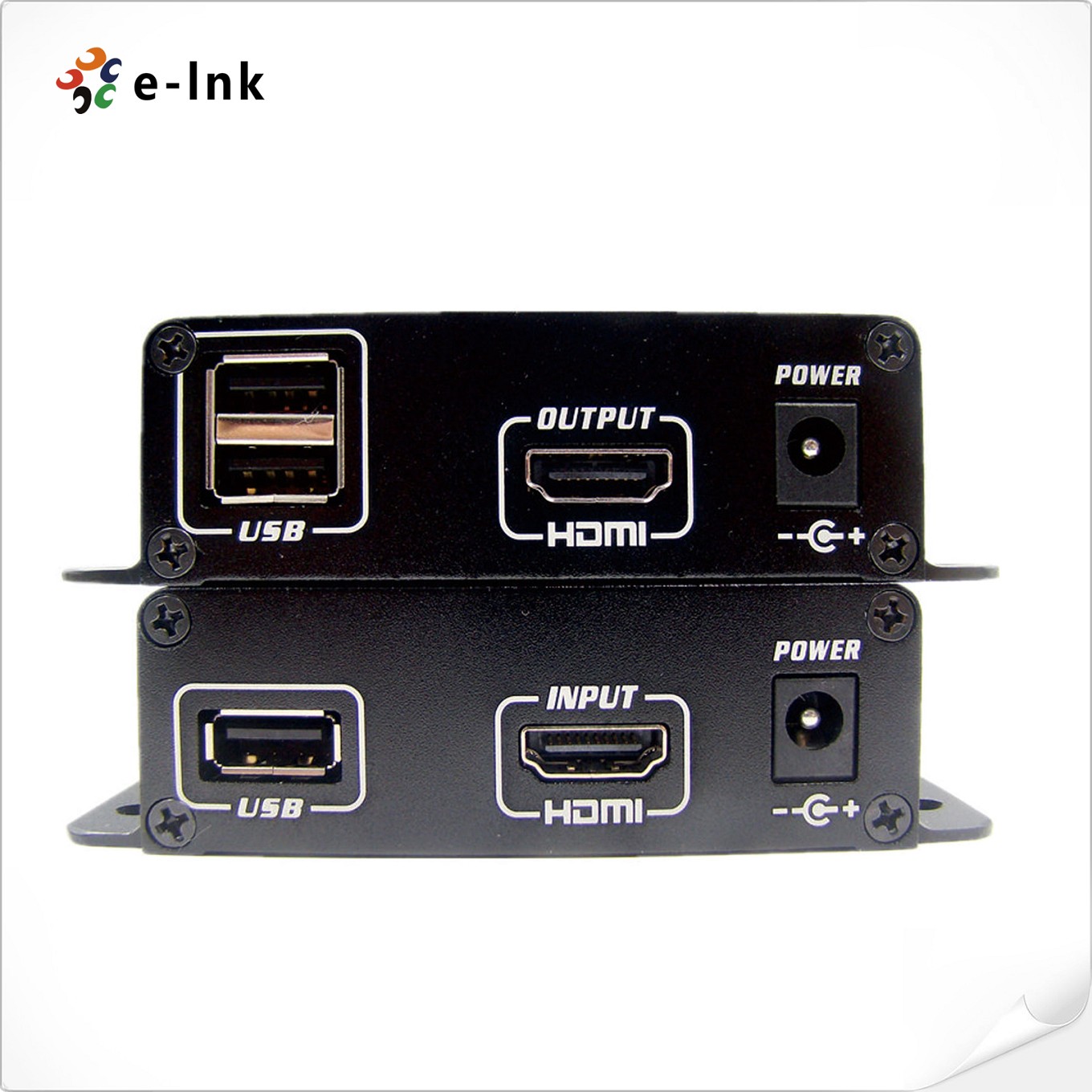

Panel







Port name

Sender

Receiver

HDMI interface

HDMI signal input

HDMI signal output

RESET

System reset botton

System reset botton

POWER

Power adapter socket

Power adapter socket

SFP

SFP+ Module Cage

SFP+ Module Cage

USB

Connect to PC USB Host Controller

1*USB Keyboard and 1*USB Mouse

LED indicator

D1

ON: Power on

ON: Power on

D2

ON: Receiver Optical input is normal and Displayer plugged into DVI output port

Reserve

D3

SFP+ RX Optical signal Input indicator

ON: Lost of Optical signal

OFF: The optical signal input is normal

SFP+ RX Optical signal Input indicator

ON: Lost of Optical signal

OFF: The optical signal input is normal

D4

Blinking:

The Source is connected

Blinking:

The monitor is connected

D5

SFP+ TX Fault indicator

ON:indicates normal operation          OFF:indicates a laser fault of some kind

D6

ON:USB Device2 Link OK             Blinking: Communication

D7

ON:USB Device1 Link OK

Blinking: Communication

ON:USB Device1 Link OK

Blinking:Communication

D8

ON: Error

ON: Error




  • Download FileName:E-link LNK-1240KVM 1080P HDMI KVM Fiber Optic Extender datasheet V1.0.pdf Size: 495KB

Ordering Information

Model

Description

LNK-1240KVM-T

1080P HDMI KVM Fiber Optic Extender Transmitter

LNK-1240KVM-R

1080P HDMI KVM Fiber Optic Extender Receiver
