► Support 24 port RJ45 fast Ethernet ports and 4 fiber ports
► Support IEEE802.3/802.3u/802.3x/IEEE802.3af/IEEE802.3at
► DC110~220V or AC100~240V 3 bits terminal block power input
► All port anti-lighting (6KV)
► Supports IEEE 802.3af/IEEE802.3at compliant PoE enabled device
Overview
LNK-4024GP-SFP Series is a type of plug-and-play unmanaged POE Ethernet switch, which supports 24x10/100/1000Base-T(x) + 4x1000Base-FX interfaces.With PoE, installation of network devices such as IP surveillance cameras, wireless access points, IP phones, and other PoE enabled devices in hard-to-reach, outdoor, and remote areas is simplified.No fan, low consumption and industrial grade design. More steadily work capability. To satisfy applications in different industrial environments, it can also provide wide temperature type in accommodation with limit temperature( up to -20 ~ 60°C).Features
► Support 24 port RJ45 fast Ethernet ports and 4 fiber ports
► Support IEEE802.3/802.3u/802.3x/IEEE802.3af/IEEE802.3at
► Support broadcast storm shield
► DC110~220V or AC100~240V 3 bits terminal block power input
► No fan, low consumption,EMC-4 grade design
► IP30 protection, metal shell
► Over voltage protection
► All port anti-lighting (6KV)
► SupportsIEEE 802.3af/IEEE802.3at compliant PoE enabled device

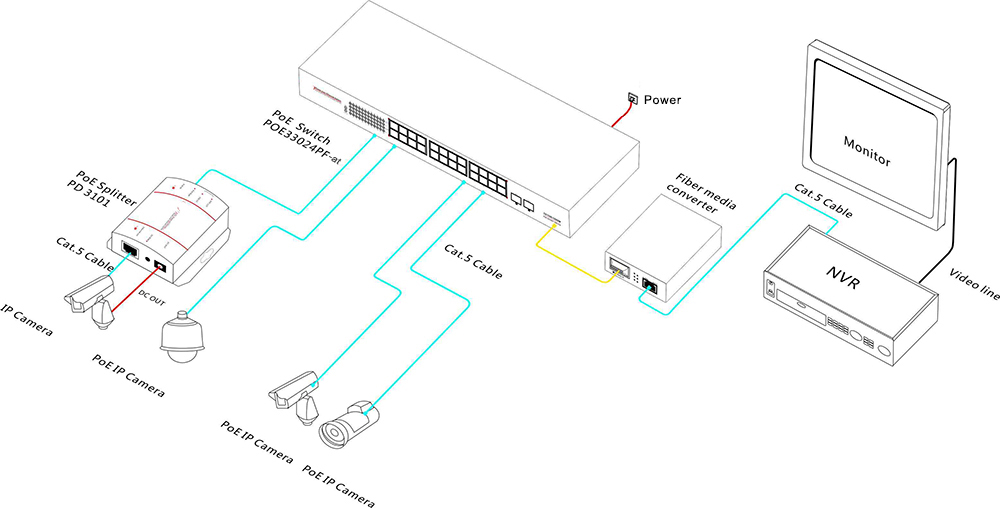

Application
Technical Indexes
Standard |
IEEE802.3, IEEE802.3u, IEEE802.3x |
Flow control |
IEEE802.3x |
MAC address |
8K |
Interface |
|
RJ45 Ports |
10/100/1000M auto connection, Full/Half duplex or force work mode, and support MDI/MDI-X connection |
Fiber Ports |
1000Base-FX ports |
LED indicator |
PWR, SYS, Link/ACT |
PoE |
|
PoE Ports |
Port1-24 support POE |
PoE Standard |
IEEE802.3at/af ( Max 25.5W for each POE port) |
PoE Max power |
600W |
Power |
|
Input power |
110~220VDC(100~300VDC)Or100~240VAC(85~264VAC) |
Connector |
3 bits terminal block |
Environmental |
|
Operating Temperature |
-20~60℃(wide temperature optional) |
Storage Temperature |
-40~85℃ |
Relative Humidity |
5%~95%(non-condensing) |
Mechanical |
|
Shell |
IP30 protection, metal case |
Installation |
19”1U rack |
W×H×D |
440 x 275 x 44.5mm |
Approvals |
|
EMI |
FCC Part 15,CISPR(EN55022)class |
EMS |
EN61000-4-2(ESD), Level 3 EN61000-4-3(RS), Level 3 EN61000-4-4(EFT), Level 3 EN61000-4-5(Surge), Level 3 EN61000-4-6(CS), Level 3 EN61000-4-8, 100A/m EN61000-4-12 |
Shock |
IEC 60068-2-27 |
Free Fall |
IEC 60068-2-32 |
Vibration |
IEC 60068-2-6 |
Warranty |
3 years |
Dimensions and Weight |
7.8 kg (Gross Weight) |
Ordering Information
Model |
Description |
LNK-4024GPF-SFP |
Unmanaged 24-Port PoE Switch: 24x 10/100/1000M Ethernet ports + 4x Gigabit SFP combo ports, and 1-24 ports supports IEEE802.3at/af POE international standard, whole power is 400W |
LNK-4024GPT-SFP |
Unmanaged 24-Port PoE Switch: 24x 10/100/1000M Ethernet ports + 4x Gigabit TP/SFP combo ports, and 1-24 ports supports IEEE802.3at/af POE international standard, whole power is 600W |
