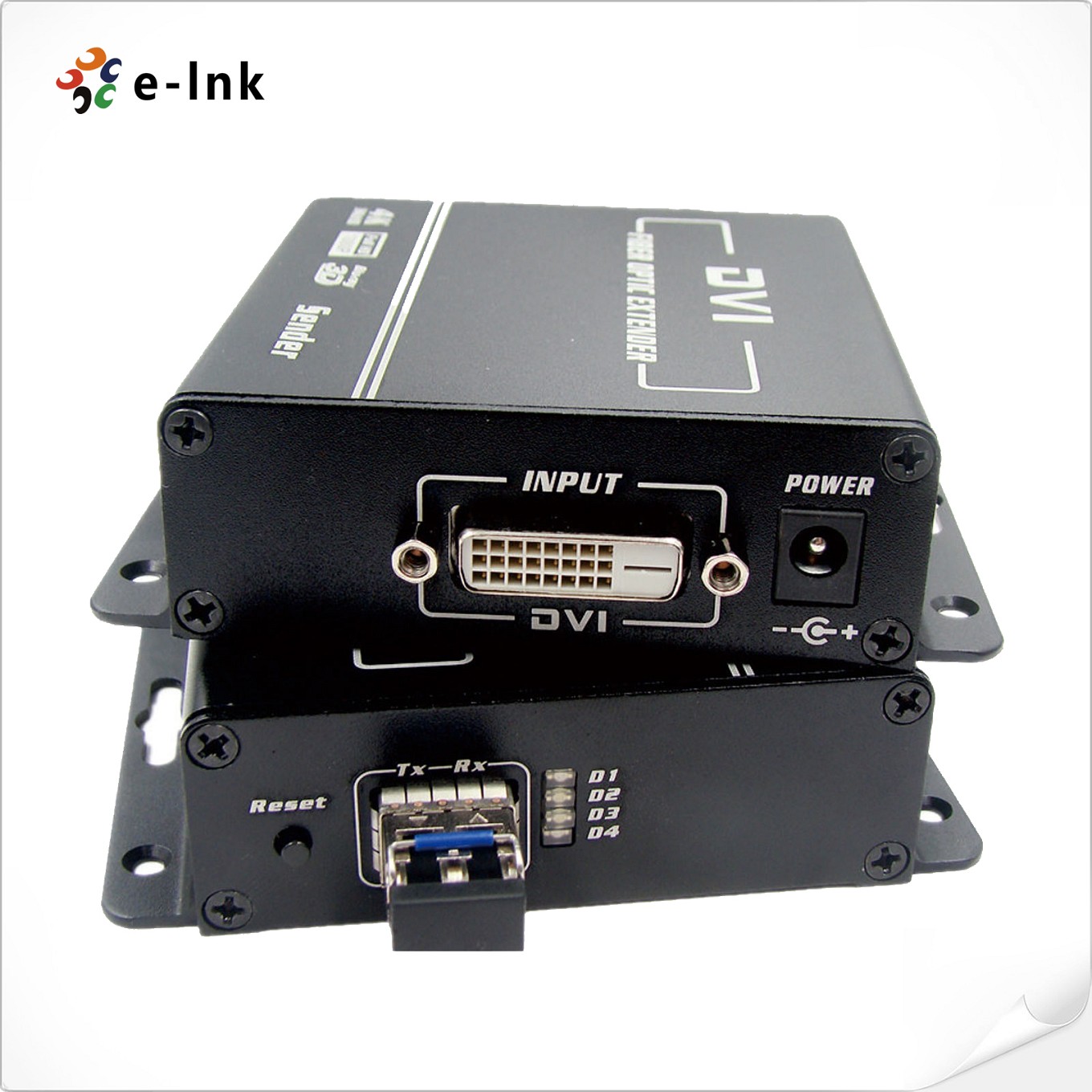

4K DVI Fiber Optic Extender
Model:LNK-4KDVI Series
►Supports DVI and HDMI v1.4
►Supports 4K (UHD) and resolutions up to 3840x2160/30P, 4096x2160/30P
►Supports 3840*2160/60P(YCbCr 420)，4096*2160/60P(YCbCr 420)
Overview
The LNK-4KDVI series is a high performance 4K Optical Extender that transmits high resolution DVI/HDMI signals over extreme distances using 2 cores fiber. This extender supports HDMI v1.4 signals with resolutions up to 4K (4096x2160/30p) over cable distances up to 300m.
The extender set consists of an optical transmitter module that converts the DVI/HDMI signals into light pulses for transmission over a 2 cores fiber. An optical receiver module converts the light pulses back to a DVI/HDMI signal for display on a monitor or projector.
Most single-fiber optical extenders transmit signals over multiple optical wavelengths, which can suffer from chromatic dispersion over long cable runs. To avoid this issue, this extender employs a cutting-edge, high-speed SerDes that combines the DVI/HDMI signal channels into a single uncompressed 10.3 Gbps bit stream. This enables the optical transmission of the signal over a single optical wavelength, which provides increased signal fidelity, stability and flawless image quality, regardless of cable length. These features make the LNK-4KDVI series the ideal future-proof choice for systems designers and integrators who need to transmit high resolution DVI / HDMI signals over extreme distances.
Features
►Long-distance transmission of DVI-D, audio, RS-232 signals via a single optical fiber.►Supports DVI and HDMI v1.4
►Supports 4K (UHD) and resolutions up to 3840x2160/30P, 4096x2160/30P
►Supports 3840*2160/60P(YCbCr 420)，4096*2160/60P(YCbCr 420)
►Supports 1080p resolution with color depth up to 24 bits/pixel
►Supports HDMI bit-rates up to 3.4 Gbps/color,10.2 Gbps total
►HDCP 1.2 compliant
►Support 3D TV pass-through
►SupportEDID pass-through
►LPCM 7.1, Dolby® TrueHD, and DTS-HD Master Audio™
►Plug and Play
►Built-in EQ(Receiver)
►Up to 300m distance by OM3-300(Custom Available)
►Low RFI / EMI profile for sensitive applications
►Surface-mountable
Application
Technical Indexes
|
Compliance |
DVI 1.0, HDMI v1.4 |
|
Maximum Pixel Clock Frequency |
340 MHz |
|
Maximum Video Bit Rate |
3.40 Gbps |
|
Supported Color Depth |
24-bit |
|
Supported Resolutions |
1920x1080/60p,3840x2160/30p, 4096x2160/30P 3840x2160/60p(YCbCr 420)，4096*2160/60P(YCbCr 420) |
|
Digital Audio Support |
7.1 channel LPCM, 192 kHz, 24-bit audio capability |
|
Connections |
|
|
DVI Input / DVI Output |
1x 18+1 DVI-D Female connector |
|
Cable |
1x SFP+ port |
|
Fiber Cable Type / Max. Length |
50/125μ OM3-300 Multi-Mode Fiber: ≤ 1,000 ft. (≤ 300 meters) |
|
Extended function |
|
|
Support IR/232/485/KM |
None |
|
CEC |
Customize, The default does not support |
|
DDC Support |
|
|
EDIDPass-throughSupport |
only 300 meters |
|
HDCP Pass-through Support |
only 300 meters |
|
Mechanical |
|
|
Construction |
High-impact Alufer enclosure |
|
Dimensions (L x W x H) |
89mm x 104 mm x 28.3 mm |
|
Net Weight |
200 g |
|
Environmental |
|
|
Operating Temperature |
32° to +122° F. (0° to +50° C) |
|
Storage Temperature |
-40° to +185° F. (-40° to +85° C) |
|
Operating Humidity |
5% to 80% (non-condensing) |
|
Storage Humidity |
5% to 95% (non-condensing) |
|
Power Requirements |
|
|
External AC Power Adapter |
Output: 5VDC, 2.0A |
|
Power Consumption |
3 watts |
|
Limited Warranty |
1 year free warranty |
- Download FileName：E-link LNK-4KDVI 4K DVI KVM Fiber Optic Extender Datasheet V1.0.pdf Size： 634KB
|
Model |
Description |
|
LNK-4KDVI |
4K DVI Fiber Optic Extender: 1-channel 4K (4096x2160/30p) DVI, 300m, OM3
Multimode Fiber, LC, including 1 transmitter & 1 receiver |
