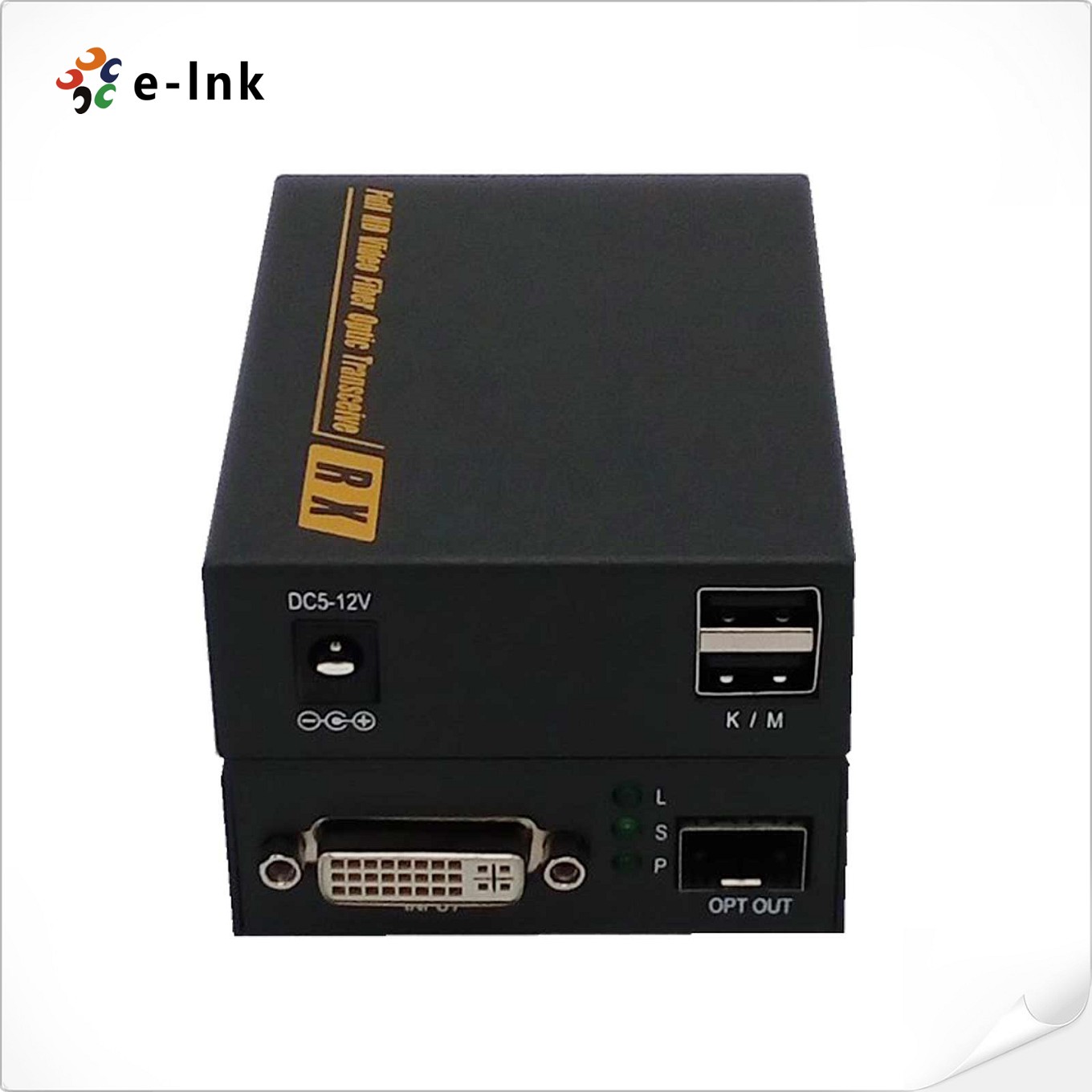

4K DVI KVM Fiber Optic Extender
Model:LNK-DVI-106H
►Support video resolution up to 3860*2160@30Hz, 2560*1600@60Hz, 3D signal
►Compliance with DVI 1.0 standard, KVM-USB (optional)
►Support copy EDID copy/pass-thru, can match many kind display device
Overview
The 4K DVI Fiber optic extender provides extension of DVI and 3D signals long distances over one fiber optic cable, it supports high resolution up to 3860*2160@30Hz and 2560*1600@60Hz, EDID copy/pass-thru ,KVM(USB),function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
Features
►Transmits DVI video signals up to 2km over a pair fiber optic cable;►Support video resolution up to3860*2160@30Hz, 2560*1600@60Hz, 3D signal ;
►Support copy EDID copy/pass-thru, can match many kind display device;
►Compliance with DVI 1.0 standard, KVM-USB (optional);
►High compatibility, can auto-match source and display device;
►Built-in automatic adjustment system, make the image smooth, clear and stable;
►Built-in ESD protection system;
►Simple to install, plug and play;
Technical Indexes
|
Parameter |
Description |
|
|
Video |
Standards |
DVI1.0 |
|
Maximum pixel clock |
225MHz |
|
|
Maximum data rate |
6.75Gbps |
|
|
Resolution range |
Up to 3840*2160@30Hz, 2560*1600@60Hz |
|
|
Connector |
Female DVI type A |
|
|
Impedance |
100Ω |
|
|
KVM (Optional) |
Interface |
PC: MINI-USB USB-A |
|
Optical fiber |
Interface |
SFP model – LC connector |
|
Fiber type |
Single-mode |
|
|
Wavelength |
Single-mode 1310nm |
|
|
Interface bandwidth |
10Gbps |
|
|
Transmission distance |
Single-mode fiber: standard 2km |
|
|
Other |
Power supply |
The power adapter: DC 5V~12V/2A |
|
Power dissipation |
MAX 5W |
|
|
Temperature |
Operating: -5℃~ +70℃ |
|
|
Humidity |
Operating: 5% ~ 90% |
|
|
Dimension |
94.5*73*26mm |
|
- Download FileName：E-link LNK-DVI-106H 4K DVI KVM Fiber Optic Extender Datasheet V1.0.pdf Size： 419KB
|
Model |
Description |
|
LNK-DVI-106H |
4K*2K DVI Fiber Optic Extender, Compliance with DVI 1.0 standard, 3860*2160@30Hz, 2560*1600@60Hz, 3D signal, support EDID + HDCP + RS232 pass-through, LC(SFP), single mode, single fiber, 2km, including 1 transmitter & 1 receiver |
