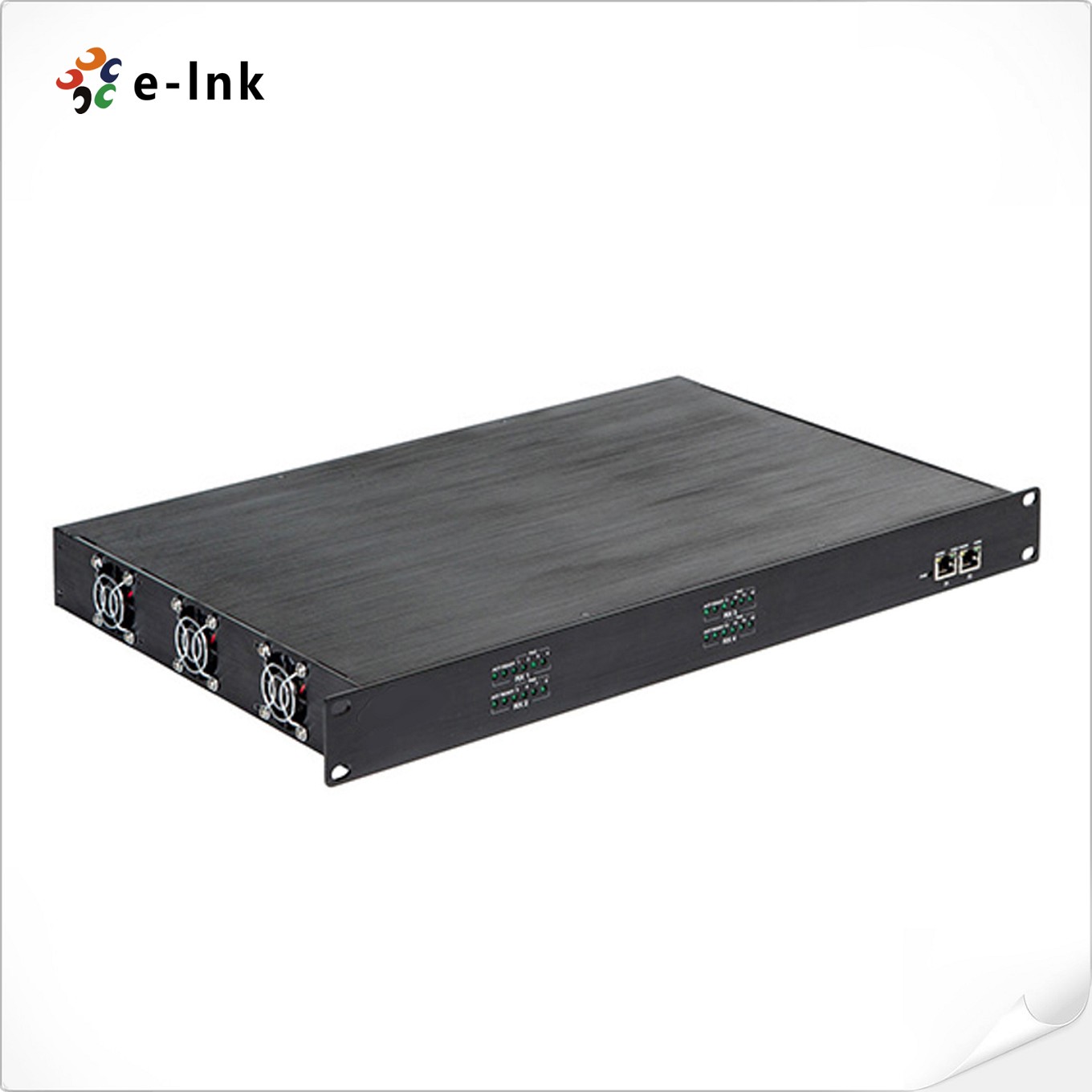

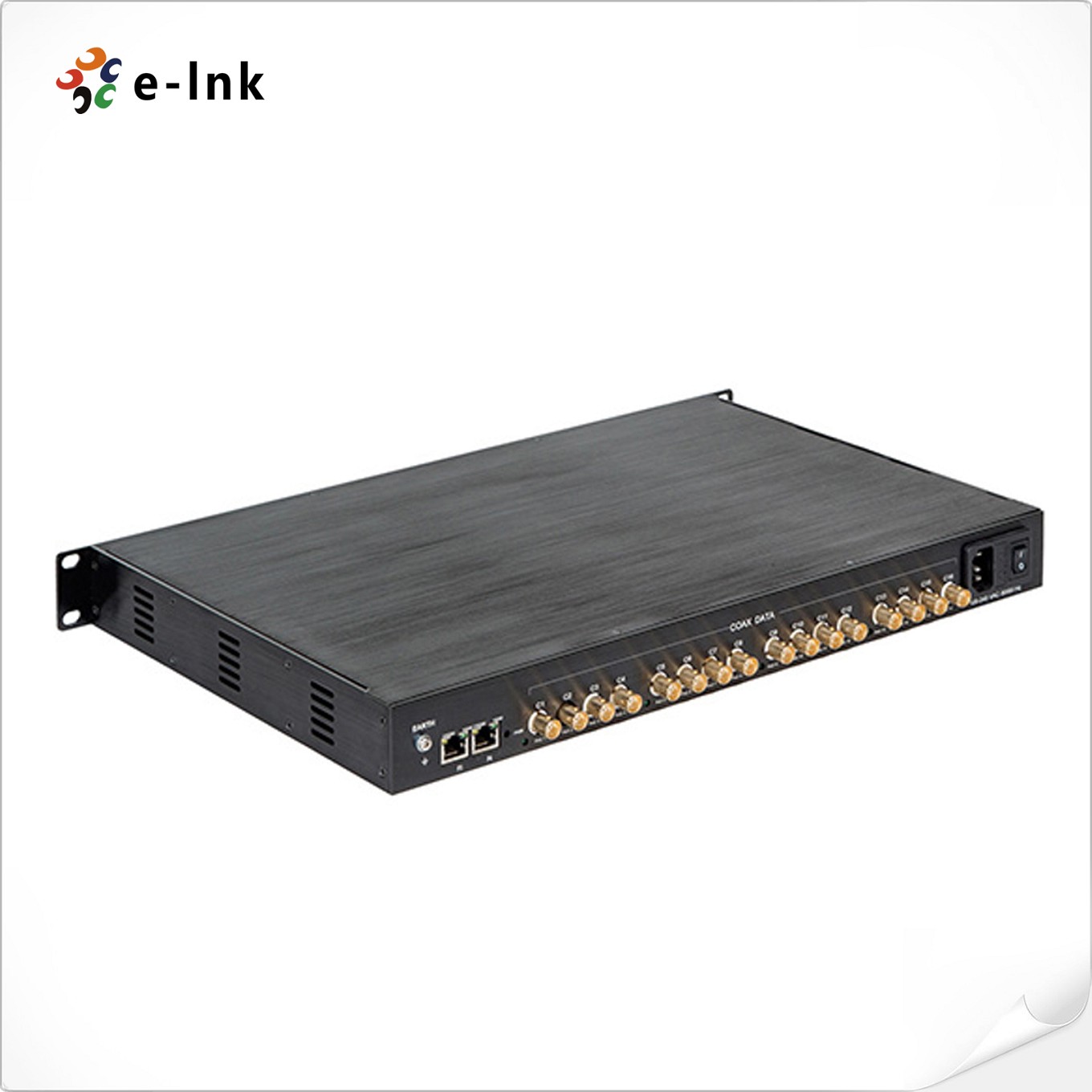

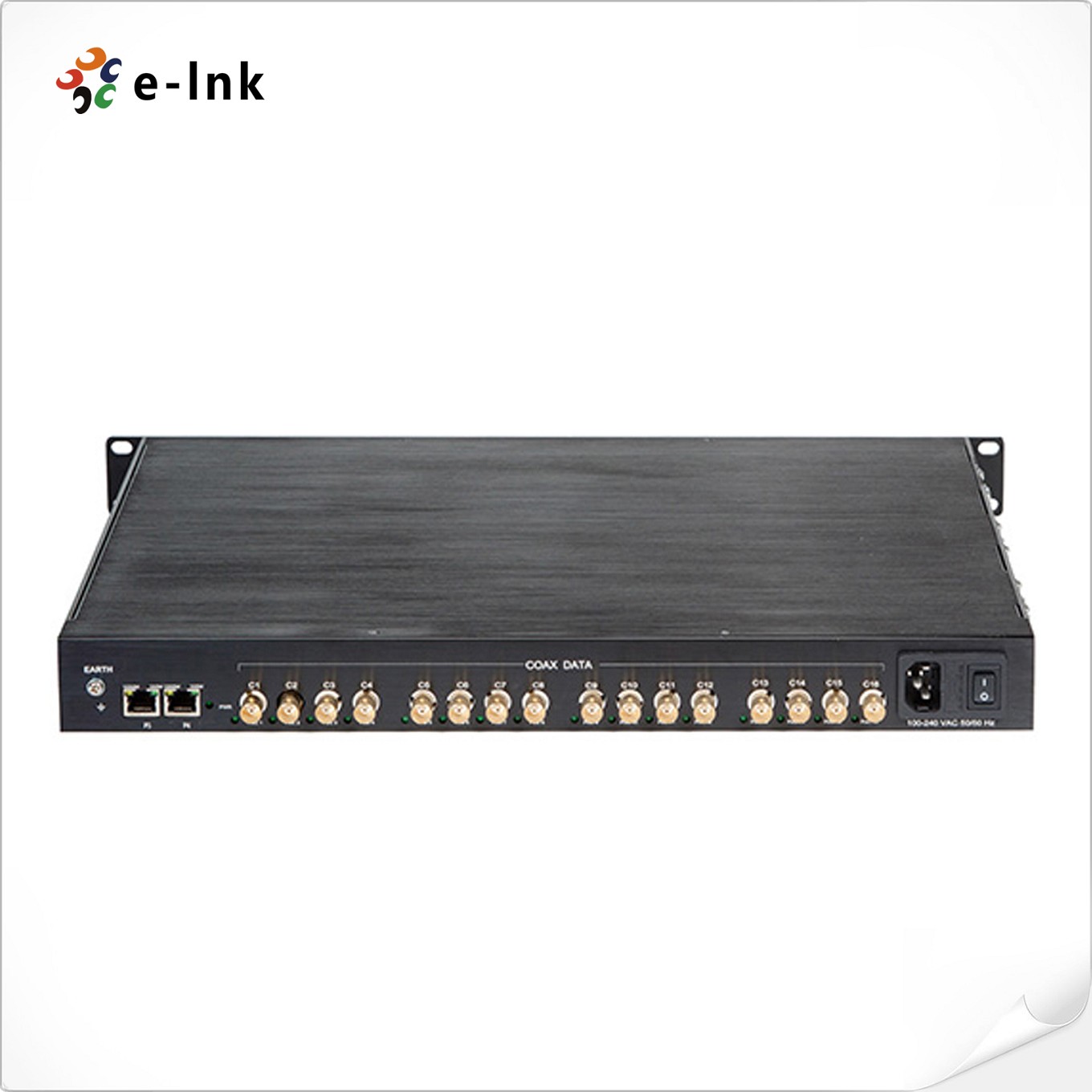

Receiver of 16-port Coax to 4-port 10/100/1000Base-TX Ethernet over Coax Extender with PoC
Model:LNK-EOC1160P-R
► With full switching capability
► 1000Mbps Full-duplex communication
► Power over Coaxial (LNK-EOC1160P 16P: Max. 800W total output)
► Data Rate per port up to: 40Mbps (Downlink), 10Mbps (Uplink)
► Max Distance: 800m over Coax (RG59/U)
► 19” 1U Rack-mount
Overview
The LNK-EOC1160P receiver works with the transmitter of 1 port Ethernet Extender over Coax with PoC (LNK-DEC110P-T) to provide Ethernet Extension of 16 channel 10/100Base-TX over Coaxial cable to 4-port 10/100/1000Mbps Ethernet. The maximum transmission distance is 800m. The product support PoC, hence, no power point is required at the camera side for the transmitter (LNK-DEC110P-T) and its connected IP camera if the camera obtain power from the transmitter via Power over Ethernet (PoE). The Ethernet data received by anyone of the coax data port (1-16) at the receiver is transferred to all four Ethernet ports (P1-P4). The product is good for retrofit of analogue system by using the existing coaxial cable infrastructure.
Features
► Ethernet Extension: Security Link over Coax
► Connecting up to 16 x LNK-DEC110P-T and IP Cameras
► With full switching capability
► 1000Mbps Full-duplex communication
► Power over Coaxial (LNK-EOC1160P 16P: Max. 800W total output)
► Data Rate per port up to: 40Mbps (Downlink), 10Mbps (Uplink)
► Max Distance: 800m over Coax (RG59/U)
► Auto MDI/MDI-X
► AC power input
► 19” 1U Rack-mount

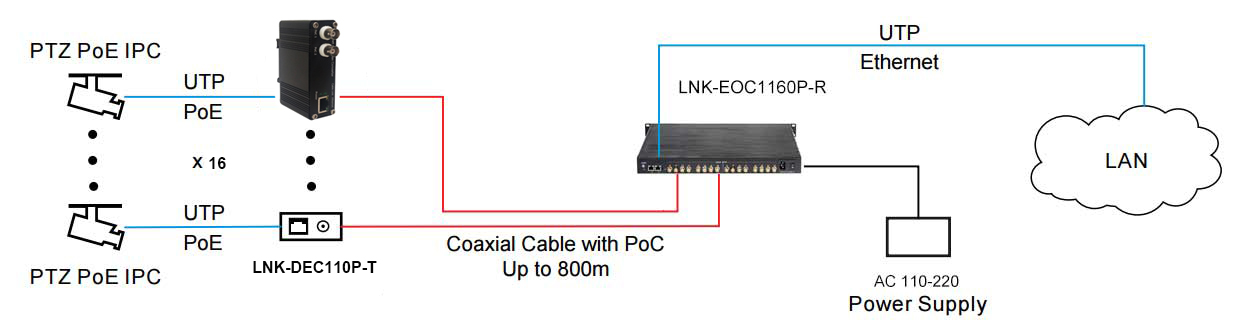

Application
Technical Indexes
|
Ethernet |
|
|
Standards |
IEEE802.3 10Base-T |
|
IEEE802.3u 100Base-TX |
|
|
|
IEEE802.3ab 1000Base-T |
|
Cabling |
100Base-TX: Cat5 or above |
|
Maximum Distance |
Cat5UTP up to 100m |
|
Connector |
4× RJ-45 |
|
Coaxial |
|
|
Cabling |
Coaxial Cable (75 ohm) |
|
Connector |
16 BNC Group (female) |
|
Distance |
800m on RG-59/U |
|
Data Rate per port |
40Mbps Max. (Downlink) |
|
10Mbps Max. (Uplink) |
|
|
Technology |
Power Line Communication (PLC) |
|
Protection |
|
|
Reverse Polarity |
Present |
|
Overload Protection |
Present |
|
Electrical and Mechanical |
|
|
Input Power |
100-240VAC, 50/60Hz |
|
Power Consumption |
32W Max. w/o PoC |
|
1000W Max. w/o PoC |
|
|
Dimensions (W x D x H) |
483 × 300 × 44 mm (1RU) |
|
Weight |
4.5 Kg |
|
Casing |
Aluminum case |
|
Environmental |
|
|
Operation Temperature |
-0˚C to 50˚C (32˚F to 122˚F) |
|
Storage Temperature |
-20˚C to 75˚C (-4˚F to 167˚F) |
|
Relative Humidity |
5% to 90% non-condensing |
|
MTBF |
> 100,000 hrs |
|
Regulatory Approvals |
ISO9001 FCC Part 15 Class A EN55022 Class A Surge Protection RJ45: 1KV BNC: 2KV Power: 500V |
Ordering Information
|
Model |
Description |
|
LNK-EOC1160P-R |
Receiver of 16-port Coax to 4-port 10/100/1000Base-TX Ethernet Switch with High Power PoC |
