Overview

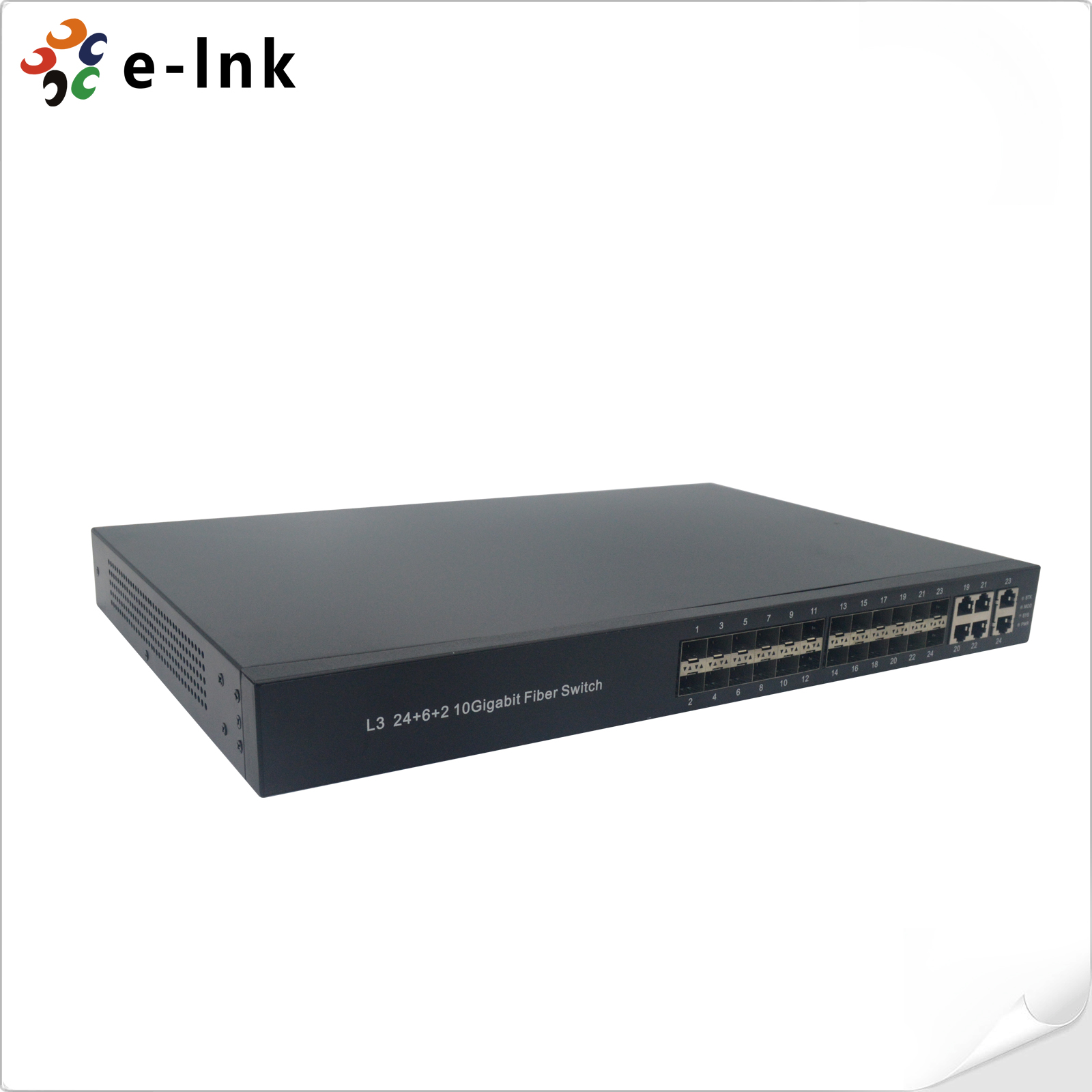

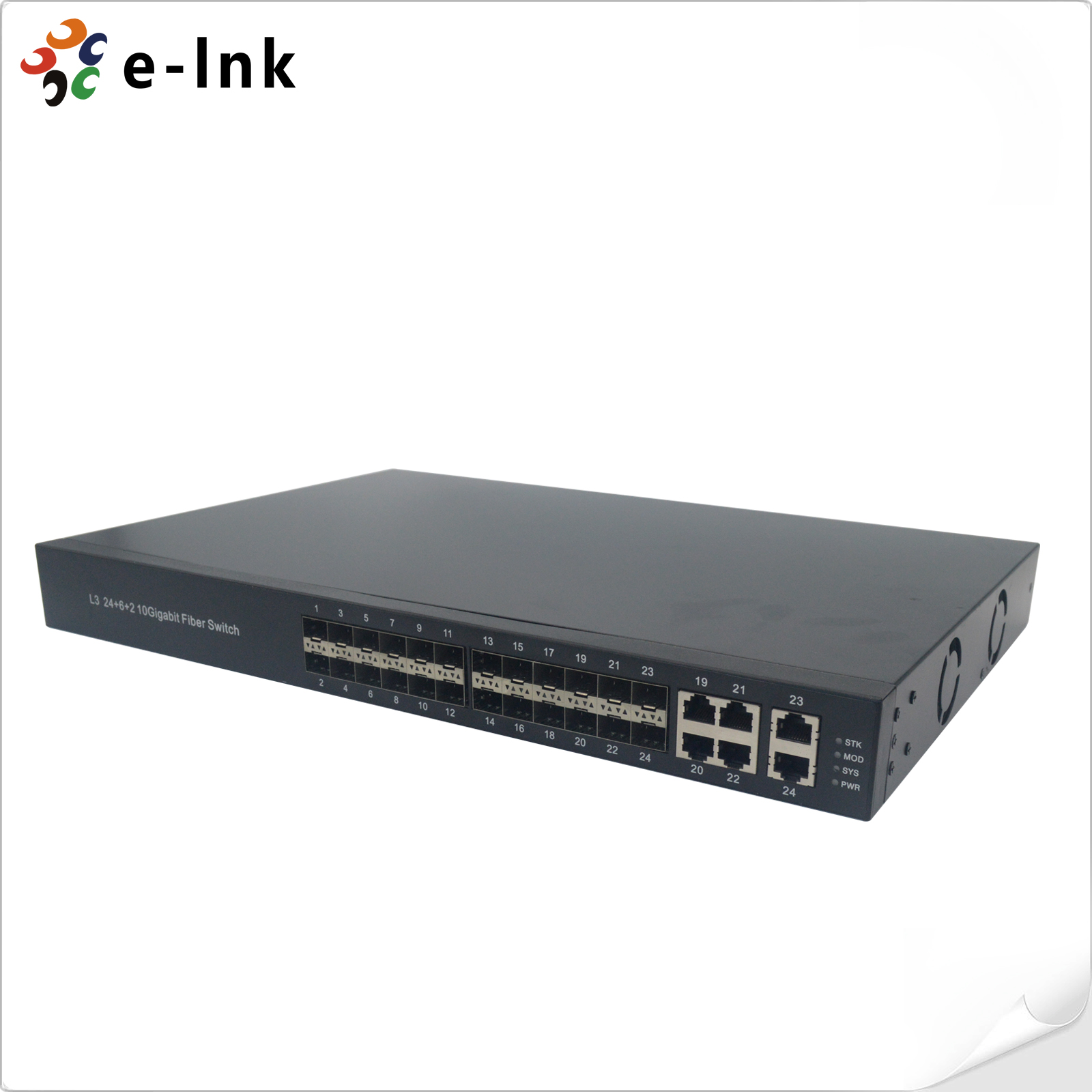

LNK-FS2462 Series 24-Port SFP Fiber Switch are standard layer3 non-blocking switch, based on high-performance ASIC chip technology, the modular structure design, which have a capability of multilayer switching and wire-speed routing forwarding. Can be deployed in the metropolitan area network, and provides a few last 1 km technology to gather and core data exchange. At the same time,FS2462 Series Switches provide a complete IPv4/IPv6 routing, including tunnel and IP multicast. The user can set all kinds of functions of switch through the Web, SNMP and so on.FS2462 Series Switches support DOS defense, Qos, RSTP, MSTP, VLAN, Port Security, a storm suppression, ACL access control and other functions, which is very suitable for the aggregation application of large-scale network and the core application of medium and small-sized network.

Features

► ARP defense: the function of MAC address and port binding and MAC address security filtering can effectively defense the ARP attack; DHCP snooping can provide ARP protection for users to obtain the MAC dynamically.

► Qos: support for multiple QOS strategy. Based on the 802.1p priority setting, each port provides eight priority queues. IP-DSCP can be divided into different service levels according to the IP header , to achieve a comprehensive QOS. AUTO VOIP can set the port to the highest priority of the voice signal, improve the voice quality of network IP telephone greatly.

► Spanning Tree: Support the standard of IEEE 802.1d and IEEE 802.1w (Rapid Spanning Tree Protocol) and IEEE802.1s (Multiple Spanning Tree Protocol).

► AUTO DOS: defense the following DOS attack with seven different forms.

► Storm suppression: can be set with the Broadcast, multicast, DLF traffic.

► ACL Access Control: used to control the exchange of the packet from the port, to ensure that the intranet site will not be access to users without authority, while indirectly defend ARP attack.

► IGMP Snooping: Support IGMP version 2 (RFC 2236): IGMP Snooping is used to establish the multicast groups to forward multicast packets to avoid wasting bandwidth when a multicast packet overflow network.

► Support for 802.1x authentication, and to provide users with access to authentication.

► Wire-speed filtering - Storage - forward mode, providing a true non-blocking switching structure.

► Support the function of port mirroring, port gathering, port speed limit.

► Support the port-based VLAN and IEEE802.1Q based on VLAN .

Application

The user can set all kinds of functions of switch through the Web, SNMP and so on. FS2462 Series Switches support DOS defense, Qos, RSTP, MSTP, VLAN, Port Security, a storm suppression, ACL access control and other functions, which is very suitable for the aggregation application of large-scale network and the core application of medium and small-sized network.

Technical Indexes

• Download FileName：E-link LNK-FS2462 Series Fiber Switch Datasheet V2.0.pdf Size： 262KB

Ordering Information
