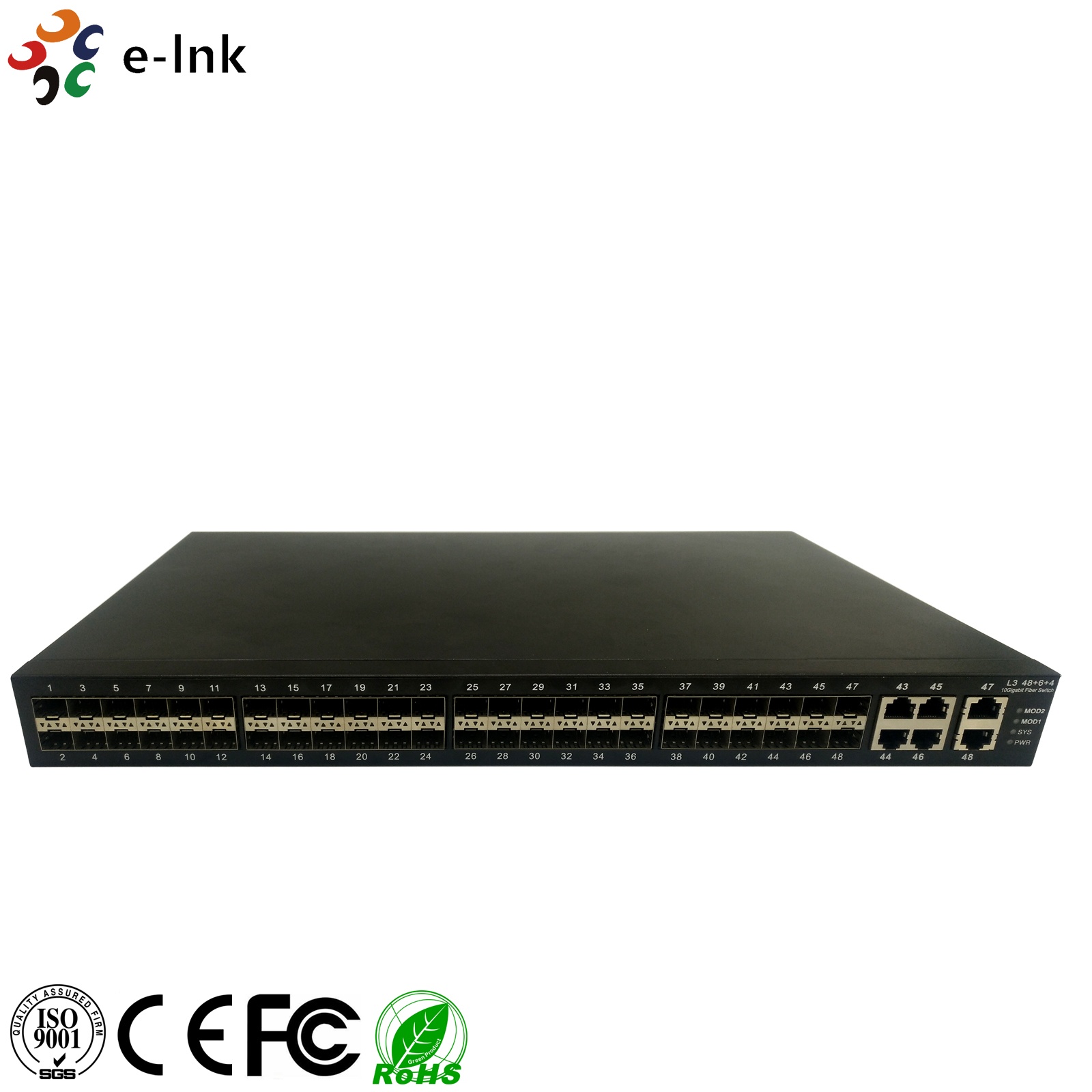

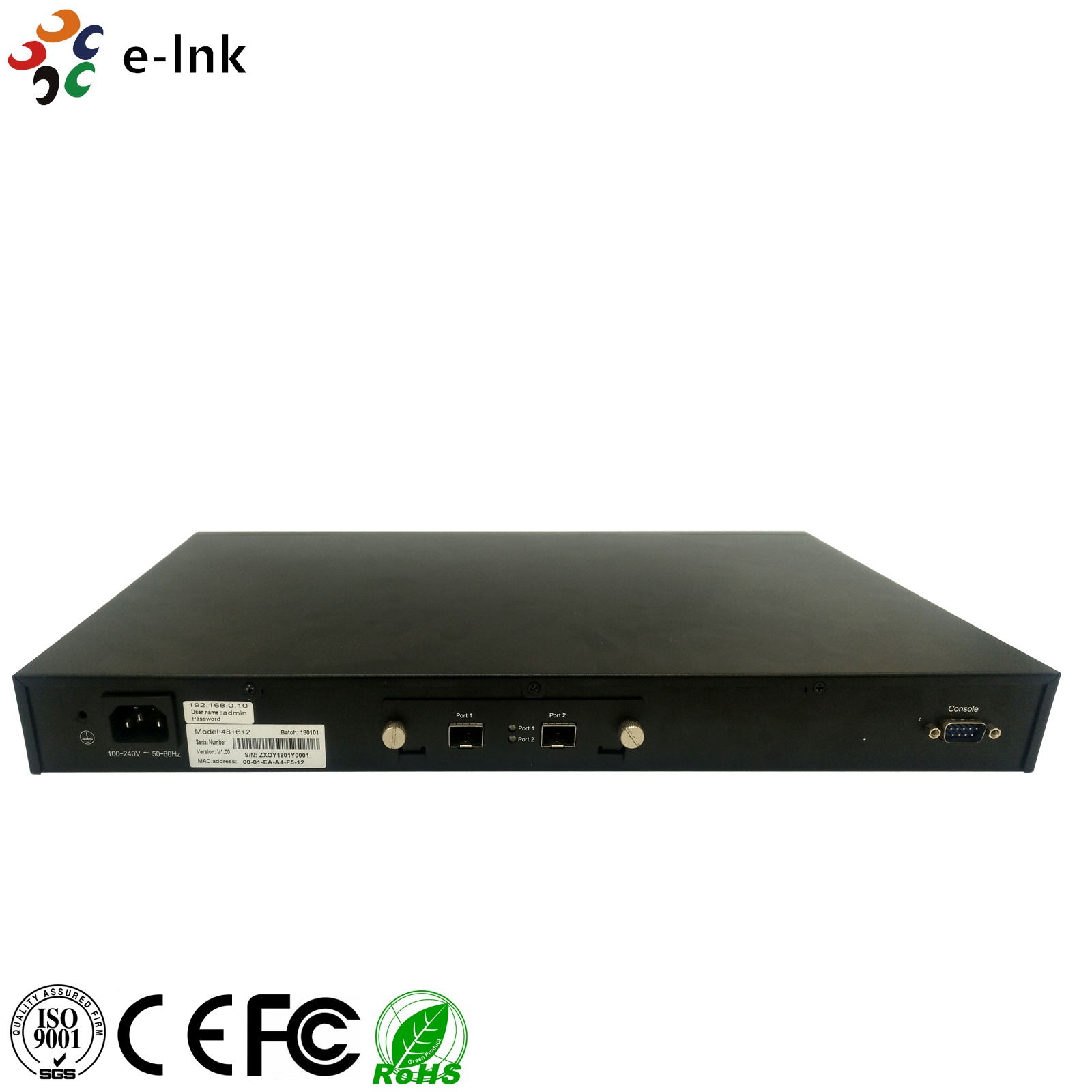

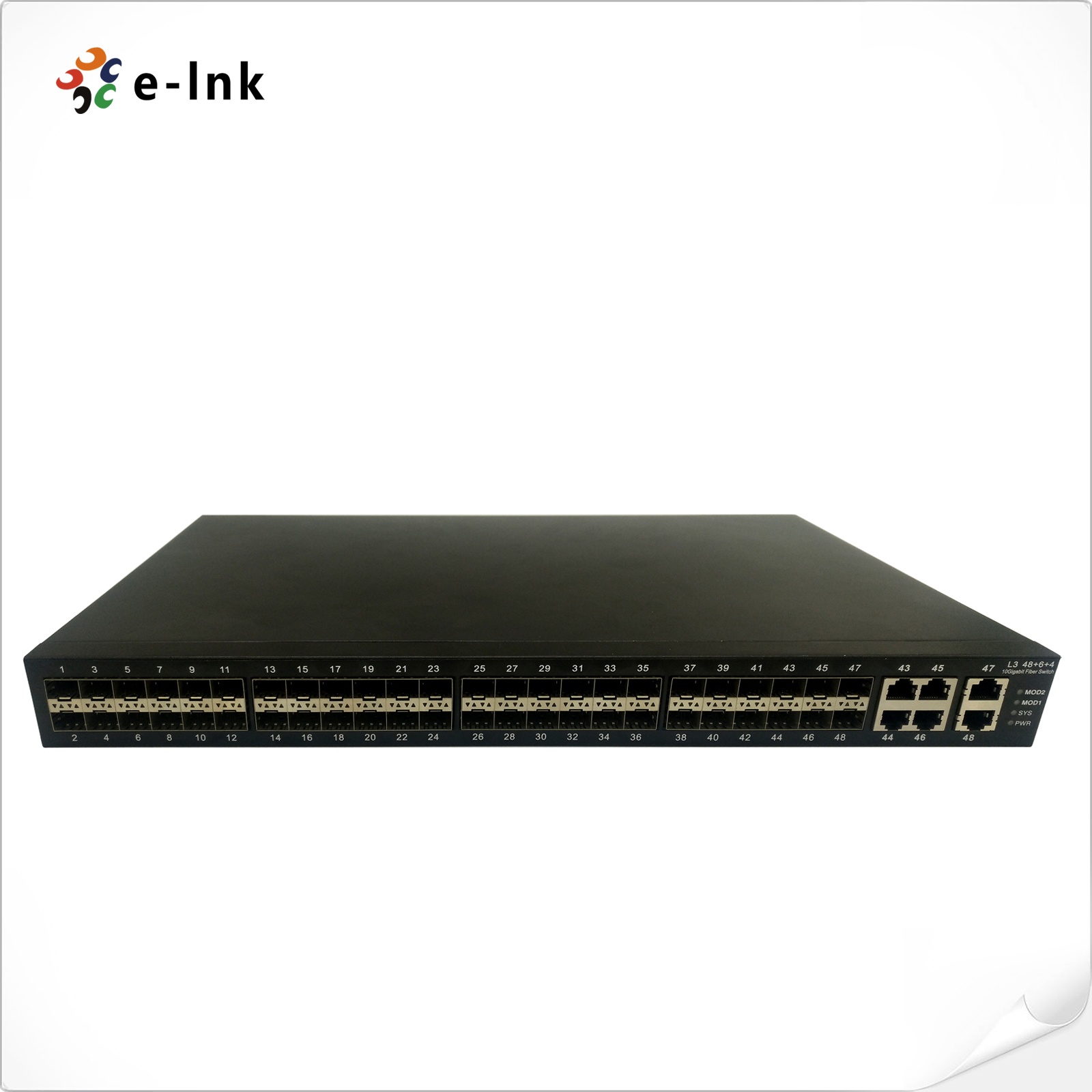

L3 Managed 48-Port Gigabit SFP + 6-Port Combo Ethernet + 2-Port 10G SFP+ Fiber Switch

Model:LNK-FS48G6C2X

►support RIP v1/v2, OSPFv2, BGPv4 and other dynamic routing protocol

►support PIM-SM, PIM-DM, DVMRP and other multicast routing protocol

►MPLS-based exchange routing and ECMP-supported routing balanced loading.

Overview

LNK-FS48G6C2X Series 48-Port SFP Fiber Switch are standard layer3 non-blocking switch with 48-Port Gigabit SFP, 6-Port Combo Ethernet and 2-Port extensible 10G SFP+, based on high-performance ASIC chip technology, the modular structure design , which have a capability of multilayer switching and wire-speed routing forwarding. Can be deployed in the metropolitan area network, and provides a few last 1 km technology to gather and core data exchange. At the same time, FS48G6C2X Series Switches provide a complete IPv4/IPv6 routing, including tunnel and IP multicast. The user can set all kinds of functions of switch through the Web, SNMP and so on.FS48G6C2X Series Switches support DOS defense, Qos, RSTP, MSTP, VLAN, Port Security, a storm suppression, ACL access control and other functions, which is very suitable for the aggregation application of large-scale network and the core application of medium and small-sized network.

Features

►High performance

►with 280G backplane bandwidth

►hardware routing, wire-speed L3 switching packet forwarding rate up to 208.32Mpps

►can be deployed in the core of MAN, and provides several final 1 km technology

►Safety

►provide DOS, distributed denial of service, deception and virus defense

►support IEEE802.1x, provide port-based user authentication, network shield, safety control, and strategy control technology

►restrict maximum number of connected hosts port, with multi-channel Ethernet interface binding, increasing bandwidth and system redundancy

►powerful ACL, support for L2-L4 layer data filtering

►support QinQ function

►strategy control list, flow regulation

►Easy to use and maintain

►use clustering technology, support multiple device stack, with a unified IP address to carry on centralized management to save address resources

►a variety ways of management via Web, SNMP etc.

►support XModem protocol, can be used to upgrade software and BootRom by TFTP/ZMODEM

►support DHCP server and relay functions, dynamic allocation of IP address

►support SFP+, also downward compatible XFP

►provide redundant power supply, fast failover and fast connection, greatly increasing system reliability

►Powerful flow and broadcast management

►automatically detect and suppress broadcast storm, support for IGMP packet detection, effectively restrict broadcast packets flooding

►support full duplex mode and half duplex mode flow control

►support Ethernet interface 1M step rate limit

►advanced buffer management, support 802.1p protocol, each port 8 transmit queues mapping 8 priority of 802.1p

►support IP multicast and QoS

►Different kinds of routing strategy

►support static routing

►support RIP v1/v2, OSPFv2, BGPv4 and other dynamic routing protocol

►support PIM-SM, PIM-DM, DVMRP and other multicast routing protocol

►MPLS-based exchange routing and ECMP-supported routing balanced loading.

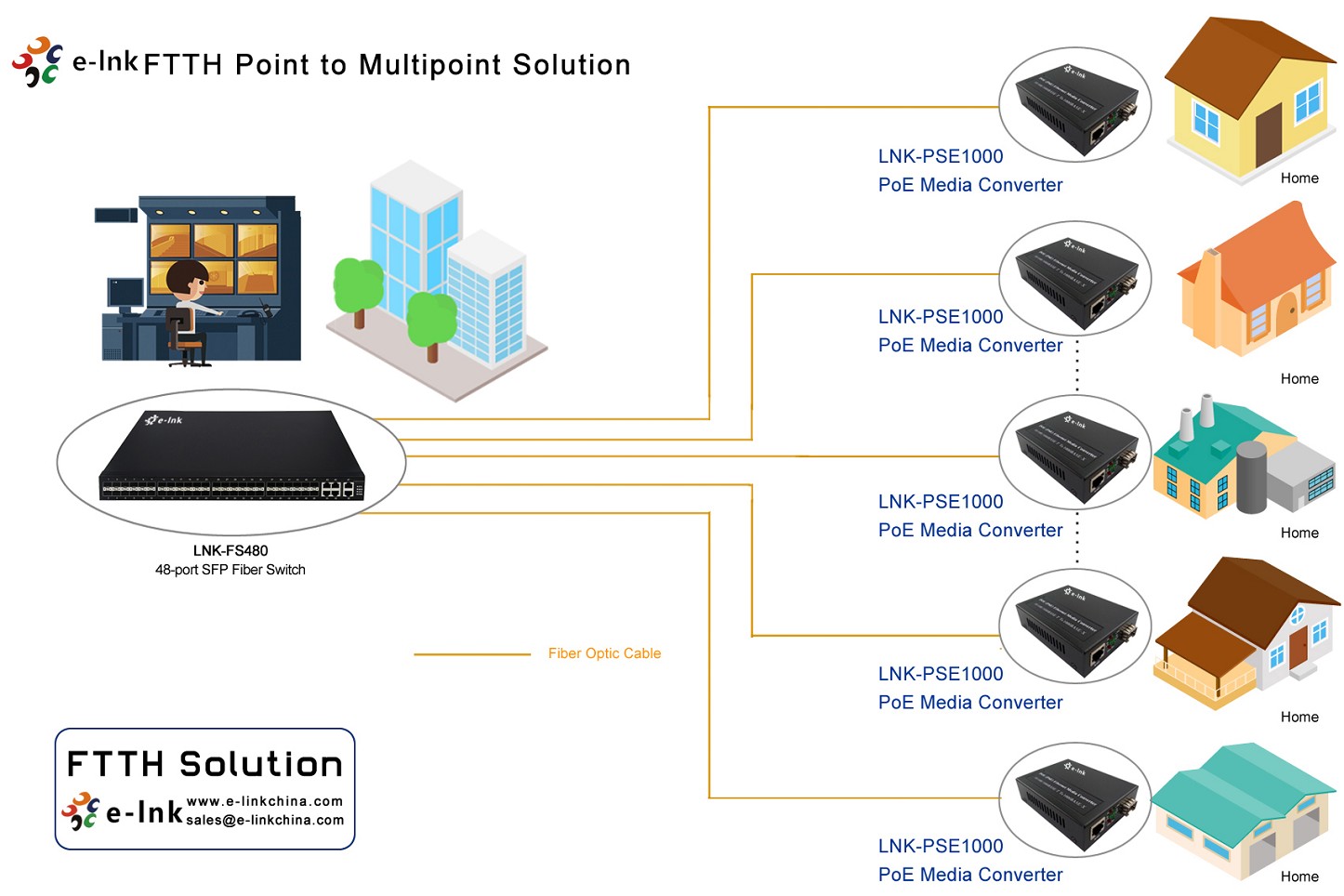

Application

Technical Indexes

Product Type

L3 Managed 48G SFP+6GE Combo+2x10G SFP Fiber Switch

Fixed port

48-Port Gigabit SFP Fiber Port + 6-Port ComboTP + 2-Port SFP+

Backplane bandwidth

280Gbps

Packet forwarding rate

208.32Mpps

Processor

RISC600MHz

Flash memory capacity

8MB

The memory capacity

64MB, Max. 512MB

Address table

32K

Queue buffer

64MB

Product characteristics

Spanning tree

Support STP, RSTP, MSTP

Support PVST/PVST+

VLAN

Support port-based VLAN

Support MAC based VLAN

Support 802.1Qtag VLAN

Support Super VLAN

Support for Private VLAN

Support GVRP Dynamic VLAN Configuration

Support QinQ and Smart QinQ

Support Voice VLAN

Flow control

Based on a standard IEEE 802.3x flow control

Using IEEE 802.1Qbb priority flow control

Support CAR Function

Broadcast control

Restraining broadcast storm, stop sending so long as reaching a critical point

Multicast control

IGMP Snooping multicast message automatic monitoring

Port binding

Each group of a maximum of 8, while support 32 group
LACP dynamic or static polymerization

Port mirroring

Support based on flow classification mirroring and port mirroring

Stacked

Stacked 16 hard, soft stacking 32

Using clustering techniques, with a unified centralized management of IP address to do address resource saving

Routing management

Static routing
RIP v1/v2, OSPFv2, BEIGRP (compatible with Cisco EIGRP), BGPv4, ISIS, BGP
Anti virus intelligent routing function

Strategy routing

Support based on IPstrategy routing

The proxy function

Support Proxy ARP, DNS Proxy

Redundancy backup

Support for VRRP, HSRP Hot Standby Router Protocol

Characteristics of DHCP

DHCP Server, DHCP Client and support DHCP relay

Function of NAT

Support the static or dynamic NAT address translation function

Safety characteristics

Port Security (Port Security) function

Hardware support for IP ACL, MAC ACL, Vlan ACL
Hardware support for port based user IP+MAC+Vlan ID+ user account a variety of factors combined to bind
Support IP Source Guard
Support WEB interface user authentication

User classification management and password protection
Safety control technology
Policy control list

Quality of service

IEEE 802.1Qau congestion mechanism
Each port 8 send queue mapping 802.1p 8 priority
DRR, WRR, SP and FIFO queue scheduling algorithm
Best-Effort Service
Differentiated Service
Strict Priority
Weighted Round Robin
First come first served
TOS to mark
RTS

Network management

SNMP v1/v2/v3
RMON (1,2,3,9 group)
Telnet
WEB interface
Support for cluster management
Support SSH
Support for PDP (compatible with Cisco CDP.)
To support the fan, temperature, system log, hierarchical alarm

Physical characteristics

Appearance size

442mm × 285mm × 44mm

Power characteristic

AC 110-240V adaptive, 47-63Hz, 1A/230V, RPS power hot backup

Power

80W

Indicator lamp

Power indicator, indication of system, connecting / transceiver instructions

Environment

Operating Temperature:0-50 ℃
Storage Temperature:-40-70 ℃

Relative Humidity:0-90% no condensation

  • Download FileName:E-link LNK-FS48G6C2X Series Fiber Switch Datasheet V2.0.pdf Size: 468KB

Ordering Information

Model

Description

LNK-FS48G6C2X

L3 Managed 48-Port Gigabit SFP + 6-Port Combo Ethernet + 2-Port 10G SFP+ Fiber Switch
