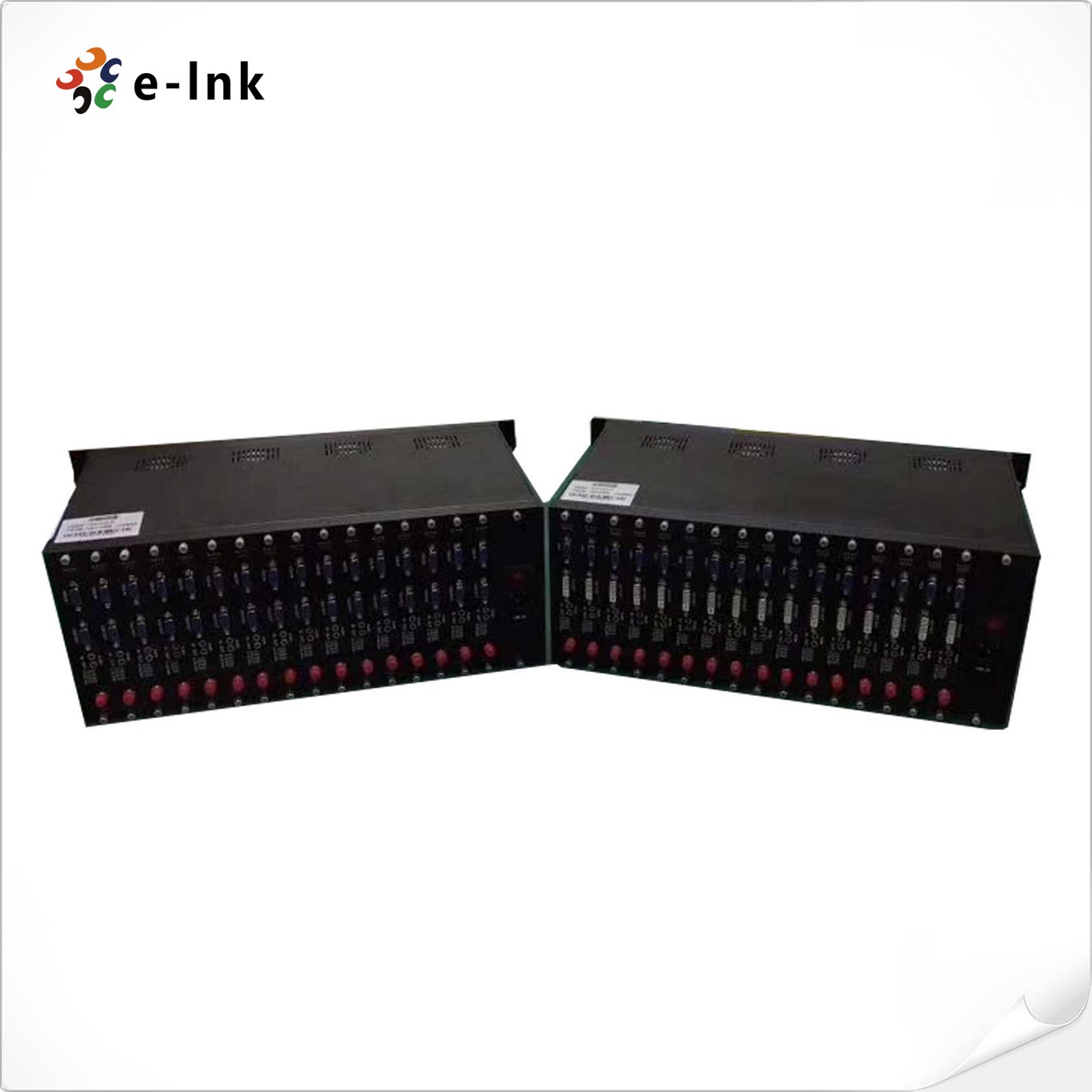

4U Rack VGA Fiber Optic Extender

Model:LNK-FVGA Series

► Support video resolution up to1920*1080P@60Hz;

► Support external stereo audio unidirectional transmission;

► Support RS232 signal unidirectional transmission, baud rate self-adaptive;

上一张

下一张

Overview

The LNK-FVGA Fiber optic extender provides extension of VGA signals long distances over one fiber optic cable, it supports high resolution up to 1080P, transmitter local output,1 Ch RS232 signal and external 1 duplex audio transmission function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

Features

► Transmits VGA video signals up to 10km over one fiber optic cable;

► Support video resolution up to 1920*1080P@60Hz;

► Support keyboard and mouse signal transmission;

► Support external stereo audio unidirectional transmission;

► Support transmitter one channel signal output;

► Support RS232 signal unidirectional transmission, baud rate self-adaptive;

► High compatibility, can auto-match source and display device;

► Built-in automatic adjustment system, make the image smooth, clear and stable;

► Built-in ESD protection system;

► Simple to install, plug and play;

Application

► Digital Signage

► LED signboards in streets and in stadiums

► Medical Imaging Equipment

► Airplane On-board Video System

► Conference Room Video Equipment

► Remote monitor for traffic, industrial, military control

► LCD, Projector, Plasma display connection

► Large video wall system

► TV Broadcast Station

► Home Theater

Technical Indexes

Parameter		Description
Video	Standards	VGA
	Maximum pixel clock	380MHz
	Resolution	1920x1200@60Hz / 1920x1080@60Hz 1600x1200@60Hz / 1680x1050@60Hz 1280x1024@60Hz / 1280x1024@75Hz 1280x800@60Hz / 1280x768@60Hz 1280x720@60Hz / 1024x768@60Hz 1024x768@75Hz / 800x600@60Hz/75Hz
	Impedance	75Ω
Audio IN/OUT	Interface	3.5mm earphone seat
	Format	44.1K,48K,96K,176K,192K
	Signal type	Stereo
RS232	Interface	Industrial terminal
	Signal direction	Bidirectional
	Baud rate	Self-adaptive, Max：115200bps
	Data bits	8
KVM	K/M TO PC	USB connect to PC
KVM	KEYBOARD/MOUSE	USB connect to keyboard and mouse
Optical fiber	Interface	LCconnector
	Fiber type	Single-mode single fiber
	Wavelength	Single-mode 1310nm
	Interface bandwidth	2.97Gbps
	Transmission distance	standard10km
Other	Power supply	The power adapter:DC 5V/2A
	Power dissipation	MAX 6W
	Temperature	Operating: -5℃~ +70℃
	Humidity	Operating: 5% ~ 90%
	Dimension	16512027mm 19inch 4U rack
	The warranty	1 year free warranty, life-long maintenance

Panel

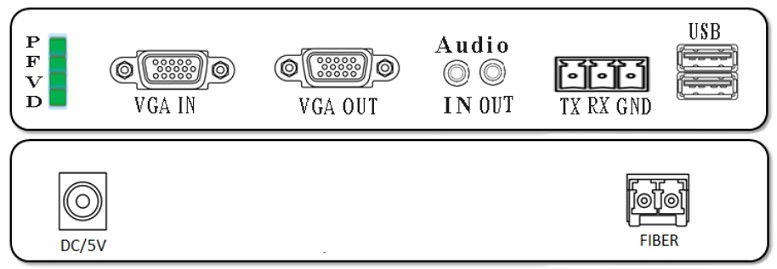

Transmitter

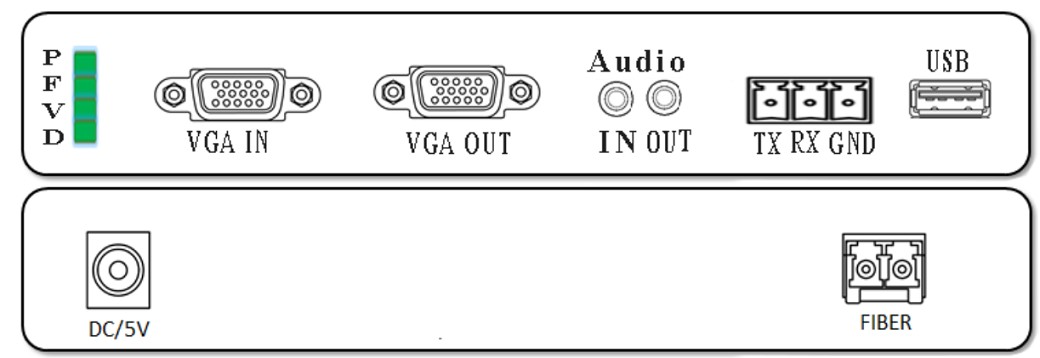

Receiver

Port name	Description
VGA IN/OUT	VGA signal input/output
AUDIO IN/OUT	Stereo audio signal input/output
RS232	Serial port（GND: Ground, TX: transmit, RX: receive）
DC/5V	Power adapter socket
FIBER	SFP module---LC connector
K/M TO PC	USB connect to PC
KEYBOARD/MOUSE	USB connect to keyboard and mouse
LED indicator	Description
P	System power indicator
F	Fiber signal connection indicator
V	Video signal lock indicator
D	Data status indicator

Download FileName：E-link LNK-FVGA VGA Fiber Optic Extender Datasheet V1.0.pdf Size： 401KB

Ordering Information

Model	Description of product
LNK-FVGA-T	1080P VGA Fiber Optic Extender Transmitter
LNK-FVGA-R	1080P VGA Fiber Optic Extender Receiver
LNK-R16-4-D	16-slot, dual power supply-AC110-220V-19''4U- blackfor card-type media converter
