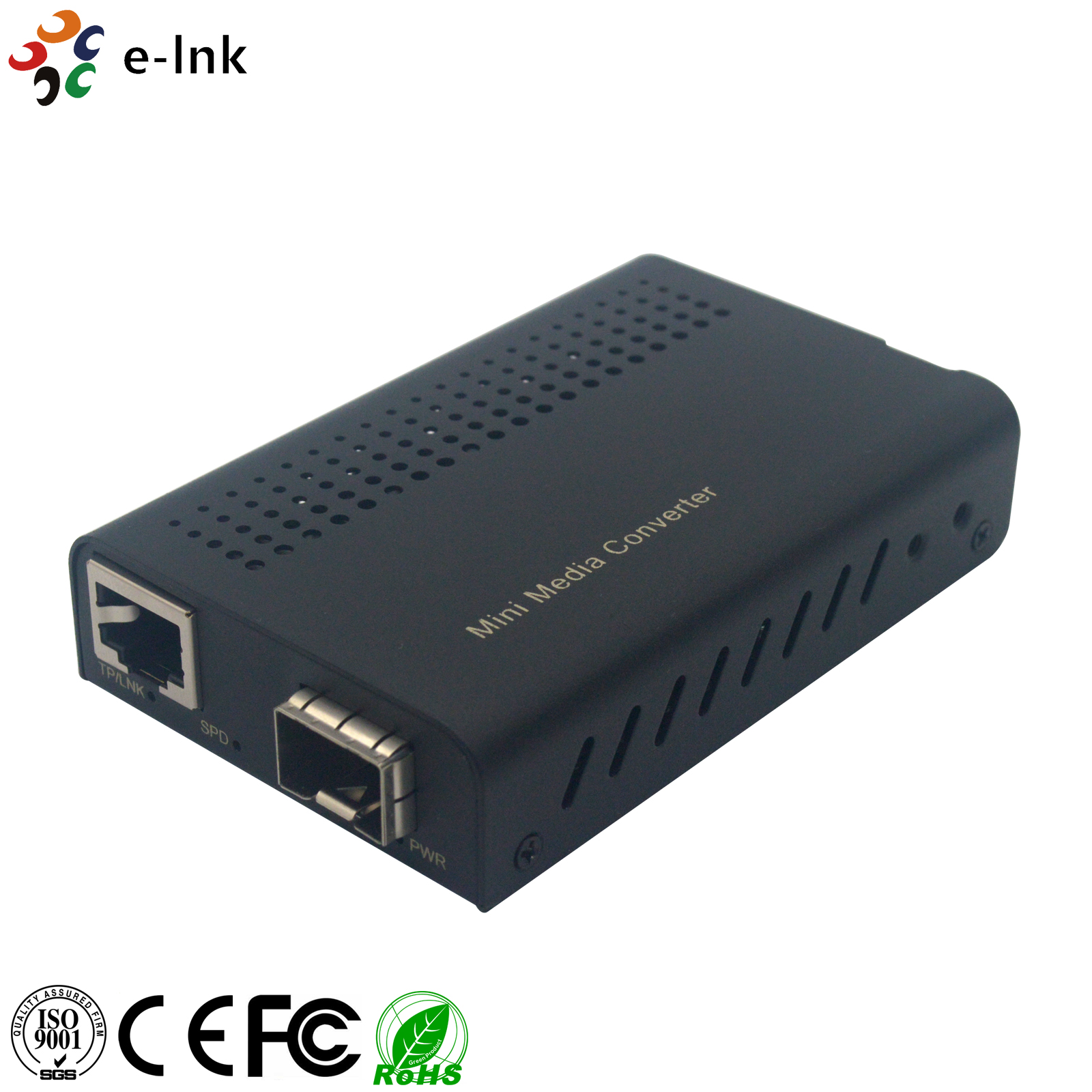

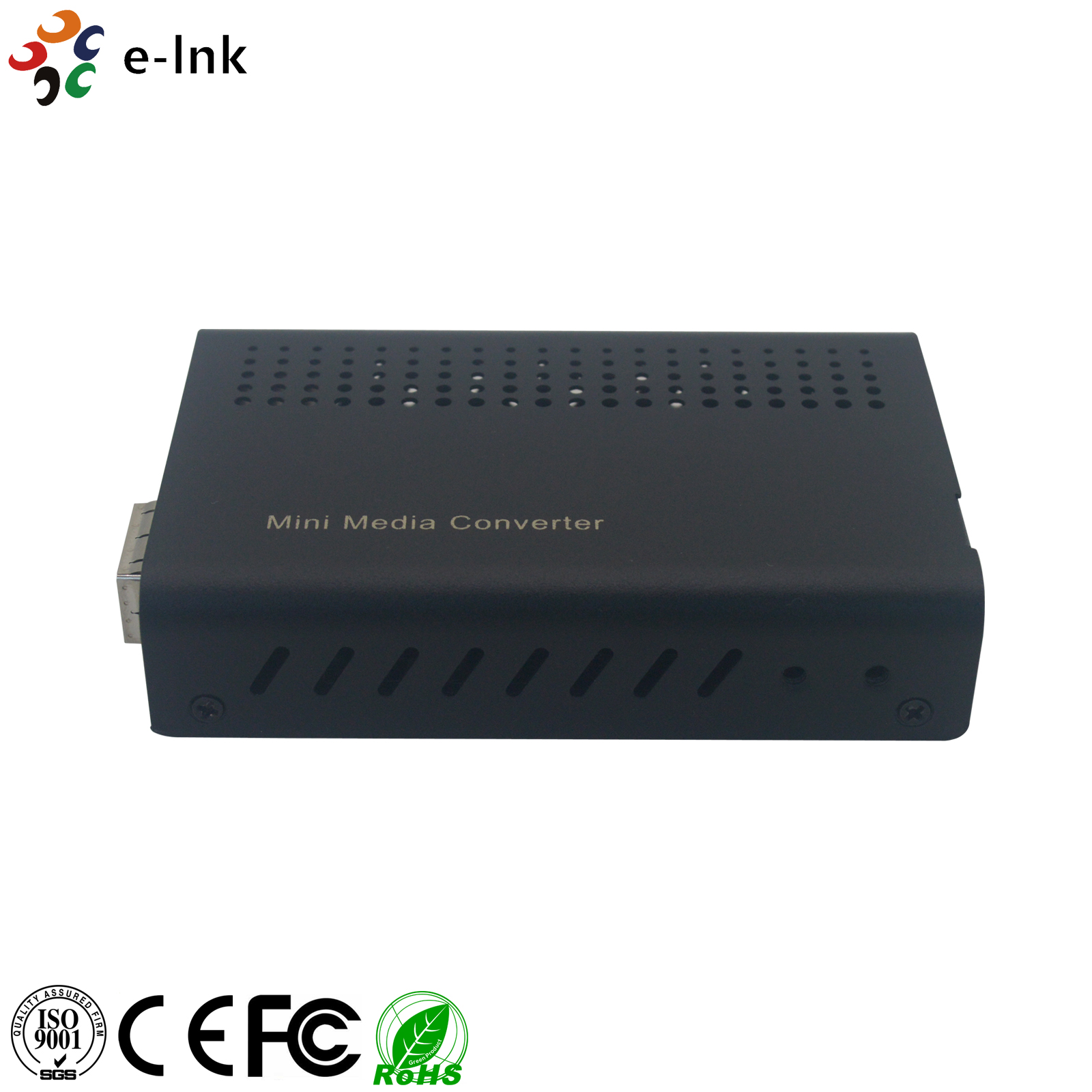

Mini-type 10G Media Converter

Model:LNK-MN-10GMC Series

► Support Jumbo Frame

► Transparent Transport and very low delay

► Support ITUT prescribed DWDM/CWDM wavelength

上一张

下一张

Overview

The LNK-MN-10GMC is high-performance 10G optical media converter, support connection between fiber to copper 10Gbps Ethernet equipment function as fiber-to-copper media converter for long distance transmission. The 10G Media converter is used for network backbone(SAN, LAN, MAN), and can be also applied in Telecommunication room, R&D laboratory, Data center, etc

Features

► Support Jumbo Frame

► Transparent Transport and very low delay

► Support ITUT prescribed DWDM/CWDM wavelength

► Support to install into 1U Rack 12 slot Rack

► Full State Led display

► Easy installation

► UTP cable length detection（only RJ45 interface）

Application

The 10G Media converter is used for network backbone(SAN, LAN, MAN), and can be also applied in Telecommunication room, R&D laboratory, Data center, etc

Technical Indexes

Performance Data	Technical Indexes
Transmission Speed	10Gb/s
Protocols	IEEE802.3an(10Gbase-T), IEEE802.3ae(10Gbase-SR/LR/ER/ZR) IEEE 802.3u (100BASE-TX) IEEE 802.3ab (1000BASE-T)
Interface Type	Type: RJ45 To/From SFP+
Transmission Distance	Up to SFP+ module: Max 80Km 10Gbase-T: 100 meters Cat .6a cable
Maximum Packet Forwarding Rate	14,880,950/S

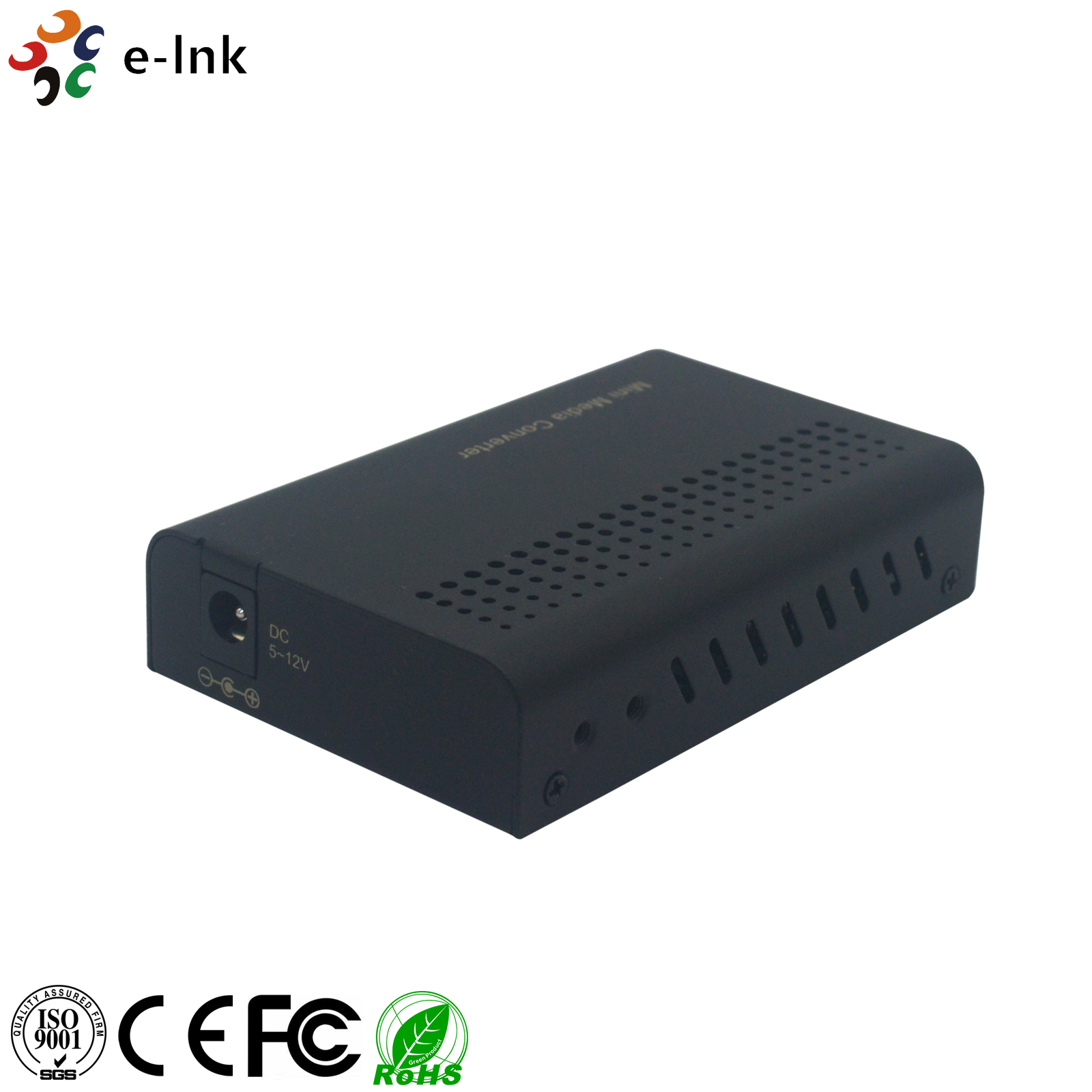

power requirement	Standalone: DC 5-12V (external power) Power consumption: ≤3W
Work Environment	Operating Temp: 0~ 50 ℃ Storage Temp: -10~ 70 ℃ Humidity: 5%~90% (Non-condensing)
Dimension	Standalone：58 (W) x 20 (H) x 90 (L) (mm)
