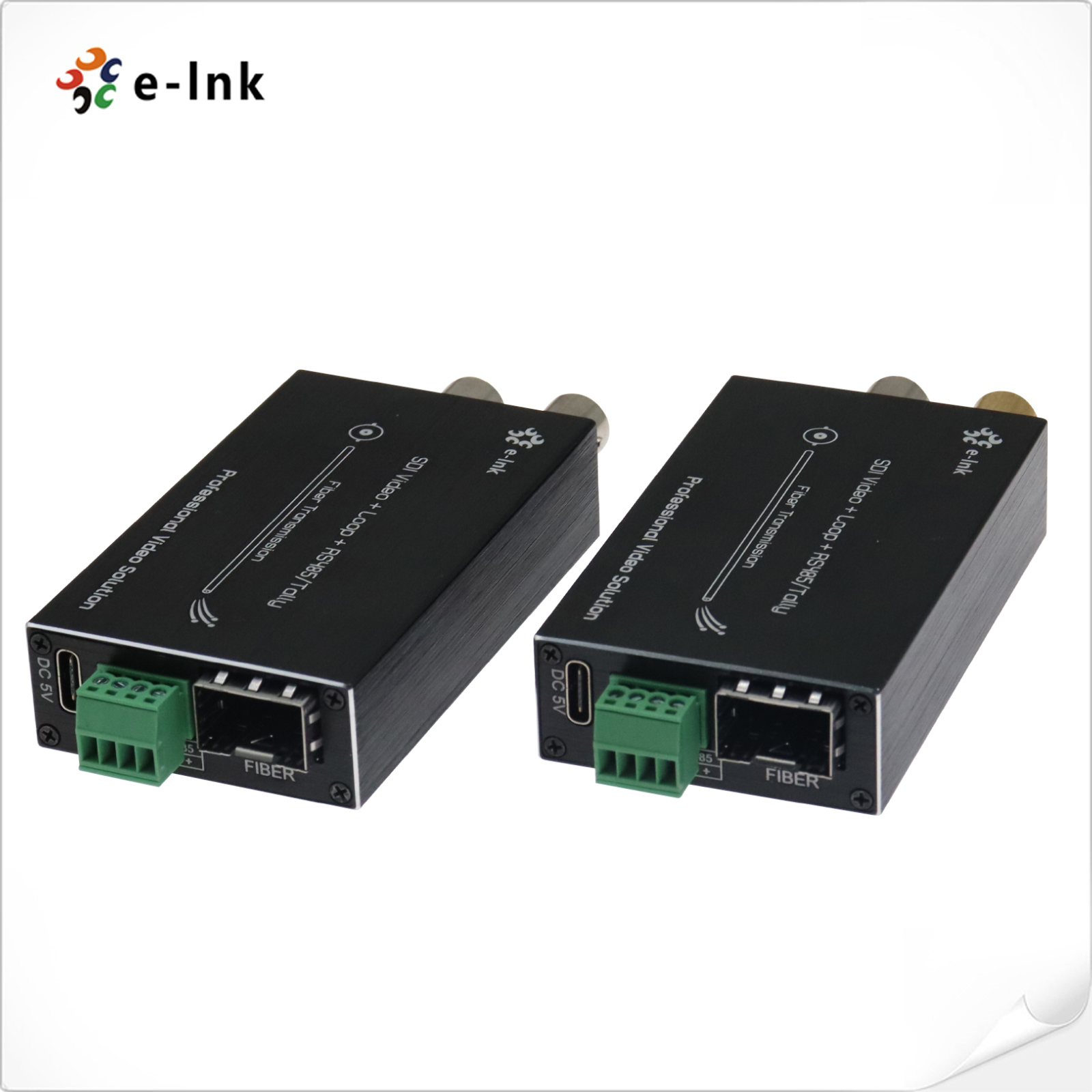

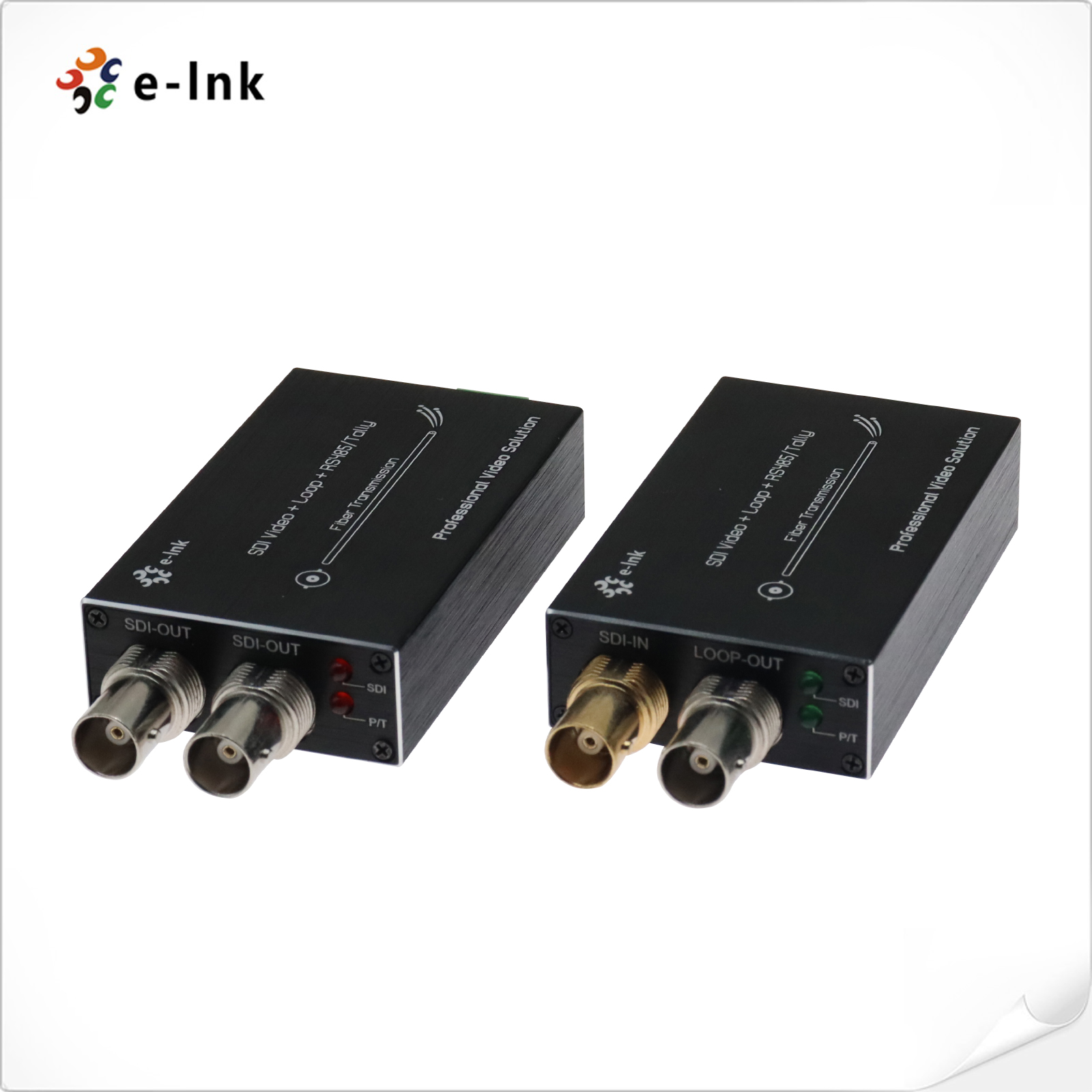

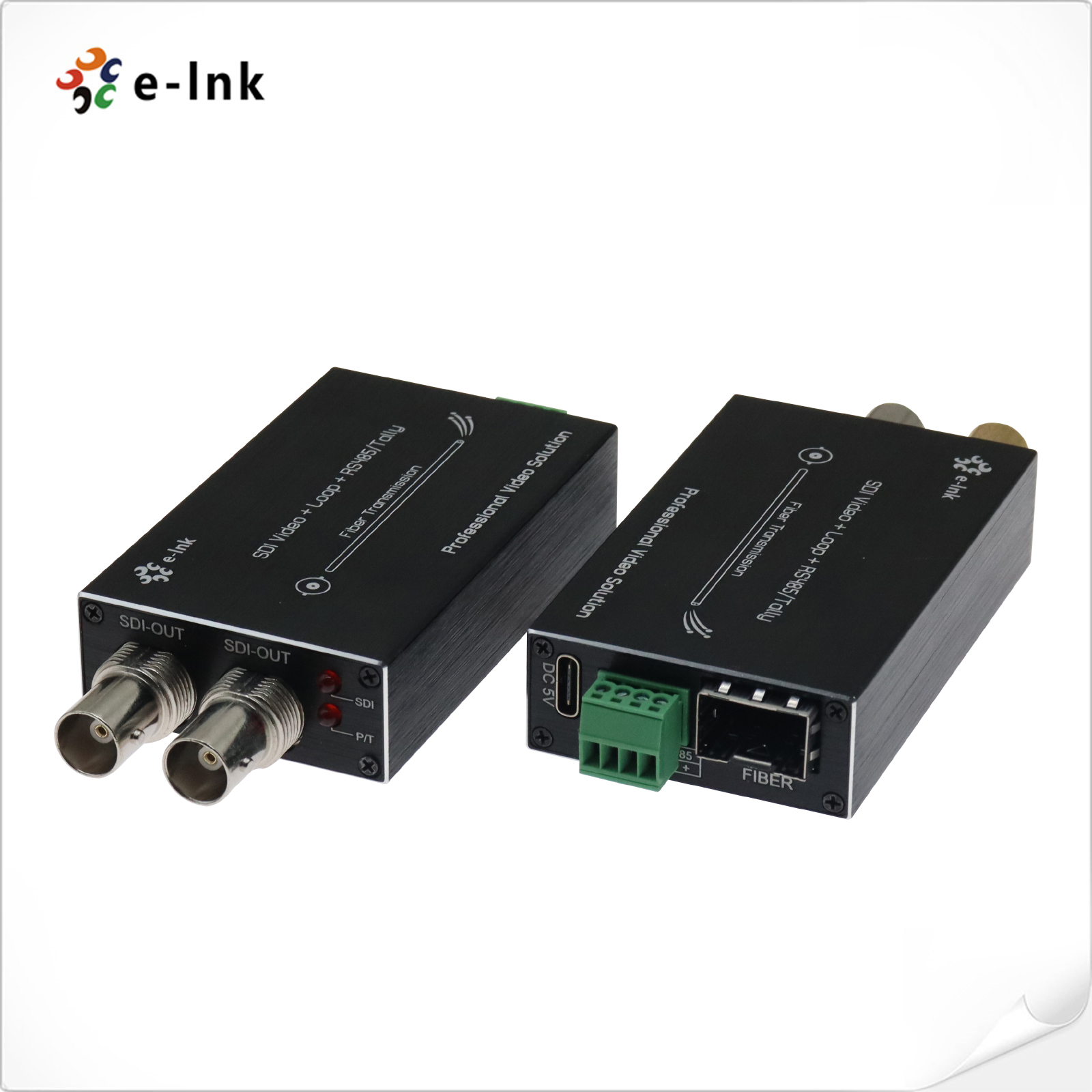

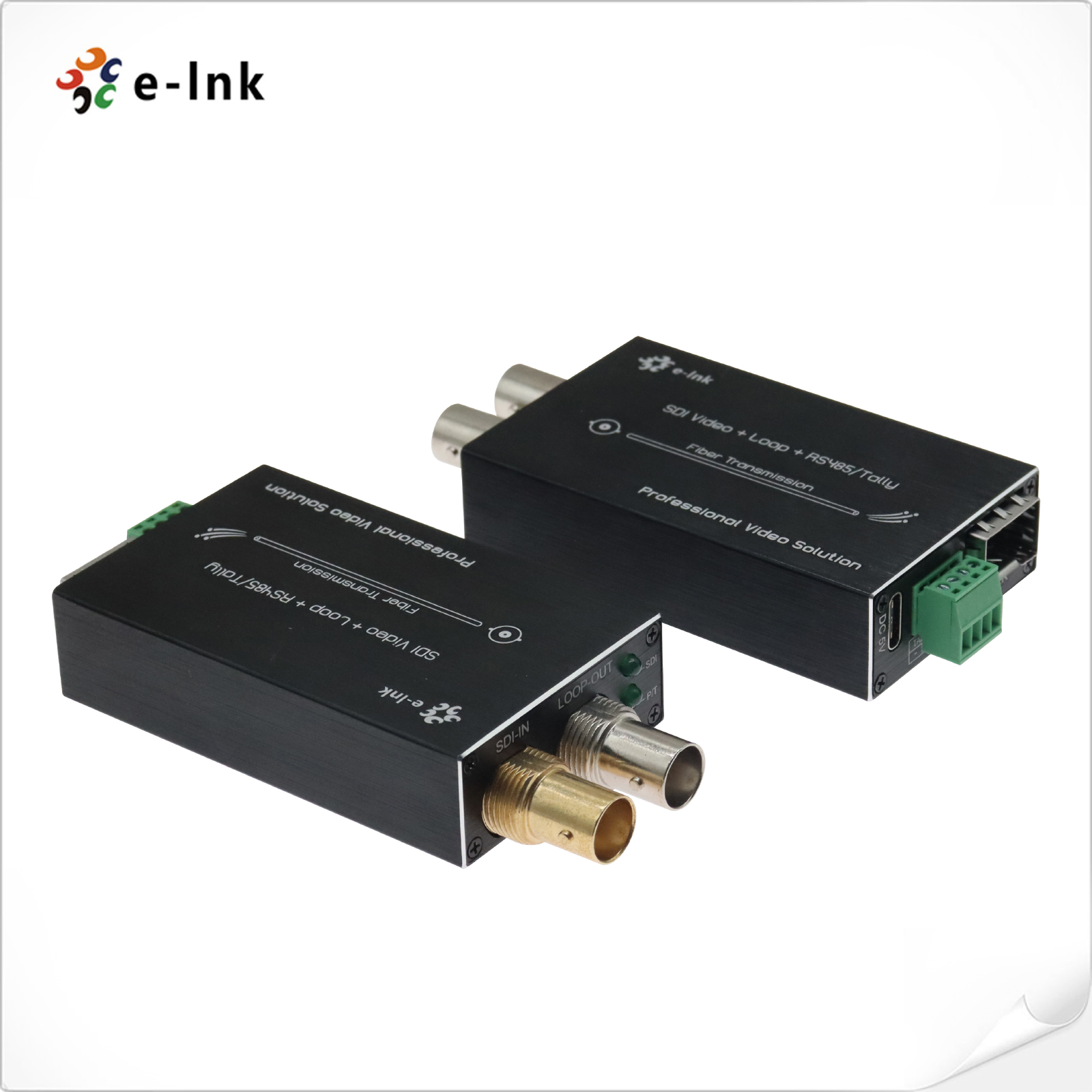

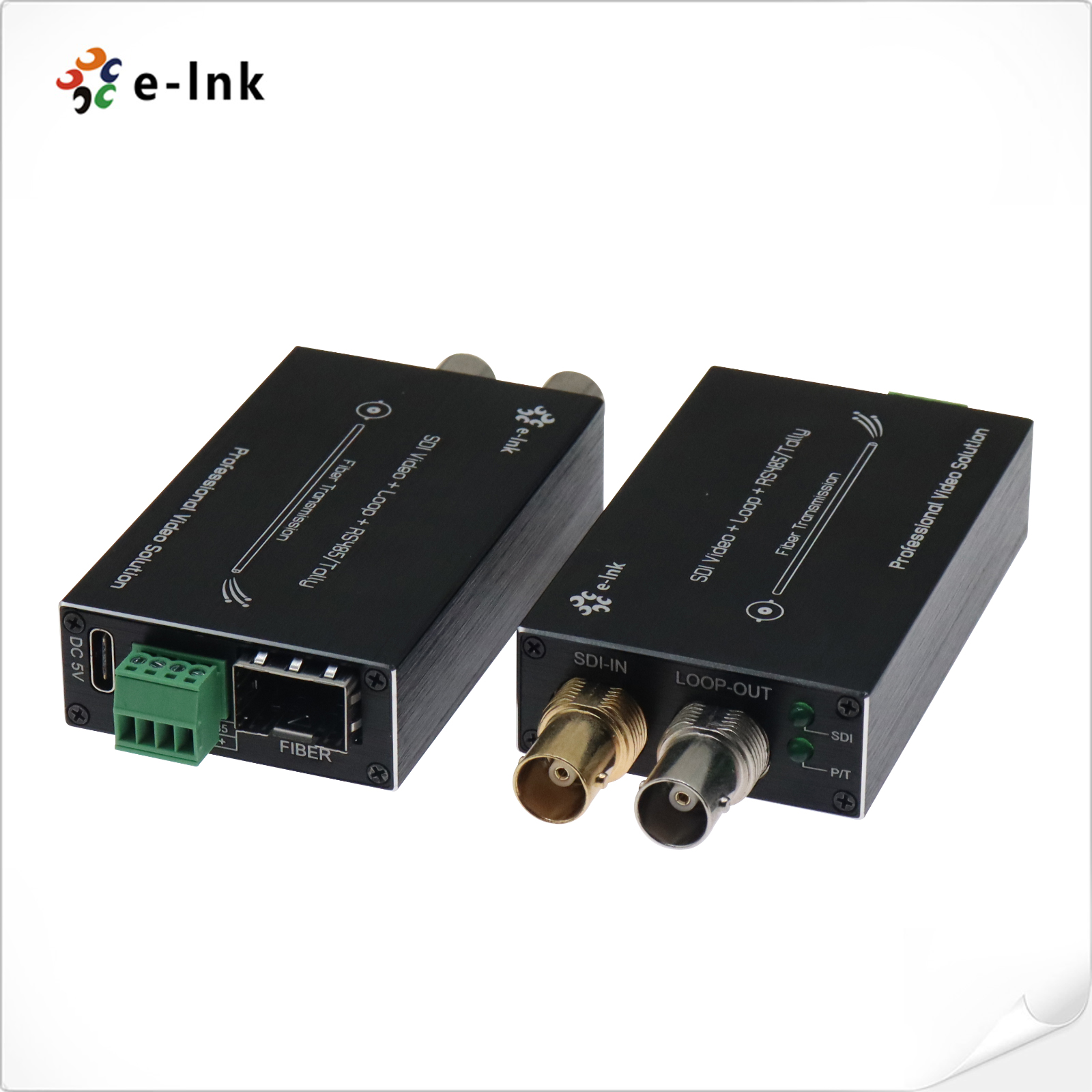

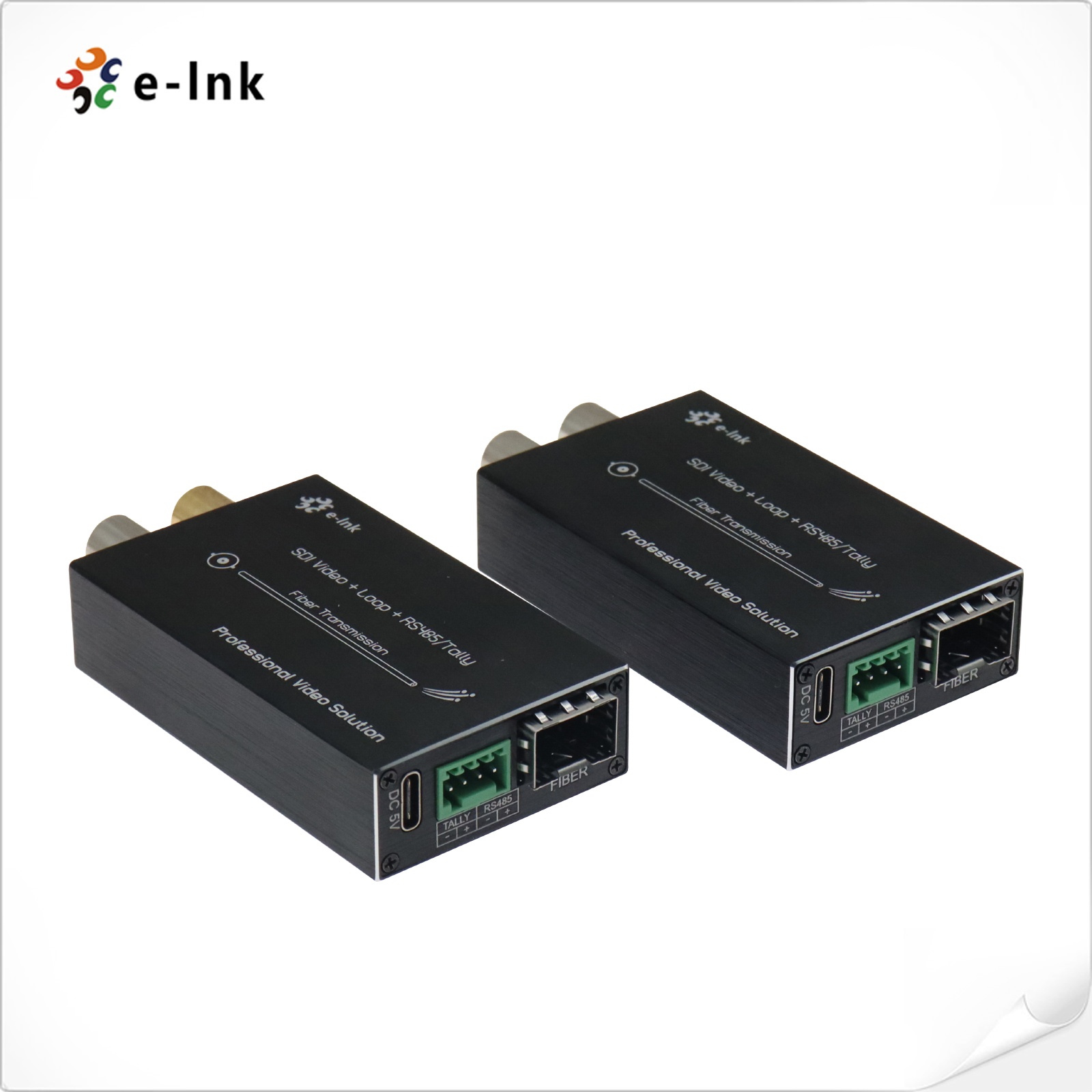

Mini-type HD-SDI to Fiber Converter with Tally or Reverse RS485

Model:LNK-MHD-1V Series

►   Each channel includes 8-channel audio embedded;

►   Automatic cable equalization, used for all rate below 1.5 Gb/s (Belden 1694A);

►   Automatic reclocking 270Mbit/s - 1.48Gbit/s

►   Directly compatible with HD-SDI camera systems

Overview

LNK-MHD-1V Series Mini-type HD-SDI Fiber Converter supports 1-channel HD-SDI Video (audio embedded) & Tally or Reverse RS485 signal transmitted via fiber optical cable, and monitor the signal locally over a HD-SDI loop output. E-link HD-SDI Video over Fiber Converters includes one transmitter and one receiver for HD-SDI signal.

Features

►   Each channel includes 8-channel audio embedded;

►   Automatic cable equalization, used for all rate below 1.5 Gb/s (Belden 1694A);

►   Automatic reclocking 270Mbit/s - 1.48Gbit/s

►   Directly compatible with HD-SDI camera systems

►   Long transmission capability up to 80 km

►   Hot swap and hot plug;

►   Handle all Pathological patterns, fully digital non-compression broadcast level transmission;

►   LED Status Indication to monitor the working conditions;

►   Super optic dynamic range and free of adjustment;

►   1470~1610nm CWDM wavelengths optional;

►   industry level ultra-broad temperature range (-20℃~+70℃), adaptable to various environments;

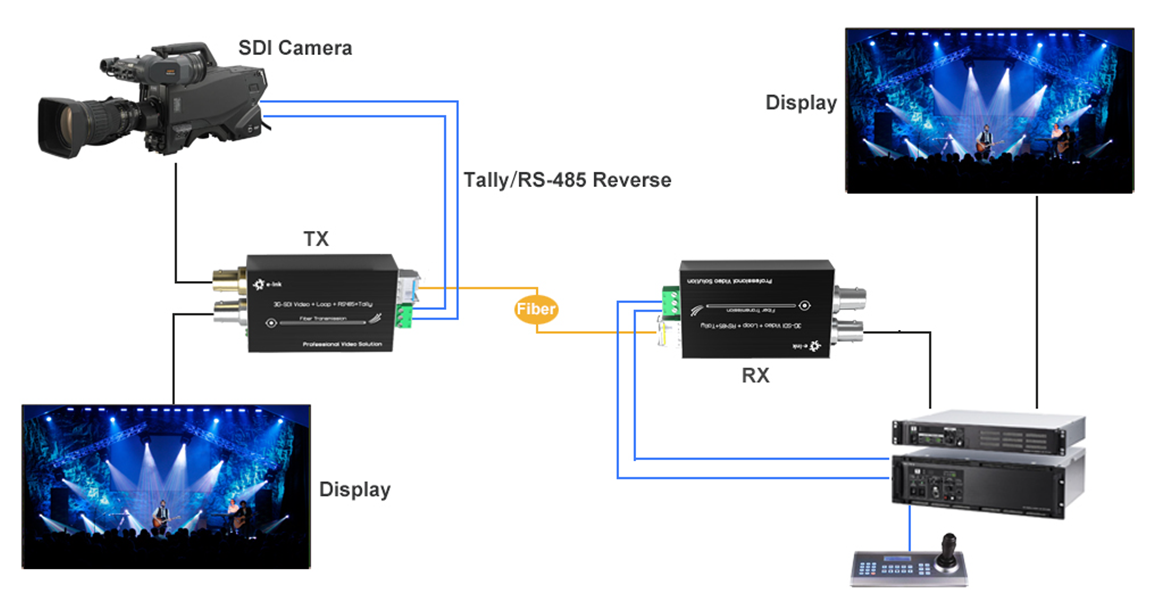

Application


►Animal films recording;

►Live events broadcast over fiber

►High performance(error-free) surveillance networks in Army or security;

►Large video wall system

►Intelligent Traffic Monitoring System

►Security systems

►School networking

►Industrial monitoring (Electricity, Chemistry, Steel, Oil, Railway & etc)

►Military Monitoring (Warehouse, Border, Guards,etc)

►Stadium (For LIVE HD video, audio transmission)


Technical Indexes

Fiber Optical interface

Fiber interface

Simplex LC

Transmission distance

550m-20Km

Wavelength

1310nm/1550nm

Video

Video interface

BNC

Video input/output impedance

75Ω

Video input/output voltage

Typical:1Vpp, Min 0.5Vpp, Max 1.5Vpp

Video Bits Rate

Max 1.48Gb/s

Differential gain (10%~90% APL)

<1%

SDI format support

625/25 PAL

525/29.97 NTSC, 525/23.98 NTSC

720p50, 720p59.94

1080i 23/24/30/50/59.94

Video SDI standard

270Mbps (SD-SDI)

1.485Gbps (HD-SDI)

Data

Physical interface

Industrial standard screw terminal

Data type

Tally or Reverse RS485

Frequency/Rate support

Max. 115200bps for RS422

Max. 57600bps for RS485

BER

<10ˉ9

Electrical

Power adaptor

DC 5~25V

Power consumption

<5W

LED Indicator

SDI

SDI video

P/T

Power Supply

Mechanical

Dimensions (LxWxH)

80 x 40 x 20 mm

Weight

1KG/pair

Casing

Aluminum Case

Mounting Options

Desktop

Environmental

Working Temperature

-20℃~+70℃

Storage Temperature

-40℃~+80℃

Working Humidity

0~95%

MTBF

≥100000 hours

  • Download FileName:E-link LNK-MHD-1V-20 Mini-type HD-SDI to Fiber Converter with Tally or RS485 Datasheet V1.0.pdf Size: 2.22MB

Ordering Information

Model

Description

LNK-MHD-1V1T-MM

Mini-type HD-SDI to Fiber Converter withTally and loop out,MMF, LC Fiber Connector 500 meters, including Transmitter and Receiver, used by pairs

LNK-MHD-1V1D-MM

Mini-type HD-SDI to Fiber Converter with Reverse RS485 and loop out,MMF, LC Fiber Connector 500 meters, including Transmitter and Receiver, used by pairs

LNK-MHD-1V1T-20

Mini-type HD-SDI to Fiber Converter withTally and loop out,SMF, LC Fiber Connector 20KM, including Transmitter and Receiver, used by pairs

LNK-MHD-1V1D-20

Mini-type HD-SDI to Fiber Converter with Reverse RS485 and loop out,SMF, LC Fiber Connector 20KM, including Transmitter and Receiver, used by pairs

LNK-MHD-1V1T-40

Mini-type HD-SDI to Fiber Converter withTally and loop out,SMF, LC Fiber Connector 40KM, including Transmitter and Receiver, used by pairs

LNK-MHD-1V1D-40

Mini-type HD-SDI to Fiber Converter with Reverse RS485 and loop out,SMF, LC Fiber Connector 40KM, including Transmitter and Receiver, used by pairs
