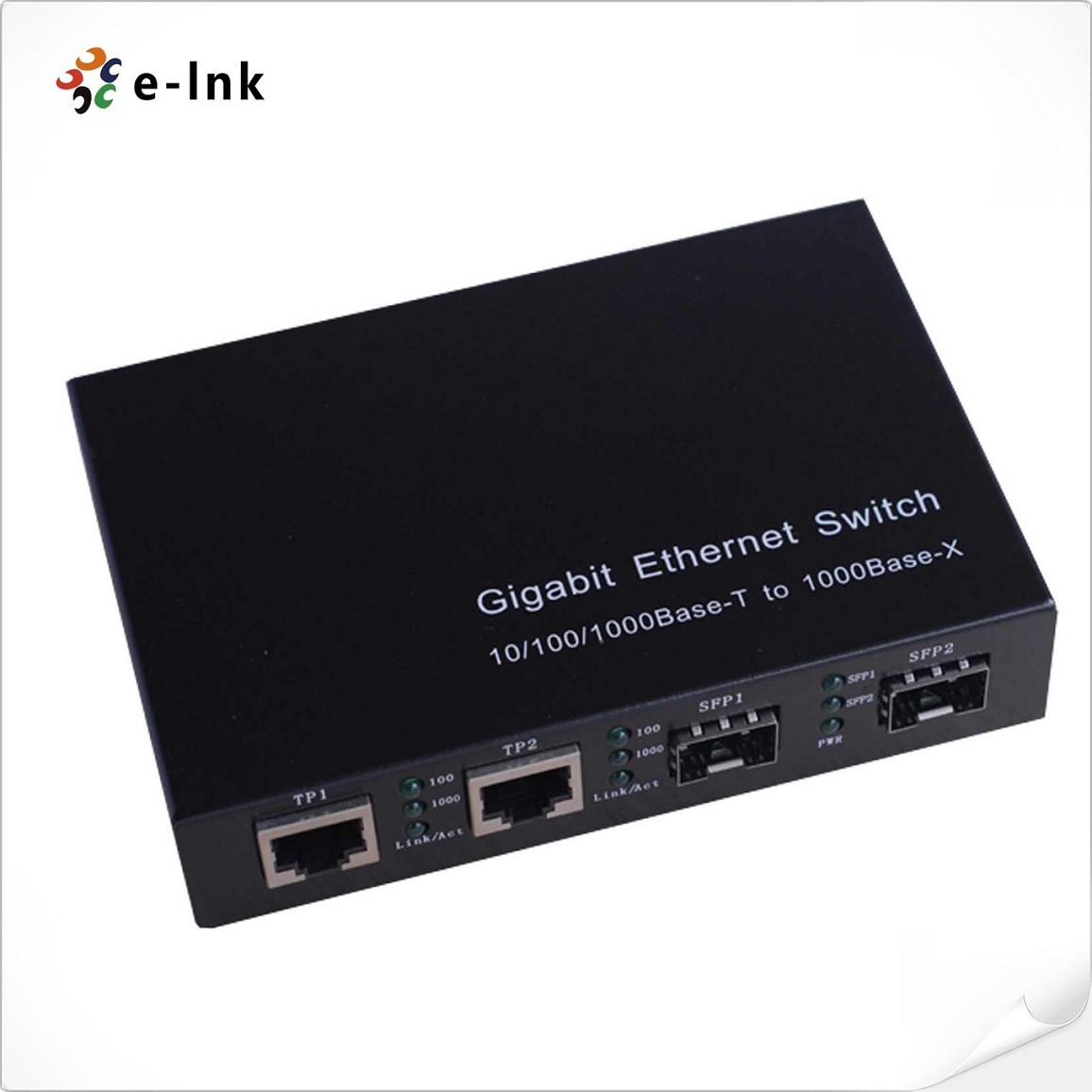

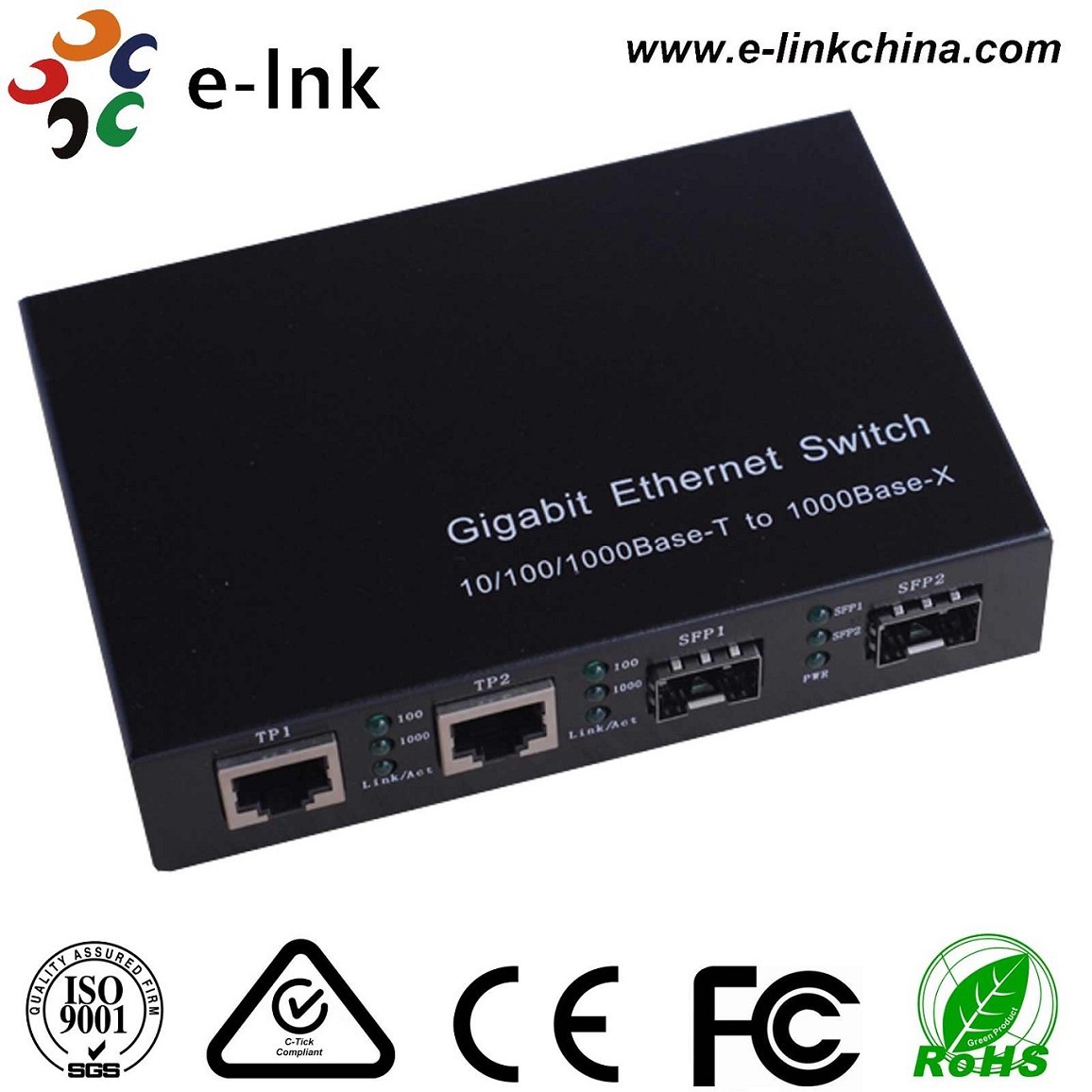

10/100/1000M Media Converter 2-TX + 2-FX(SFP) Port Fiber Ethernet Switch
Model:LNK-2200G-SFP
►Two RJ45 ports and two SFP sockets ,It can convert Optical－Electric Ethernet signals between 10/100/1000M UTP ports and 1000M optical fiber ports and switch Ethernet signals between port and port.
►Auto negotiation function supports UTP ports to auto 10/100/1000M and Full Duplex/Half Duplex.
Overview
LNK-2200G-SFP Gigabit Ethernet Switch with two 10/100/1000M UTP ports and two 1000M SFP sockets. The end users can use different SFP module according to his requirement, for example: 1000Base-T, 1000Base-SX, 1000Base-LX etc. The product is possessed of stable performance, excellent quality and reasonable price because of adopting latest IC from USA and high quality of transceivers. It is applicable to use in small patterns of Optical Fiber Ethernet.
Features
►Two RJ45 ports and two SFP sockets ,It can convert Optical－Electric Ethernet signals between 10/100/1000M UTP ports and 1000M optical fiber ports and switch Ethernet signals between port and port.
►Auto negotiation function supports UTP ports to auto 10/100/1000M and Full Duplex/Half Duplex.
►Broadcast storm protection
►Supports VLAN and QoS
►Supports the max9K bytes frame
►Small power consumption (3W), low heat, good stability
Application
It is applicable to use in small patterns of Optical Fiber Ethernet.
Technical Indexes
|
Parameter |
Specifications |
|
Access mode |
10/100/1000Mbps |
|
Standard |
IEEE802.3z/AB, 10/100/1000Base-T and 1000Base-SX/LX |
|
Wavelength |
850nm/1310nm/1550nm |
|
Transmission distance |
Fiber Optic: depends on SFP Module Category-5 twisted pairs: 100m |
|
Port |
2*RJ45 ports: Connecting with STP/UTP category-5 twisted pairs 2*SFP socket |
|
Conversion means |
Media conversion, store-and-forward |
|
Flow control |
Full duplex: flow control; half duplex: back pressure |
|
Error rate |
<10-9 |
|
MTBF |
100,000 hours |
|
MAC address table |
1K |
|
Frame buffer memory |
512Kb RAM |
|
Power supply |
DC5V 2A (external) |
|
Power consumption |
3.5W |
|
Operating temperature |
-10~55ºC |
|
Operating humidity |
5%~90% |
|
Maintaining temperature |
-40~70ºC |
|
Maintaining humidity |
5% ~ 90% non-condensing |
- Download FileName：E-link LNK-2200G-SFP Series Media Converter Datasheet V2.0.pdf Size： 235KB
Order Information
| Item | Description |
| LNK-2200G-SFP | 10/100/1000Base-Tx to 1000Base-Fx, 2G + 2SFP, SFP Slot, without SFP Modules, standalone, external power adaptor |
