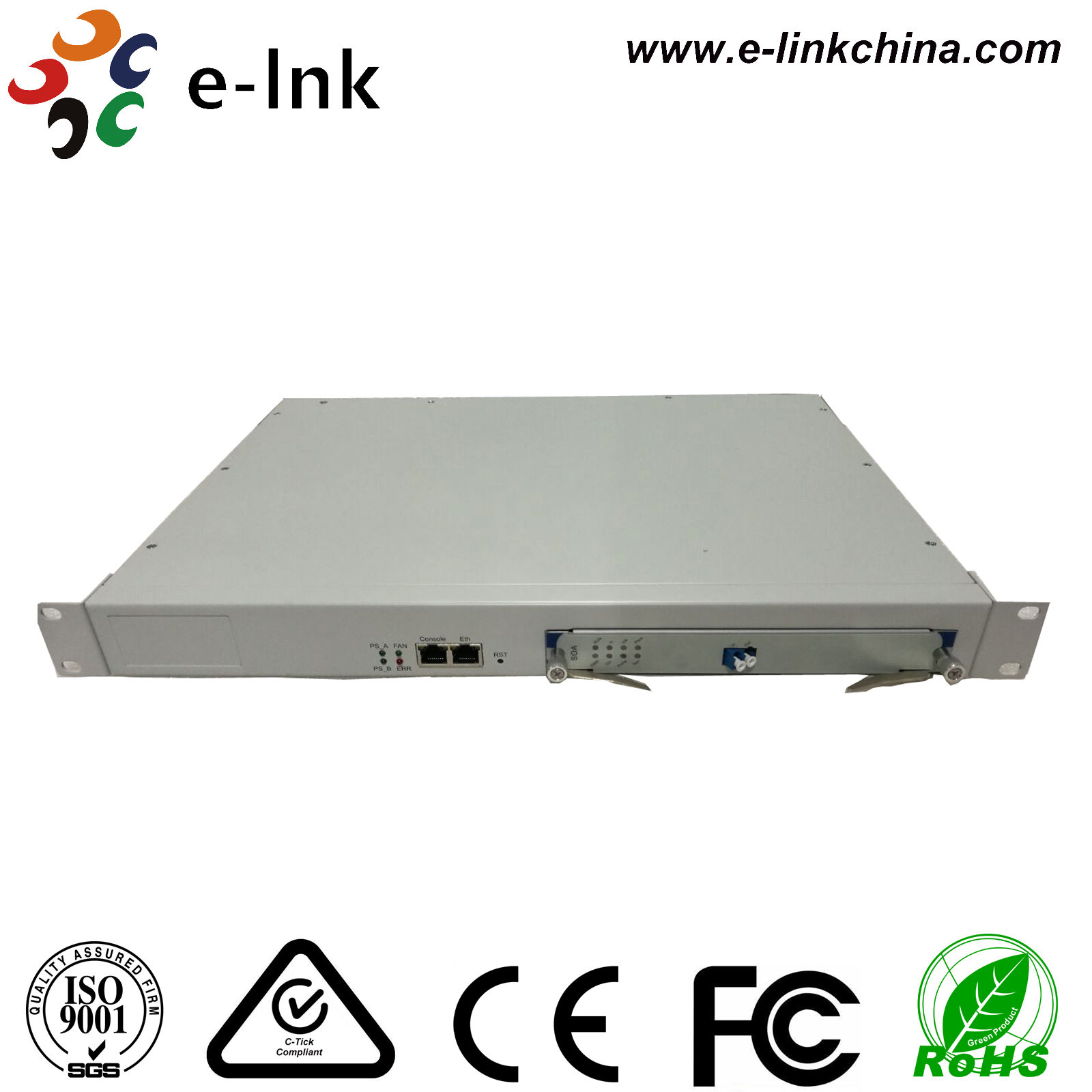

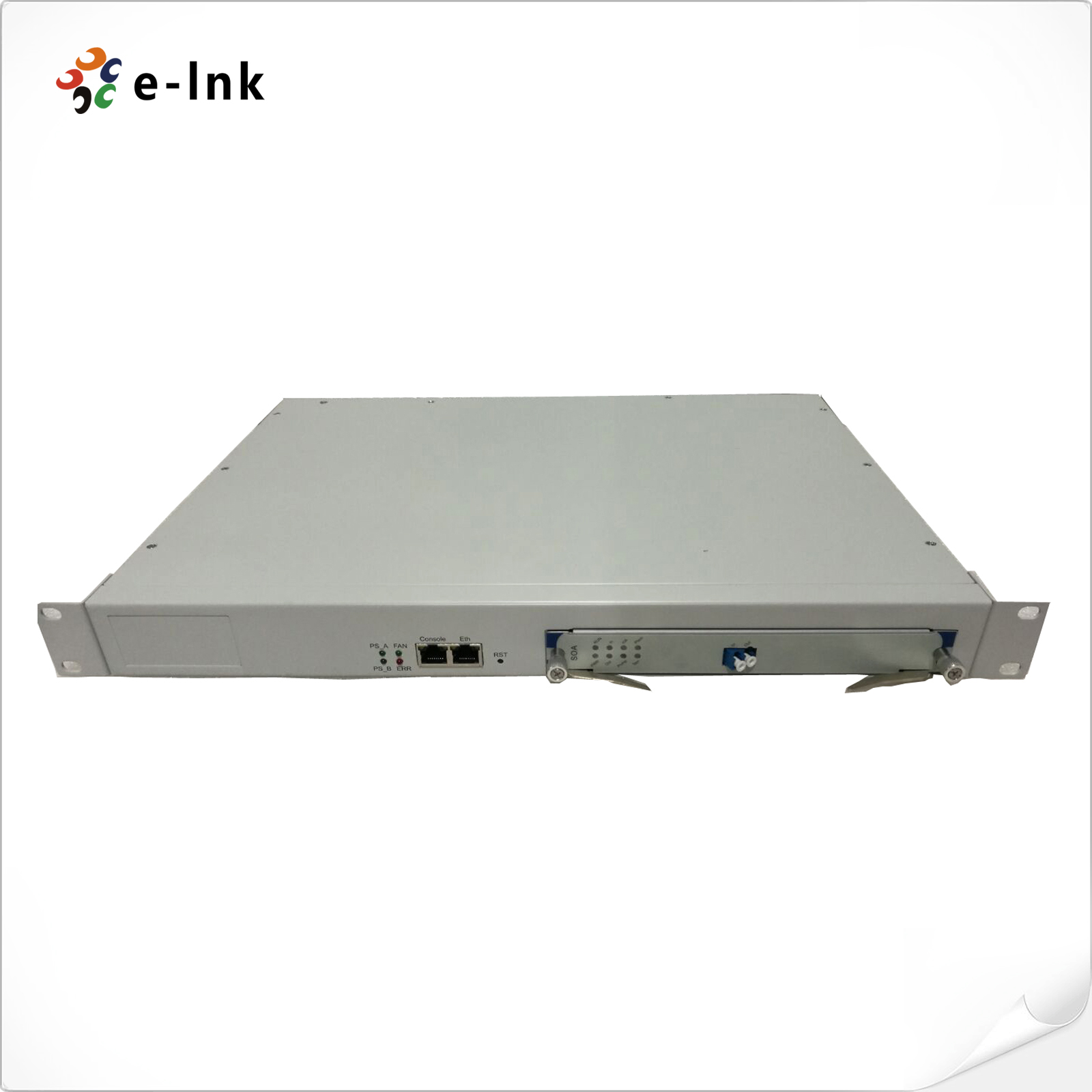

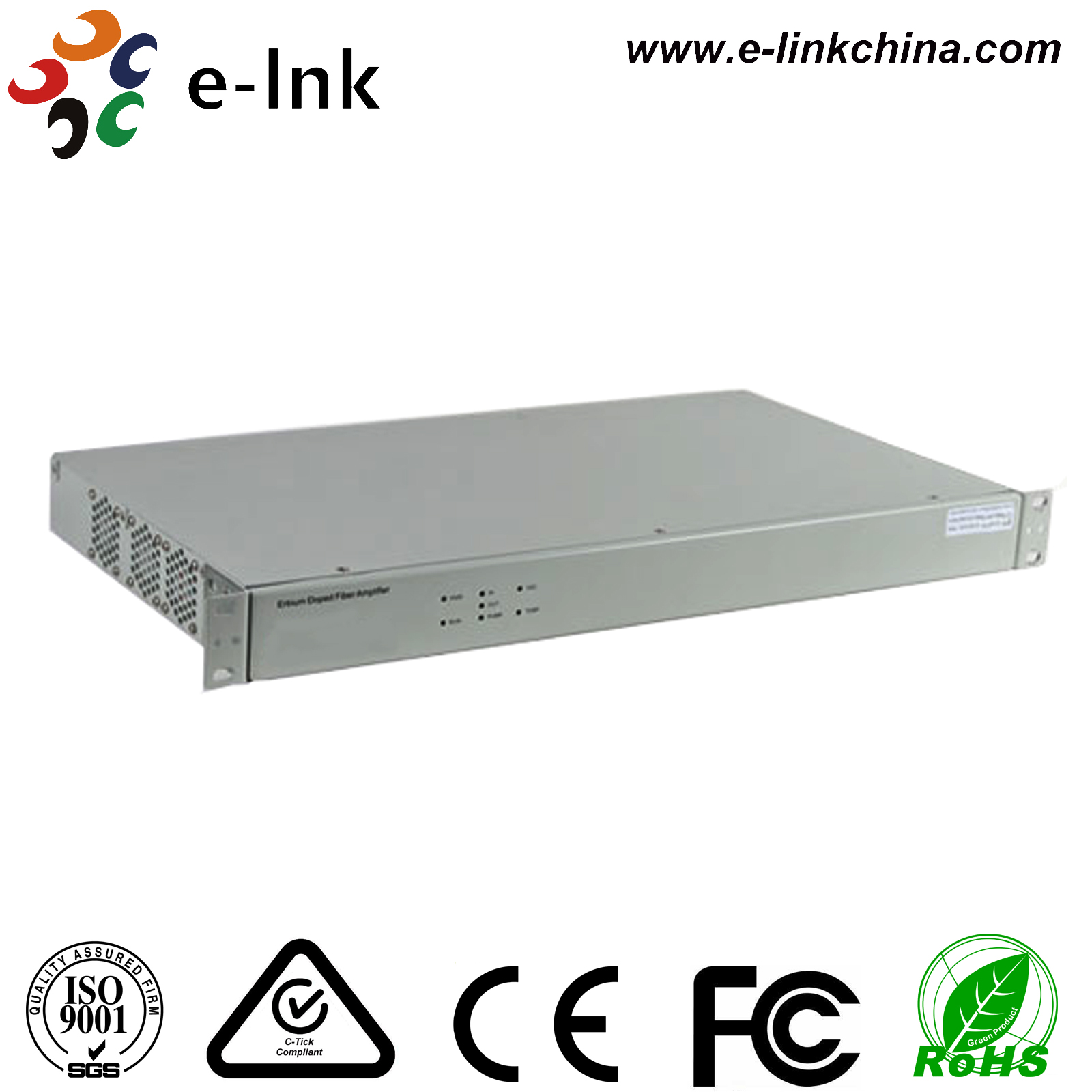

100G Semiconductor Optical Amplifier
Model:LNK-100G-SOA Series
► 3 work modes, ACC, APC and AGC, for constant pump current, output power or gain are selectable
► DB9 port for RS232 communication and RJ45 port for SNMP function
Overview
E-link Semiconductor Optical Amplifier products provide the amplification around 1310nm. It can be used in the 10G/40G/100G system, suit for system design conveniently. Products are divided into 1*1, 2*2, 4*4 and 8*8 three kinds, respectively, to achieve 1-way, 2-way, 4-way and 8-way 1310nm 100G optical signal amplification. It provides output power up to be 10dBm.Features
► O-band, 1260~1340;
► Power up to 10dBm;
► 3 work modes, ACC, APC and AGC, for constant pump current, output power or gain are selectable;
► DB9 port for RS232 communication and RJ45 port for SNMP function;
► 220VAC or -48VDC dual power supply, optional;
► RoHS compliant;Technical Indexes
|
100G systems |
OBA （Example） |
||||
|
Parameters |
Min |
Typ |
Max |
Units |
Remark |
|
Operating wavelength |
1290 |
1310 |
1330 |
nm |
|
|
Port |
|
|
8 |
port |
8in put 8 out put |
|
input power |
-25 |
|
-10 |
dBm |
|
|
Out put power |
-8 |
|
-2 |
dBm |
APC |
|
Polarization dependent gain |
|
|
2 |
dB |
|
|
Bias current |
|
300 |
400 |
mA |
Single |
|
Gain flatness |
|
|
2 |
dB |
|
|
Noise figure |
|
7.5 |
8 |
dB |
in put=-20dBm |
|
Uniformity |
|
|
1 |
dB |
|
|
Stability |
|
|
0.5 |
dB |
|
|
Working temperature |
0 |
|
55 |
℃ |
|
|
Storage temperature |
-40 |
|
85 |
℃ |
|
|
Power |
|
|
40 |
W |
|
|
Control mode |
APC |
|
|
||
|
Operating Voltage |
-48V DC or 220VAC |
V |
|
||
|
Size |
1U19 inch |
|
|
||
|
Management |
WEB, SNMP |
|
|
||
|
Rate |
10Gbps/40Gbps/100Gbps |
|
|
||
- Download FileName：E-link LNK-100G-SOA 100G Semiconductor Optical Amplifier Datasheet V1.0.pdf Size： 307KB
Ordering Information
|
Model |
Description |
|
LNK-100G-SOA1310-1 |
100G Semiconductor Optical Amplifier, 1310nm, 1CH |
|
LNK-100G-SOA1310-2 |
100G Semiconductor Optical Amplifier, 1310nm, 2CH |
|
LNK-100G-SOA1310-4 |
100G Semiconductor Optical Amplifier, 1310nm, 4CH |
|
LNK-100G-SOA1310-8 |
100G Semiconductor Optical Amplifier, 1310nm, 8CH |
