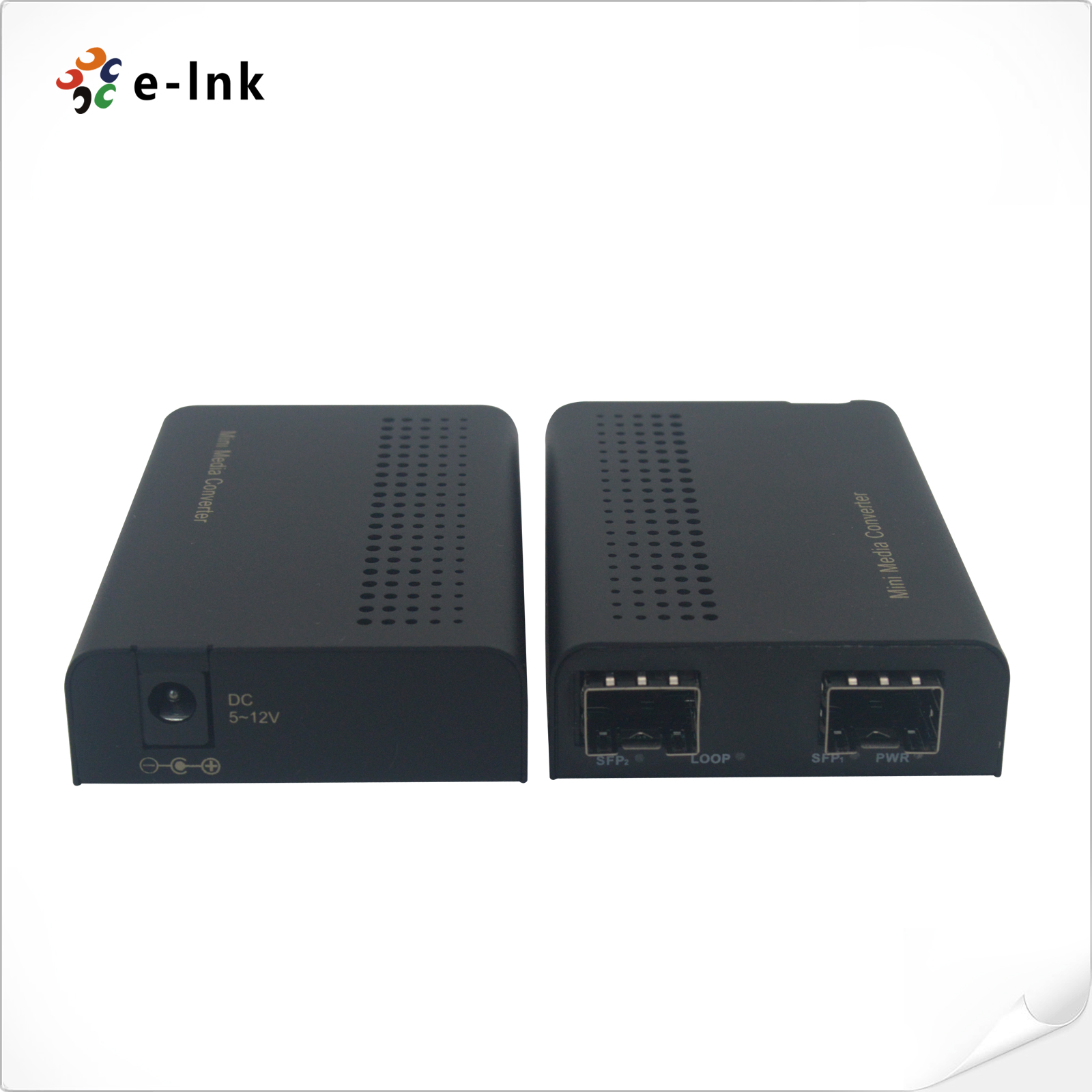

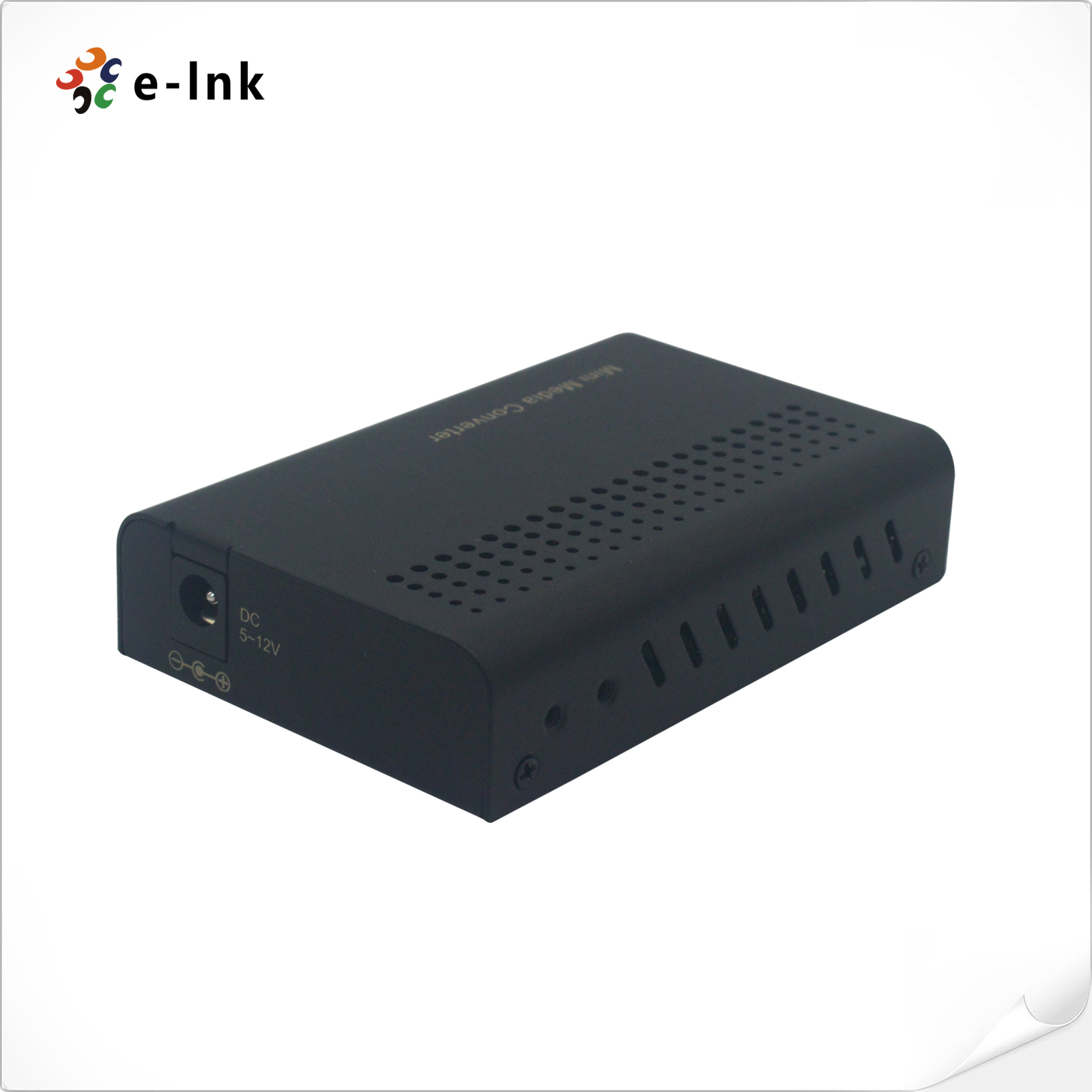

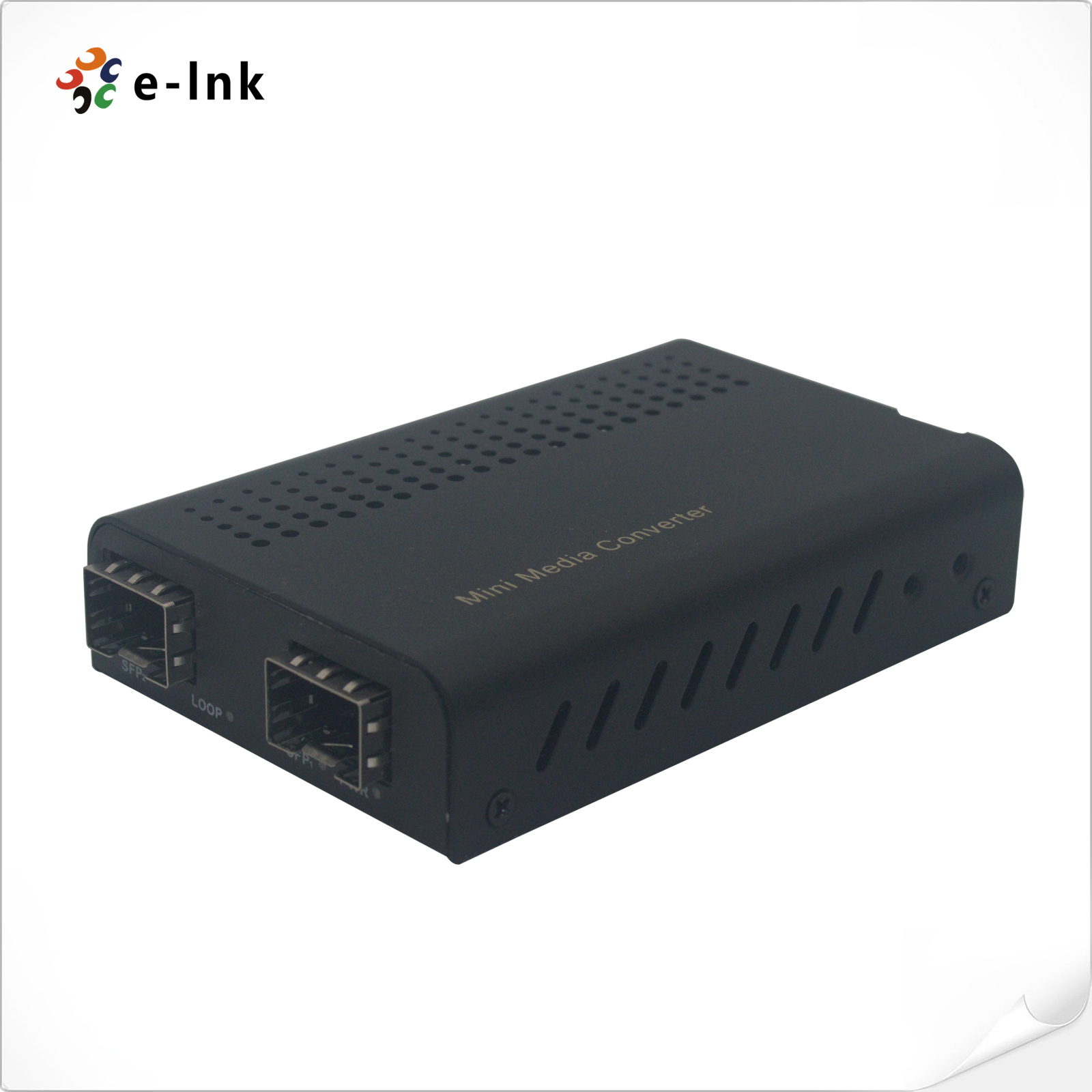

Mini-type 10G OEO Media Converter (3R Repeater)
Model:LNK-MN-OEO-10G Series
► Support Loopback
► Support Jumbo Frame
► Transparent Transport and very low delay
Overview
E-link Mini-type 10G (8.5G~11.7G) OEO Converter (3R Repeater) is connection between fiber to fiber 10Gbps equipment function as fiber media converter, or as fiber repeater for long distance transmission.The OEO is for network backbone(SAN, LAN, MAN). Support SDH/SONET STM-64/OC-192, 10G fiber channel, 10G Ethernet etc. And the OEO can be applied in Telecommunication room, R&D laboratory, Data center, and etc. Support 1310nm /1550nm/CWDM/DWDM Optical Wavelength Conversion.Features
► Support Loopback
► Support Jumbo Frame
► Transparent Transport and very low delay
► Support ITUT prescribed DWDM/CWDM wavelength，and can also display it's DDM function.
► 3R function（Regenration , Reshaping , Retiming）
► Support hot plugging
► Support 1U Rack (12 channel) and standalone use
► Full State Led display
► Easy installation
Technical Indexes
|
Performance Data |
Technical Indexes |
|
Equipment function |
3R Repeater |
|
Transmission Speed |
8.5Gb/s-11.7Gb/s |
|
Protocols |
8.5G Fiber Channel SONET OC-192, SDH STM-64 (9.95Gbps) 10G WAN (10Gbps) 10G LAN (10.31Gbps) OTN OTU-2 (G.709) (10.70Gbps) 10G LAN with 255/237 FEC coding (11.09Gbps) 10G Fiber Channel (11.32Gbps) 10G POS |
|
Interface Type |
SFP+ to SFP+ |
|
Transmission Distance |
SFP+ module: up to 80km |
|
Maximum Packet Forwarding Rate |
14,880,950/S |
|
Power Requirement |
Rack-mountable : AC 85 ～ 220V OR DC -48V Standalone: AC 110~220V OR -48V Power consumption: ≤4W |
|
Work Environment |
Operating Temp: 0~ 50 ℃ Storage Temp: -10~ 70 ℃ Humidity: 5%~90% （ non-condensing ） |
|
Dimension |
Standalone：58 (W) x 20 (H) x 90 (L) (mm) |
- Download FileName：E-link LNK-MN-OEO-10GSS OEO Media Converter Datasheet V1.0.pdf Size： 299KB
Ordering Information
|
Model |
Description |
|
LNK-MN-OEO-10GSS |
Mini-type 10G OEO Converter (3R Repeater) (SFP+ to SFP+) |
