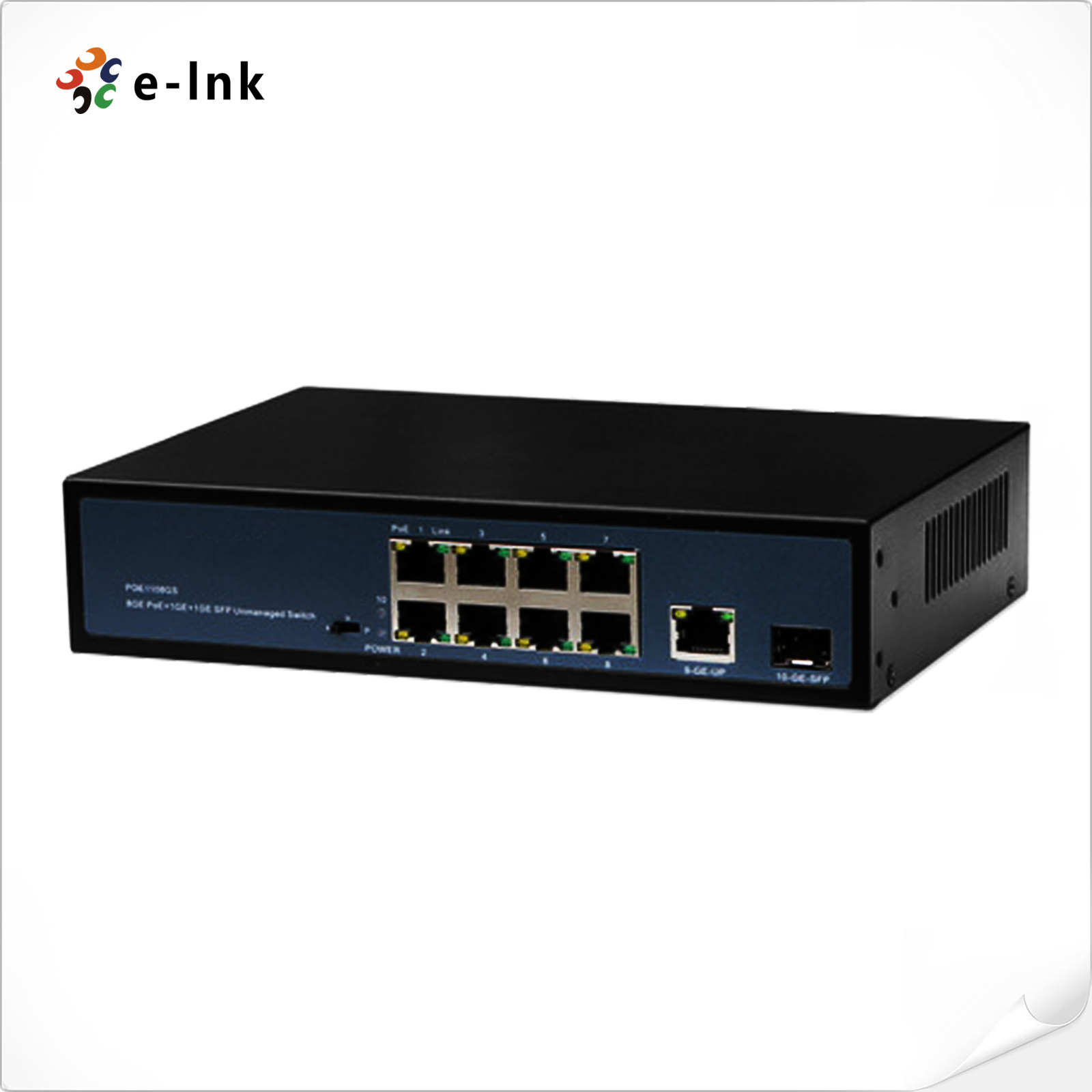

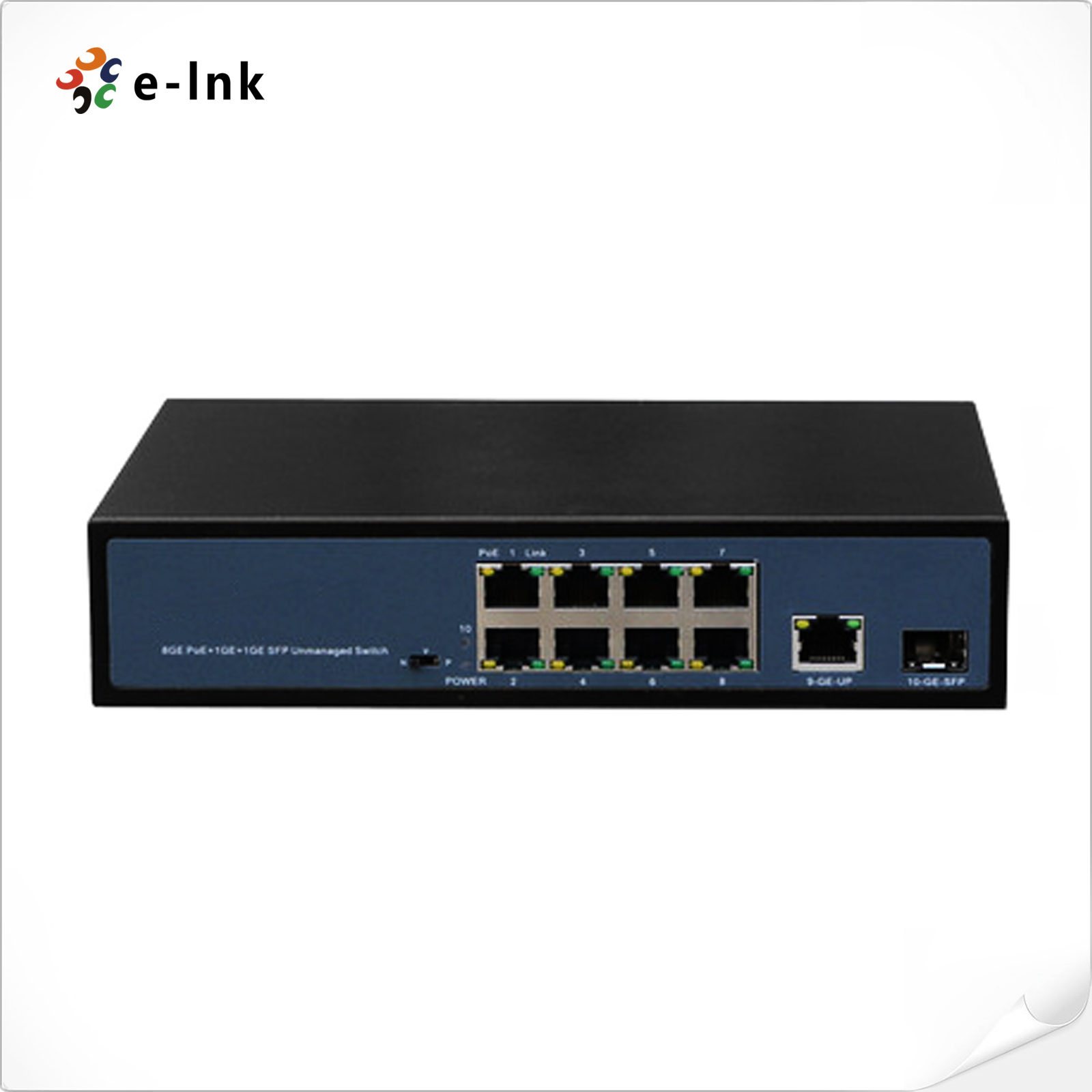

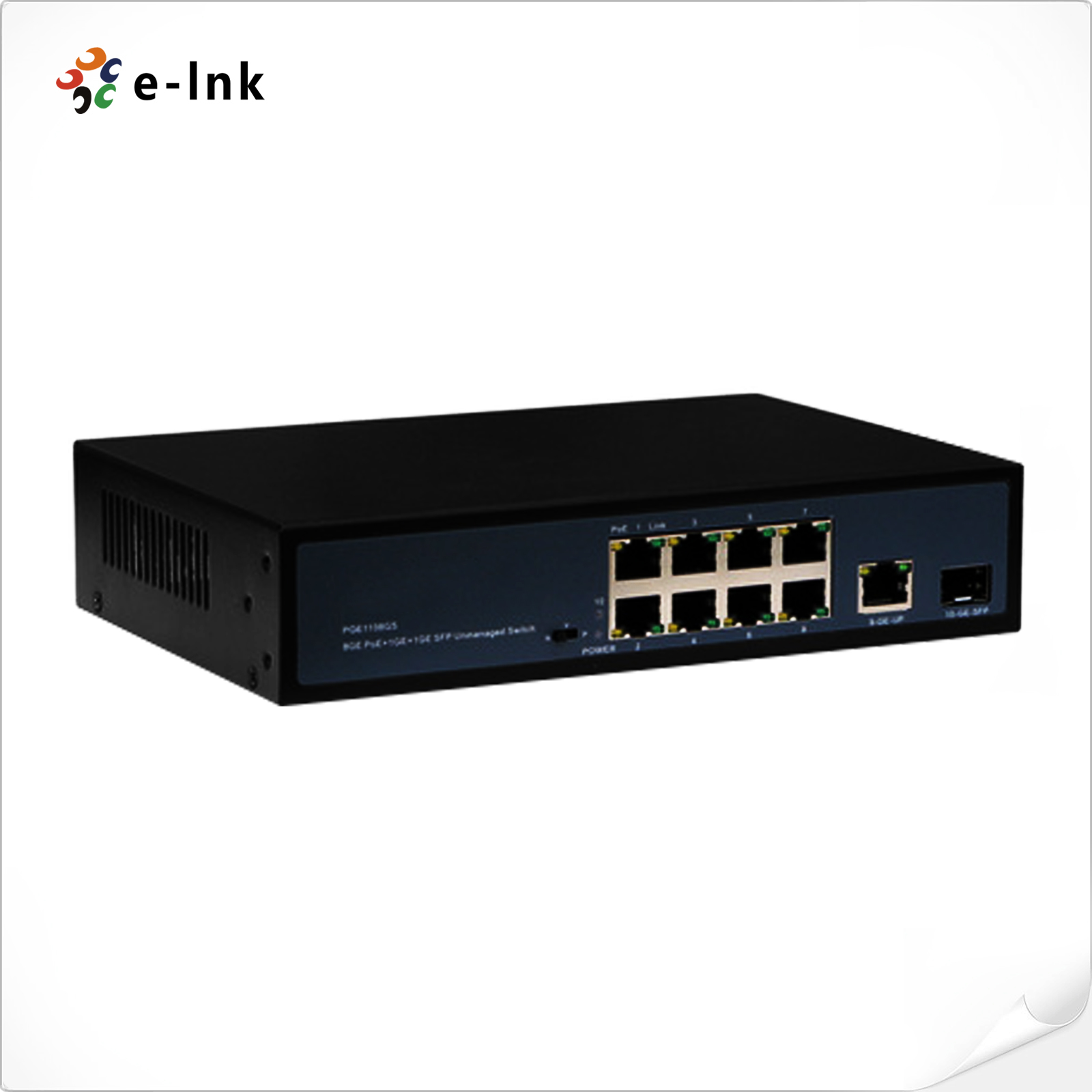

Model

LNK-8GP1G1SFP

Product

8+1+1 PoE Switch

Fixed Port

8*10/100/1000Base-TX  PoE port（Data/Power）

1*10/100/1000Base-TX uplink RJ45 port (Data)

1*1000M SFP

PoE ports

1-8 port supports PoE（optional first port outputs HiPoE-60W）

Function

N:(Standard normal)

V:(Port isolation)

P:(Flow Control mode)

Network Protocol

IEEE 802.3

IEEE 802.3i 10BASE-T

IEEE 802.3u 100BASE-TX

IEEE 802.3ab 1000BASE-T

IEEE 802.3x

IEEE 802.3z 1000BASE-X

IEEE 802.3af/at

PoE Standard

IEEE802.3af/at

Port Specification

10/100/1000BaseT（X）Auto

Transmission Mode

Store and Forward(full wirespeed)

Bandwidth

20Gbps

Packet Forwarding

14.44Mpps

MAC Address

2K

Buffer

2.5M

Transmission Distance

10BASE-T：Cat3,4,5 UTP(≤250 meter)

100BASE-TX：Cat5 or later UTP(150 meter)

1000BASE-TX：Cat6 or later UTP(150 meter)

1000BASE-SX:62.5μm/50μm MMF(2m~550m)

1000BASE-LX:62.5μm/50μm MM(2m~550m) or 10μm SMF(2m~5000m)

Power Pin

Default 1/2(+)，3/6(-)；Optional 4/5(+)，7/8(-)

Single port power

Average 15.4W；MAX 30W

Total power/Input voltage

MAX 150W（AC100-240V 50/60HZ）

Watt

Standby Power Consumption：≤8W；

LED Indicator

POWER: Power LED9optional over-power LED)

Uplink:(Link LED=10/100M Link、1000M=Gigabit Link)

9:(SFP LED）

Port:(Orange=PoE LED+Green=Link LED)

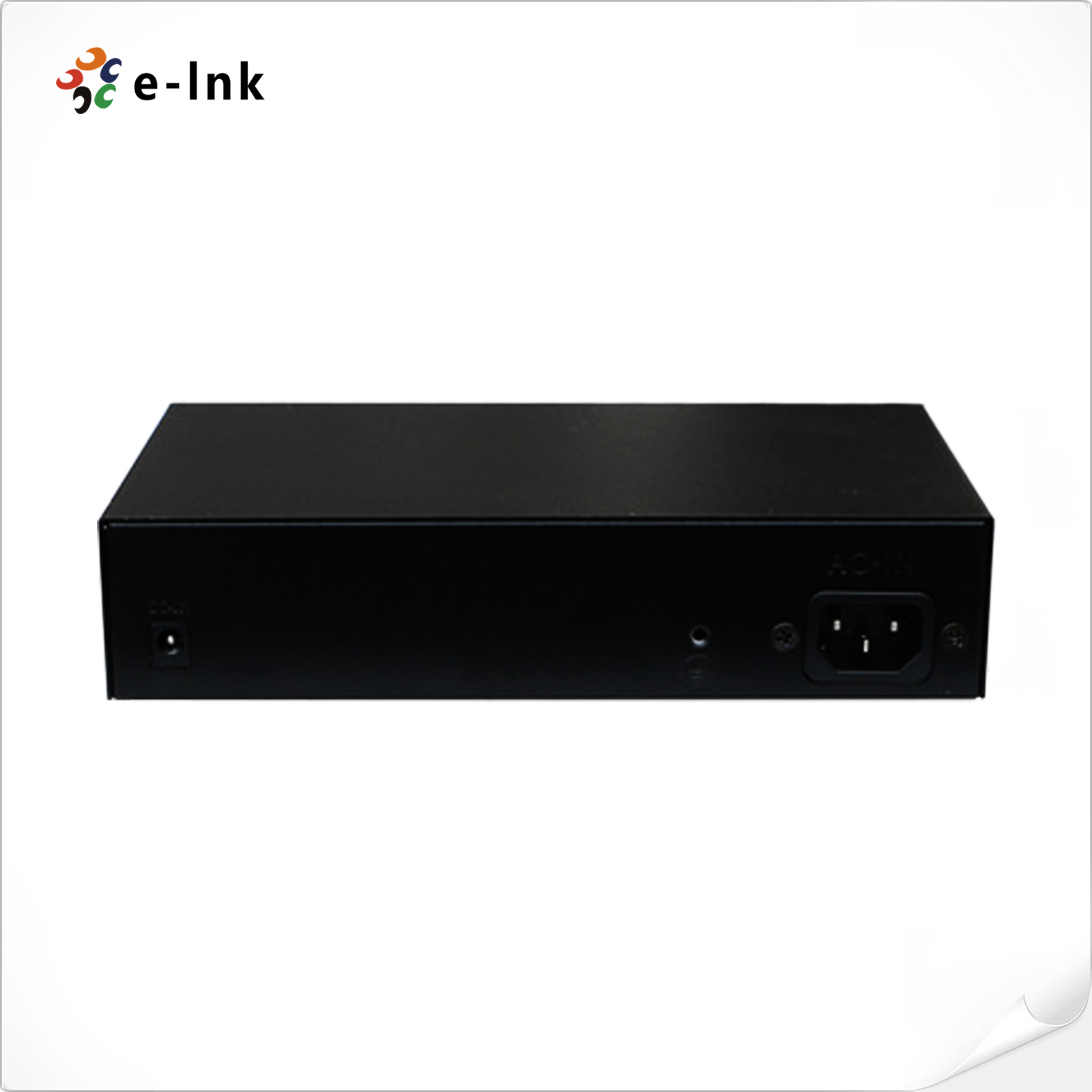

Power Input

Built-in power AC：100～240V 50-60Hz 1A

Operating Temperature/Humidity

-10～+55°C；5%～90% RH Non coagulation

Storage Temperature/Humidity

-40～+75°C；5%～95% RH Non coagulation

Product size/Packing size（L*W*H）

210mm*140mm*45mm

270mm*220mm*70mm

N.W/G.W（kg）

1.1kg/1.4kg

Installation

Desktop (optional wall+machine hangers)

Lightning protection level

3KV 8/20us；

IP30

Certificate

CE mark, commercial；CE/LVD EN60950；

FCC Part 15 Class B；RoHS；

Warranty

Whole device for 1 year（Accessories not included）
