► Output Voltage: 48VDC @ 0.5A
► Input Voltage: 90-260VAC @ 47-63Hz
► Input Current: 0.3A @ 120VAC, 0.2A @230VAC
Overview

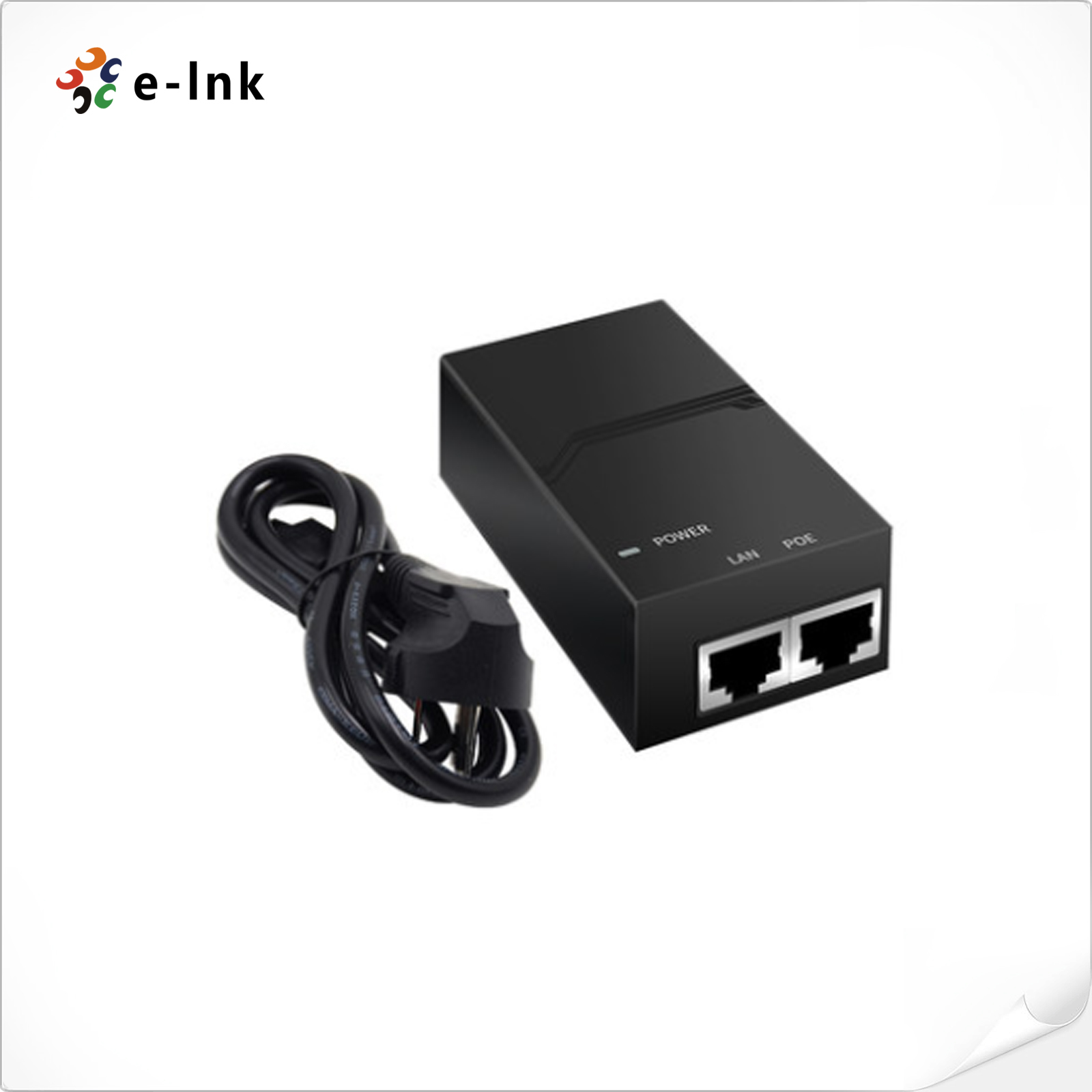

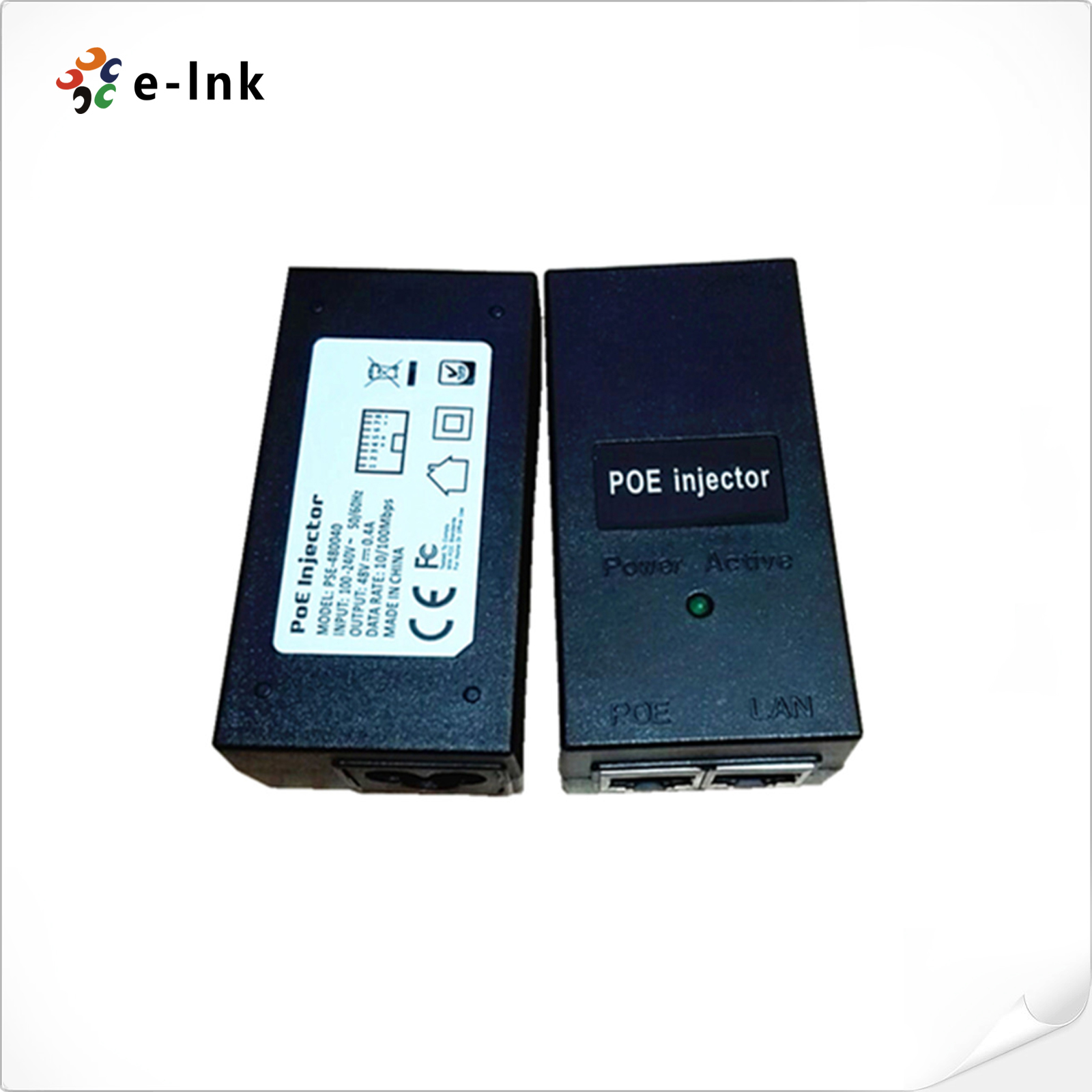

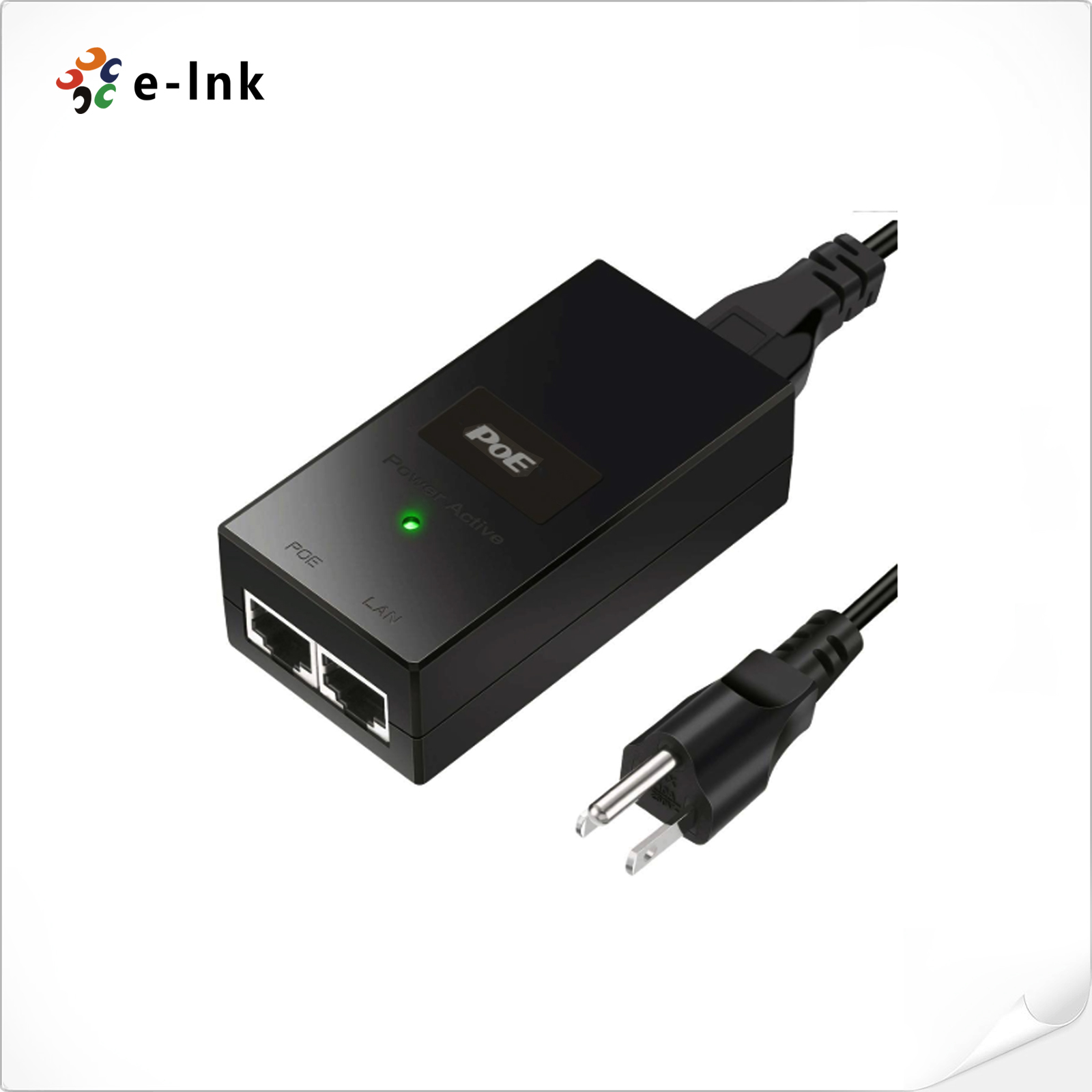

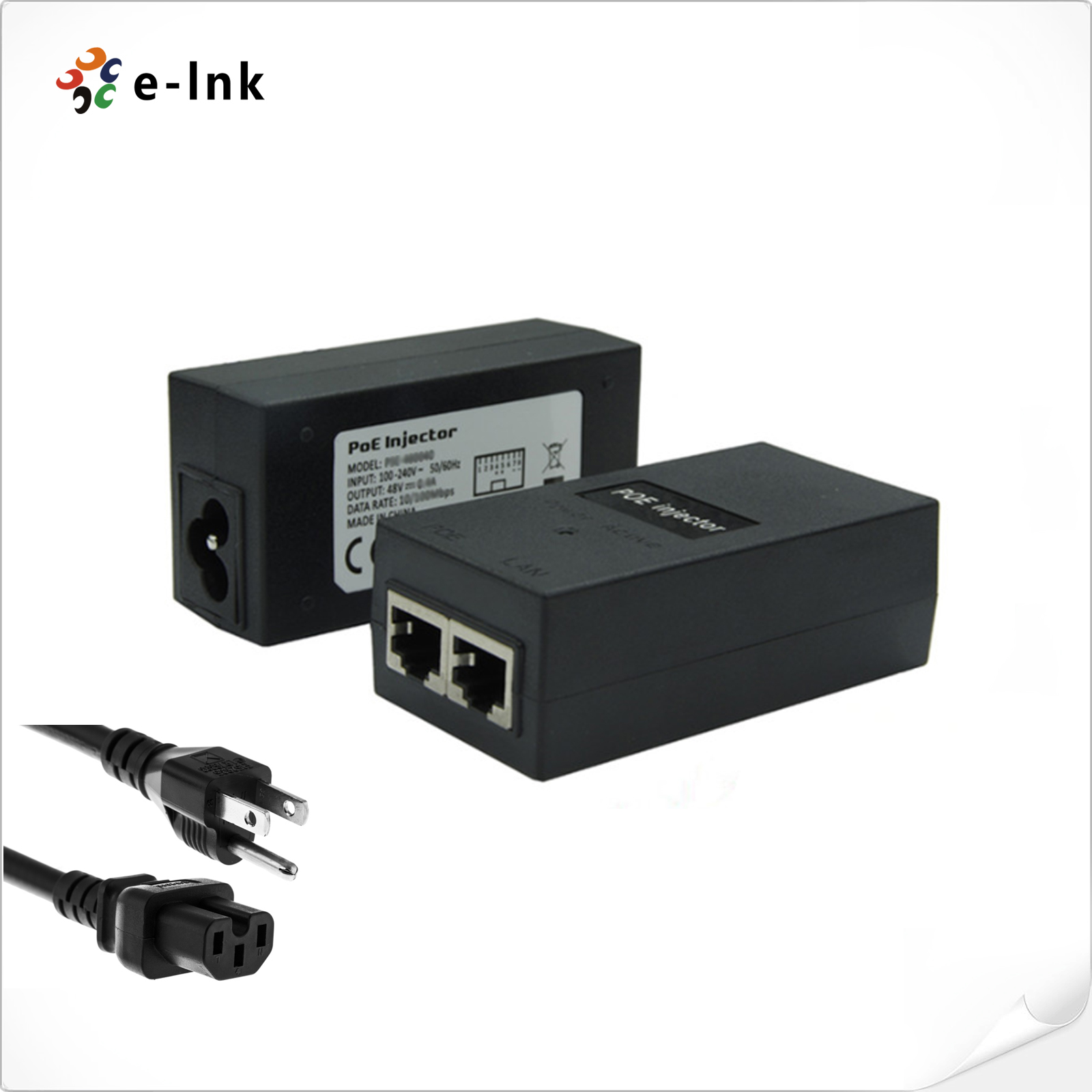

LNK-PSE4824G 24W – 48V Gigabit PoE Injector is a long-distance driving, fast network performing, strong PoE Output midspan. It is a single port indoor PoE injector that can provide up to 24W.
The midspans are ideal to power 802.11 access points, pan-tilt-zoom (PTZ) and dome cameras, IP videophones, thin clients and other power Ethernet end terminals with 24W of power. With plug and-play installation, they are easy and cost effective to implement leveraging existing Ethernet infrastructure while at the same time providing the assurance of a future proof network.
Feature
► Output Voltage: 48VDC @ 0.5A
► Storage Temperature: -20C to +70 deg C
► Operating Humidity: 5% to 95% non-condensing
► Input Voltage: 90-260VAC @ 47-63Hz
► Input Current: 0.3A @ 120VAC, 0.2A @230VAC
► Efficiency: 70+%
► Output Ripple: 1% Max
► Switching Frequency: 200kHz
► Line Regulation: +/- 0.5%
► Load Regulation: +/- 1%
► Operating Temperature: -10C to +50C
► Remotely power Equipment Through CAT 5/6 Cable up to 100m (328ft).
► Short Circuit, Over Current and Over Voltage Protection.

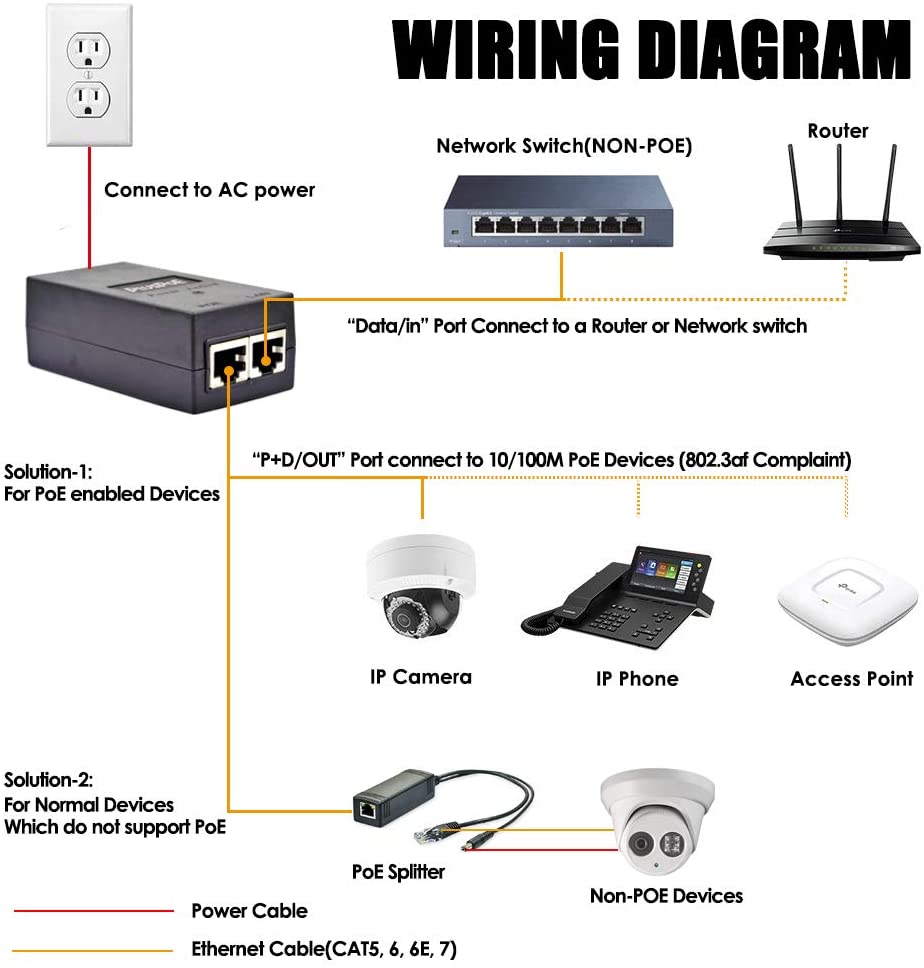

Application
Specification
Standards: |
IEEE 802.3 10Base-T Ethernet |
IEEE 802.3u 100Base-TX Fast Ethernet |
|
IEEE 802.3ab 1000Base-T Gigabit Ethernet |
|
Processing Type: |
Forward |
Half-duplex, Full-duplex |
|
Forward Filter Rate: |
1,488,000pps (1000Mbps) |
Cabling: |
10/100/1000Base-T: Cat5 or above |
Maximum Distance: |
PoE (24W): 2-pair UTP Cat. 3, 4, 5, up to 100m (328ft) |
Connector: |
LAN: 1 x RJ-45 STP, “Data” Input Port POE: 1 x RJ-45 STP, “Data + Power” Output Port AC Connector: 1 x AC Input power socket, IEC-60320-C15 |
Environmental |
|
Operating Temperature: |
-10°C to 50°C (14°F to 122°F) |
Storage Temperature: |
-20°C to 70°C (-4°F to 158°F) |
Relative Humidity: |
5% to 95% non-condensing |
MTBF: |
>200,000hrs |
Electrical and Mechanical |
|
Input Voltage Range: |
90-260VAC @ 47-63Hz. |
Output Voltage: |
DC 48-50V, 0.5A |
Power Consumption: |
24 watts max. |
PoE (Power over Ethernet) |
|
Port: |
RJ45 |
Power Pin Assignment |
Data provide over pairs 1/2(+) and 3/6(-) Power over spare pairs 4/5(+) and 7/8(-) |
PoE Power Output |
DC 48V-50V/324-watt PoE via 2-pairs |
LED Indicators |
|
Power: |
Power Status |
PoE: |
PoE Status |
Dimensions (W×D×H): |
84 x 43 x 31mm |
Weight: |
0.25Kg |
Casing: |
Plastic Case |
Mounting Options: |
Desktop |
Regulatory Approvals |
|
ISO9001 |
|
FCC part 15, Class A |
|
EN55022:2006+A1: 2007 Class A |
|
Surge Protection: |
|
RJ45: 1KV |
|
Power: 500W |
|
ESD: 4KV/8KV |
Order Information
Model |
Description |
LNK-PSE4824G |
10/100/1000Mbps 48V 24W POE Injector with Power Cord |
