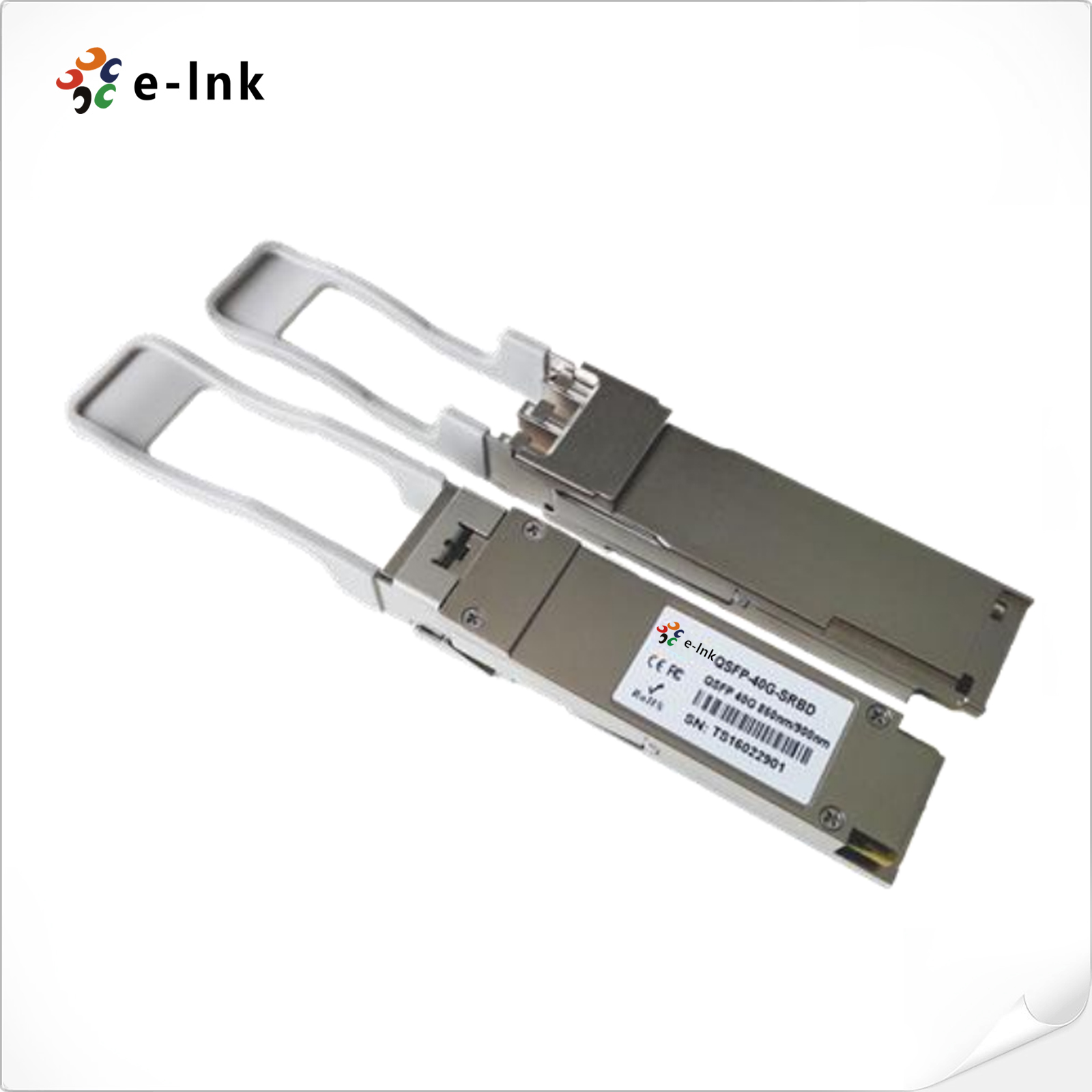

It is a Four-Channel,Pluggable, LC Duplex, Fiber-Optic QSFP+ Transceiver for 40 Gigabit Ethernet Applications.

This transceiver is a high performance module for short-range duplex data communication and interconnect applications.

It integrates four electrical data lanes in each direction into transmission over a single LC duplex fiber optic cable.

Each electrical lane operates at 10.3125 Gbps and conforms to the 40GE XLPPI interface.

 The transceiver internally multiplexes an XLPPI 4x10G interface into two 20Gb/s electrical channels, transmitting and receiving each         optically over one simplex LC fiber using bi-directional optics.

This results in an aggregate bandwidth of 40Gbps into a duplex LC cable.

This allows reuse of the installed LC duplex cabling infrastructure for 40GbE application. Link distances up to 100 m using OM3 and 150m using OM4 optical fiber are supported.

These modules are designed to operate over multimode fiber systems using a nominal wavelength of 850nm on one end and 900nm on the other end.

The electrical interface uses a 38 contact QSFP+ type edge connector. The optical interface uses a conventional LC duplex connector.

Features

Compliant to the 40GbE XLPPI electrical specification per IEEE 802.3ba-2010

Compliant to QSFP+ SFF-8436 Specification

Aggregate bandwidth of > 40Gbps

Operates at 10.3125 Gbps per electrical channel with 64b/66b encoded data

QSFP MSA compliant

Capable of over 100m transmission on OM3 Multimode Fiber (MMF)and 150m on OM4 MMF

Single +3.3V power supply operating

Built-in digital diagnostic functions

Temperature range 0°C to 70°C

RoHS Compliant Part

Utilizes a standard LC duplex fiber cable allowing reuse of existing cable infrastructure

Applications

40 Gigabit Ethernet interconnects

Datacom/Telecom switch & router connections

Data aggregation and backplane applications

Proprietary protocol and density applications

• Download FileName：E-link 40GBASE-SR BD Duplex LC Transceiver Datasheet V2.0.pdf Size： 1.58MB
