► Support multi protocol from 9.95Gb/s to 11.3Gb/s
► Hot pluggable 30 pin connector
► Compliant with XFP MSA
► Transmission distance of 120km over single mode fiber
Overview

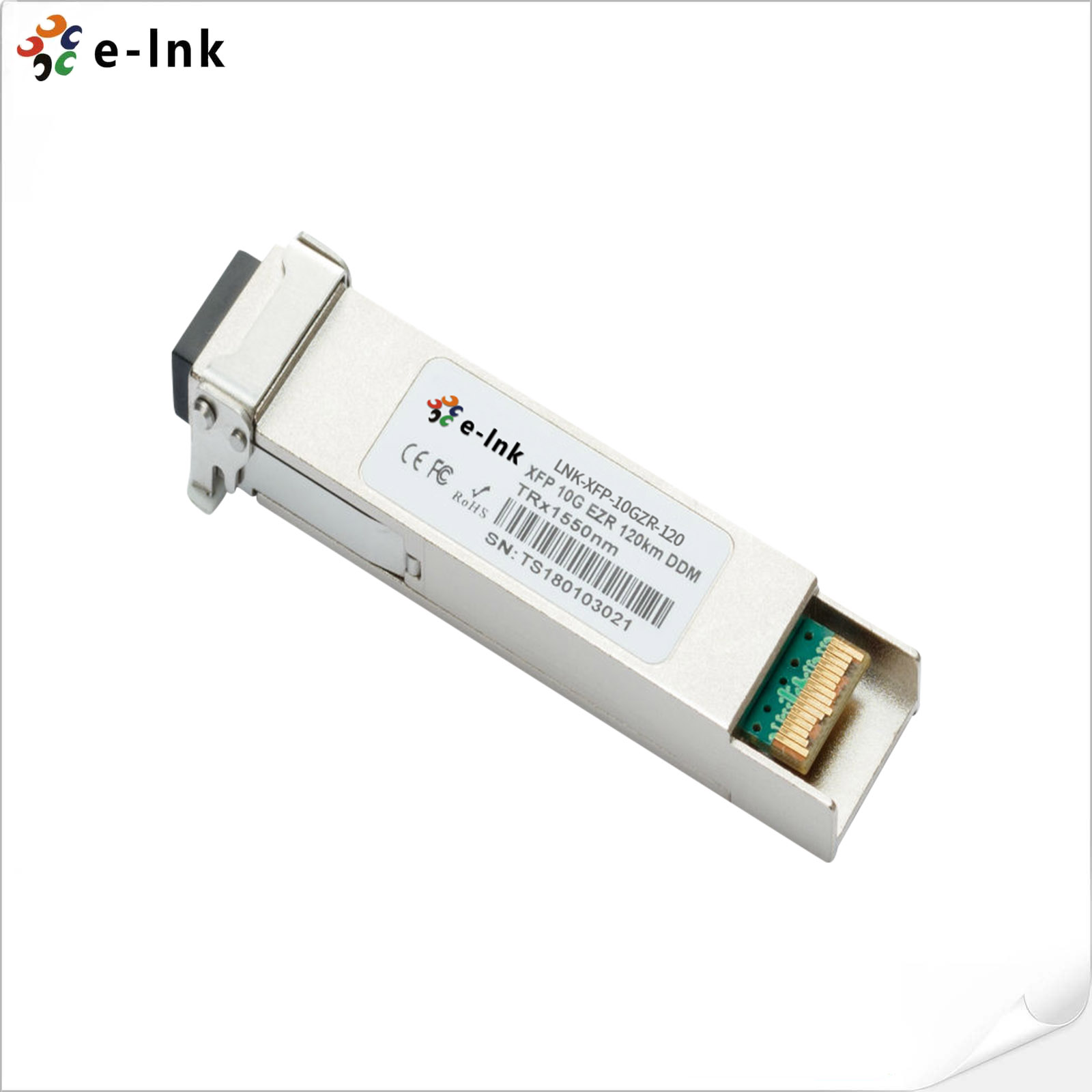

E-LINK’ LNK-XFP-10GZR-120 Small Form Factor 10Gb/s (XFP) transceivers are compliant with the current XFP Multi-Source Agreement (MSA) Specification. The high performance cooled CML transmitter and high sensitivity APD receiver provide superior performance for SONET/SDH and Ethernet applications up to 120km optical links.
Feature
► Support multi protocol from 9.95Gb/s to 11.3Gb/s
► Hot pluggable 30 pin connector
► Compliant with XFP MSA
► Transmission distance of 120km over single mode fiber
► Cooled CML laser transmitter.
► APD Receiver
► Duplex LC connector
► 2-wire interface for management and diagnostic monitor
► XFI electrical interface with AC coupling
► Power supply voltages : +3.3V, +5V
► Temperature range 0°C to 70°C
► Power dissipation: <3.5W
► RoHS Compliant Part
Application
► 10GBASE-ZR/ZW Ethernet
► SONET OC-192 / SDH STM-64 ITU-T G.959.1 P1L1-2D2
► Other optical links
Order Information
Part Number |
Product Description |
LNK-XFP-10GZR-120 |
10GBASE-ZR/ZW XFP 1550nm 120km DDM Transceiver |
