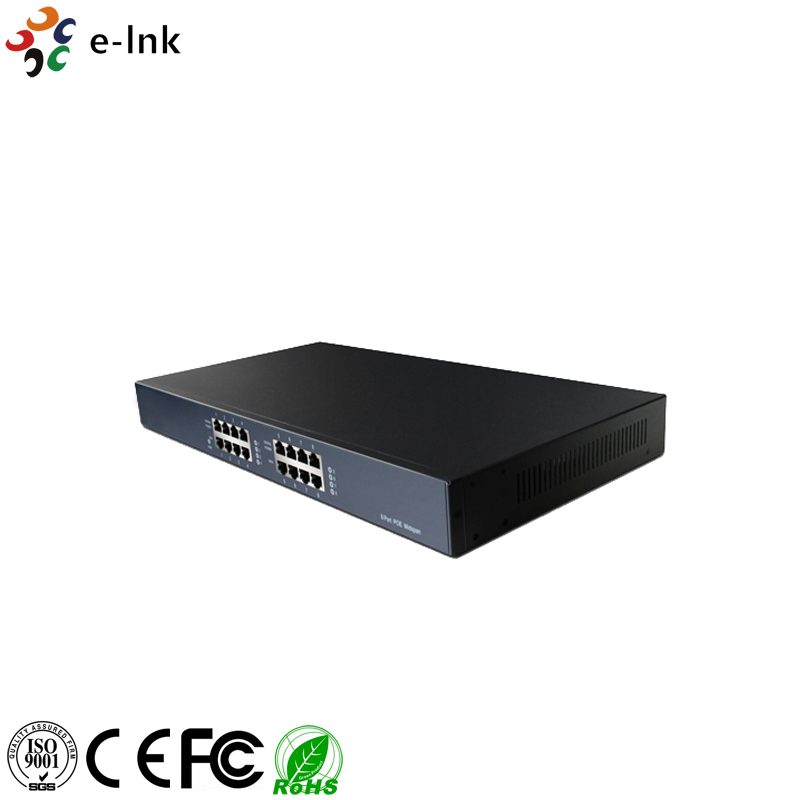

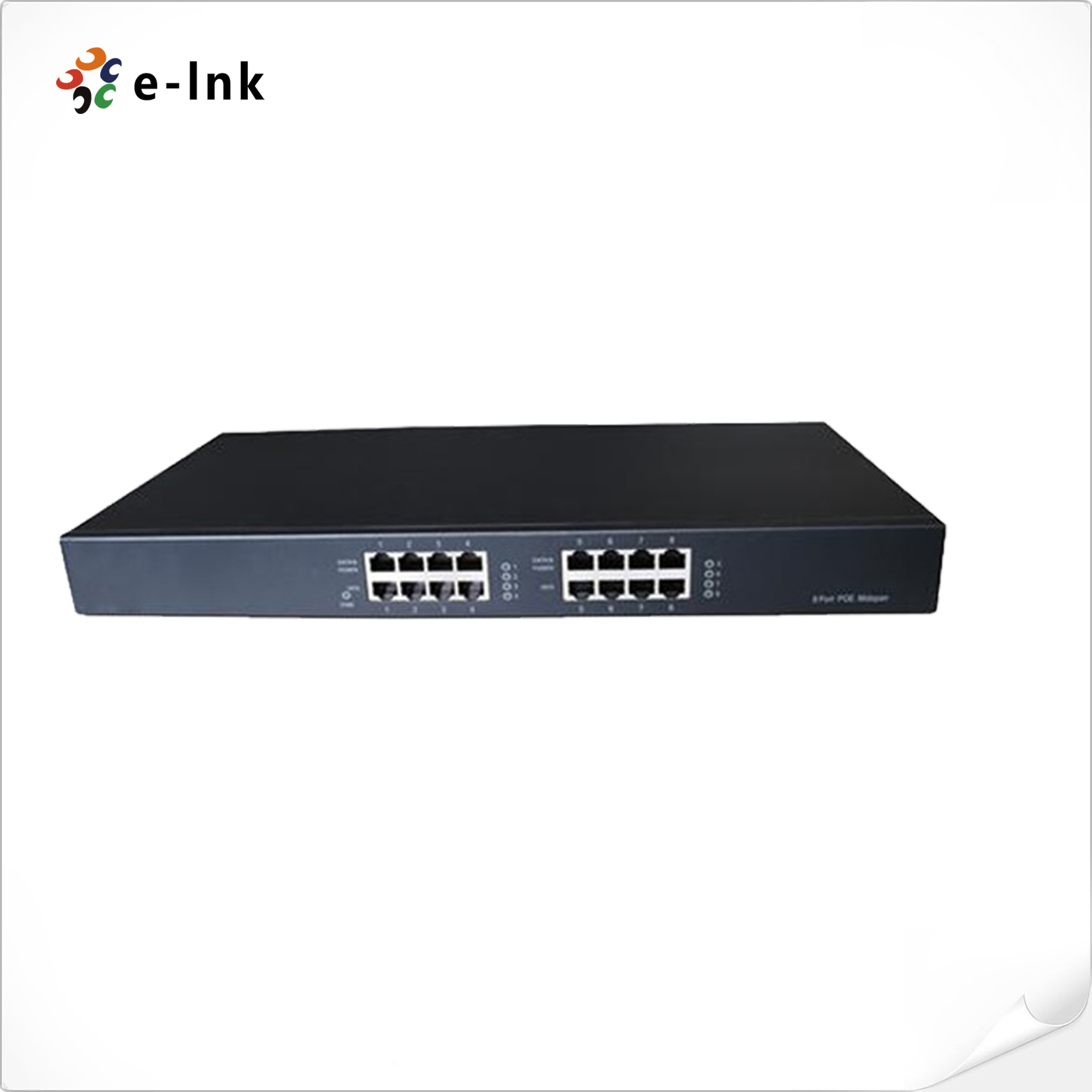

8-Port 10/100/1000Mbps 60W Ultra POE Injector

Model:LNK-PSE801GH

► 8 ports, total output 480W, per port 60W

► Active PoE Midspan, IEEE802.3at, with detection chip

► Support IEEE802.3af/at PD

► Delivering up to 60W of power per port

上一张

下一张

Overview

LNK-PSE80GH is an economic 8-port PoE Midspan with high-impact metal case. Each port provides power up to 55VDC, 1.1A for remote PDs. It supports 10/100/1000Mbps of data speed. It works for 30W PoE PDs, such as wireless APs, Network cameras, IP Phones and other power Ethernet terminals. It supports terminal equipment with IEEE802.3af/at standard.

LNK-PSE801GH is designed for indoor use. It works with input voltage of 176-265Vac. It has detection chip inside, which will detect and classify PD before powering it. It will not apply power until a standard-compliant PD is detected. The effective distance is 100 meters over Cat5e/Cat6 cables. With the Midspan's plug-and play installation Desktop or Rack-mounted or Wall-mounted , power and data can be delivered easily while it is cost-effectively.

Features

► 8 ports, total output 480W, per port 60W

► Active PoE Midspan, IEEE802.3at, with detection chip

► Support IEEE802.3af/at PD

► Stand-alone 8-port PoE Midspan, ideal for deployment of IP camera and Wireless network upgrades

► Can detect the PD if support IEEE802.3af/at standard with detection chip inside. If yes, then output 55VDC; or stop work to protect the PD from destroy

► Delivering up to 60W of power per port

► IEEE802.3at compliant and is ideal for deployments Ethernet end-devices are being deployed

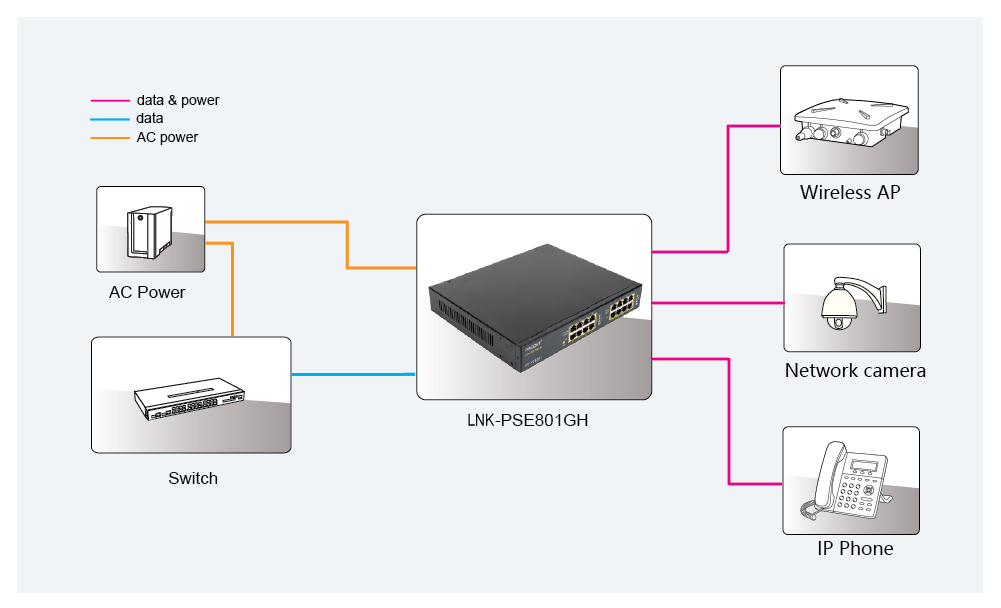

Application

Technical Indexes

Parameter	Specifications
Standard	IEEE802.3 10Base-T Ethernet IEEE802.3u 100Base-Tx Fast Ethernet IEEE802.3ab 1000Base-T Gigabit Ethernet Support terminal equipment with IEEE802.3af/at RoHS Compliance WEEE Compliance
Input & Output	Input :176-265Vac 4.0A 50/60Hz Output: 55VDC 1100mA Power Pins: 4/5(+), 7/8(-) & 3/6(+),1/2(-) Data Speed: 10/100/1000Mbps
Working Environment	Operating Temperature: 0℃to 40℃ Operating Humidity: 20% to 80%, non-condensation Storage Temperature: -20℃to 70℃ Storage Humidity: 10% to 90%, non-condensation Operating Altitude: up to 2000meters
AC Surge Protection	1.0KV (5P/5N) L-N 1.2/50 (8/20) Tr/Th us 2.0KV (5P/5N) L-PE 1.2/50 (8/20) Tr/Th us N -PE
Mechanical Characteristics	Case: Metal
	Color: Black
	Mounting: Rack-mounted / Wall-mounted
	IP Rated: IP20
	Size: 435mm X 225mm X 44.5mm
	Weight: 3.5kg
Safety Approvals	CE, FCC
EMI	FCC CFR47 Part 15, EN55024, EN55032
EMS	IEC61000-4-2(ESD)±6kV(contact),±8kV(air) IEC61000-4-3(RS) 10V/m(80MHz~2GHz) IEC61000-4-4(EFT) Power Port:±2kV; Data Port:±1kV IEC61000-4-5(Surge) Power Port:±1kV/DM,±2kV/CM IEC61000-4-6(CS) 10V(150kHz~80MHz)
Immunity	IEC60068-2-6(Vibration) IEC60068-2-27(Impact) IEC60068-2-32(Free Fall)
LED Indicator	Power Indicator: Green PoE Load Indicator: Green
