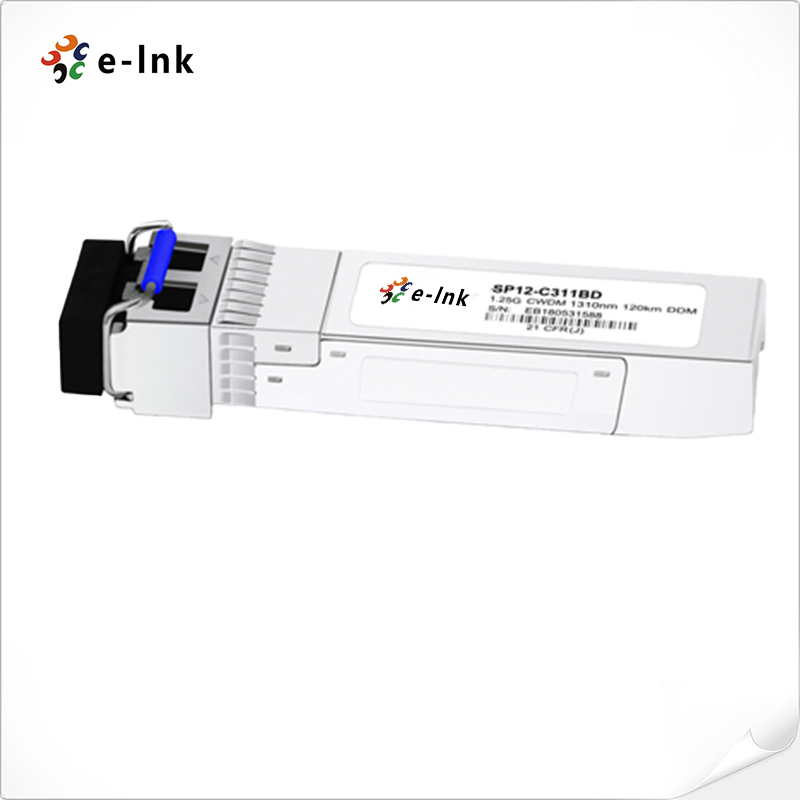

1.25Gb/s 120km CWDM SFP Transceiver
Model:
► Data-rate of 1.25Gbps operation
► 18-Wavelength CWDM DFB LD Transmitter from
► 1270nm to 1610nm, with Step 20nm
► Compliant with SFP MSA and SFF-8472
► Compatible with SONETOC-24-LR-1
Overview
The LNK-CSFP-1Gxx-120 series single mode transceiver is small form factor pluggable module for duplex optical data communications such as Gigabit Ethernet 1000BASE-ZX and Fiber Channel 1x SM-LC-L FC-PI. It is with the SFP 20-pin connector to allow hot plug capability. This module is designed for single mode fiber and operates at a nominal wavelength of CWDM wavelength. There are eighteen center wavelengths available from 1270nm to 1610nm, with each step 20nm.
The transmitter section uses a multiple quantum well CWDM DFB laser and is a class 1 laser compliant according to International Safety Standard IEC-60825. The receiver section uses anintegrated InGaAs detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC. TheLNK-CSFP-1Gxx-120 series are designed to be compliant with SFF-8472.
Features
► Data-rate of 1.25Gbps operation
► 18-Wavelength CWDM DFB LD Transmitter from
► 1270nm to 1610nm, with Step 20nm
► Compliant with SFP MSA and SFF-8472
► Compatible with SONETOC-24-LR-1
► Compatible with RoHS
►+3.3V single power supply
► Hot-Pluggable SFP Footprint Duplex LC
► Operating case
temperature Standard: 0°C to +70°C Extended: -20°C to +85°C
Industrial: -40°C to +85°C
Application
► Gigabit Ethernet
► Fiber Channel Switch Infrastructure
► Router/Server interface
► Other optical transmission systems
Technical Indexes
|
Parameter |
Symbol |
Min. |
Typical |
Max. |
Unit |
Note |
|
Transmitter Section: |
||||||
|
Center Wavelength |
λc |
λ-6 |
λ |
λ+7.5 |
nm |
|
|
Spectral Width(-20dB) |
△λ |
|
|
1 |
nm |
|
|
Side Mode Suppression Ratio |
SMSR |
30 |
|
|
dB |
|
|
Optical Output Power |
Pout |
0 |
|
+5 |
dBm |
1 |
|
Optical Rise/Fall Time |
tr/ tf |
|
|
260 |
ps |
2 |
|
Extinction Ratio |
ER |
8.2 |
|
|
dB |
|
|
Eye Mask for Optical Output |
Compliant with IEEE802.3z(class 1 laser safety) |
|
||||
|
Receiver Section: |
|
|||||
|
Optical Input Wavelength |
λc |
1260 |
|
1620 |
nm |
|
|
Receiver Overload |
Pol |
-8 |
|
|
dBm |
3 |
|
RX Sensitivity |
Sen |
|
|
-32 |
dBm |
3 |
|
RX_LOS Assert |
LOSA |
-40 |
|
|
dBm |
|
|
RX_LOS De-assert |
LOSD |
|
|
-32 |
dBm |
|
|
RX_LOS Hysteresis |
LOSH |
0.5 |
|
|
dB |
|
|
General Specifications: |
||||||
|
Data Rate |
BR |
|
1.063/1.25 |
|
Gb/s |
|
|
Bit Error Rate |
BER |
|
|
10-12 |
|
|
|
Max. Supported Link Length on 9/125μm SMF@1.25Gb/s |
LMAX |
|
120 |
|
km |
|
|
Total System Budget |
LB |
24 |
|
|
dB |
|
- Download FileName：E-link 1.25G CWDM SFP 120km DDM Transceiver Datasheet V1.0.pdf Size： 527KB
Order Information
| Model | Description |
| LNK-CSFP-1G47-120 | 1.25Gb/s CWDM SFP 120km DDM Transceiver: Hot Pluggable, Duplex LC, +3.3V,1470nm, CWDM DFB, Single mode |
| LNK-CSFP-1G49-120 | 1.25Gb/s CWDM SFP 120km DDM Transceiver: Hot Pluggable, Duplex LC, +3.3V,1490nm, CWDM DFB, Single mode |
| LNK-CSFP-1G51-120 | 1.25Gb/s CWDM SFP 120km DDM Transceiver: Hot Pluggable, Duplex LC, +3.3V,1510nm, CWDM DFB, Single mode |
| LNK-CSFP-1G53-120 | 1.25Gb/s CWDM SFP 120km DDM Transceiver: Hot Pluggable, Duplex LC, +3.3V,1530nm, CWDM DFB, Single mode |
| LNK-CSFP-1G55-120 | 1.25Gb/s CWDM SFP 120km DDM Transceiver: Hot Pluggable, Duplex LC, +3.3V,1550nm, CWDM DFB, Single mode |
| LNK-CSFP-1G57-120 | 1.25Gb/s CWDM SFP 120km DDM Transceiver: Hot Pluggable, Duplex LC, +3.3V,1570nm, CWDM DFB, Single mode |
| LNK-CSFP-1G59-120 | 1.25Gb/s CWDM SFP 120km DDM Transceiver: Hot Pluggable, Duplex LC, +3.3V,1590nm, CWDM DFB, Single mode |
| LNK-CSFP-1G61-120 | 1.25Gb/s CWDM SFP 120km DDM Transceiver: Hot Pluggable, Duplex LC, +3.3V,1610nm, CWDM DFB, Single mode |
