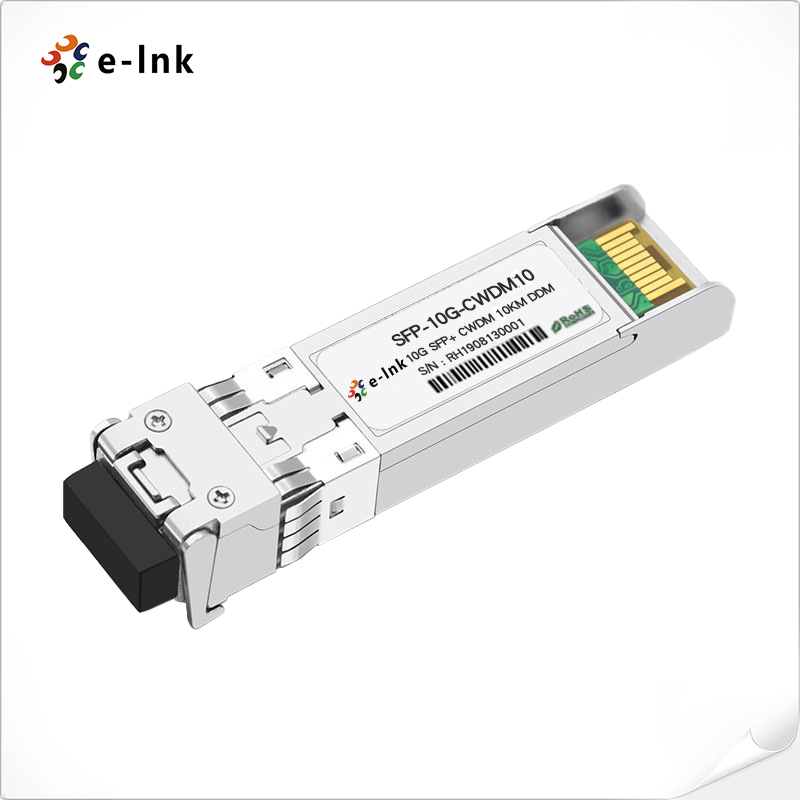

10Gb/s 10km CWDM SFP+ Transceiver
Model:LNK-CSFP-10Gxx-10 Series
► Supports 9.95 to 11.3Gb/s bit rates
► Hot-Pluggable
► Duplex LC connector
► 1270～1610nm CWDM DFB transmitter, PIN photo-detector
► SMF links up to 10km
Overview
E-LINK's LNK-CSFP-10Gxx-10 is a very compact 10Gb/s optical transceiver module for serial optical communication applications at 10Gb/s. The LNK-CSFP-10Gxx-10 converts a 10Gb/s serial electrical data stream to 10Gb/s optical output signal and a 10Gb/s optical input signal to 10Gb/s serial electrical data streams. The high speed 10Gb/s electrical interface is fully compliant with SFI specification.
The high performance 1270 ～ 1610nm CWDM DFB transmitter and high sensitivity PIN receiver provide superior performance for Ethernet applications at up to 10km links.
The SFP+ Module compliant with SFF-8431, SFF-8432 and IEEE 802.3ae 10GBASE-LR. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472.
The fully SFP compliant form factor provides hot pluggability, easy optical port upgrades and low EMI emission.
Features
► Supports 9.95 to 11.3Gb/s bit rates
► Hot-Pluggable
► Duplex LC connector
► 1270～1610nm CWDM DFB transmitter, PIN photo-detector
► SMF links up to 10km
► 2-wire interface for management specifications compliant with SFF 8472 digital diagnostic monitoring interface
► Power Supply:+3.3V
► Power consumption<1.5W
► Temperature Range: 0~ 70°C
► RoHS compliant
Application
► 10GBASE-LR/LW Ethernet
► CWDM Networks
Technical Indexes
|
Parameter |
Symbol |
Min. |
Typical |
Max. |
Unit |
Note |
|
Transmitter Section: |
||||||
|
Center Wavelength |
λc |
λ-6.5 |
|
λ+6.5 |
nm |
|
|
spectral width |
△λ |
|
|
1 |
nm |
|
|
Average Optical Power |
Pavg |
-3 |
|
+2 |
dBm |
1 |
|
Laser Off Power |
Poff |
|
|
-30 |
dBm |
|
|
Extinction Ratio |
ER |
3.5 |
|
|
dB |
|
|
Transmitter Dispersion Penalty |
TDP |
|
|
3.2 |
dB |
2 |
|
Relative Intensity Noise |
Rin |
|
|
-128 |
dB/Hz |
3 |
|
Optical Return Loss Tolerance |
|
20 |
|
|
dB |
|
|
Receiver Section: |
||||||
|
Center Wavelength |
λr |
1260 |
|
1355 |
nm |
|
|
Receiver Sensitivity |
Sen |
|
|
-14.6 |
dBm |
4 |
|
Stressed Sensitivity (OMA) |
SenST |
|
|
-12.3 |
dBm |
4 |
|
Los Assert |
LOSA |
-25 |
|
- |
dBm |
|
|
Los Dessert |
LOSD |
|
|
-15 |
dBm |
|
|
Los Hysteresis |
LOSH |
0.5 |
|
|
dB |
|
|
Overload |
Sat |
0 |
|
|
dBm |
5 |
|
Receiver Reflectance |
Rrx |
|
|
-12 |
dB |
|
- Download FileName：E-link 10G CWDM SFP+ 10km DDM Transceiver Datasheet V1.0.pdf Size： 479KB
Order Information
| Model | Description |
| LNK-CSFP-10G27-10 | 10G CWDM SFP+ 10km DDM Transceiver: Hot Pluggable, Duplex LC, +3.3V,1270nm, CWDM DFB, Single mode |
| LNK-CSFP-10G29-10 | 10G CWDM SFP+ 10km DDM Transceiver: Hot Pluggable, Duplex LC, +3.3V,1290nm, CWDM DFB, Single mode |
| LNK-CSFP-10G31-10 | 10G CWDM SFP+ 10km DDM Transceiver: Hot Pluggable, Duplex LC, +3.3V,1310nm, CWDM DFB, Single mode |
| LNK-CSFP-10G33-10 | 10G CWDM SFP+ 10km DDM Transceiver: Hot Pluggable, Duplex LC, +3.3V,1330nm, CWDM DFB, Single mode |
| LNK-CSFP-10G35-10 | 10G CWDM SFP+ 10km DDM Transceiver: Hot Pluggable, Duplex LC, +3.3V,1350nm, CWDM DFB, Single mode |
| LNK-CSFP-10G37-10 | 10G CWDM SFP+ 10km DDM Transceiver: Hot Pluggable, Duplex LC, +3.3V,1370nm, CWDM DFB, Single mode |
| LNK-CSFP-10G39-10 | 10G CWDM SFP+ 10km DDM Transceiver: Hot Pluggable, Duplex LC, +3.3V,1390nm, CWDM DFB, Single mode |
| LNK-CSFP-10G41-10 | 10G CWDM SFP+ 10km DDM Transceiver: Hot Pluggable, Duplex LC, +3.3V,1410nm, CWDM DFB, Single mode |
| LNK-CSFP-10G43-10 | 10G CWDM SFP+ 10km DDM Transceiver: Hot Pluggable, Duplex LC, +3.3V,1430nm, CWDM DFB, Single mode |
| LNK-CSFP-10G45-10 | 10G CWDM SFP+ 10km DDM Transceiver: Hot Pluggable, Duplex LC, +3.3V,1450nm, CWDM DFB, Single mode |
| LNK-CSFP-10G47-10 | 10G CWDM SFP+ 10km DDM Transceiver: Hot Pluggable, Duplex LC, +3.3V,1470nm, CWDM DFB, Single mode |
| LNK-CSFP-10G49-10 | 10G CWDM SFP+ 10km DDM Transceiver: Hot Pluggable, Duplex LC, +3.3V,1490nm, CWDM DFB, Single mode |
| LNK-CSFP-10G51-10 | 10G CWDM SFP+ 10km DDM Transceiver: Hot Pluggable, Duplex LC, +3.3V,1510nm, CWDM DFB, Single mode |
| LNK-CSFP-10G53-10 | 10G CWDM SFP+ 10km DDM Transceiver: Hot Pluggable, Duplex LC, +3.3V,1530nm, CWDM DFB, Single mode |
| LNK-CSFP-10G55-10 | 10G CWDM SFP+ 10km DDM Transceiver: Hot Pluggable, Duplex LC, +3.3V,1550nm, CWDM DFB, Single mode |
| LNK-CSFP-10G57-10 | 10G CWDM SFP+ 10km DDM Transceiver: Hot Pluggable, Duplex LC, +3.3V,1570nm, CWDM DFB, Single mode |
| LNK-CSFP-10G59-10 | 10G CWDM SFP+ 10km DDM Transceiver: Hot Pluggable, Duplex LC, +3.3V,1590nm, CWDM DFB, Single mode |
| LNK-CSFP-10G61-10 | 10G CWDM SFP+ 10km DDM Transceiver: Hot Pluggable, Duplex LC, +3.3V,1610nm, CWDM DFB, Single mode |
