► The highest resolutions supported is up to 1080P@60Hz
► Extend HDMI signal over single UTP CAT6/6a/7 cable up to 50m
► Support EDID pass-through
► Support IR transmission
► USB-C Power Input, 5~12V DC
Overview

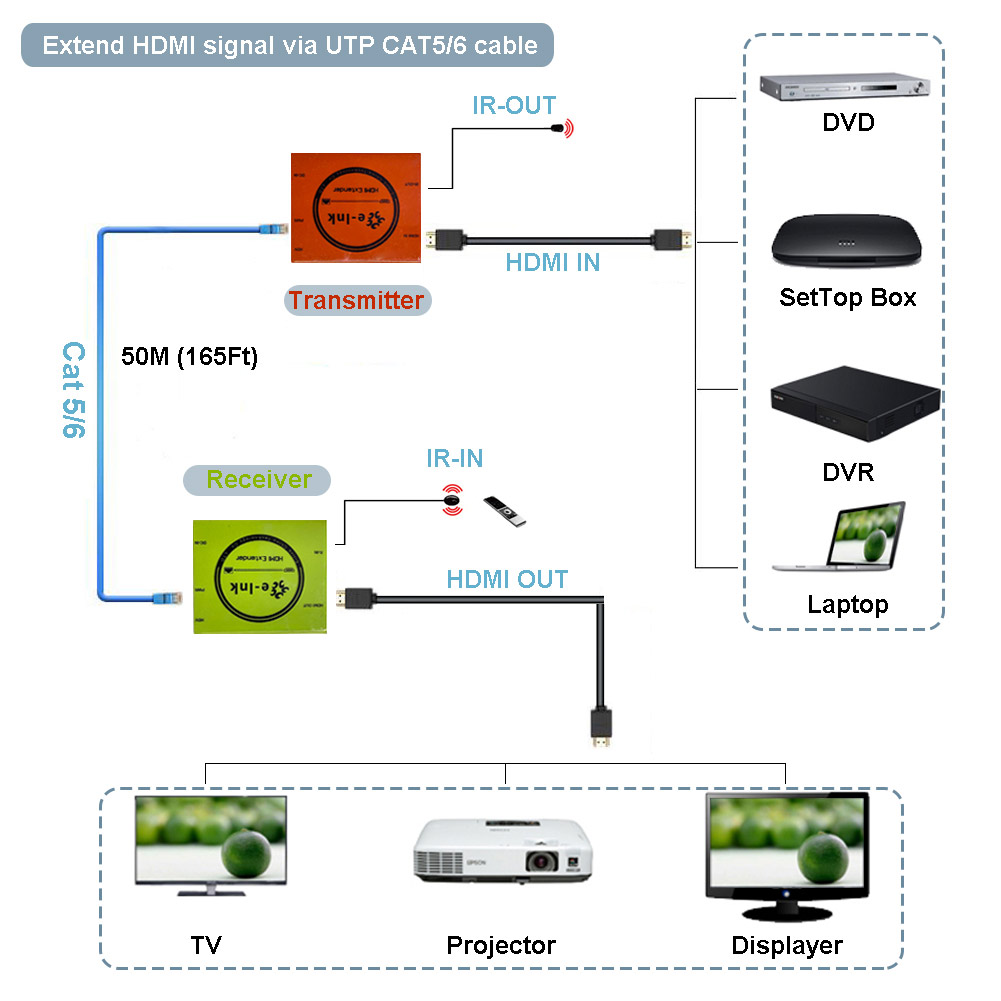

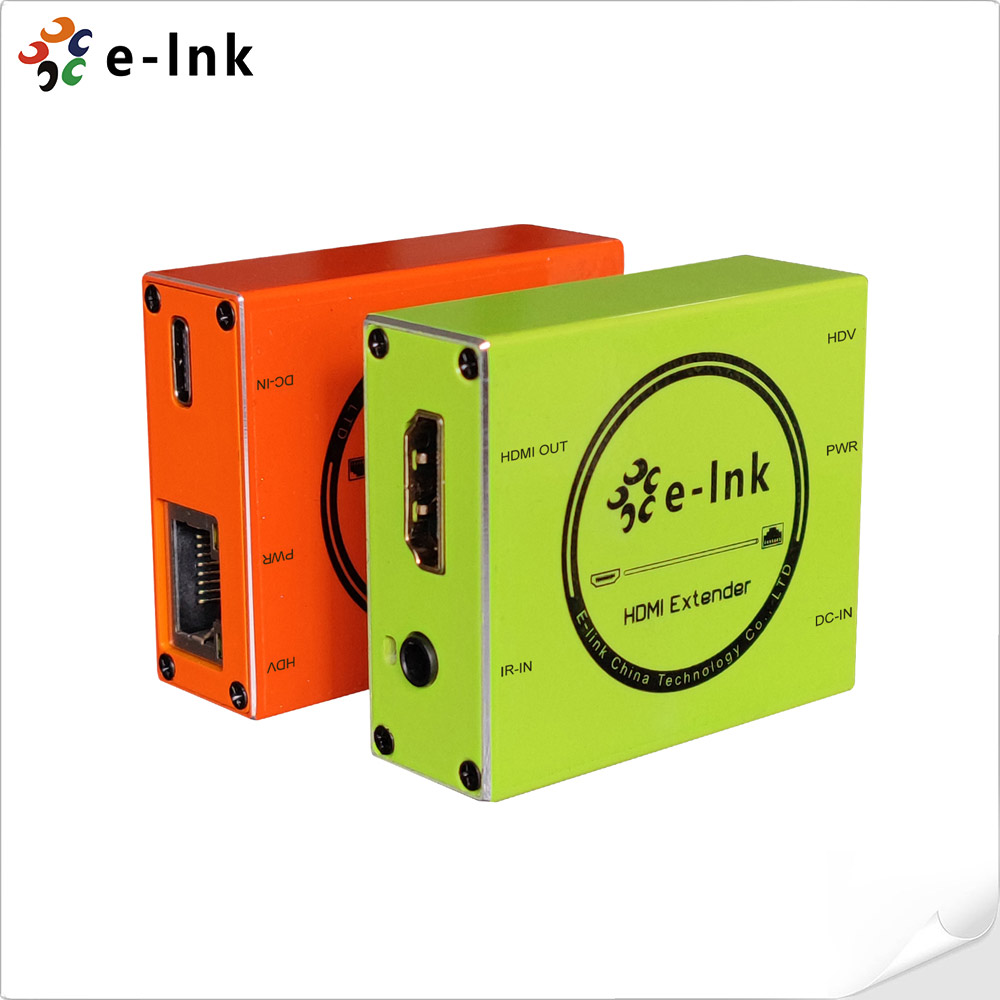

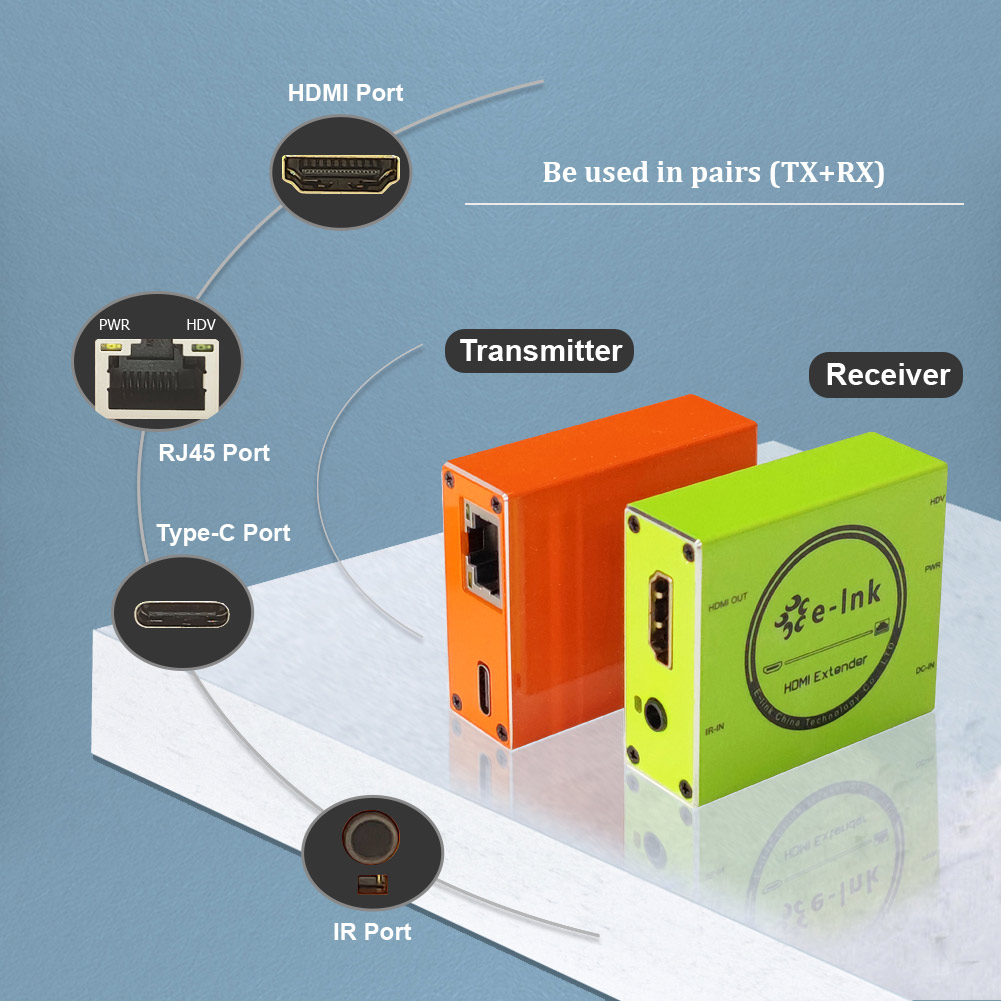

This LNK-MHDE-P50 Mini HDMI Extender includes a transmitter unit (TX) and a receiver unit(RX), working as a pair. It allows for transmission and extension full HD 1080p@60Hz HDMI signal via CAT5e/6 UTP network cable, the transmission distance is up to 50 meters; Support point to point solution. At the same time, the signal is stable, and the built-in EDID greatly improves the compatibility of the device.
This product is perfect for AV transmission in applications of HD conference system, HD video shooting, HD multimedia education system, HD digital advertising and signage etc.
The device has a long transmission distance, low use cost, convenient installation and good compatibility, and it is a stable and efficient transmission method.
Feature
► Aluminum shell, ultra compact size and Slim design, more beautiful than other designs, strong anti-interference
► Uncompressed and zero latency
► Auto adjustment to match the cable length
► The highest resolutions supported is up to 1080P@60Hz
► Extend HDMI signal over single UTP CAT6/6a/7 cable up to 50m
► Support EDID pass-through
► Support IR transmission
► USB-C Power Input, 5~12V DC
Application
Technical Indexes
Parameter |
Description |
|
Video |
Standards |
HDMI 1.4; HDCP 1.3 |
Maximum pixel clock |
165MHz |
|
Maximum data rate |
6.75Gbps |
|
Resolution |
Max: 1920X1080@60Hz |
|
Connector |
HDMI-A |
|
Impedance |
100Ω |
|
IR |
Interface |
3.5mm earphone seat |
Signal direction |
Unidirectional |
|
Signal type |
Digital |
|
IR frequency |
38kHz |
|
Ethernet |
Interface |
RJ45(568B) |
Transmission distance |
720P, UTP CAT6---80m |
|
Transmission distance |
1080P, UTP CAT6---50m |
|
Other |
Power supply |
DC 5~12V |
Power dissipation |
MAX 3W |
|
Temperature |
Operating: -5℃~ +50℃ |
|
Humidity |
Operating: 5% ~ 90% |
|

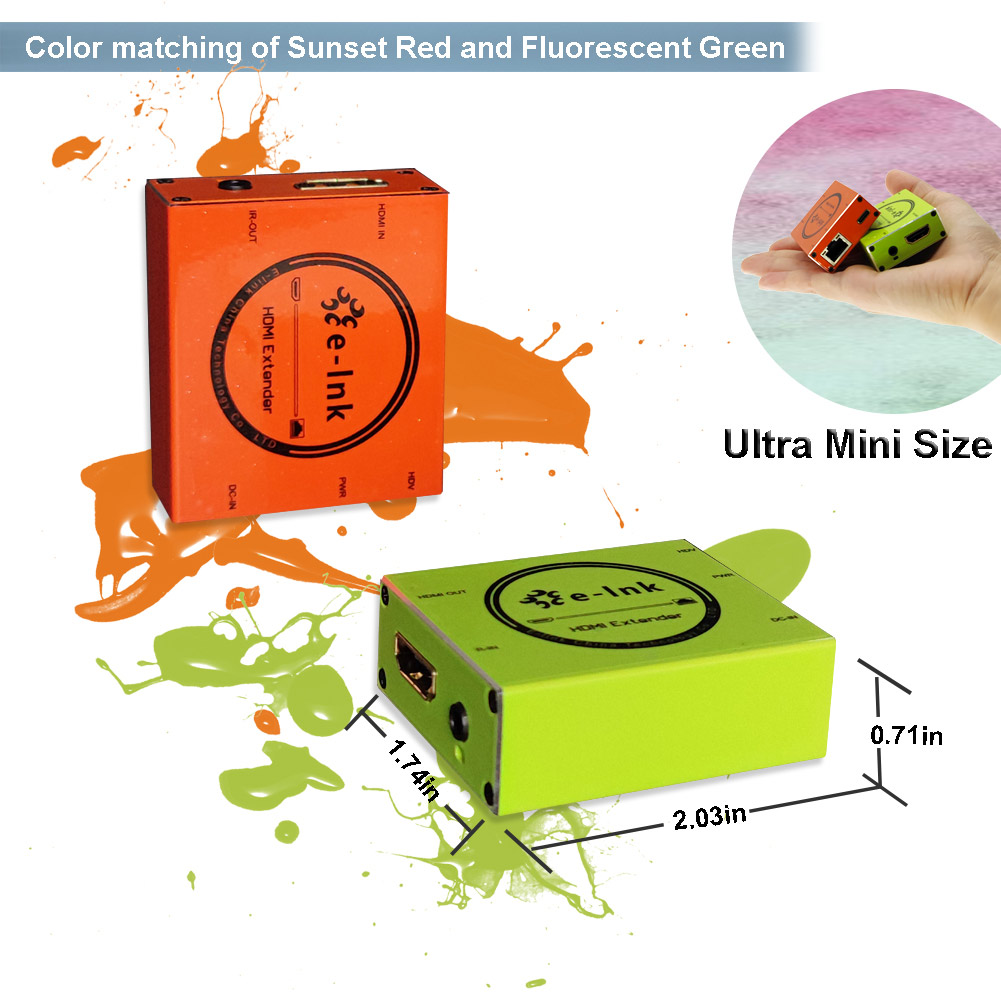

Dimension |
51x45x18mm |
|
Housing Material |
Aluminum |
|
The warranty |
1 year warranty |
Order Information
Model |
Description of product |
LNK-MHDE-P50 |

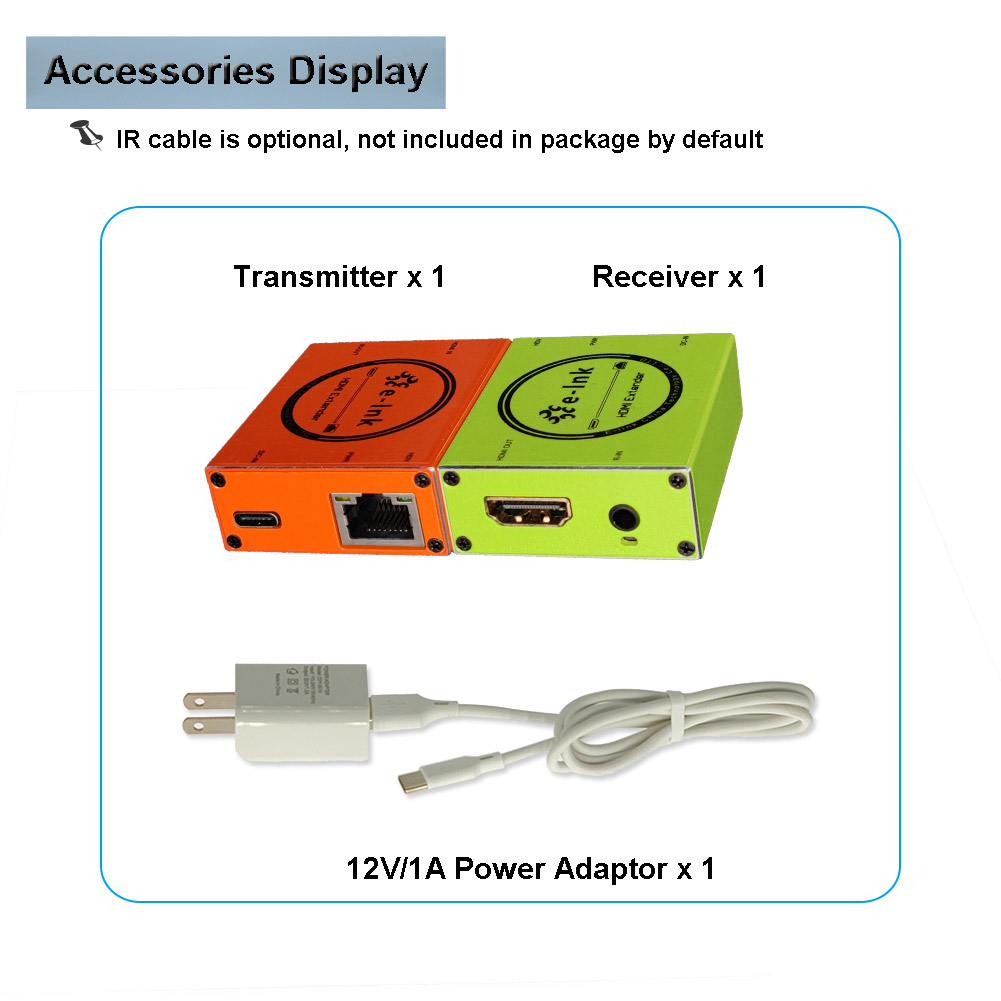

HDMI Over CAT5/CAT6 Extender with IR - 165 ft (50m), including 1 Transmitter & 1 Receiver, used by pairs |
