Overview

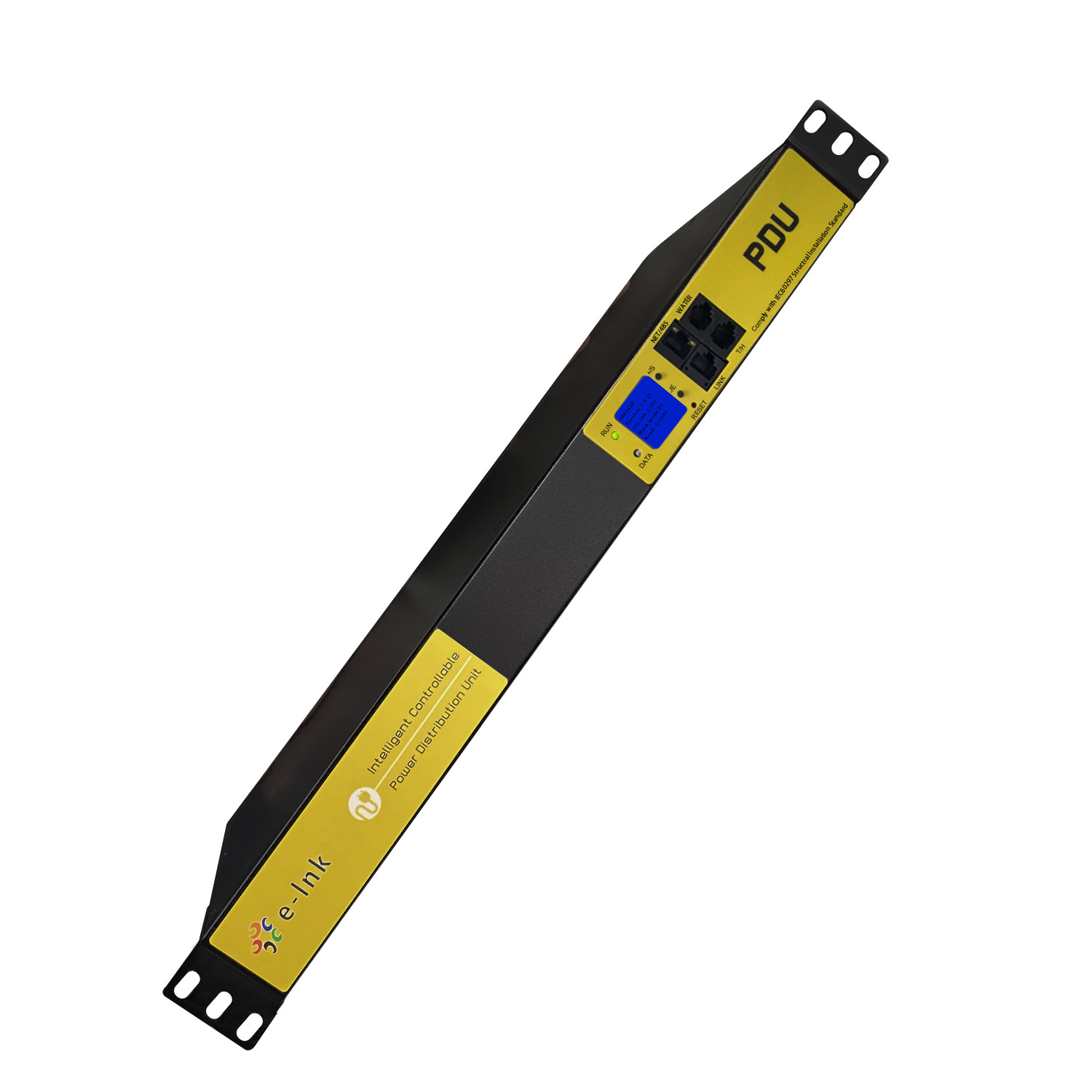

This PDU is a rack-mounted smart precision power distribution unit that tracks data center conditions in real-time, and also allows for automatic power cycling or disabling of outlets to reduce current draw when connected equipment stops responding. It is an ideal solution for critical network equipment requiring power control and power redundancy.

Features

►    Accurate measurement of branch voltage and amperage etc

►    Equipped with relay protection circuit to realize branch circuit on-off

►    Realize socket units control function by setting relay delay time

►    Support to log in to web page through IE, Google, 360 etc. browsers

►    The master and slave (cascade) states can be set on the web page

►    Reset button for restoring network parameters etc

►    Provide SNMP (V1/V2c), telnet, serial console development interfaces

►    1.3inch OLED display with clearvoltage, amperage and wattage etc.

►    Undervoltage, overvoltage, overcurrent, overload etc alarm functions

►    Support local manual parameter setting and remote parameter setting

►    Excellent chassis structure design, compliant with IEC60297 standard

Bullet Points

►   High Accuracy Measurement

The industrial grade switched PDU adopts high-precision sampling circuit which can accurately measure voltage and amperage etc.,the fault tolerance is less than 0.5% and 1% respectively.

►   Equipped with Multi-function Ports

The 1U PDU provides 2 RJ45 and 2 RJ11 ports. RJ45 ports for cascade and Ethernet/RS485 communication; RJ11 ports for temperature/humidity collection and water immersion status.

►   Real-time Data Monitoring

The power distribution unit with 1.3inch OLED screen and matched buttons can display real time voltage, amperage, power, power energy, power factor to achieve intelligent monitoring of data.

►   Support Web Management

On the web page, you can view the content of OLED screen; the on/off status, temperature/humidity sensor data of individual unit; input power; socket status etc. and can set related parameters.

►   Custom Alarm

Amperage/Voltage/Temperature/Humidity over-limit threshold can be customized. Buzzer sounds, LCD backlight is always on, Automatic jump to alarm interface, Send E-mail to system administrator, SNMP sends Trap alarm status, Send SMS to users etc. alarm methods.

Specification

►    Craft: Cable & Cooper strip welding

►    Working Voltage: 110~250V AC

►    Rated Voltage/Amperage: 250V/16A

►    Rated Power: 4000W

►    Input Frequency: 50~60Hz

►    Output Type: NEMA 5-20R 8 outlets

►    Display Method: 1.3inch OLED screen

►    Communication Interface: RJ45 / RJ11

►    EMI/RFI Resistance: 8KV

►    Surge Resistance: 4KV

►    Power-on Sequence: Support from 1 to 8 branch output timing power-on

►    Material: High quality cold rolled steel plate

►    Item Size: 482*180*44mm

►    Operating Temperature: -25℃~60℃

►    Storage Temperature: -40℃~70℃

• Download FileName：Power Distribution Control Unit user manual.pdf Size： 2.75MB

Switched PDU x 1

Cassette Nut x 4

Crown Screws x 4
