► 3-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function
► 1-port 1000Base-X SC Fiber
► 12~48VDC Terminal Block Power Input
Overview

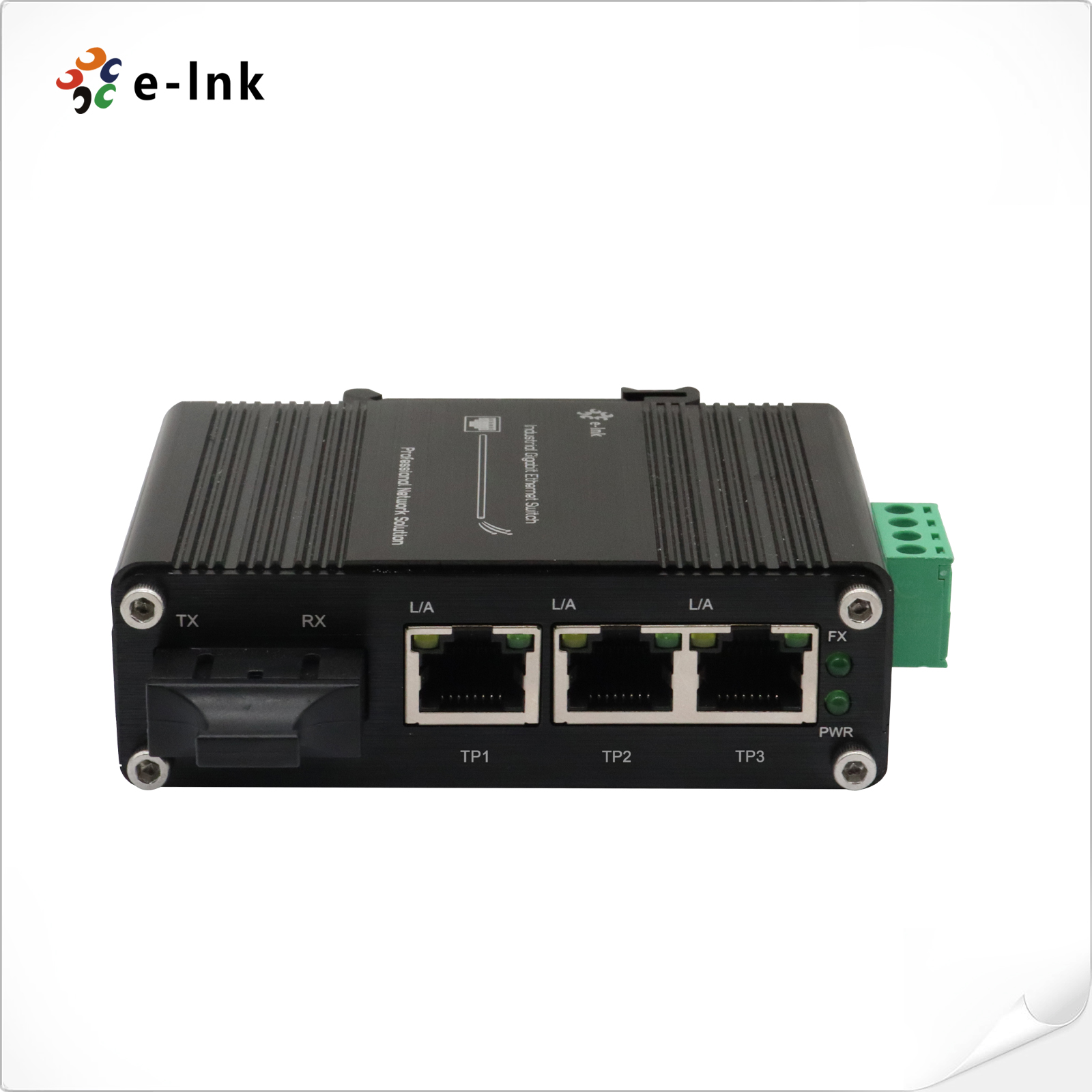

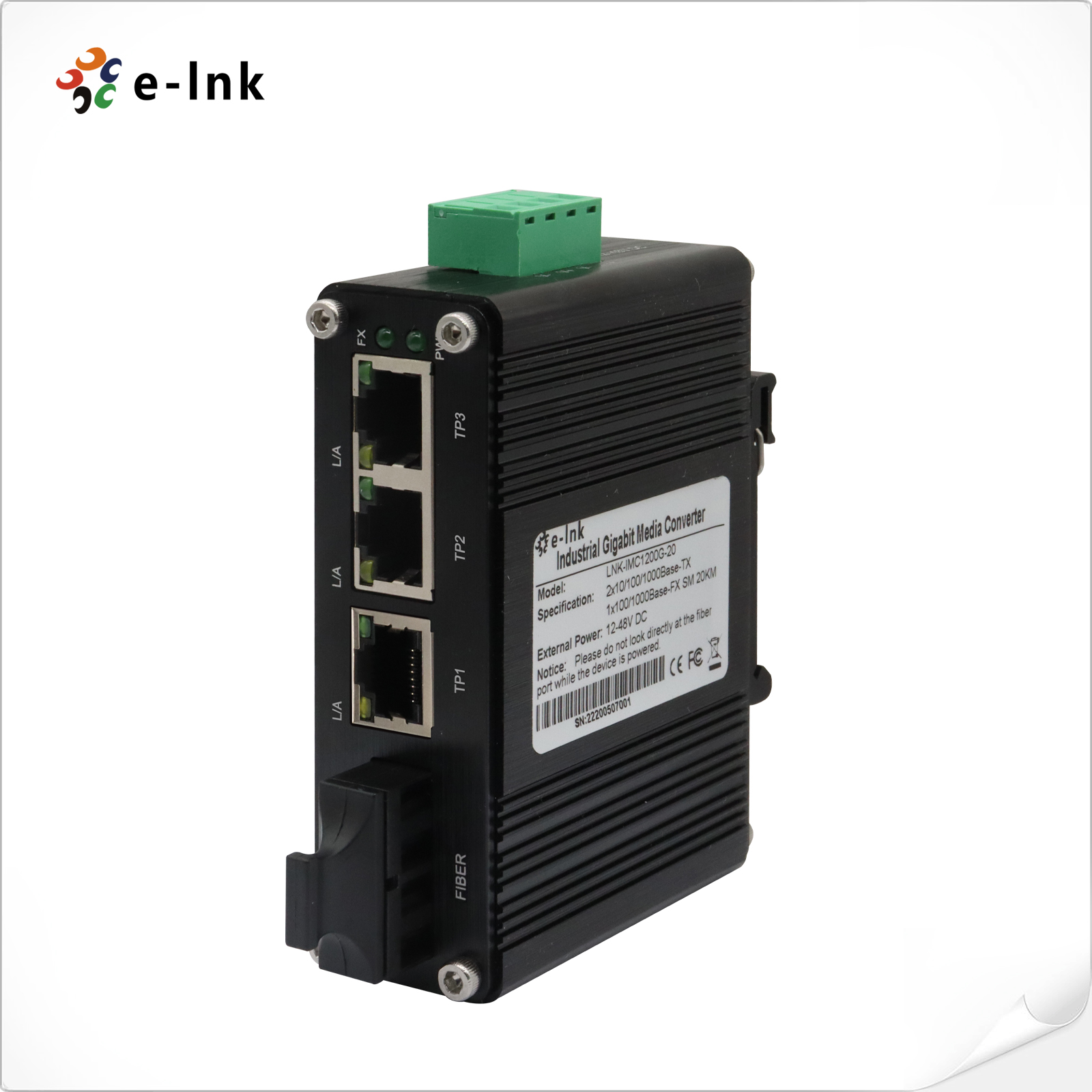

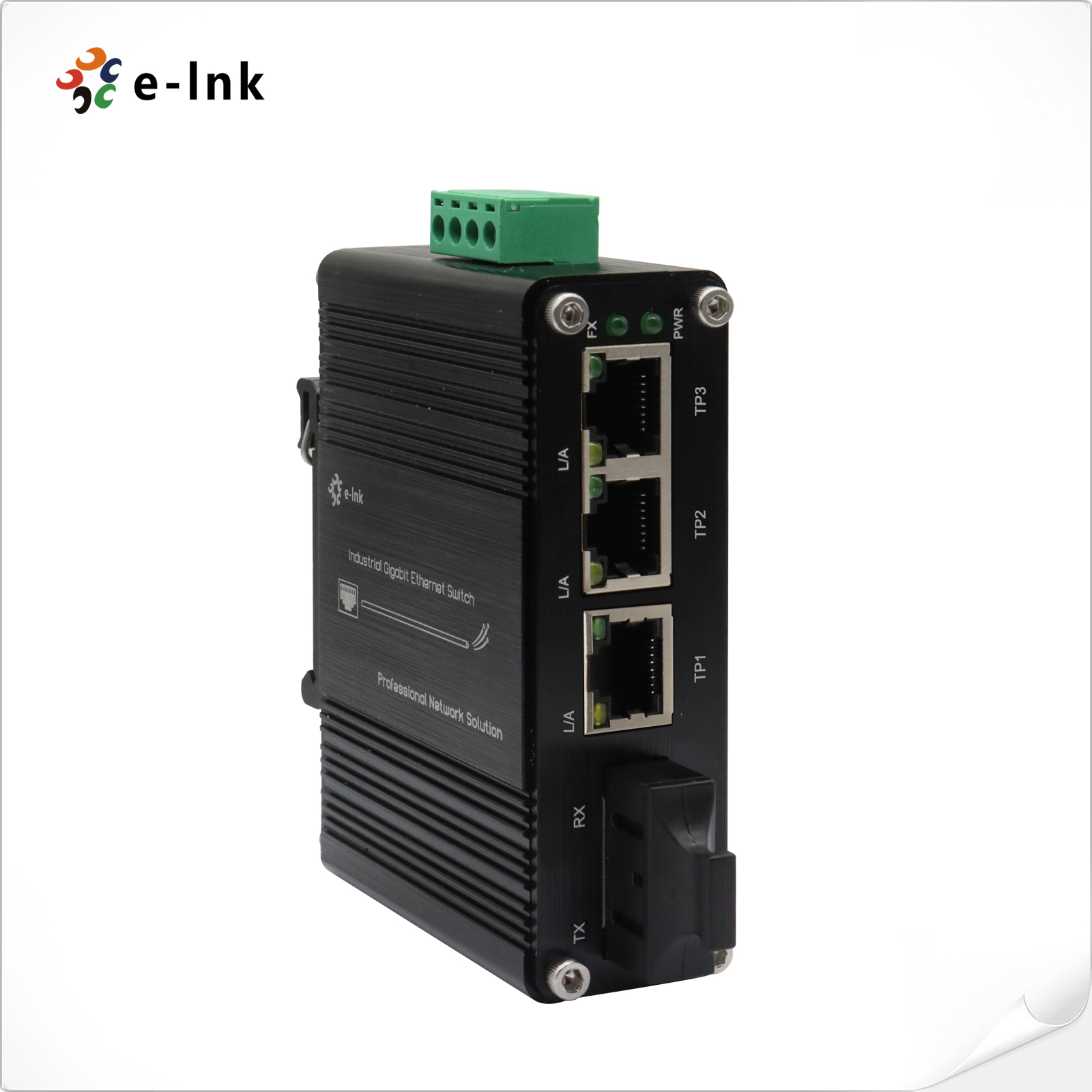

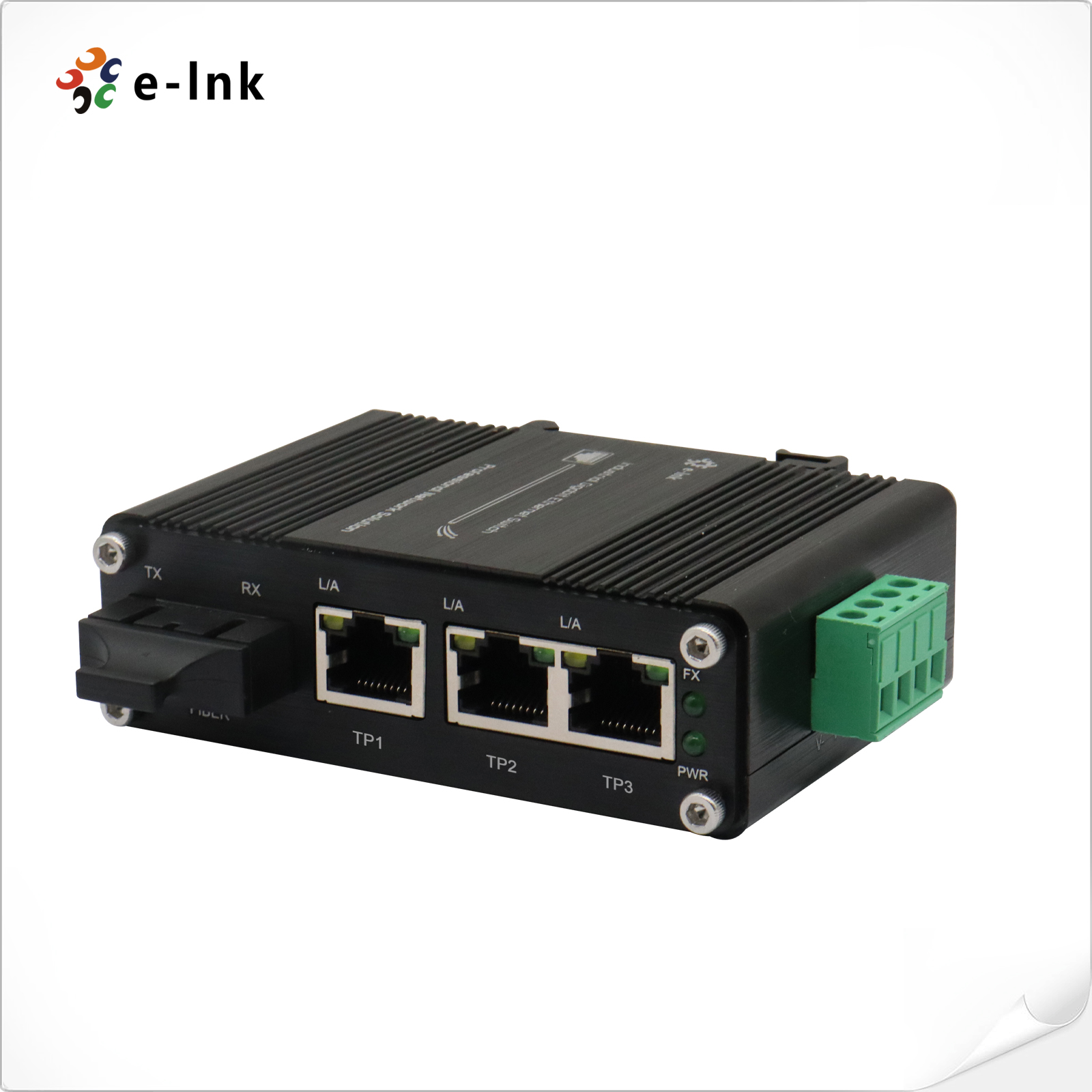

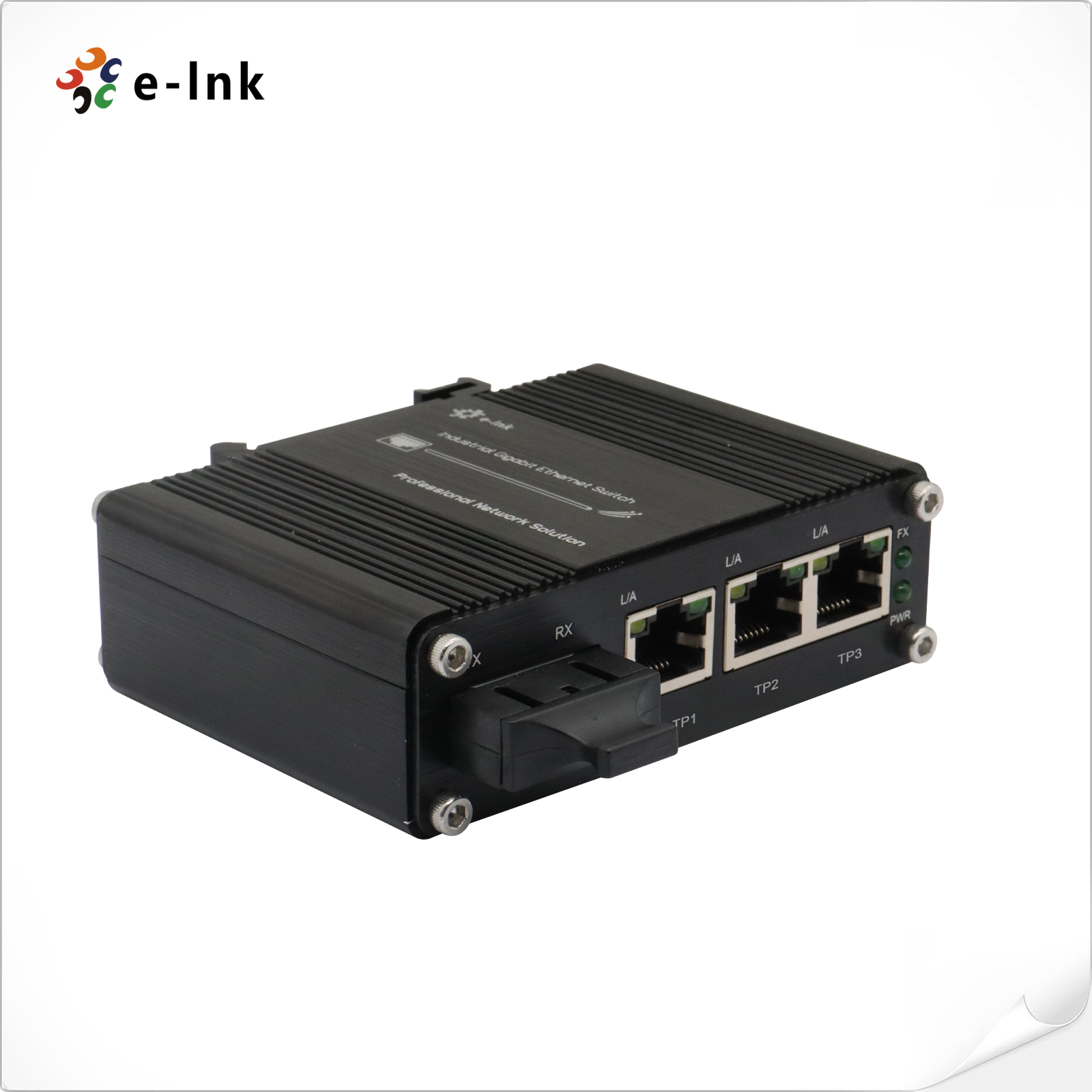

LNK-IMC103G Series is an industrial-grade Gigabit Ethernet Switch, featuring three 10/100/1000BASE-T copper ports and one 1000BASE-X SC fiber port and packed in an IP40-rated rugged but compact-size case. It is a hardened grade product whose operating temperature range is -40°C to +75°C. The Ethernet port supports both half-duplex and full-duplex mode. 1000Base-X supports 1 or 2 core Single-mode or Multi-mode fiber. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.
Features
► 3-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function
► 1-port 1000Base-X SC Fiber
► Supports Full/Half-duplex, Auto-negotiation
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► 12~48VDC Terminal Block Power Input
► IP40 Aluminum Case

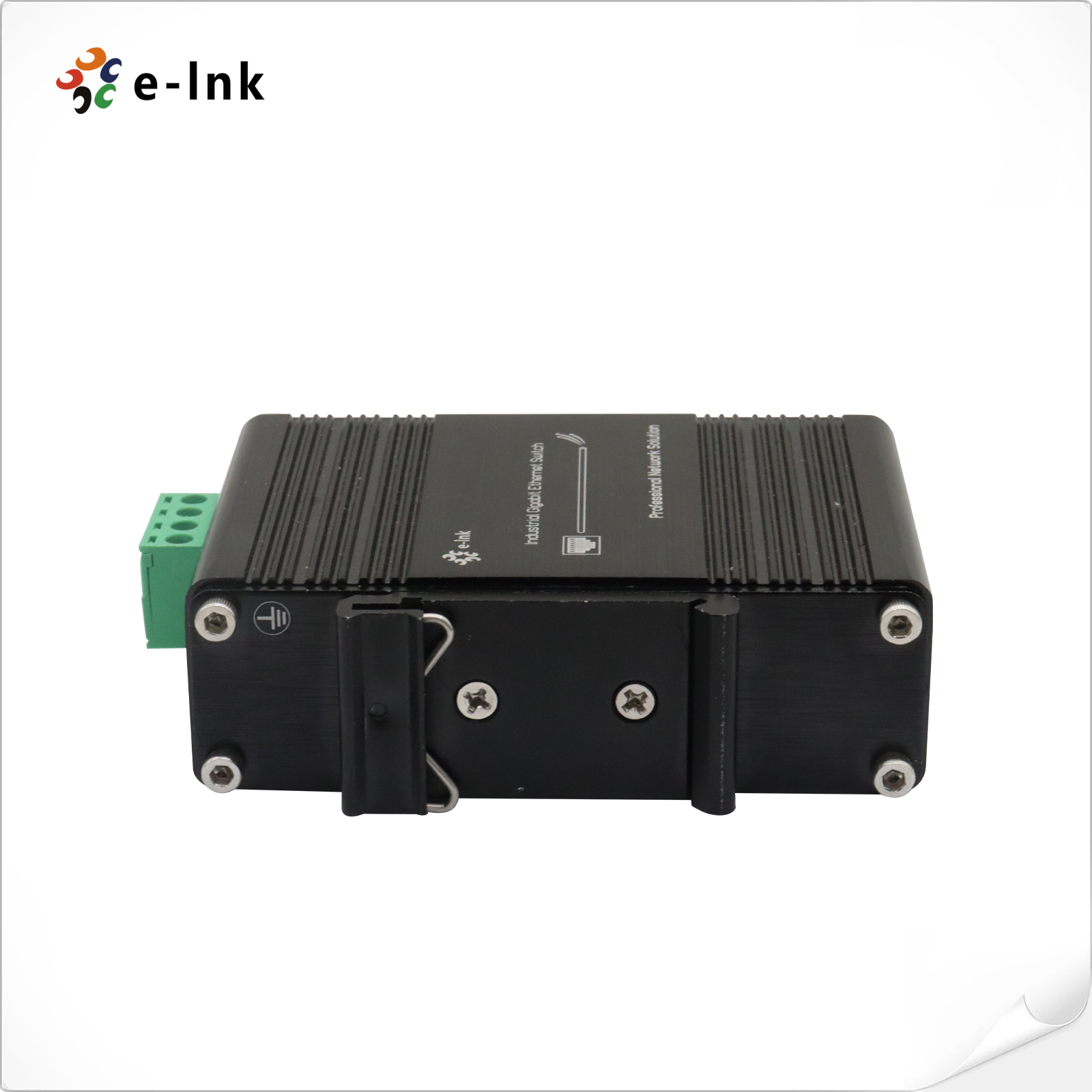

► Supports DIN-Rail & Wall-mount installation
► Environmentally hardened -40°C to 75°C
(-40°F to 167°F) operating temperature

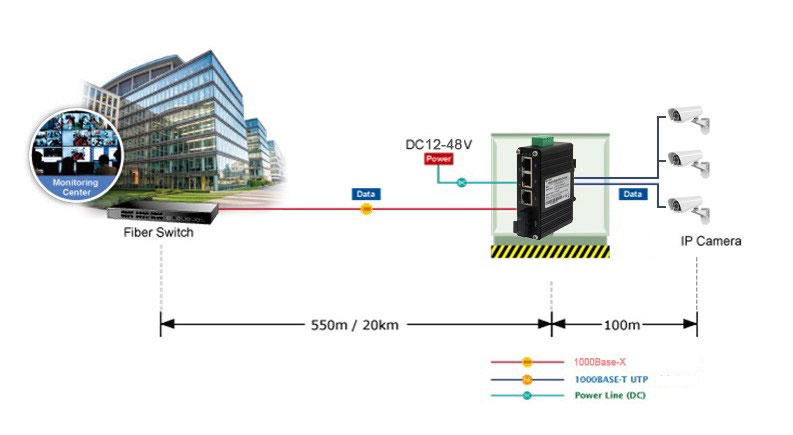

Application
Technical Indexes
Standards: |
IEEE802.3 10Base-T |
IEEE802.3u 100Base-TX/FX |
|
IEEE802.3ab 1000Base-T |
|
IEEE802.3z 1000Base-X |
|
IEEE 802.3x Full-Duplex Flow Control |
|
IEEE 802.3az Energy Efficient Ethernet (EEE) |
|
Processing Type: |
Store-and-Forward |
Forward Filter Rate: |
14,880pps (10Mbps) |
148,800pps (100Mbps) |
|
1,488,000pps (1000Mbps) |
|
Packet Buffer Memory: |
4 Mbit |
Switch Fabric: |
12Gbps |
Max Packet Length: |
9K Bytes |
Address Table Size |
2K MAC Addresses |
Interface |
|
Connector: |
3 x RJ45 |
Optical Port: |
1 x SC 1000Base-X |
Electrical and Mechanical |
|
Input Power: |
12~48VDC, 2-pin terminal block |
Power Consumption: |
5W Max. |
LED Indicators: |
|
PWR: |
Power Status |
L/A: |
Ethernet LINK Status |
FX: |
Fiber LINK Status |
Dimensions (WxDxH): |
95 x 70 x 30 mm |
Weight: |
0.25Kg |
Casing: |
|
Mounting Options: |
DIN-Rail / Wall-mount |
Environmental |
|
Operating Temperature: |
-40°C to 75°C (-40°F to 167°F) |
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
Relative Humidity: |
5% to 95% non-condensing |
MTBF |
> 200,000 hrs |
Regulatory Approvals |
|
ISO9001, CE, FCC, RoHS |
|
EMI: EN55022:2010+AC: 2011, Class A EN 61000-3-2: 2006+A1: 2009+A2: 2009 EN 61000-3-3: 2013 EN55024: 2010 |
|
EMS: IEC 61000-4-2: 2008 (ESD) IEC 61000-4-3: 2010 (RS) IEC 61000-4-4: 2012 (EFT) IEC 61000-4-5: 2014 (Surge) IEC 61000-4-6: 2013 (CS) IEC 61000-4-8: 2009 (PFMF) |
Order Information
Model |
Description |
LNK-IMC103G |
Mini Industrial 3-Port 10/100/1000T + 1-Port 1000X SC Gigabit Ethernet Switch, SC Fiber Port, Multimode, Dual Fiber, 850nm, 550m |
LNK-IMC103G-20 |
Mini Industrial 3-Port 10/100/1000T + 1-Port 1000X SC Gigabit Ethernet Switch, SC Fiber Port, Single Mode, Dual Fiber, 1310nm, 20km |
LNK-IMC103GS-20A |
Mini Industrial 3-Port 10/100/1000T + 1-Port 1000X SC Gigabit Ethernet Switch, SC Fiber Port, Single Mode, Single Fiber, 1310nm TX/1550nm RX, 20km |
LNK-IMC103GS-20B |
Mini Industrial 3-Port 10/100/1000T + 1-Port 1000X SC Gigabit Ethernet Switch, SC Fiber Port, Single Mode, Single Fiber, 1550nm TX/1310nm RX, 20km |
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
Power Options |
► 24W/1A 24VDC Power Supply. Open Wire for Terminal Block |
► Power Supply is to be purchased separately. |
