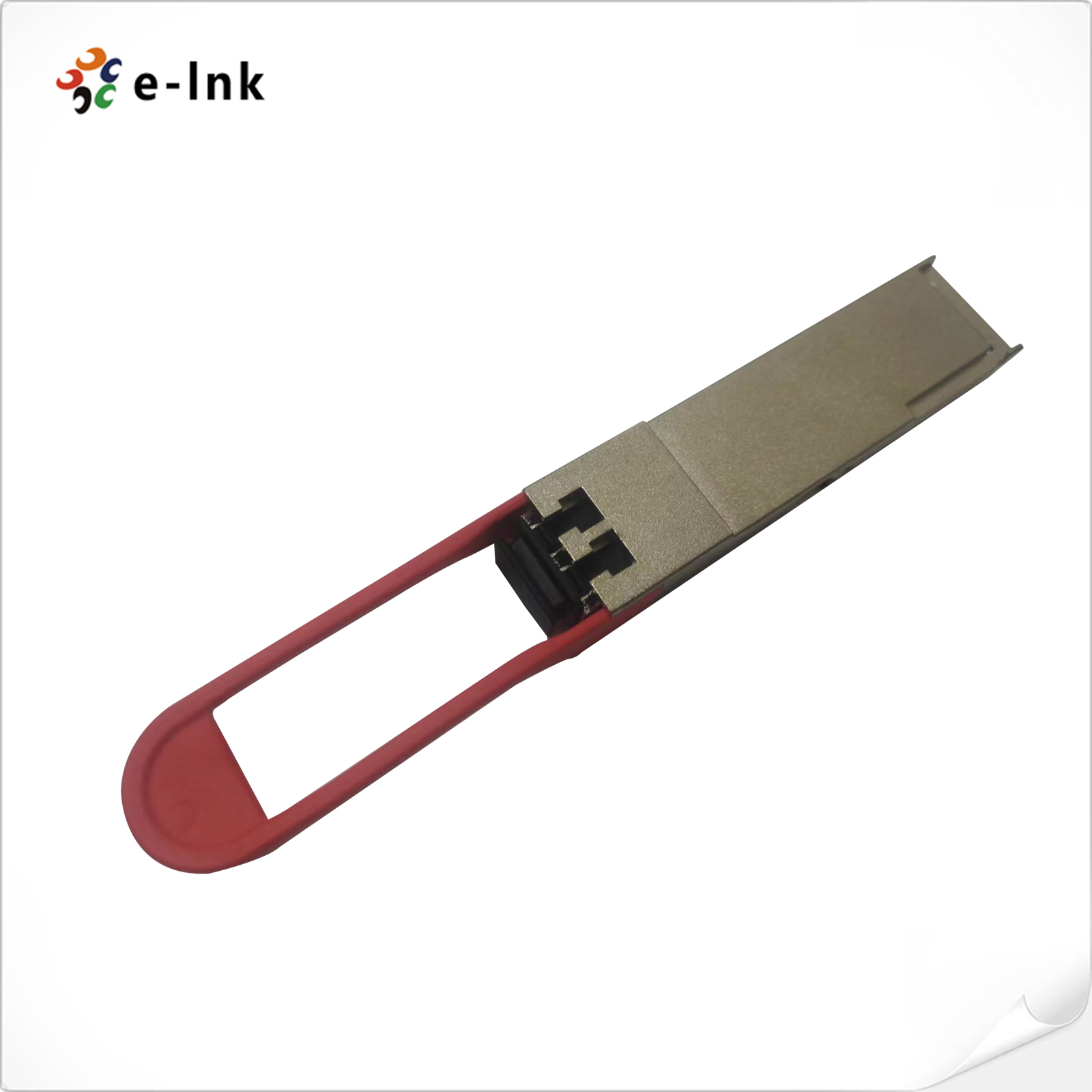

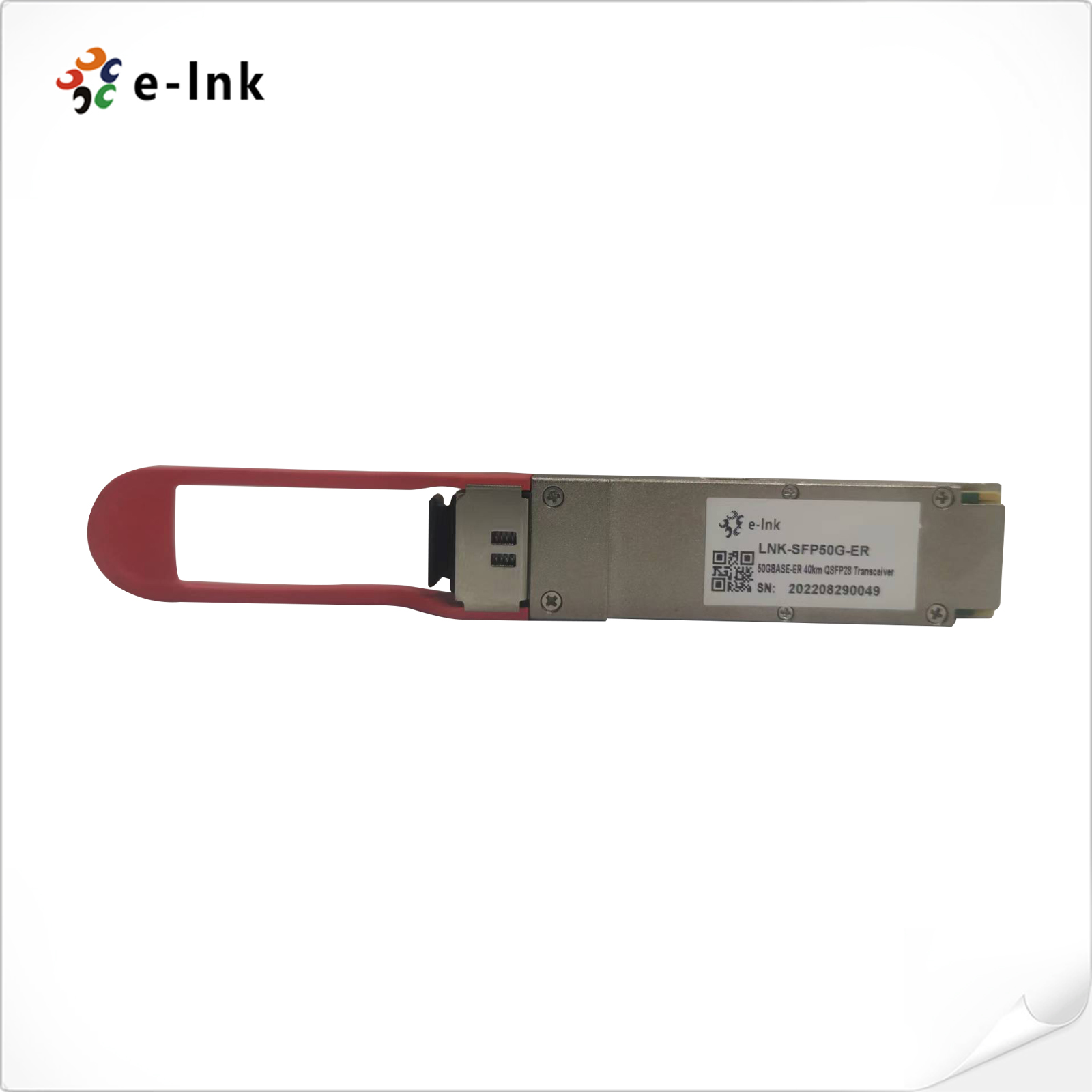

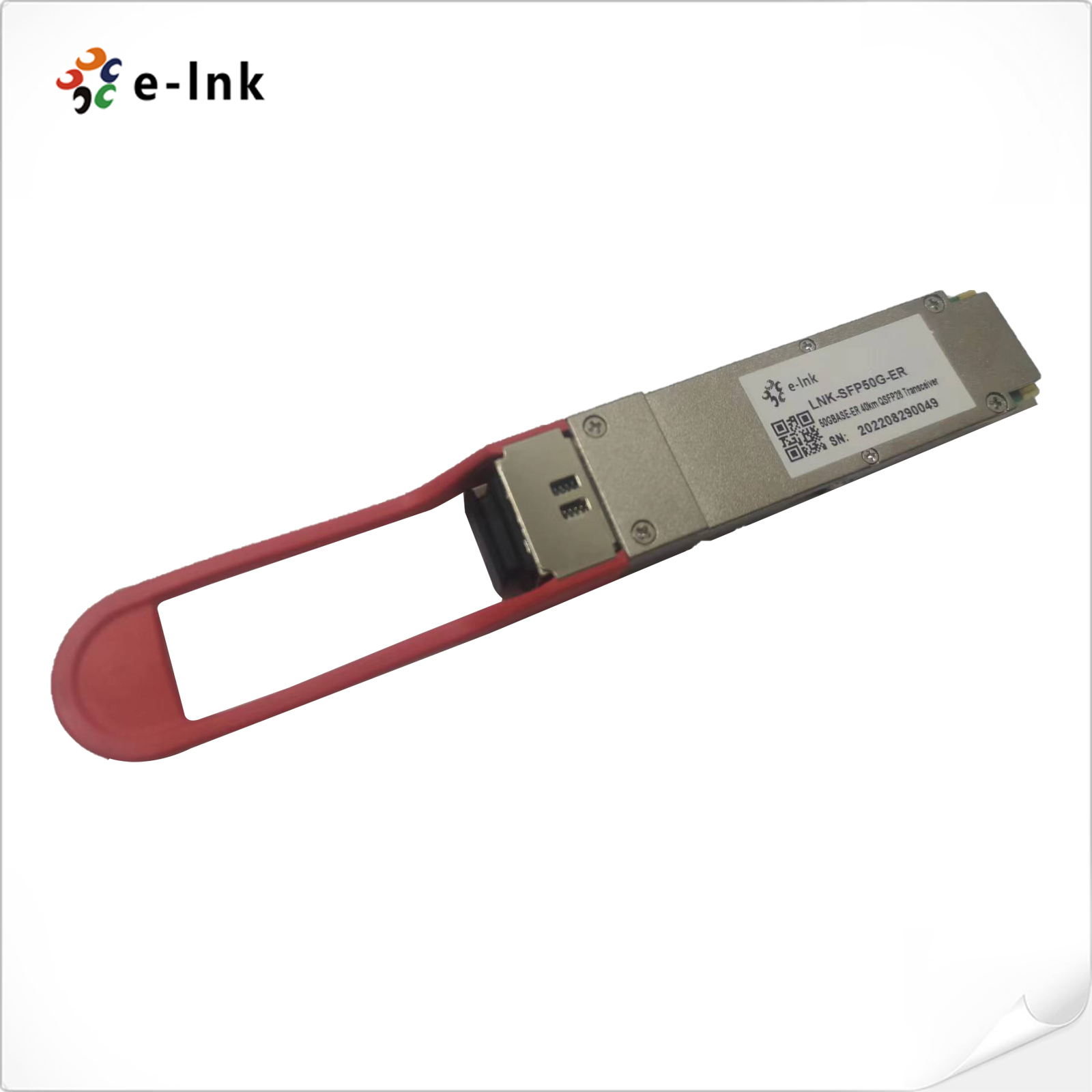

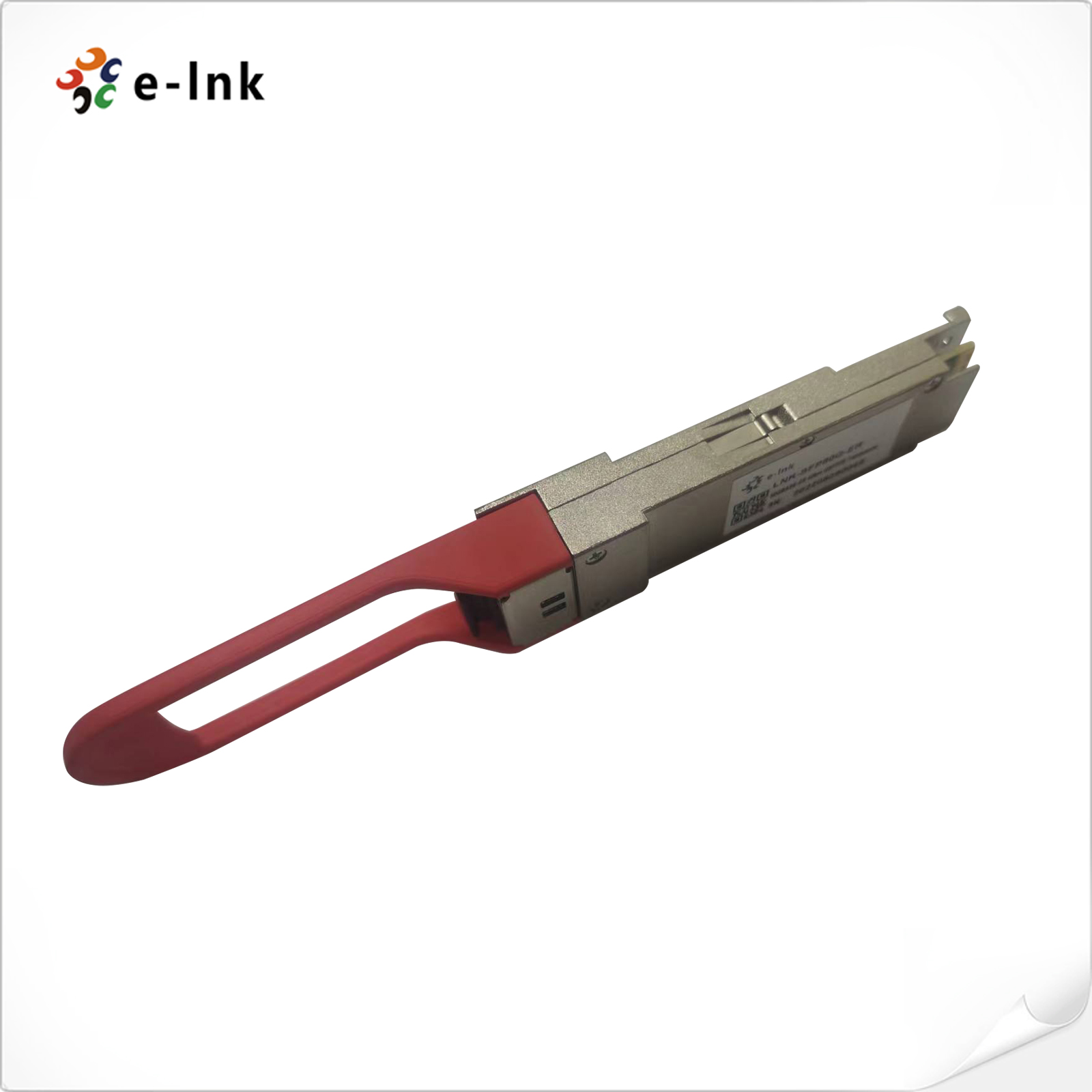

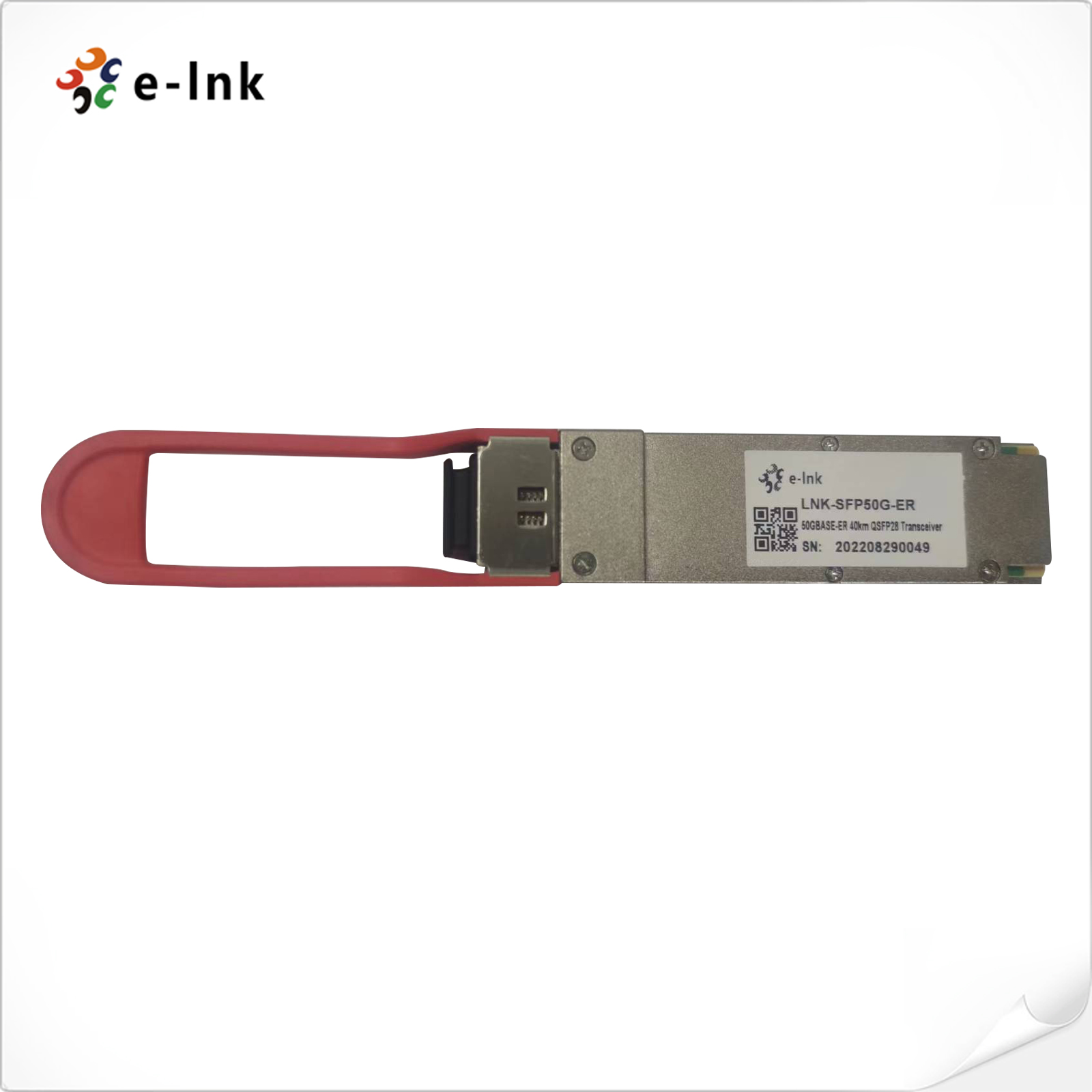

50G ER QSFP28 40KM Transceiver
Model:LNK-SFP50G-ER
Ø Compliant with QSFP28 Standard:
SFF-8665 Revision 1.9, SFF-8636 Revision 2.10a
Ø Compliant with IEEE 802.3cn_D2p0 50GBASE-ER
Ø Compliant with IEEE802.3 50GAUI-2 C2M electrical interface
50G ER QSFP28 40KM
Transceiver
Features
Ø Compliant
with QSFP28 Standard:
SFF-8665 Revision 1.9, SFF-8636 Revision 2.10a
Ø Compliant with IEEE 802.3cn_D2p0 50GBASE-ER
Ø Compliant with IEEE802.3 50GAUI-2 C2M electrical interface
Ø Single 3.3V Supply Voltage
Ø Maximum power consumption 4.5W
Ø 0-70 ºC Case Operating Temperature
Ø EML laser and APD Receiver
Ø QSFP28 MSA package with duplex LC connector
Ø Two Wire Serial Interface with Digital Diagnostic Monitoring
Ø Complies with EU Directive 2011/65/EU (RoHS compliant)
Ø Class 1 Laser
Application
► Fiber Channel Switch Infrastructure
► Router/Server interface
► Other optical transmission systems
Optical and Electrical Characteristics
Transmitter Optical Specifications
|
Parameter |
Symbol |
Min. |
Typical |
Max. |
Unit |
Notes |
|
Wavelength |
λ |
1304.5 |
1311 |
1317.5 |
nm |
|
|
Side-mode suppression ratio |
SMSR |
30 |
|
|
dB |
|
|
Average launch power |
POUT |
0.4 |
- |
6.63 |
dBm |
|
|
Average launch power of OFF transmitter |
POUT_OFF |
- |
- |
-15 |
dBm |
|
|
Outer Optical Modulation Amplitude (OMAouter) |
POUTL |
3.4 |
- |
7.4 |
dBm |
|
|
Extinction ratio |
ER |
6 |
- |
- |
dB |
|
|
Launch power in OMAouter minus TDECQ |
OMA-TDECQ |
2 |
- |
- |
dBm |
|
|
Transmitter and dispersion eye closure for PAM4 (TDECQ) |
TDECQ |
- |
- |
3.2 |
dB |
Note |
|
Transmitter reflectance |
|
- |
- |
-26 |
dB |
|
Note: Measured with a PRBS215-1 test pattern @53.125Gbps, 40km fiber.
Receiver Optical Specifications
|
Parameter |
Symbol |
Min. |
Typical |
Max. |
Unit |
Notes |
|
Wavelength |
λ |
1304.5 |
1311 |
1317.5 |
nm |
|
|
Receiver sensitivity (OMAouter) |
|
|
|
max(−15.1, SECQ − 16.5) |
dBm |
Note |
|
Damage Threshold |
P_damage |
-2.37 |
- |
- |
dBm |
|
|
Overload |
|
-3.37 |
- |
- |
dBm |
|
|
Average Receive Power |
- |
-17.6 |
- |
-3.37 |
dBm |
|
|
Receive power (OMAouter) |
OMA |
- |
- |
-2.6 |
dBm |
|
|
Receiver Reflectance |
RXR |
- |
- |
-26 |
dB |
|
|
LOS assert |
LOSA |
-30 |
|
|
dBm |
|
|
LOS de-assert |
LOSD |
|
|
-20 |
dBm |
|
|
LOS hysteresis |
LOSH |
0.5 |
|
|
dB |
|
Note: Measured with a PRBS231-1 test pattern @53.125Gbps, BER≦2.4E-4. IEEE 802.3cd clause 139 equation 139-2.
- Download FileName：E-link 50G ER 40km QSFP28 Transceiver Datasheet V1.0.pdf Size： 388KB
Order Information
|
Part No. |
Application |
Data Rate |
Laser Source |
Fiber Type |
|
LNK-SFP50G-ER |
50GBASE-ER |
53.125 Gb/s |
EML Laser |
SMF |
