100GBASE-DR1

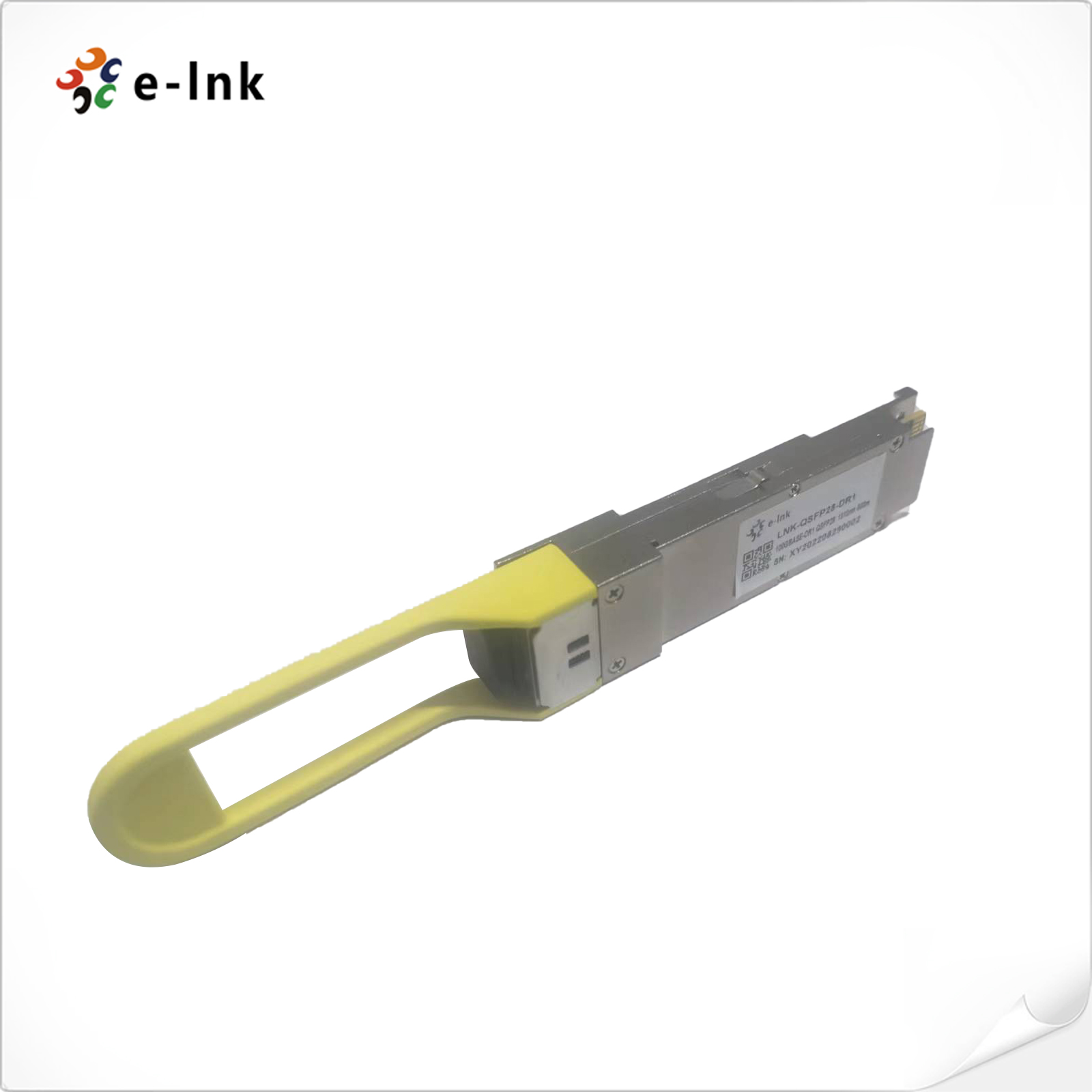

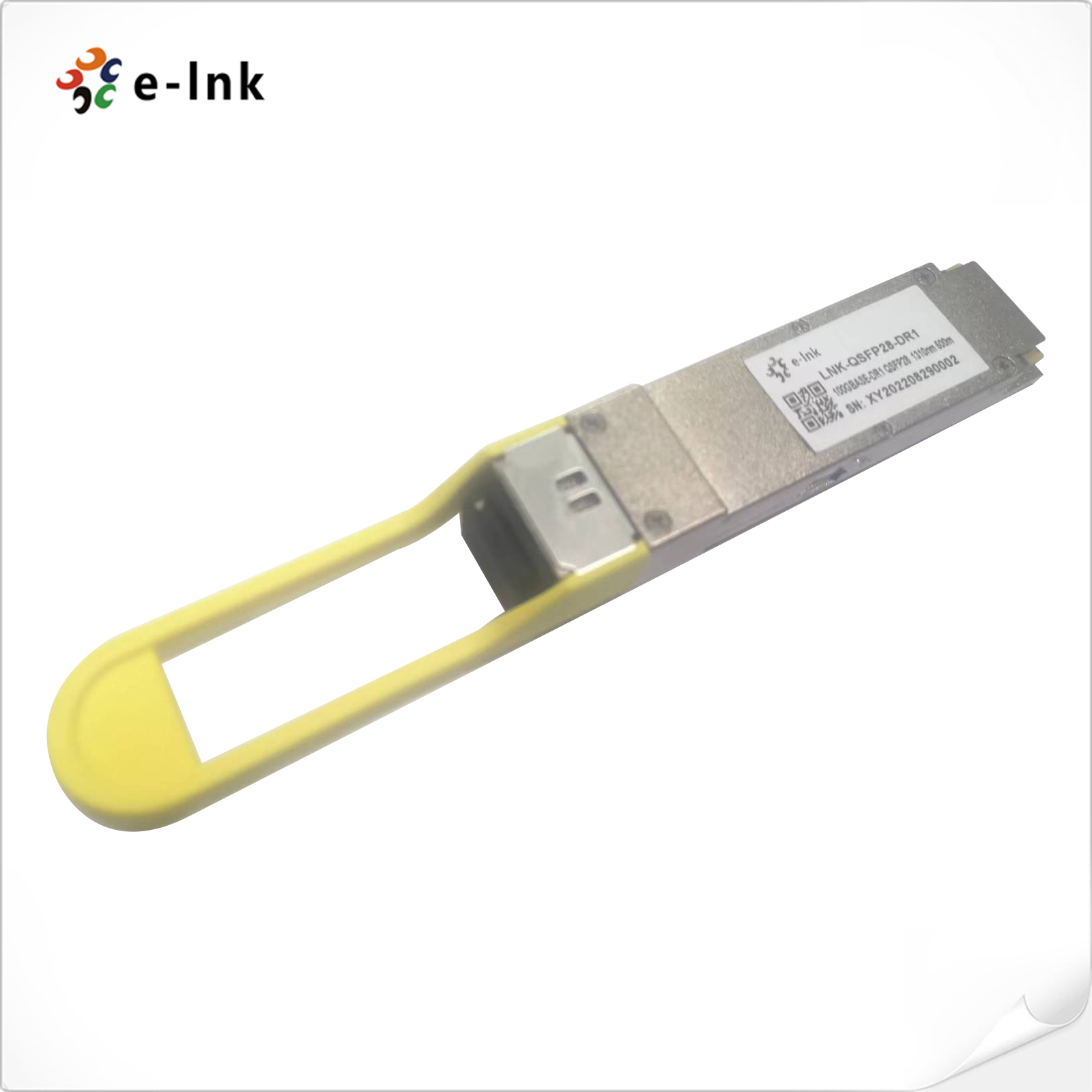

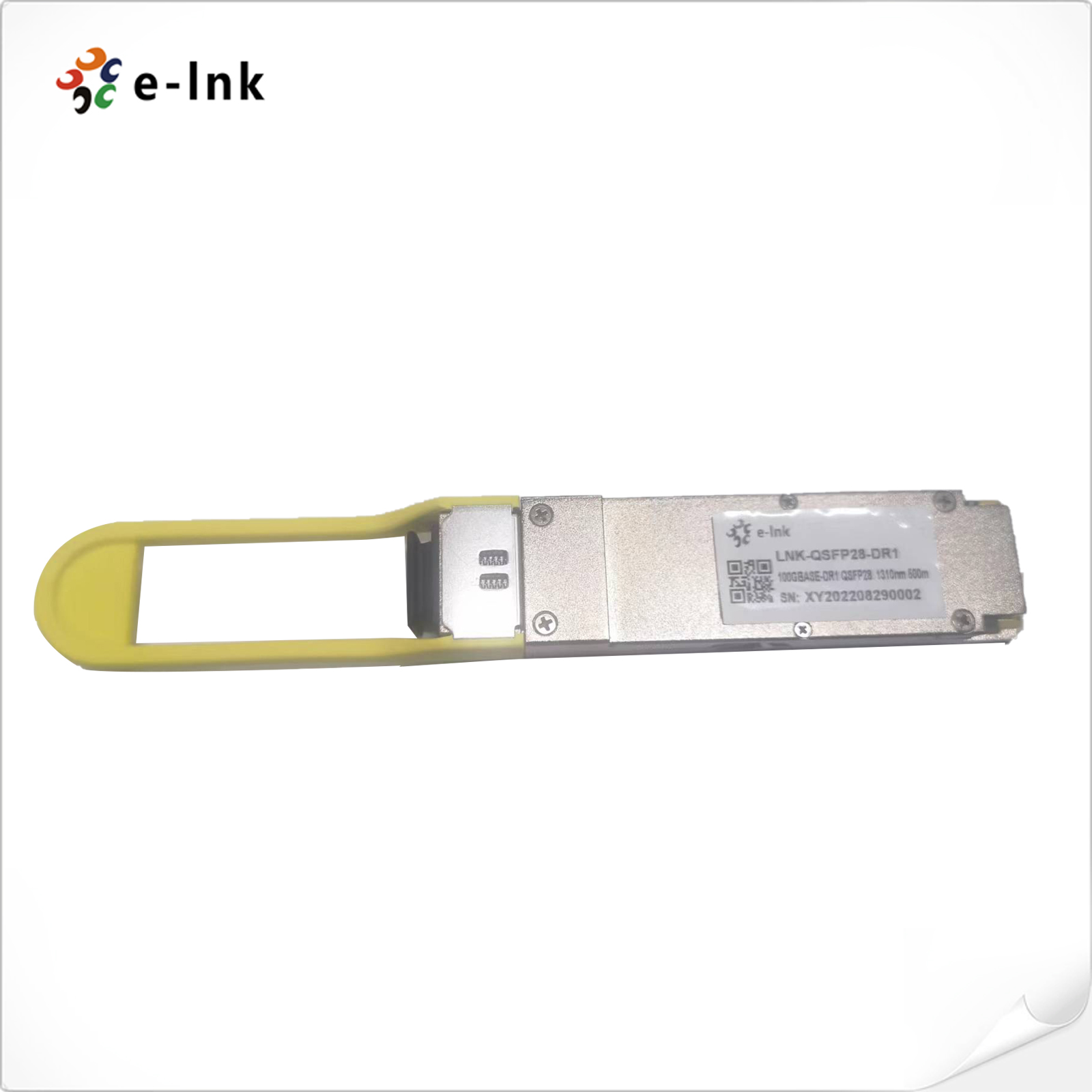

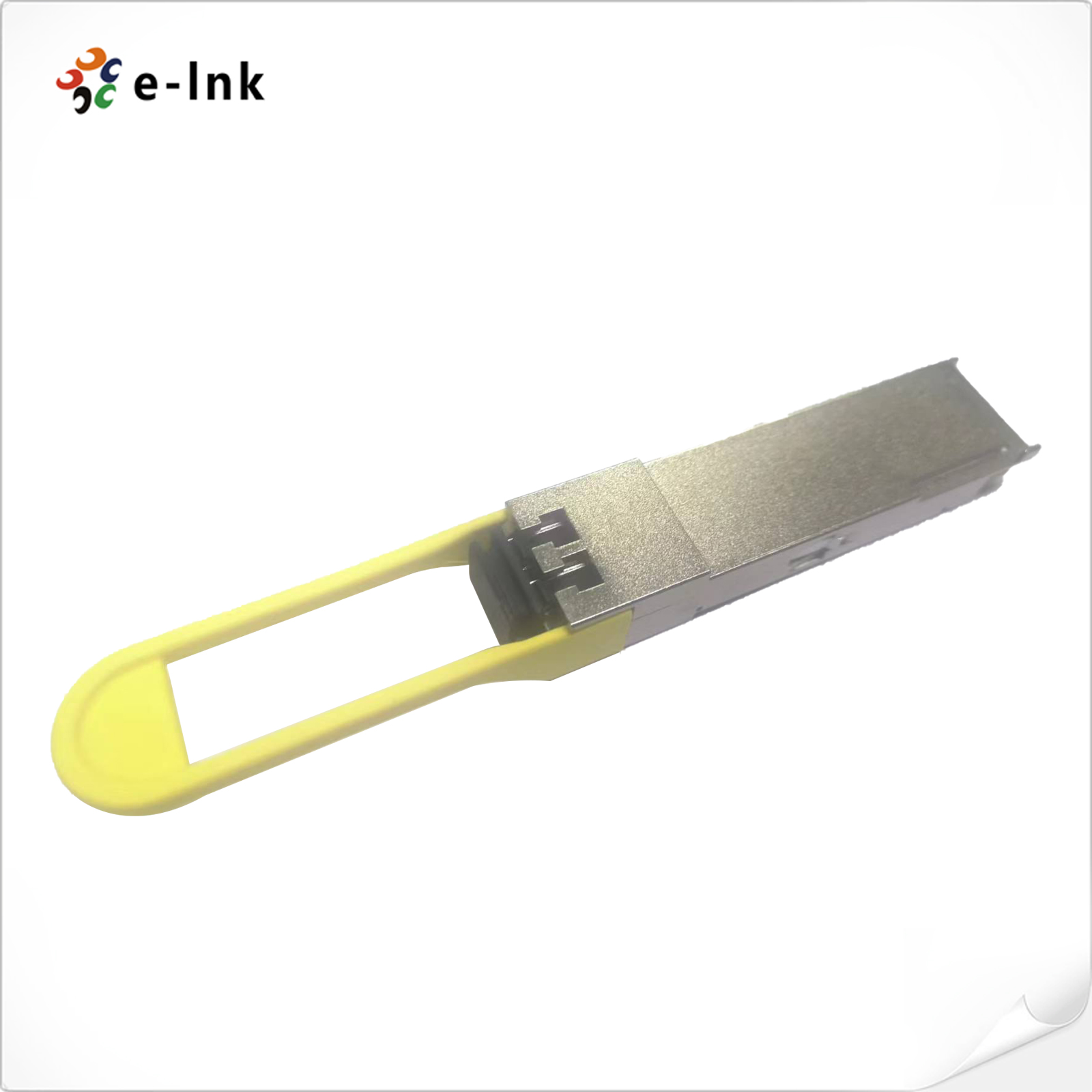

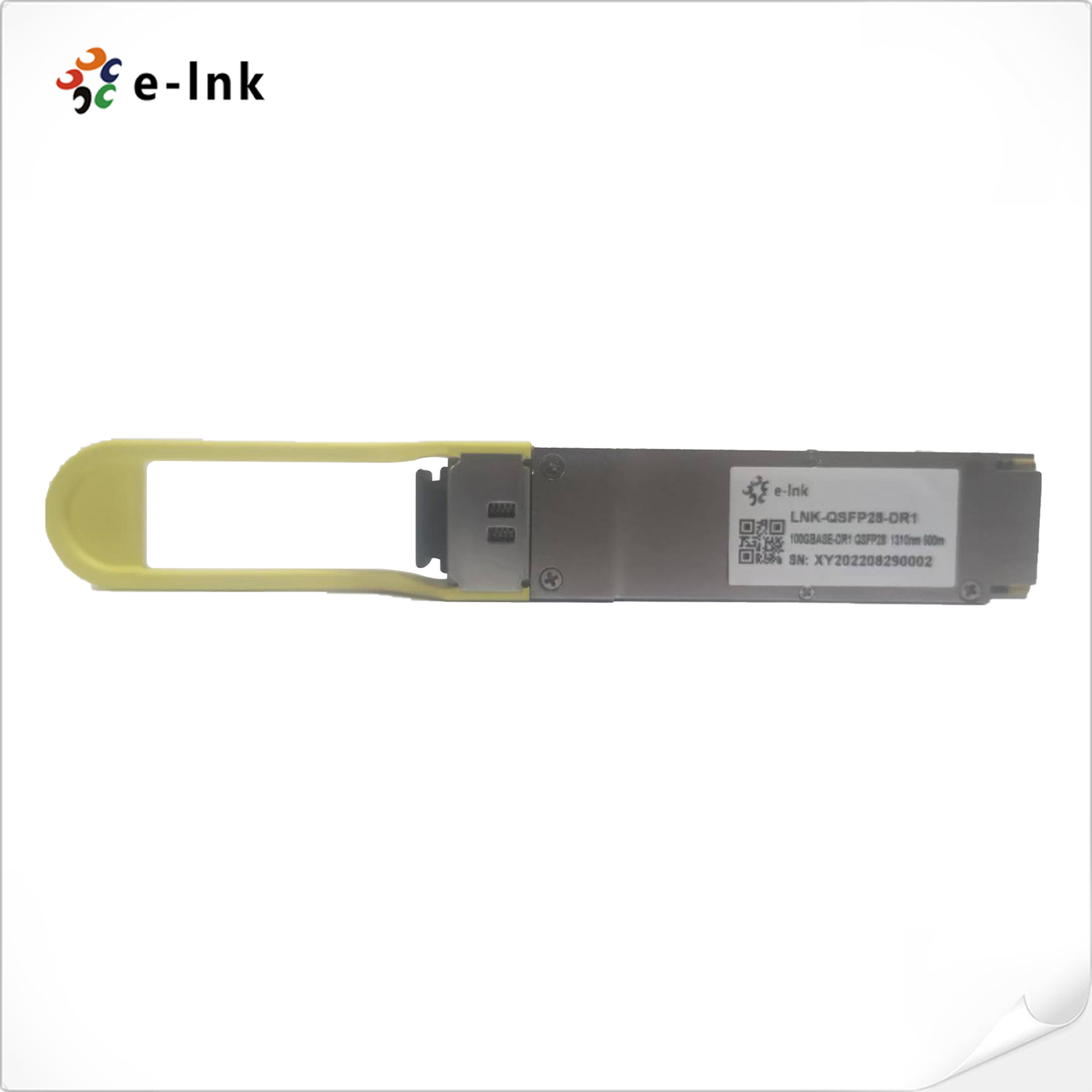

QSFP28 1310nm 500m Transceiver
Features
Ø Compliant with IEEE802.3cu D3.2 100GBASE-DR
Ø High speed I/O electrical interface (CAUI-4)
Ø Single 3.3V Supply Voltage
Ø Maximum power consumption 4W
Ø 0-70 ºC Case Operating Temperature
Ø 1311nm EML laser and PIN Receiver
Ø Hermetically sealed TO Based design
Ø QSFP28 MSA package with duplex LC connector
Ø Two Wire Serial Interface with Digital Diagnostic Monitoring
Ø KP4 FEC termination inside module
Ø Supporting 500m reach of single mode fiber
Ø Complies with EU Directive 2011/65/EU (RoHS compliant)
Ø Class 1 Laser
Application
► Fiber Channel Switch Infrastructure
► Router/Server interface
► Other optical transmission systems
Transmitter Optical Specifications
|
||||||
Parameter |
Symbol |
Min. |
Typical |
Max. |
Unit |
Notes |
Wavelength |
λC |
1304.5 |
1311 |
1317.5 |
nm |
|
Side mode suppression ratio |
SMSR |
30 |
- |
- |
dB |
|
Average Optical Launch Power |
POUT |
-2.9 |
- |
4 |
dBm |
1 |
Average launch power of OFF transmitter |
POUT_OFF |
- |
- |
-15 |
dBm |
|
Extinction Ratio |
ER |
3.5 |
- |
- |
dB |
|
Outer Optical Modulation Amplitude (OMAouter) |
OMAouter |
-0.8 |
- |
4.2 |
dBm |
|
Launch power in OMAouter minus |
OMAouter-TDECQ |
|
|
|
|
|
TDECQ: for extinction ratio≥5 dB |
-2.2 |
- |
- |
dBm |
||
for extinction ratio < 5 dB |
-1.9 |
|
|
|
||
Transmitter and dispersion eye closure |
TDECQ |
- |
- |
3.4 |
dB |
|
TDECQ – 10log10(Ceq) |
CEQ |
- |
- |
3.4 |
dB |
|
RIN15.5OMA |
RIN |
- |
- |
-136 |
dB/Hz |
|
Optical return loss tolerance |
ORLT |
- |
- |
15.5 |
dB |
|
Transmitter transition time |
|
- |
- |
17 |
ps |
|
Transmitter reflectance |
TR |
- |
- |
-26 |
dB |
|
Note 1: Average launch power is informative and not the principal indicator of signal strength.
|
||||||
Parameter |
Symbol |
Min. |
Typical |
Max. |
Unit |
Notes |
Wavelength |
λC |
1304.5 |
1311 |
1317.5 |
nm |
|
Damage Threshold |
|
5 |
- |
- |
dBm |
|
Average receive power |
|
-5.9 |
- |
4 |
dBm |
1 |
Receive power (OMAouter) |
RP |
- |
- |
4.2 |
dBm |
|
Receiver reflectance |
RR |
- |
- |
-26 |
dB |
|
Receiver sensitivity (OMAouter) |
RS |
- |
- |
Max(-3.9, SECQ-5.3) |
dBm |
|
Stressed receiver sensitivity |
SRS |
- |
- |
-1.9 |
dBm |
2 |
Stressed Receiver Sensitivity Test Conditions: |
- |
- |
|
- |
|
|
|
||||||
Parameter |
Symbol |
Min. |
Typical |
Max. |
Unit |
Notes |
Stressed eye closure for PAM4 (SECQ) |
SECQ |
- |
3.4 |
- |
dB |
|
SECQ – 10log10(Ceq) |
- |
- |
- |
3.4 |
dB |
|
Note 1: Average receive power, (min) is informative and not the principal indicator of signal strength. Note 2: Measured with conformance test signal at TP3 for the BER = 2.4x10-4.
Ordering Information
|
||||
Part No. |
Application |
Data Rate |
Laser Source |
Fiber Type |
LNK-QSFP28-DR1 |
100GBASE-DR |
100GE (53.125 GBd) |
1311nm EML |
SMF |
