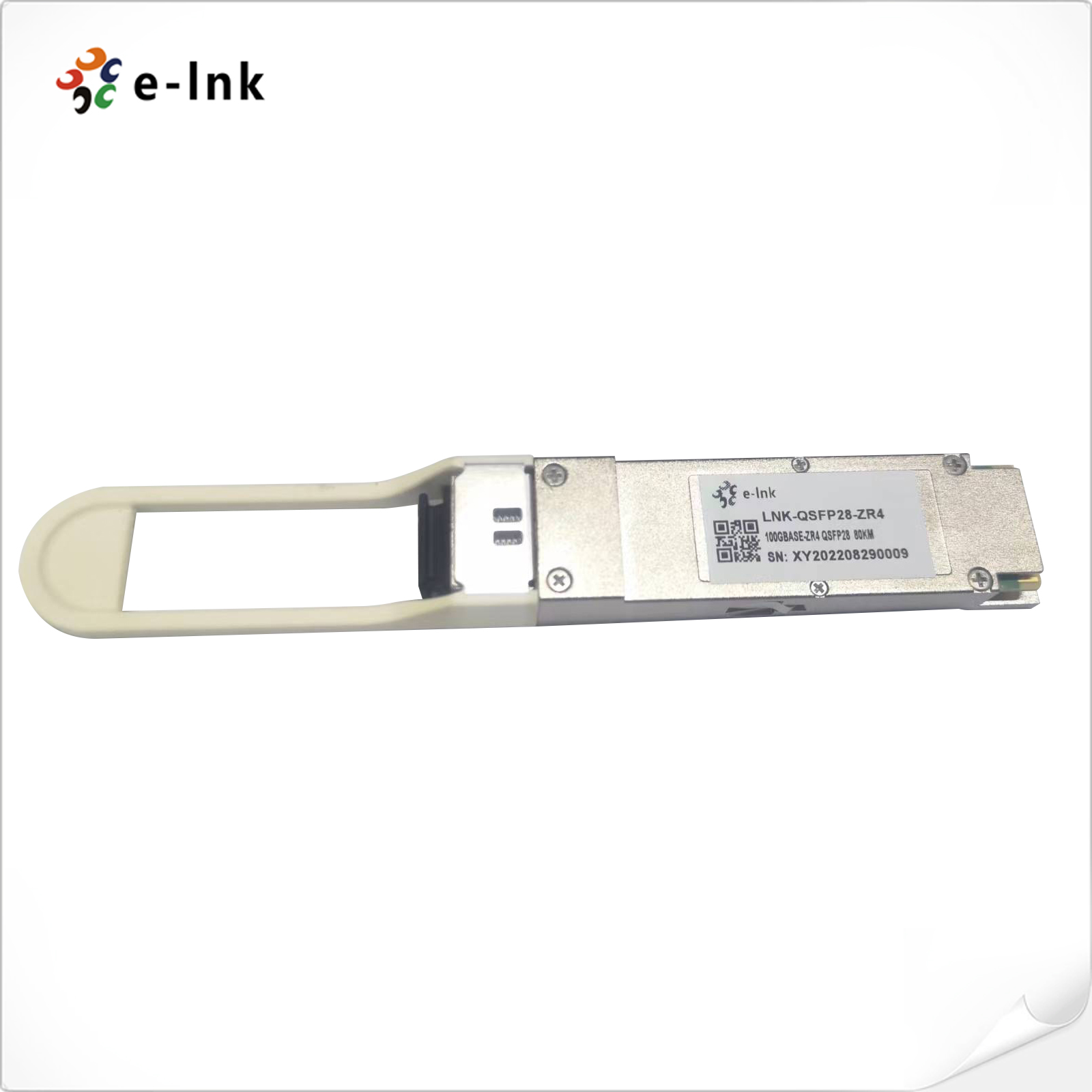

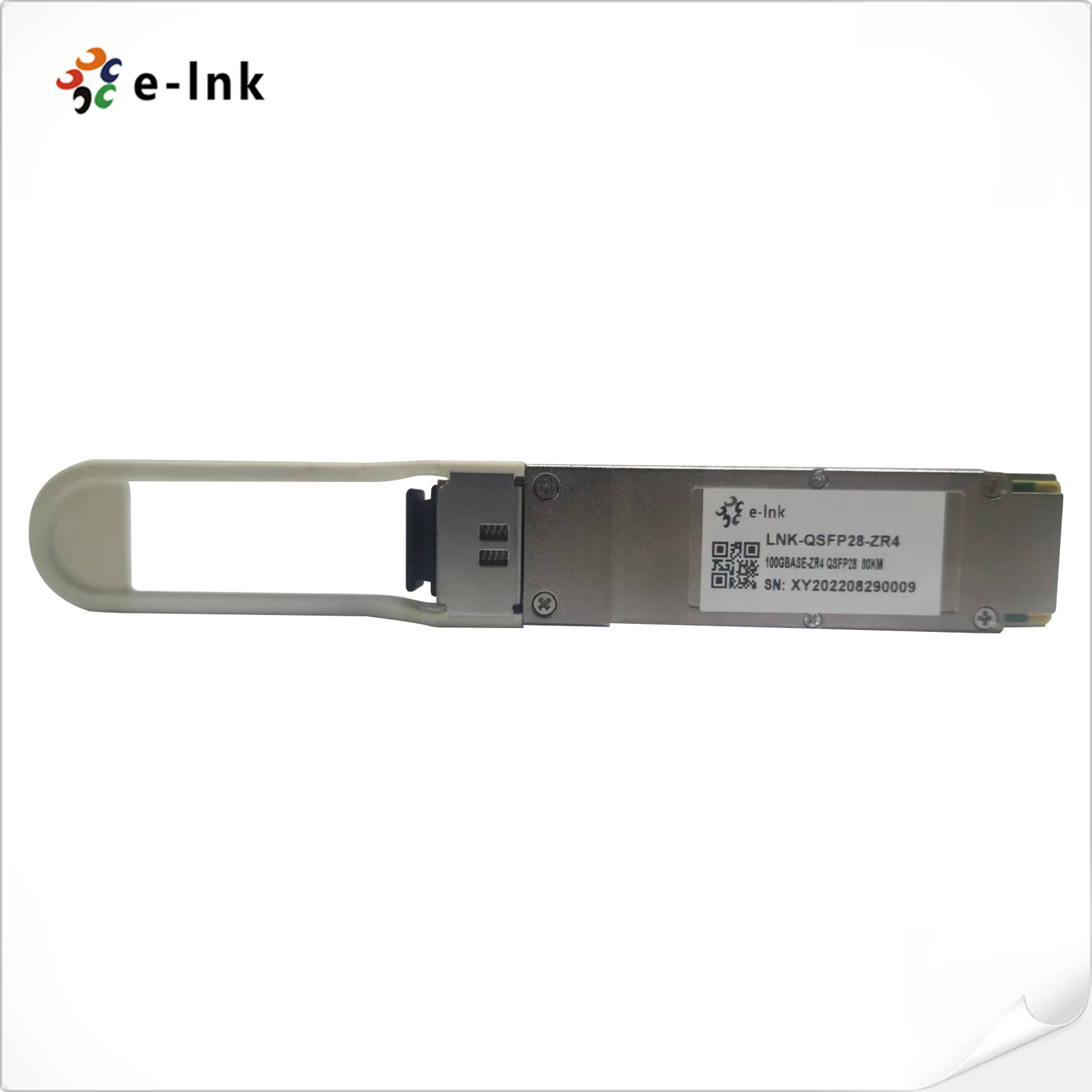

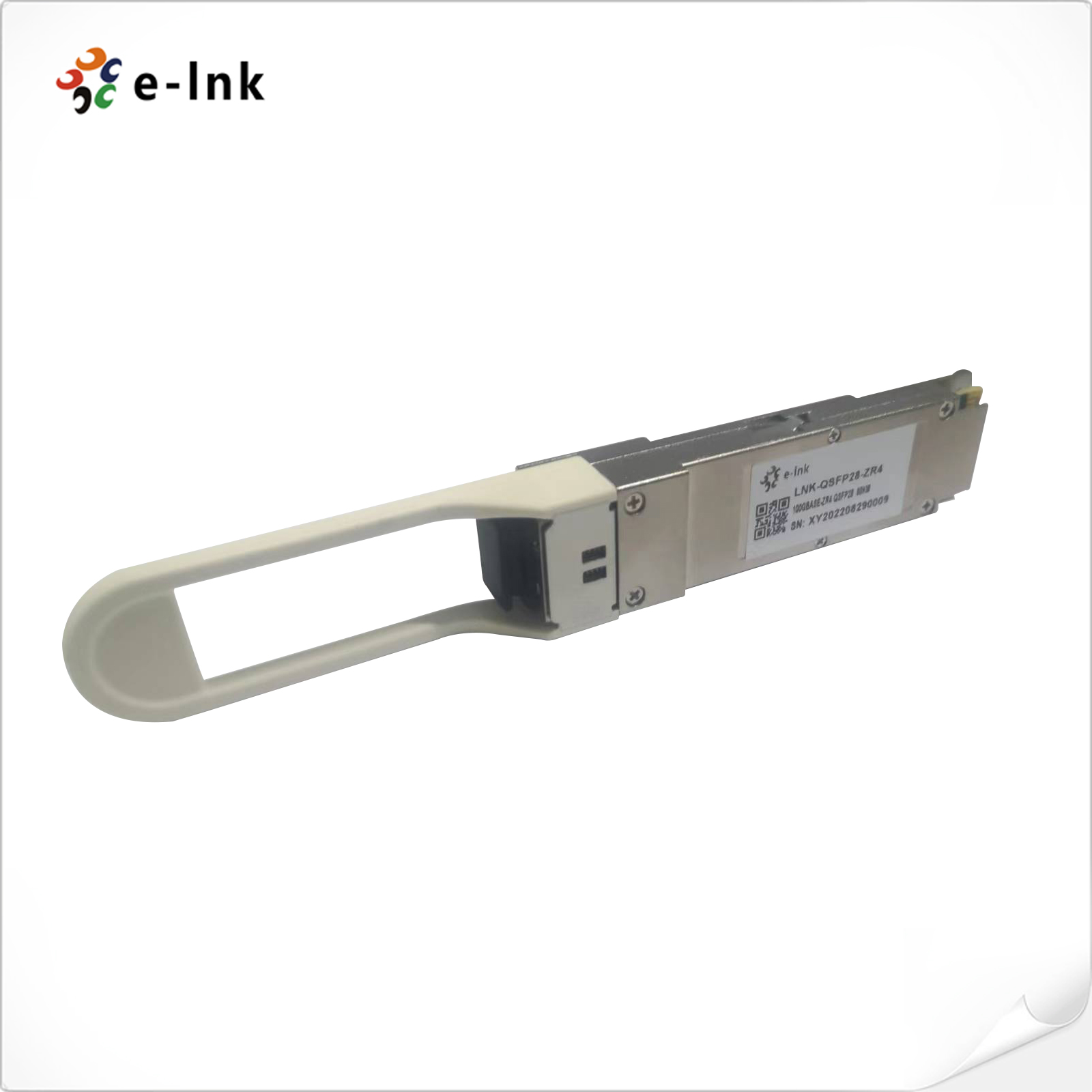

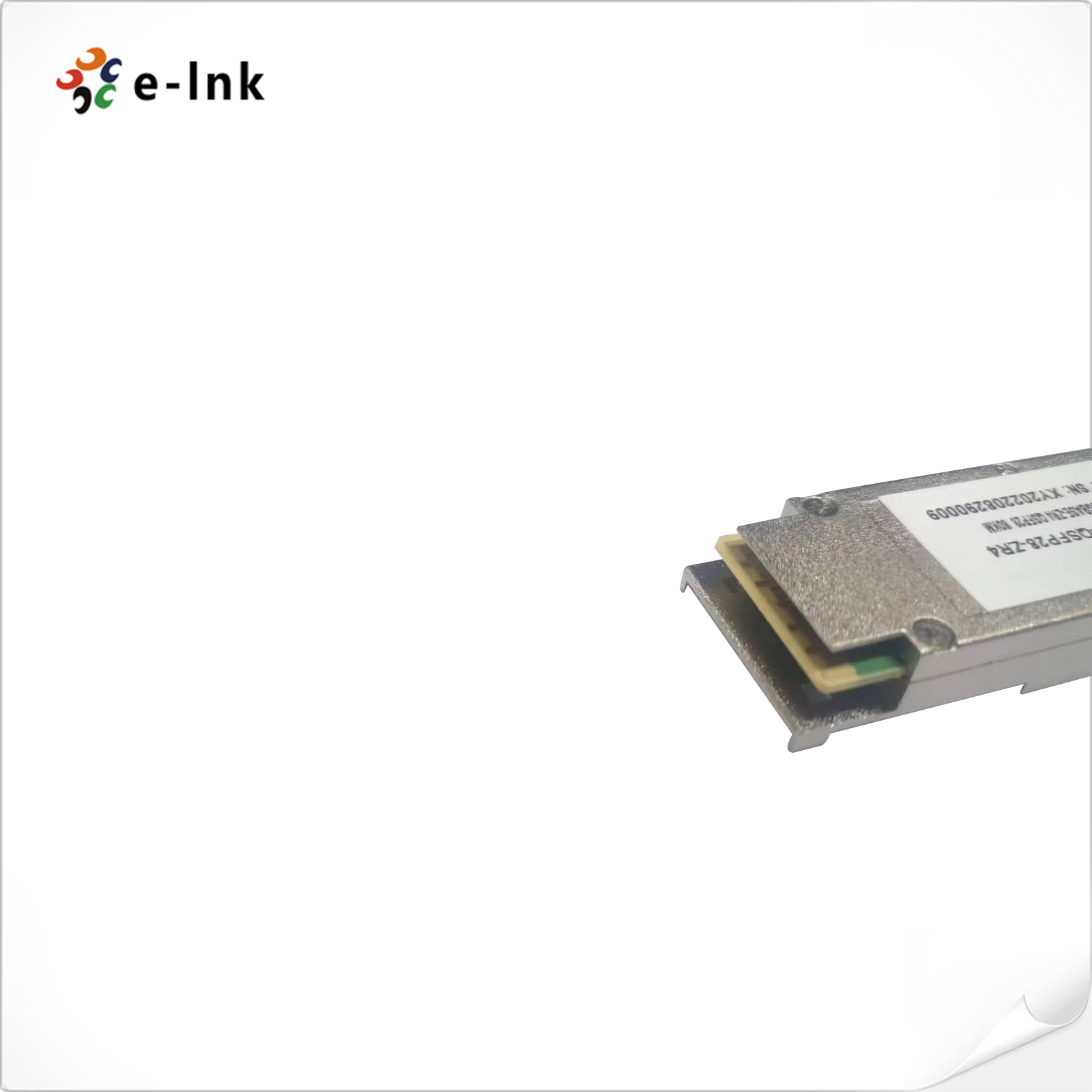

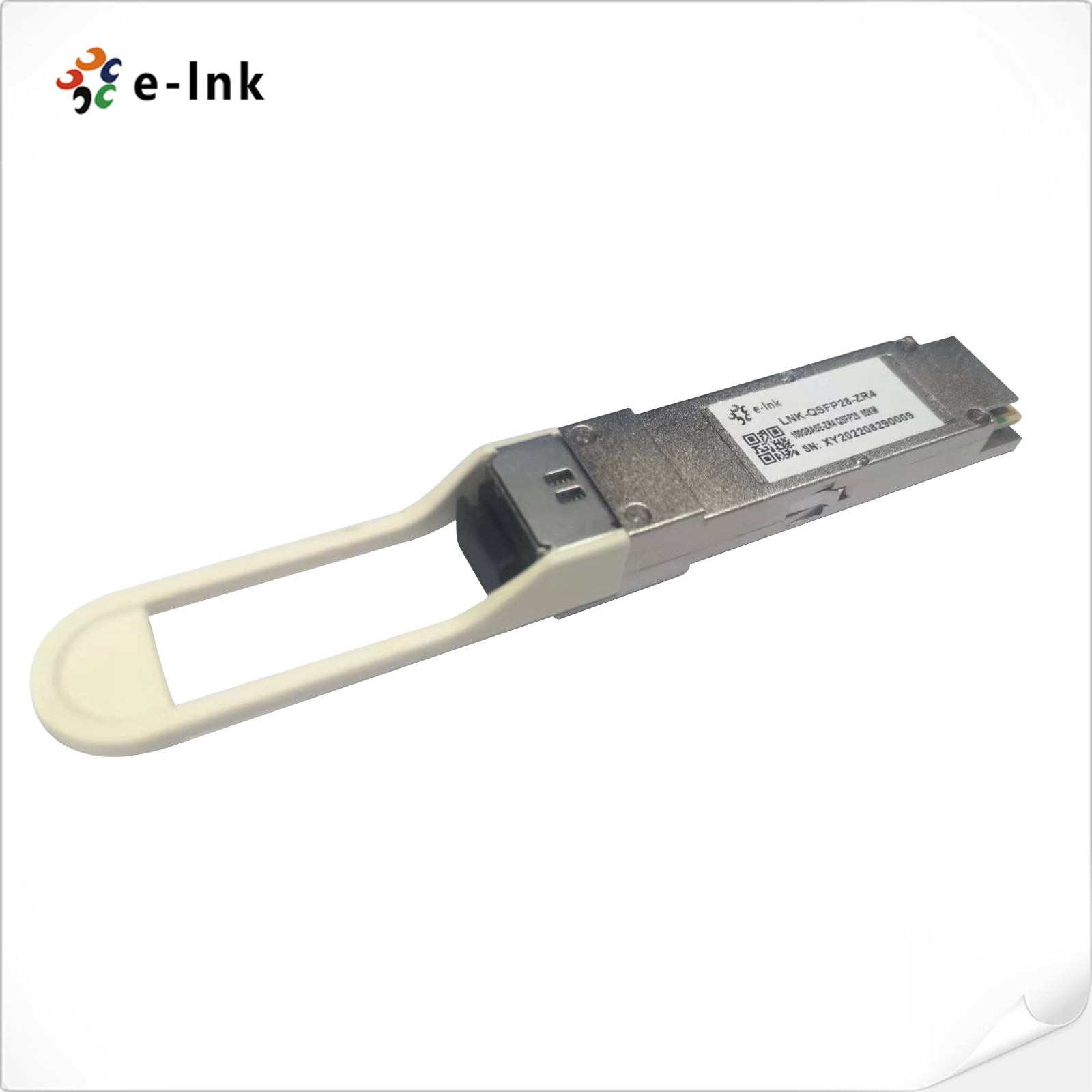

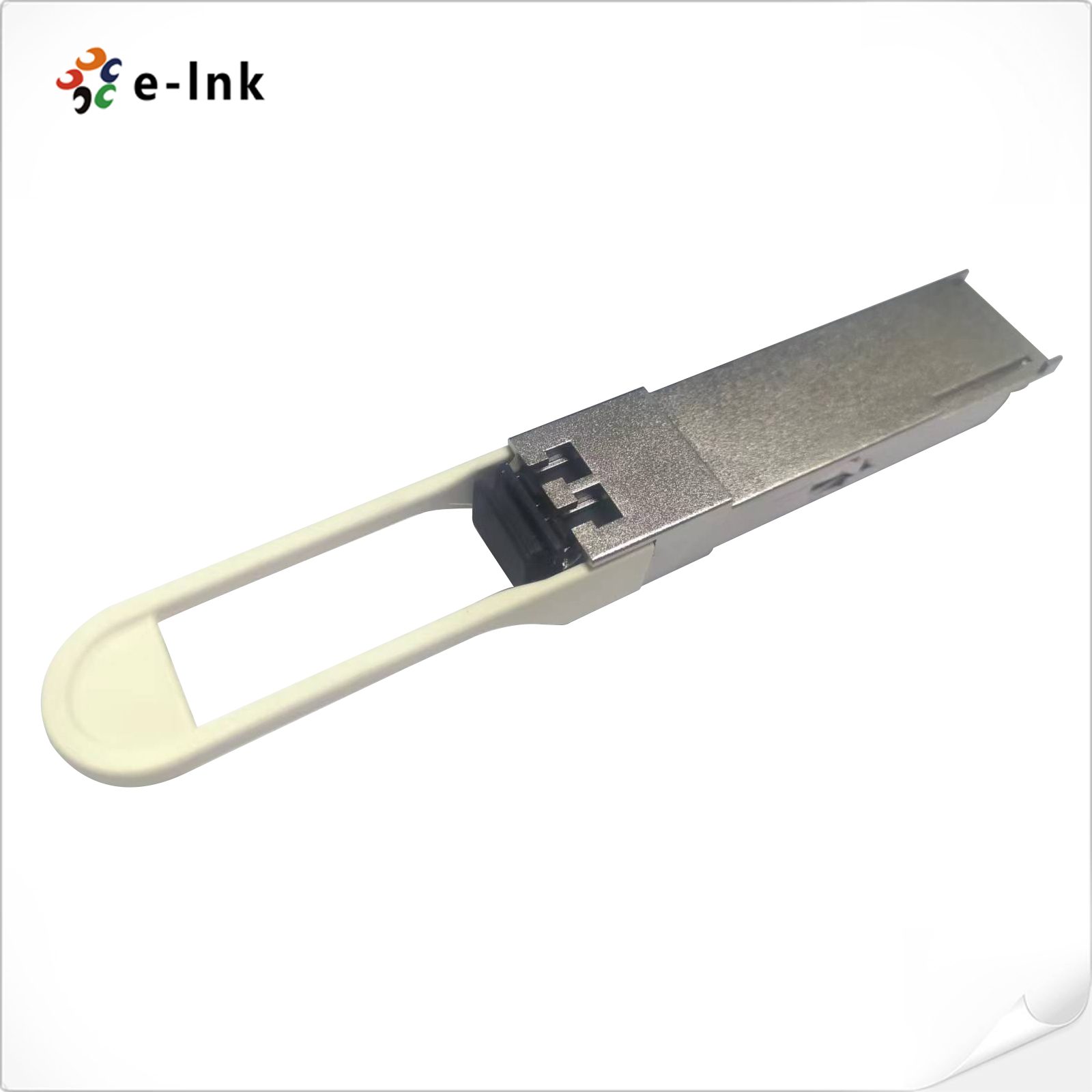

100GBASE-ZR4 QSFP28 1295-1309nm 80KM Transceiver
Model:LNK-QSFP28-ZR4
· Compliant with QSFP28 Standard: SFF-8661 Rev 2.5, SFF-8636 Rev 2.10a
· High speed I/O electrical interface (CAUI-4) compliant with IEEE 802.3bm-2015
· 100GBASE-ZR4 point-to-point Ethernet links
· Rx sensitivity of -28dBm with enabled KR4 FEC in host for up to 80km SMF
100GBASE-ZR4
QSFP28 1295-1309nm 80KM Transceiver
Features
· Compliant with QSFP28 Standard: SFF-8661 Rev 2.5, SFF-8636 Rev 2.10a
· High speed I/O electrical interface (CAUI-4) compliant with IEEE 802.3bm-2015
· 100GBASE-ZR4 point-to-point Ethernet links
· Rx sensitivity of -28dBm with enabled KR4 FEC in host for up to 80km SMF
· Single 3.3V Supply Voltage
· 0-70 ºC Case Operating Temperature
· LAN WDM EML laser and SOA+PIN Receiver
· Universal QSFP28 MSA package with duplex LC connector
· Two Wire Serial Interface with Digital Diagnostic Monitoring
· Complies with EU Directive 2011/65/EU (RoHS compliant), Class 1 Laser
Application
► Local Area Network (LAN)
► Wide Area Network (WAN)
► Ethernet switches and router applications
Transmitter Optical Specifications
|
|
||||||
|
Parameter |
Symbol |
Min. |
Typical |
Max. |
Unit |
Notes |
|
Wavelength L0 |
λC0 |
1294.53 |
1295.56 |
1296.59 |
nm |
|
|
Wavelength L1 |
λC1 |
1299.02 |
1300.05 |
1301.09 |
nm |
|
|
Wavelength L2 |
λC2 |
1303.54 |
1304.58 |
1305.63 |
nm |
|
|
Wavelength L3 |
λC3 |
1308.09 |
1309.14 |
1310.19 |
nm |
|
|
Side-mode suppression ratio |
SMSR |
30 |
|
|
dB |
|
|
Average Launch Power Tx_Off (Each Lane) |
POUT_OFF |
- |
- |
-30 |
dBm |
|
|
Average Optical Launch Power (Each Lane) |
POUTL |
1.5 |
- |
7 |
dBm |
|
|
Extinction Ratio |
ER |
8 |
- |
- |
dB |
|
|
Spectral Width |
Δλ |
- |
- |
1 |
nm |
|
|
Difference in launch power between any two lanes (OMA) |
DT_OMA |
- |
- |
3.6 |
dB |
|
|
Optical Return Loss Tolerance |
ORLT |
- |
- |
20 |
dB |
|
|
RIN20OMA |
RIN |
- |
- |
-130 |
dB/Hz |
|
|
Transmitter Reflectance |
TR |
- |
- |
-20 |
dB |
|
|
Transmitter Eye Mask Definition |
- |
{0.25, 0.4, 0.45, 0.25, 0.28, 0.4} |
|
|
||
Receiver Optical Specifications
|
|
||||||
|
Parameter |
Symbol |
Min. |
Typical |
Max. |
Unit |
Notes |
|
Wavelength L0 |
λC0 |
1294.53 |
1295.56 |
1296.59 |
nm |
|
|
Wavelength L1 |
λC1 |
1299.02 |
1300.05 |
1301.09 |
nm |
|
|
Wavelength L2 |
λC2 |
1303.54 |
1304.58 |
1305.63 |
nm |
|
|
Wavelength L3 |
λC3 |
1308.09 |
1309.14 |
1310.19 |
nm |
|
|
Receiver Sensitivity per lane |
|
- |
- |
-28 |
dBm |
Note |
|
Damage Threshold for Receiver |
Pin, damage |
5 |
- |
- |
dBm |
|
|
Average Receive Power (Each Lane) |
- |
-28 |
- |
4.5 |
dBm |
Note |
Note: Measured with conformance test signal at TP3 for the BER = 5x10-5
- Download FileName：E-link 100GBASE-ZR4 QSFP28 1295-1309nm 80KM Transceiver Datasheet V1.0.pdf Size： 696KB
Ordering Information
|
|
||||
|
Part No. |
Application |
Data Rate |
Laser Source |
Fiber Type |
|
LNK-QSFP28-ZR4 |
100GBASE-ZR4 |
100Gb Ethernet |
EML |
Single Mode Fiber |
