Ethernet

Standards:

IEEE 802.3 Ethernet

IEEE 802.3u Fast Ethernet

IEEE 802.3ab Gigabit Ethernet

IEEE 802.3x Full-Duplex Flow Control

IEEE 802.3az Energy Efficient Ethernet (EEE)

IEEE 802.3bt 4-pair Power over Ethernet

IEEE 802.3at Power over Ethernet Plus PSE

IEEE 802.3af Power over Ethernet Plus

Forward & Filtering Rate:

14,880pps (10Mbps)

148,800pps (100Mbps)

1,488,000pps (1000Mbps)

Packet Buffer:

2Mbits

Packet Length:

10Kbytes

MAC Address Table:

4K

Switch Fabric:

14Gbps/non-blocking

Exchange Property

Backplane bandwidth: 14Gbps;

Packet forwarding rate: 14.88Mpps

Connector:

4 ports with 802.3at PoE+ injector function (Ports 1 to 4)

Network Cables

Twisted-pair:

 10BASE-T: 2-pair UTP Cat. 3,4,5, up to 100m

 100BASE-TX: 2-pair UTP Cat. 5, up to 100m

 1000BASE-T: 4-pair STP Cat 5 up to 100m

Fiber-optic Cable

 1000BASE-SX:

  50/125μm or 62.5/125μm multi-mode fiber cable, up to 220/550m/2km.

 1000BASE-LX:

  9/125μm single-mode cable, providing long distance of 2/10/20/40/80/120km (depending on SFP module)

 100BASE-FX:

  50/125μm or 62.5/125μm multi-mode fiber cable for up to 2km (depending on SFP module)

  9/125μm single-mode cable for 20/40/60/120km (vary on SFP module)

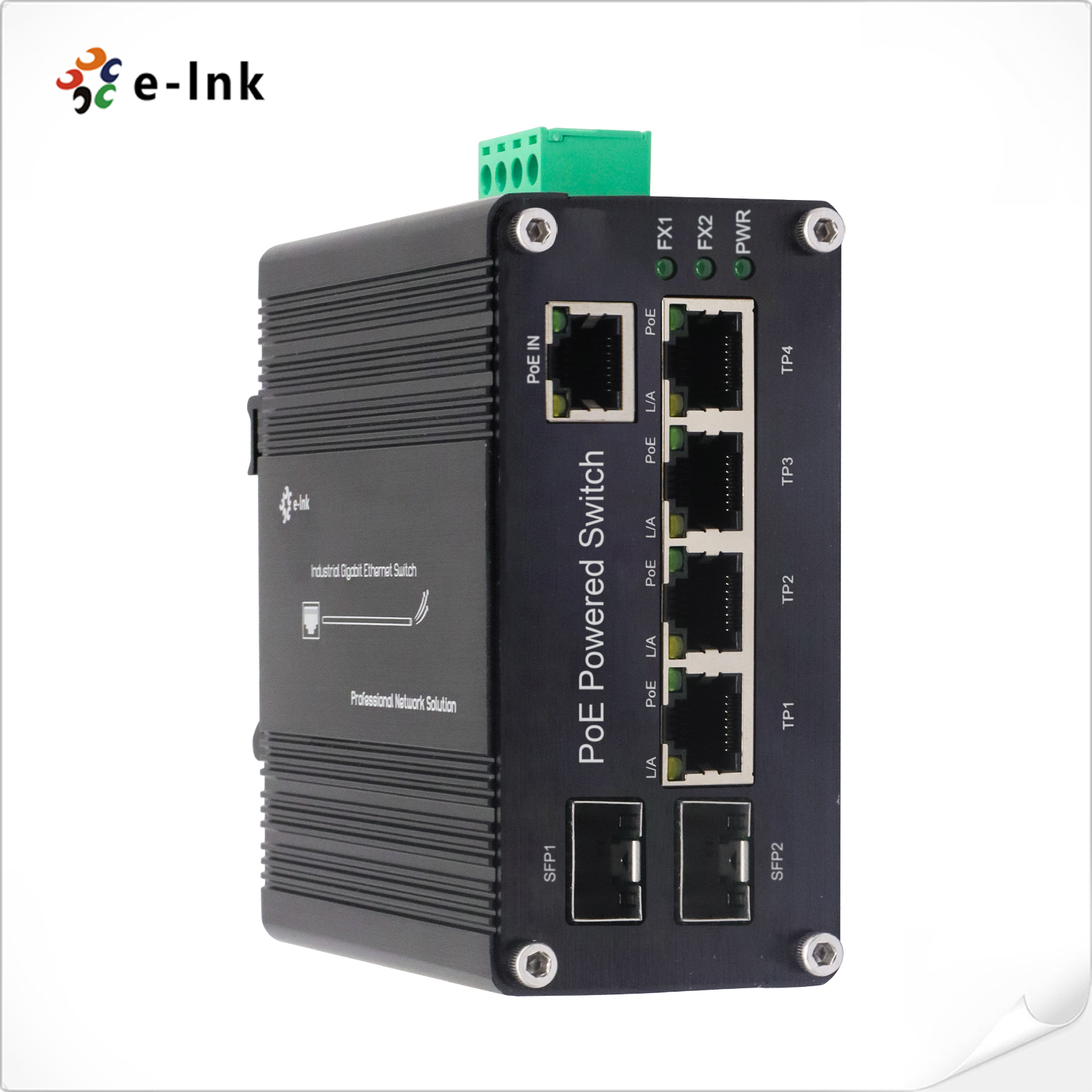

Interface

Connector:

5 x RJ45 (1-Port PoE In, 4-Port PoE Out)

Optical Port:

2 x SFP 1000Base-X or 100Base-FX (auto detection)

PoE (Power over Ethernet)

Standard:

IEEE802.3af/at/bt

Port:

RJ45

Power Pin Assignment

4/5(+), 7/8(-)

PoE Budget:

Up to 71-watt PoE budget

Environmental

Operating Temperature:

-40°C to 80°C (-40°F to 176°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

MTBF

> 200,000 hrs

Electrical and Mechanical

Input Power:

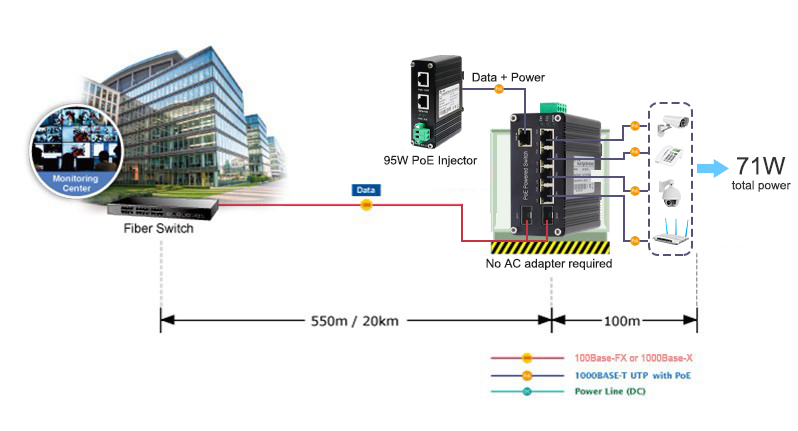

Pass through PoE:

95W power input from a PoE injector or switch

48~57VDC(Terminal Block)

Power Consumption:

<5W (Non-PoE)

Power Input Overload:

Automatic Resettable

Reverse Polarity:

Present

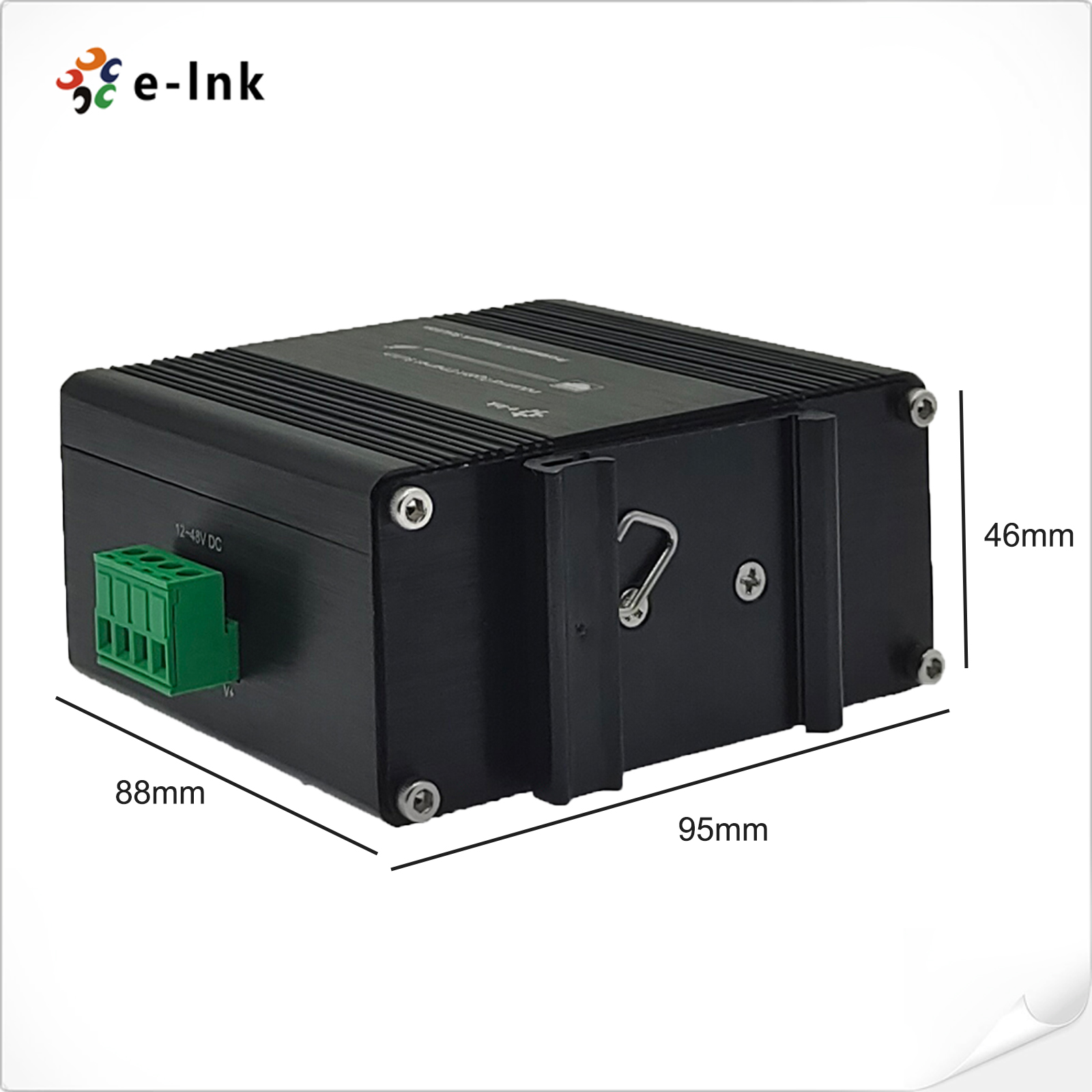

Dimensions (LxWxH):

95 x 88 x 46mm

Weight:

300g

Casing:

Aluminum Case

Mounting Options:

DIN-Rail

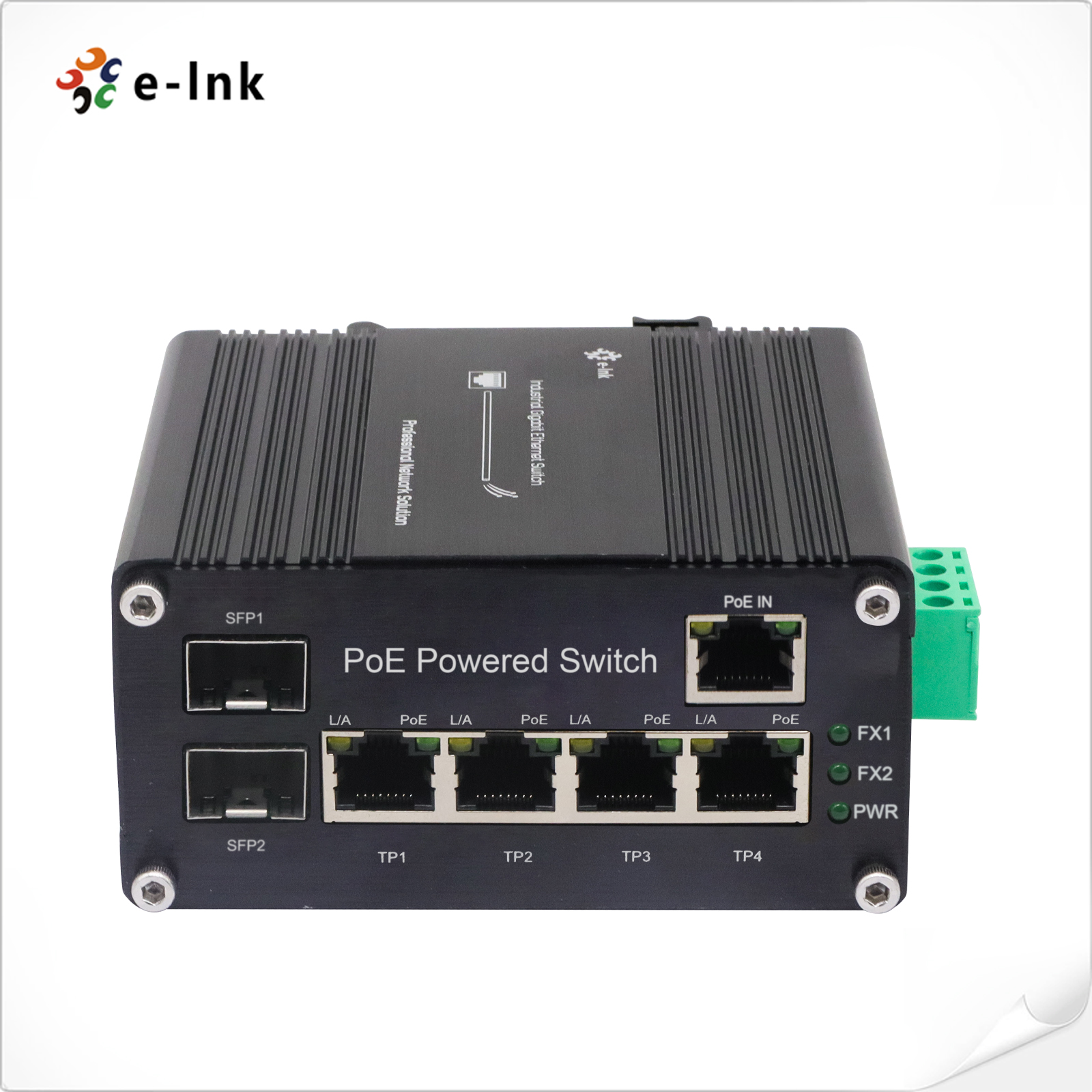

LED Indicators:

PWR:

Power

L/A:

Link/Activity

PoE:

PoE Status

FX1/FX2:

SFP Fiber Link Status

Regulatory Approvals

ISO9001, CE, FCC, RoHS

EN55022:2010+AC: 2011, Class A

EN 61000-3-2: 2006+A1: 2009+A2: 2009

EN 61000-3-3: 2013

EN55032:2017

IEC 61000-4-2: 2008 (ESD)

IEC 61000-4-3: 2010 (RS)

IEC 61000-4-4: 2012 (EFT)

IEC 61000-4-5: 2014 (Surge)

IEC 61000-4-6: 2013 (CS)

IEC 61000-4-8: 2009 (PFMF)
