Industrial 10GBase-X SFP+ to 10G/5G/2.5G/1G/100M Base-T 802.3bt PoE++ Media Converter
Model:LNK-GY10GP-SFP
► One 10G/5G/2.5G/1G/100M Base-T RJ45 interface with IEEE 802.3bt PoE++ injector function
► One 10GBASE-X SFP+ slot interface
► Complies with IEEE 802.3bt PoE++ Type-4 PSE
► Supports PoE Power up to 90 watts for PoE port
► 44~57V DC redundant power with reverse polarity protection
The E-link 10G HPoE Media Converter is the smallest industrial-grade 10G Ethernet media converter (from 10000Base-X SFP+ to 10G/5G/2.5G/1G/100M Base-T Copper) with 802.3bt Power over Ethernet Plus Plus (PoE++) injector function to deliver up to 90W of power output and high data transmission speed to PDs (powered devices) installed in a remote area where sufficient and reliable power input is required, providing non-blocking wire-speed performance and great flexibility for 10G Ethernet extension in harsh industrial environment. It is equipped with one 10G/5G/2.5G/1G/100M Base-T RJ45 copper interface and one 10GBase-X SFP+ fiber optic interface delivered in an IP40 rugged but compact sized strong case with redundant power system (44~57VDC).
Customers who are planning for Wi-Fi 6, point-to-point wireless links, and other bandwidth-demanding technologies are looking for connectivity solutions that can grow with them as their technology needs evolve. These customers – universities, commercial buildings, campus environments, stadiums, senior living communities, resorts, and the like – need both 10G speeds and 90W PoE++ (HPoE) power output. However, current media converter options in the market are expensive and limited. E-link is solving for more bandwidth and more power at the edge with the industry’s first HPoE 10G media converter solution.
It is Ideal for wide range of applications from copper to fiber media conversion wherever up-to-10GE bandwidth is required in climatically demanding environments with wide temperature ranges.► One 10G/5G/2.5G/1G/100M Base-T RJ45 interface with IEEE 802.3bt PoE++ injector function
► One 10GBASE-X SFP+ slot interface
► Complies with IEEE 802.3bt PoE++ Type-4 PSE
► Supports PoE Power up to 90 watts for PoE port
► 44~57V DC redundant power with reverse polarity protection
► Supports DIN-Rail and Wall-Mount installation
► Compact fanless design avoids overheating
► IP40 rugged high-strength metal case
► -40°C to 80°C (-40°F to 176°F) operating temperature

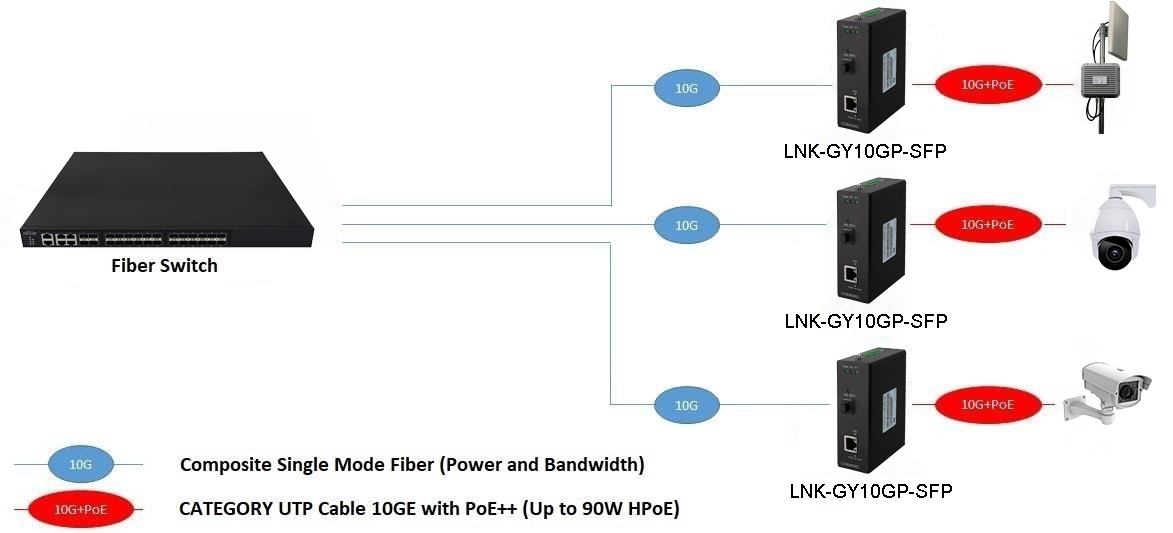

Application-1

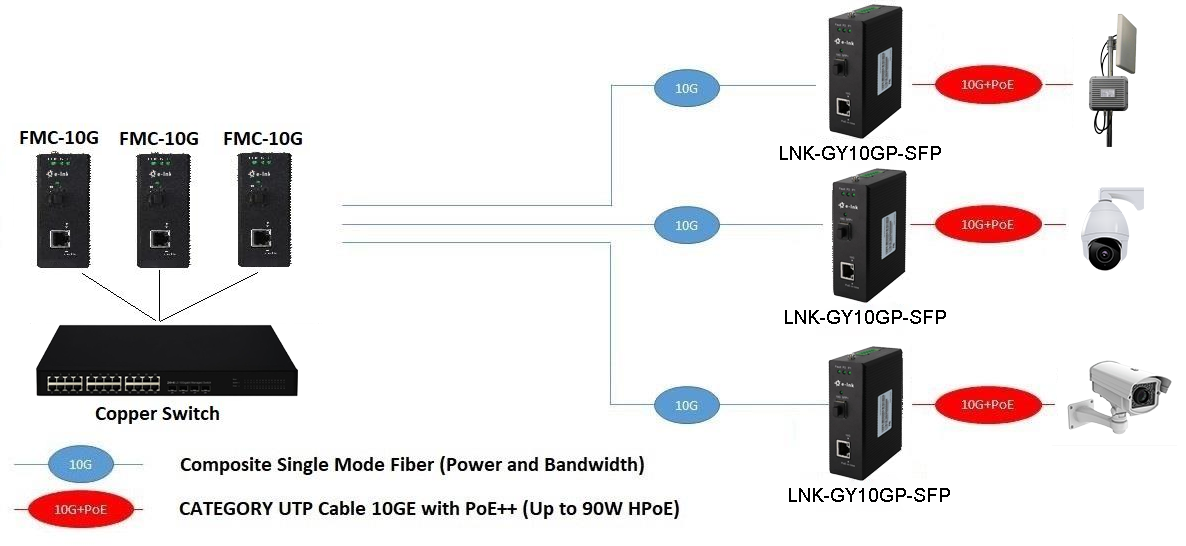

Application-2
|
Standards: |
IEEE 802.3u Fast Ethernet |
|
IEEE 802.3ab Gigabit Ethernet |
|
|
IEEE 802.3bz 2.5G/5GBASE-T |
|
|
IEEE 802.3an 10GBASE-T |
|
|
IEEE 802.3ae 10Gbps Ethernet |
|
|
IEEE 802.3x Full-Duplex Flow Control |
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE) |
|
|
IEEE 802.3bt 4-pair Power over Ethernet |
|
|
IEEE 802.3at Power over Ethernet Plus PSE |
|
|
IEEE 802.3af Power over Ethernet Plus |
|
|
Flow Control: |
IEEE 802.3x pause frame for full duplex |
|
Switch Fabric: |
20Gbps/non-blocking |
|
Network Cables |
10G/5G/2.5G/1G/100M Base-T: 10G - Cat 6A/7 5G - Cat 6/6A/7 2.5G/1G - Cat 5e/6/6A/7 100M – Cat 5/5e/6/6A/7 Cat 5/5e/6/6A/7 UTP cable (max 100 meters) EIA/TIA-568 100-ohm STP (max 100 meters) 10GBase-LR/SR/BX: 50/125um or 62.5/125um multi-mode fiber optic cable, up to 300m 9/125um single-mode fiber optic cable, up to 80km |
|
Interface |
|
|
Connector: |
1 x 10G/5G/2.5G/1G/100M Base-T RJ45 interface with IEEE 802.3bt PoE++ injector function |
|
Optical Port: |
1 x 10GBase-X SFP+ interface |
|
PoE (Power over Ethernet) |
|
|
Standard: |
IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3bt Power over Ethernet Plus Plus |
|
Port: |
RJ45 |
|
PoE Power Output: |
802.3bt PoE++ : 90W |
|
PoE Power Supply Type: |
End-span + mid-span |
|
Power Pin Assignment: |
End-span: 1/2 (-), 3/6 (+); mid-span: 4/5 (+), 7/8 (-) |
|
PoE Power Budget: |
90 watts@44~57V DC input |
|
Environmental |
|
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF |
> 100,000 hrs |
|
Electrical and Mechanical |
|
|
Input Power: |
44~57VDC(Terminal Block) |
|
Power Consumption: |
System ON without loading: 48V DC: 4.36W Full loading with PoE++: 48V DC: 98W |
|
Power Input Overload: |
Automatic Resettable |
|
Reverse Polarity: |
Present |
|
Dimensions (WxDxH): |
3.03 x 1.48 x 4.21 in (77 x 37.5 x 107mm) |
|
Weight: |
270g |
|
Casing: |
Aluminum Case |
|
Mounting Options: |
DIN-Rail and Wall-Mount |
|

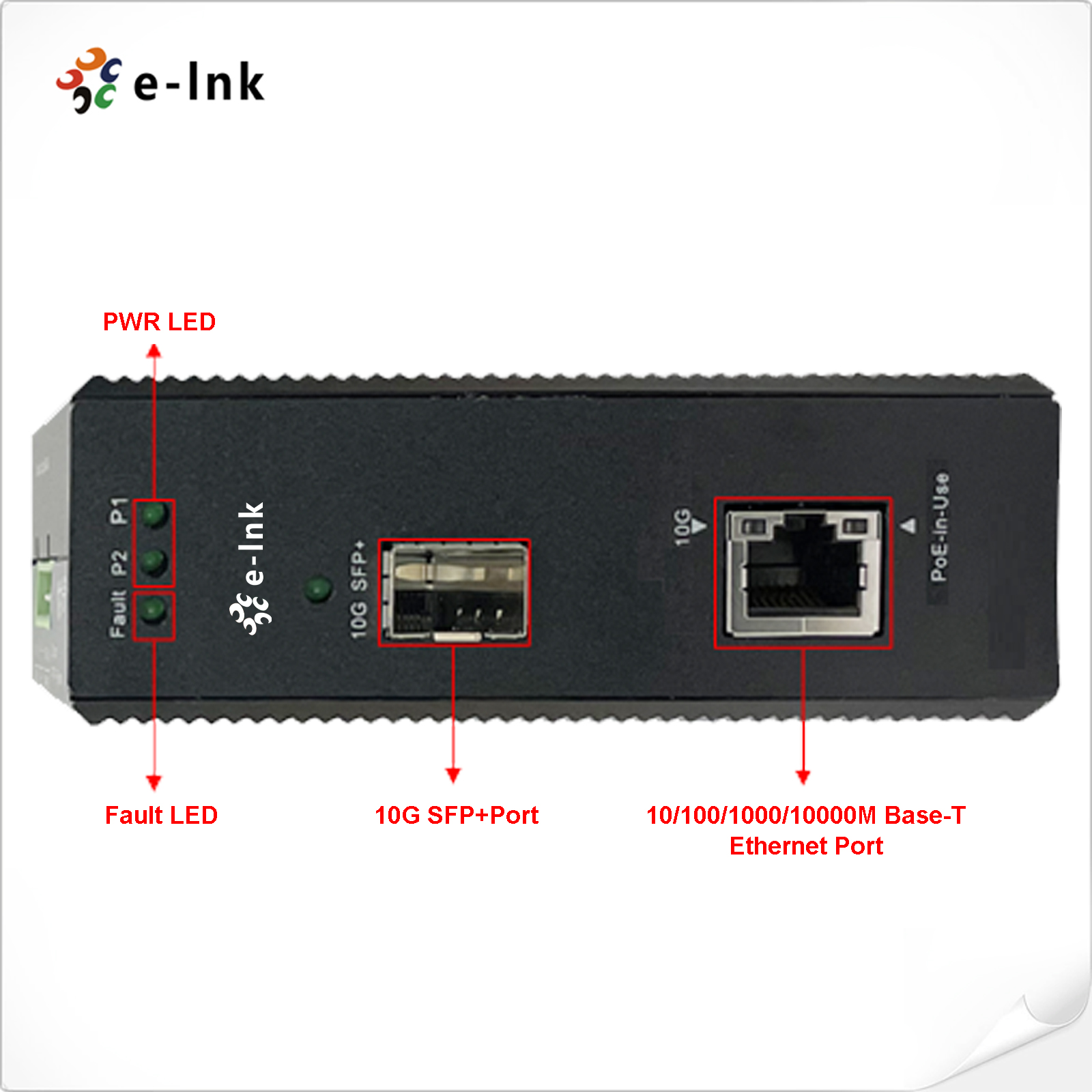

LED Indicators: |
|
|
P1/P2: |
Power Status |
|
Fault: |
Fault Alarm |
|
10G: |
10G Ethernet Link Status |
|
10G SFP+: |
10G SFP+ Link Status |
|
Regulatory Approvals |
|
|
ISO9001, CE, FCC, RoHS |
|
|
EN55022:2010+AC: 2011, Class A |
|
|
EN 61000-3-2: 2006+A1: 2009+A2: 2009 |
|
|
EN 61000-3-3: 2013 |
|
|
EN55032:2017 |
|
|
IEC 61000-4-2: 2008 (ESD) |
|
|
IEC 61000-4-3: 2010 (RS) |
|
|
IEC 61000-4-4: 2012 (EFT) |
|
|
IEC 61000-4-5: 2014 (Surge) |
|
|
IEC 61000-4-6: 2013 (CS) |
|
|
IEC 61000-4-8: 2009 (PFMF) |
|
|
Model |
Description |
|
LNK-GY10GP-SFP |
Industrial 10GBase-X SFP+ to 10G/5G/2.5G/1G/100M Base-T 802.3bt PoE++ Media Converter |
|
SFP+ Options |
► SFP+ option. Please select your SFP on our SFP Options Page (Industrial SFP). |
|
► SFP+ module is to be purchased separately. |
|
|
Mounting Options |
► Default DIN-Rail Bracket installed; |
|
Power Options |
► 120W/2.5A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
|
► Power Supply is to be purchased separately |
