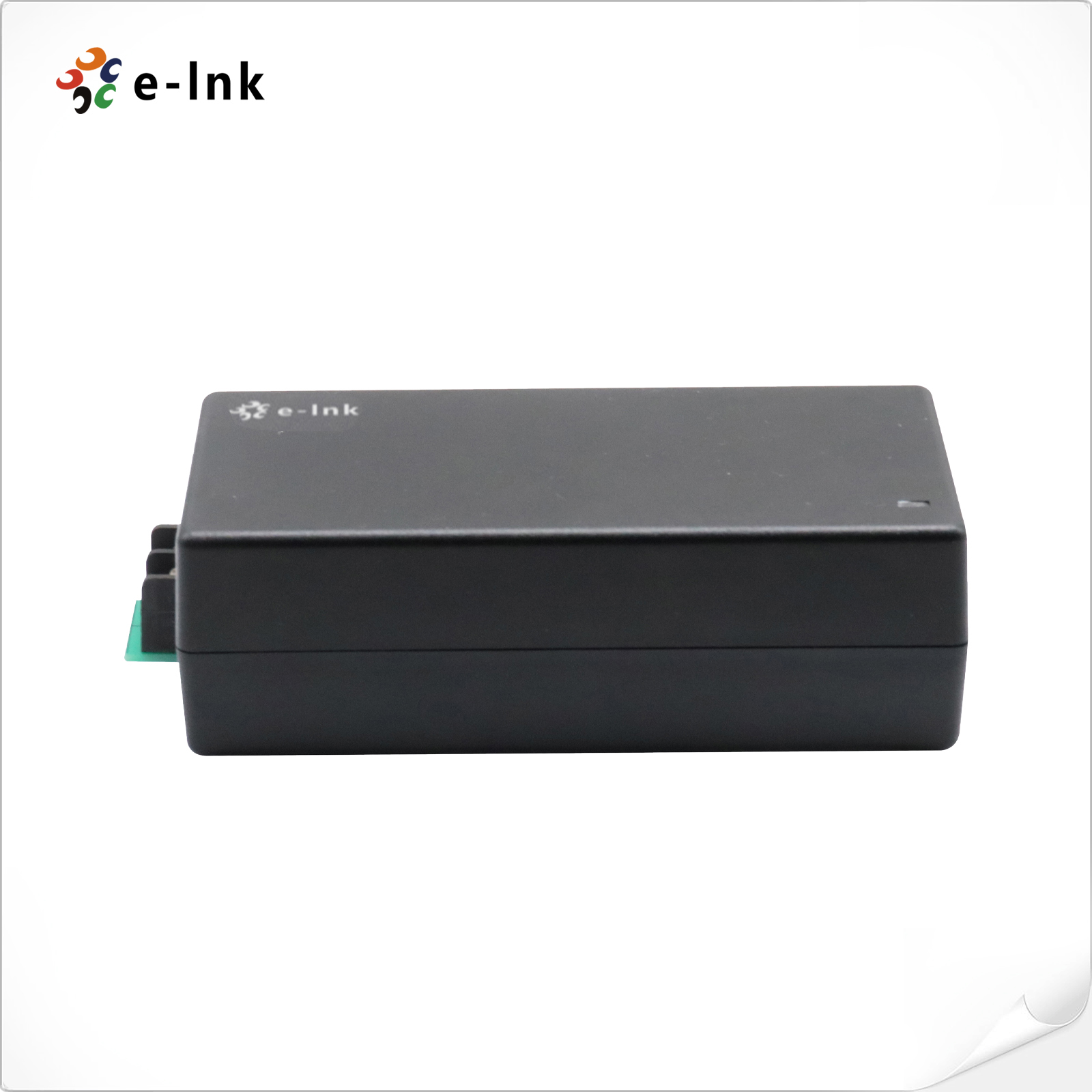

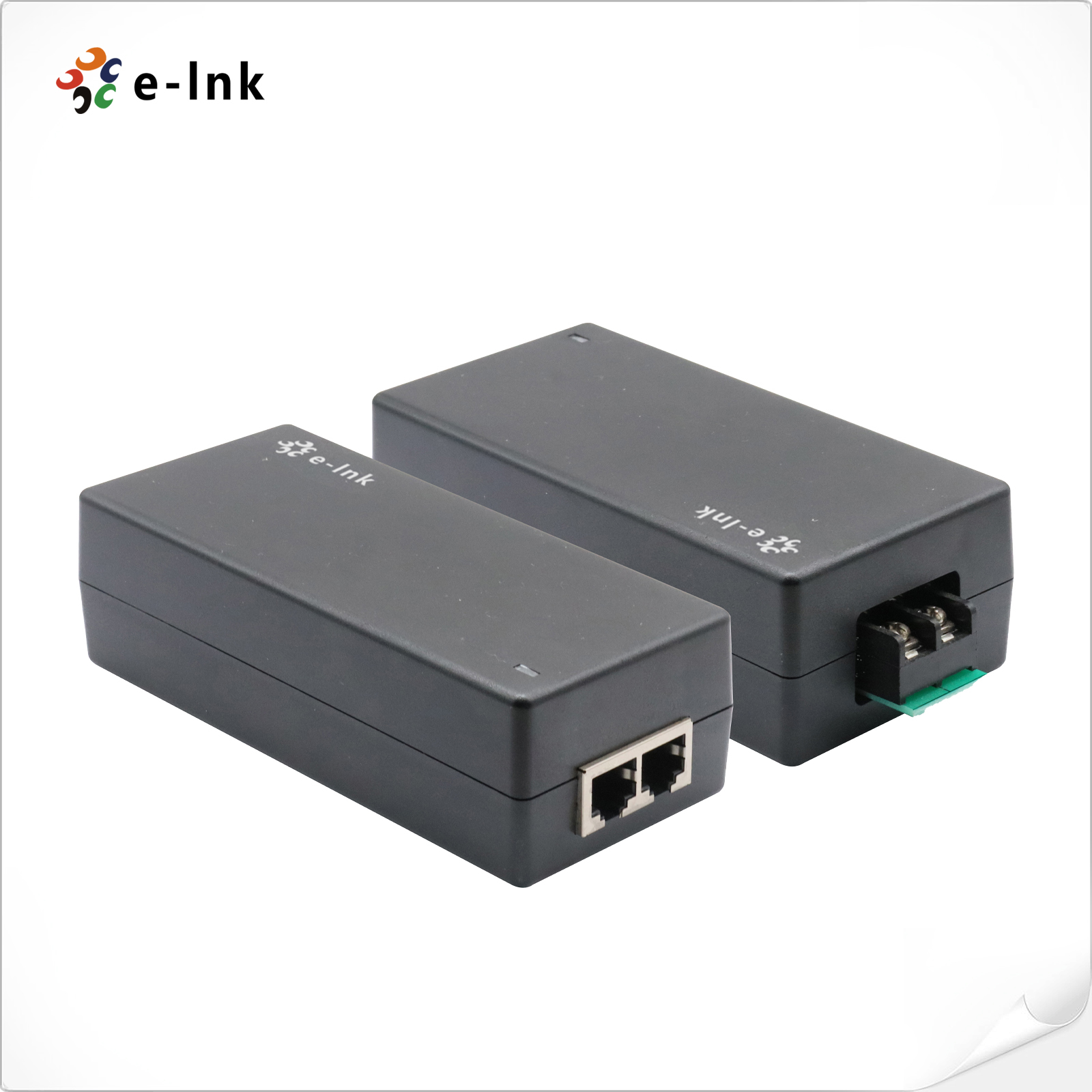

36-72V DC Input 24V 24W Output Gigabit Passive PoE Injector
Model:LNK-DC-P24G
► Input Voltage 36-72VDC; Output 24VDC (Passive)
► Integrated Gigabit PoE Inserter
► High Power 24W
► Support 10/100/1000Base-T
► Nominal Frequency 50/60KHz

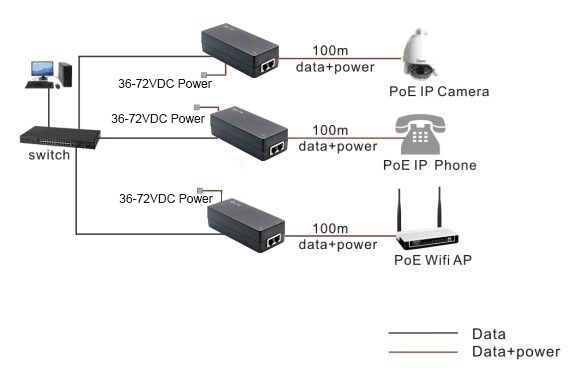

The LNK-DC-P24G is a low cost and high efficiency solution for those requiring Passive Power over Ethernet from a 36-72VDC voltage source. They have an integrated POE injector to apply the power and data output to the CAT5/6 Ethernet cable. The output voltage is regulated and protected.

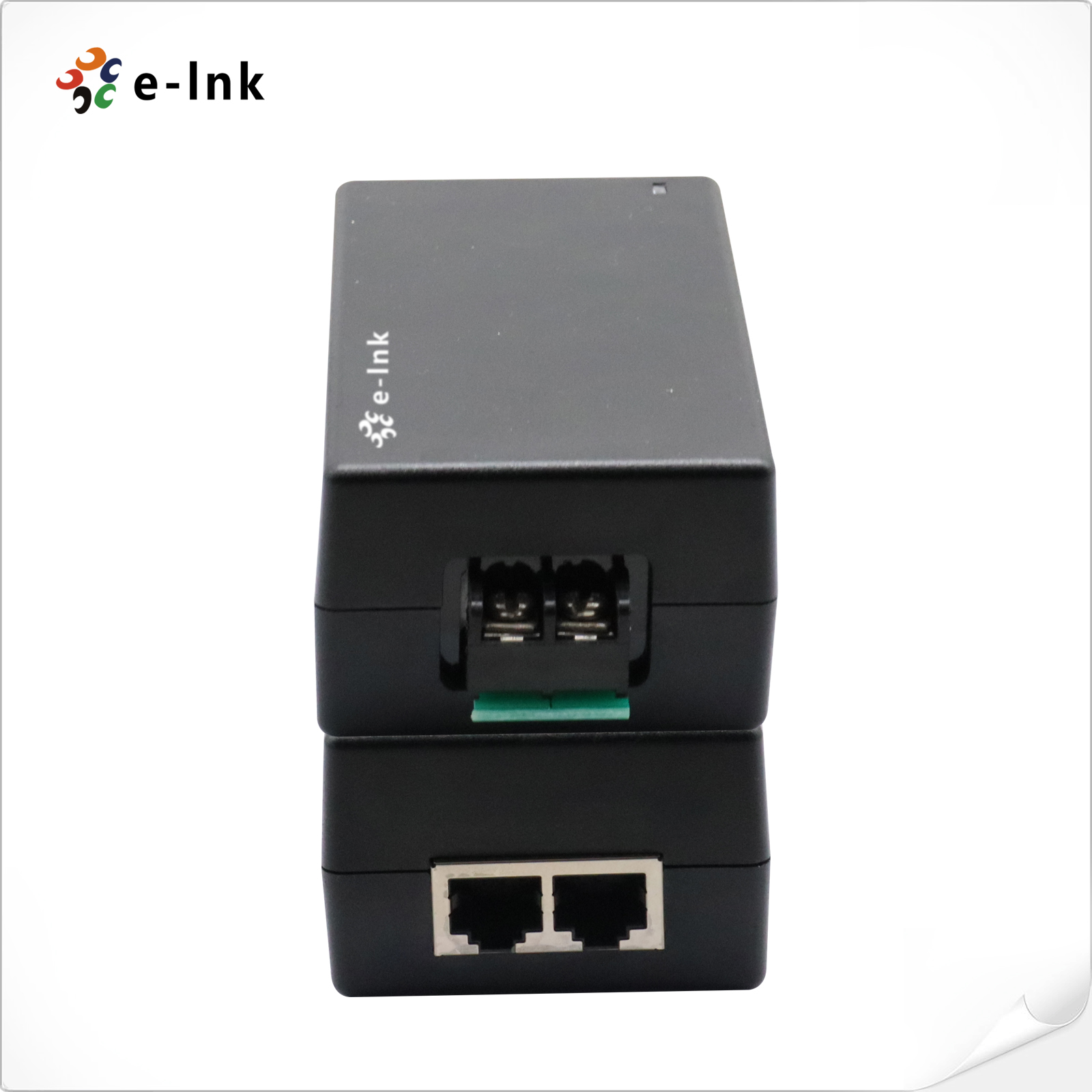

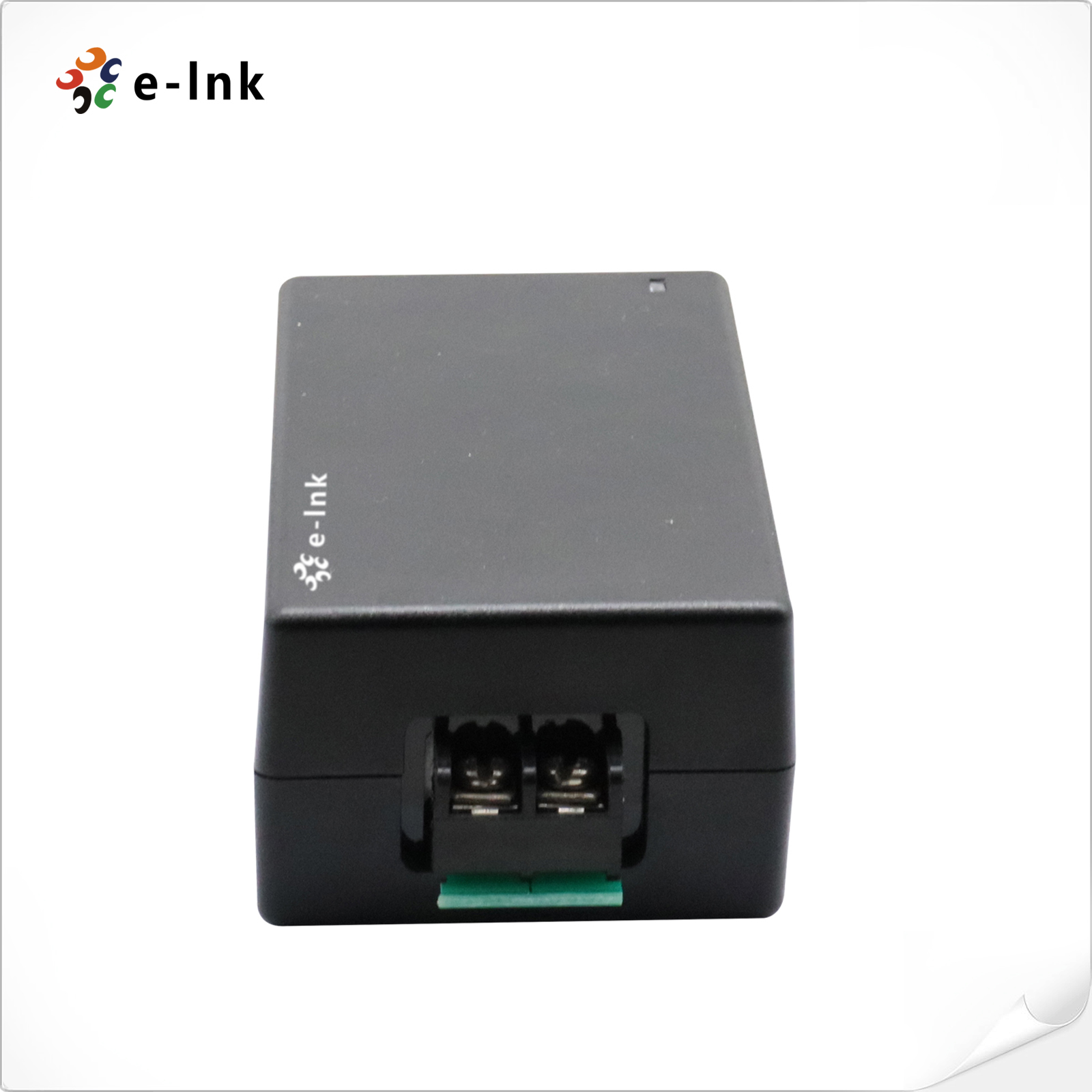

They have a common (-) and two (+) for connecting 2 power sources, such as a primary with a backup power source. A metal enclosure model is available for industrial applications.

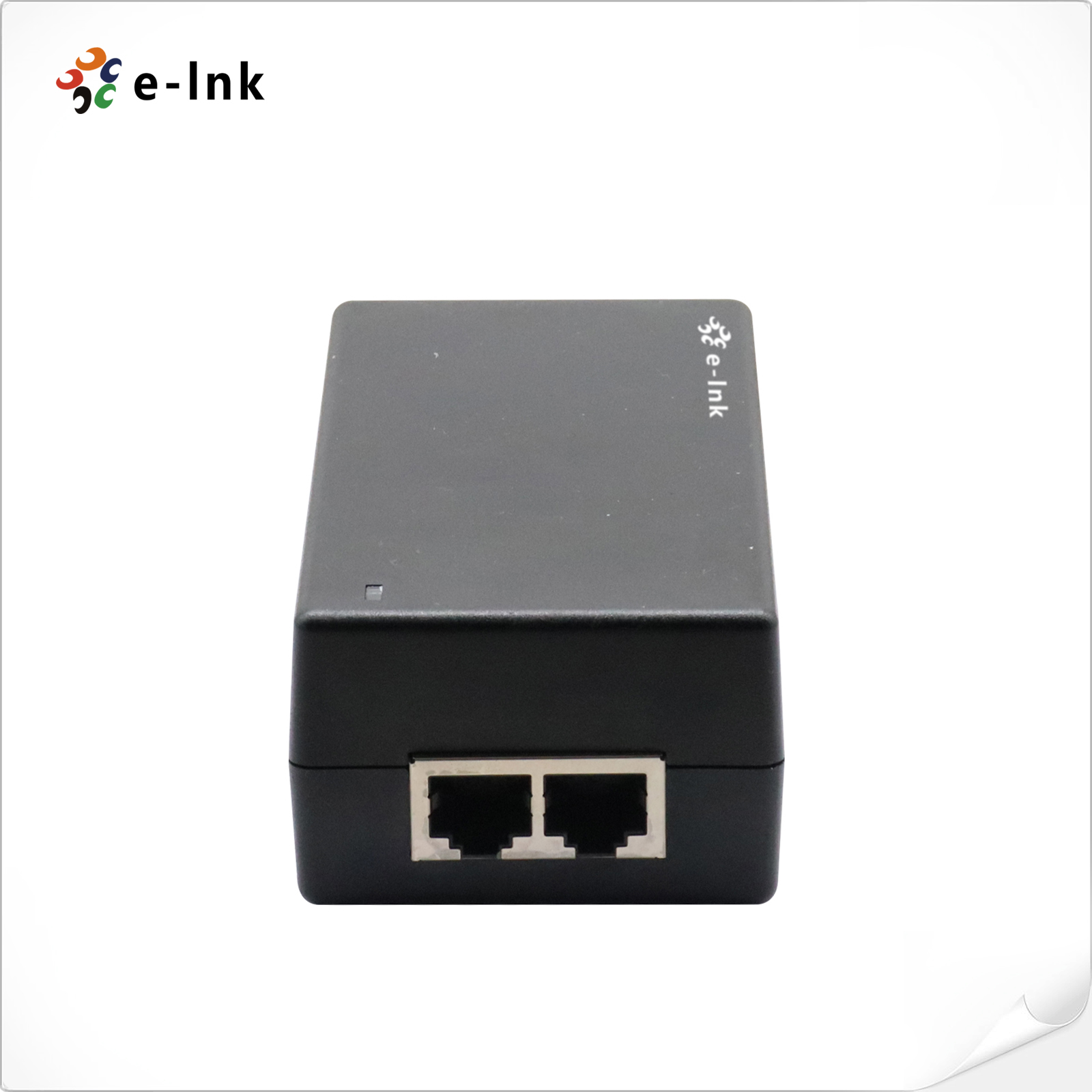

They accept Gigabit data-in to a shielded RJ45 Jack and provide gigabit data-out and PoE power on the shielded RJ45 output jack. It works by supplying power on Ethernet pins 4,5(V+) and 7,8(V-). This converter has various protections for surge, short circuit and overload. Other models have power outputs up to 24W.► Input Voltage 36-72VDC; Output 24VDC (Passive)
► Integrated Gigabit PoE Inserter
► High Power 24W
► Support 10/100/1000Base-T
► Nominal Frequency 50/60KHz
► High Efficiency > 85%
► Over-Voltage/Load/Temperature & Short Circuit protections
► Plug & Play, no configuration required
► Safe and Reliable Power to WLAN Access Points
► Automatic Detection and Protection of Non-standard Ethernet Terminals
► Storage Temperature: -20°C to 70°C
|
Standards: |
IEEE 802.3 10Base-T Ethernet |
|
IEEE 802.3u 100Base-TX Fast Ethernet |
|
|
IEEE 802.3ab 1000Base-T Gigabit Ethernet |
|
|
Processing Type: |
Forward |
|
Half-duplex, Full-duplex |
|
|
Forward Filter Rate: |
1,488,000pps (1000Mbps) |
|
Cabling: |
10/100/1000Base-T: Cat5 or above |
|
Maximum Distance: |
Cat. 5, 5e, 6 up to 100m (328ft) |
|
Connector: |
LAN: 1 x RJ-45 STP, “Data” Input Port POE: 1 x RJ-45 STP, “Data + Power” Output Port |
|
Environmental |
|
|
Operating Temperature: |
-10°C to 50°C (14°F to 122°F) |
|
Storage Temperature: |
-20°C to 70°C (-4°F to 158°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF: |
>200,000hrs |
|
Electrical and Mechanical |
|
|
Input Voltage Range: |
36-72V DC |
|
Output Voltage: |
DC 24V, 1.0A |
|
Power Consumption: |
24 watts max. |
|
Passive PoE (Power over Ethernet) |
|
|
Port: |
RJ45 |
|
Power Pin Assignment |
Pin 1,2 / 4,5 (+), Pin 3,6 / 7,8 (-) |
|
LED Indicators |
|
|
Power: |
Power Status |
|
PoE: |
PoE Status |
|
Dimensions (W×D×H): |
122 x 60 x 40mm |
|
Weight: |
0.35Kg |
|
Casing: |
Plastic Case |
|
Mounting Options: |
Desktop |
|
Regulatory Approvals |
|
|
ISO9001 |
|
|
FCC part 15, Class A |
|
|
EN55022:2006+A1: 2007 Class A |
|
|
Surge Protection: |
|
|
RJ45: 1KV |
|
|
Power: 500W |
|
|
ESD: 4KV/8KV |
|
- Download FileName：E-link LNK-DC-P24G 24V 24W Gigabit Passive PoE OUT Injector Datasheet V1.0.pdf Size： 707KB
|
Model |
Description |
|
LNK-DC-P24G |
36-72VDC IN, 24V 24W Gigabit Passive PoE OUT, DC to DC Converter and PoE Injector |
