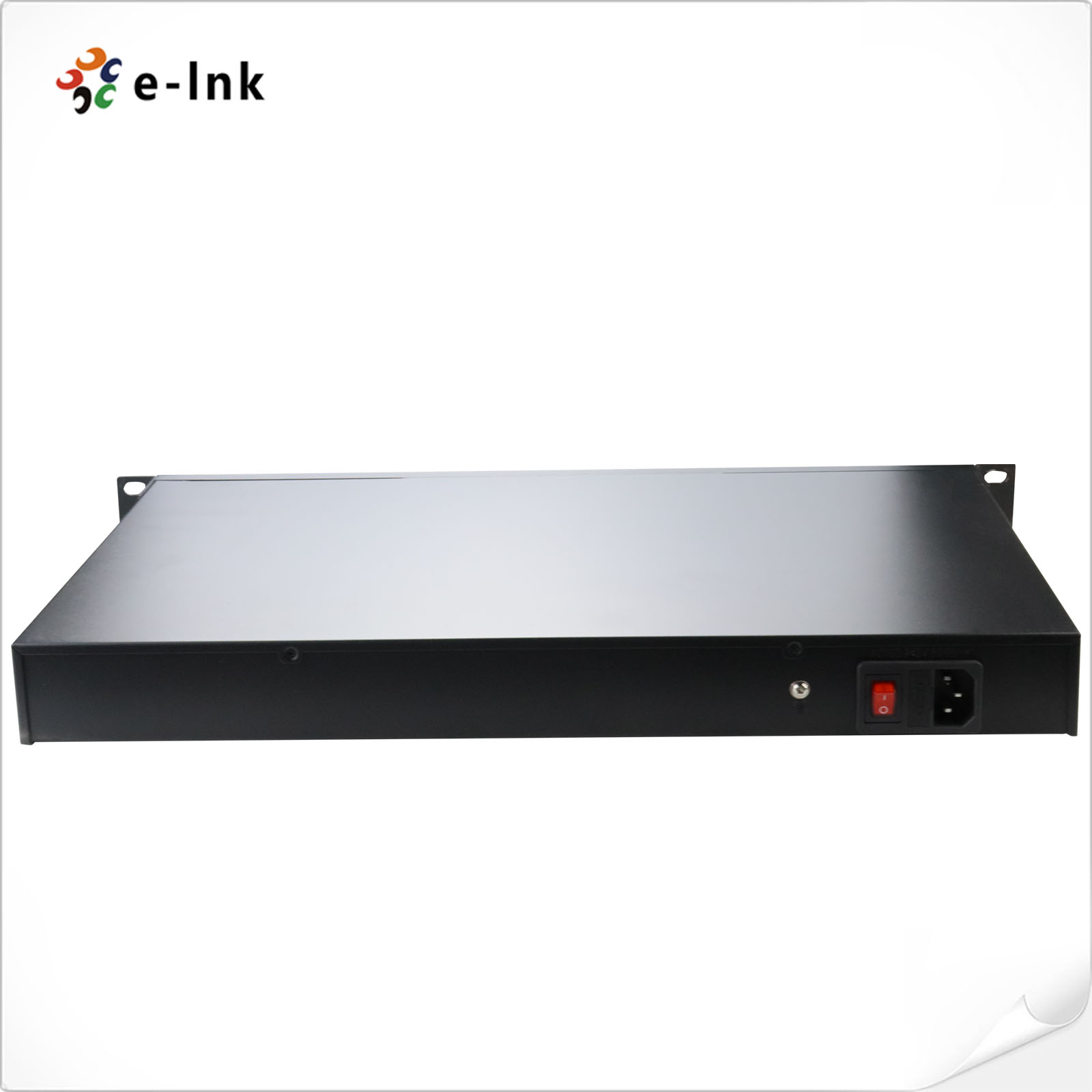

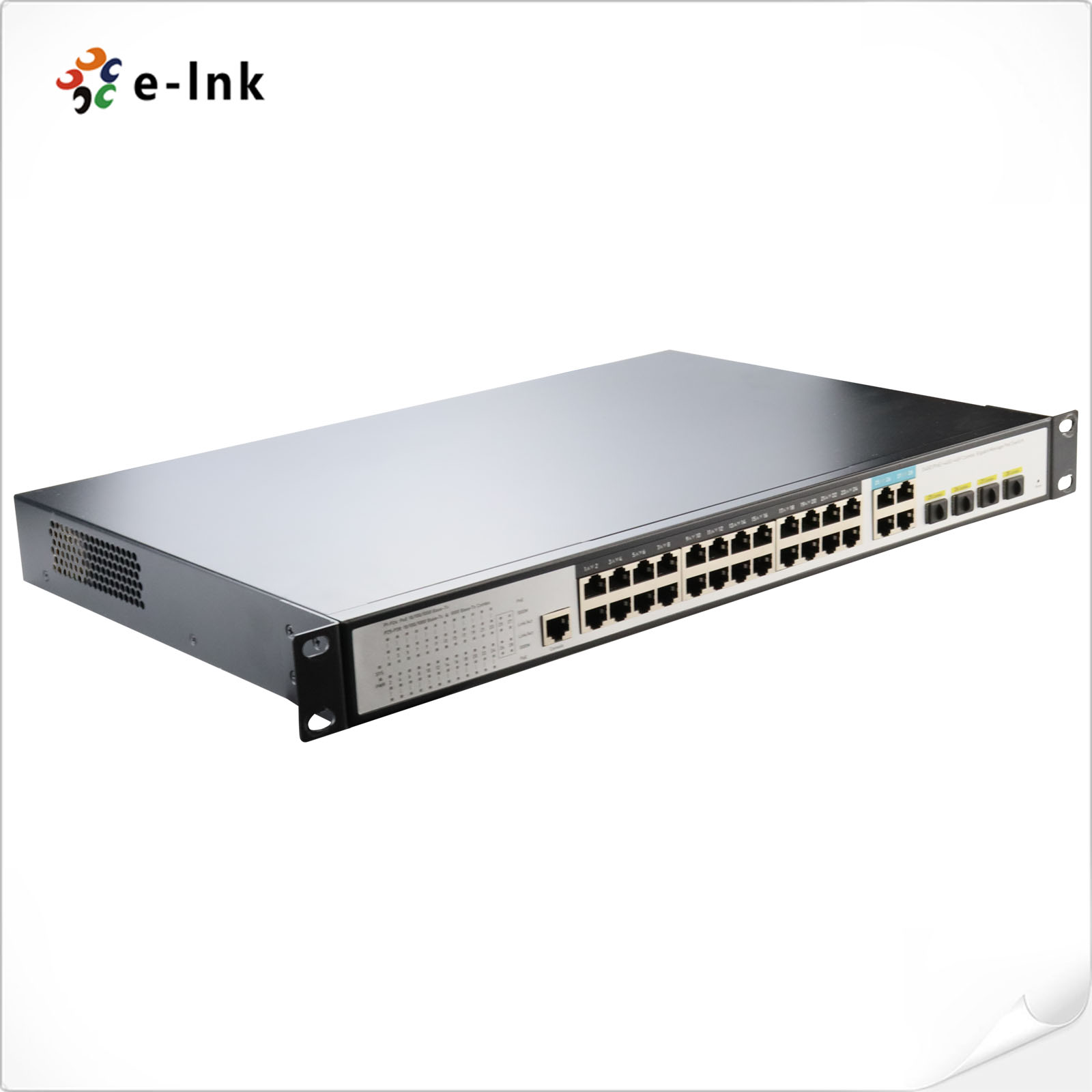

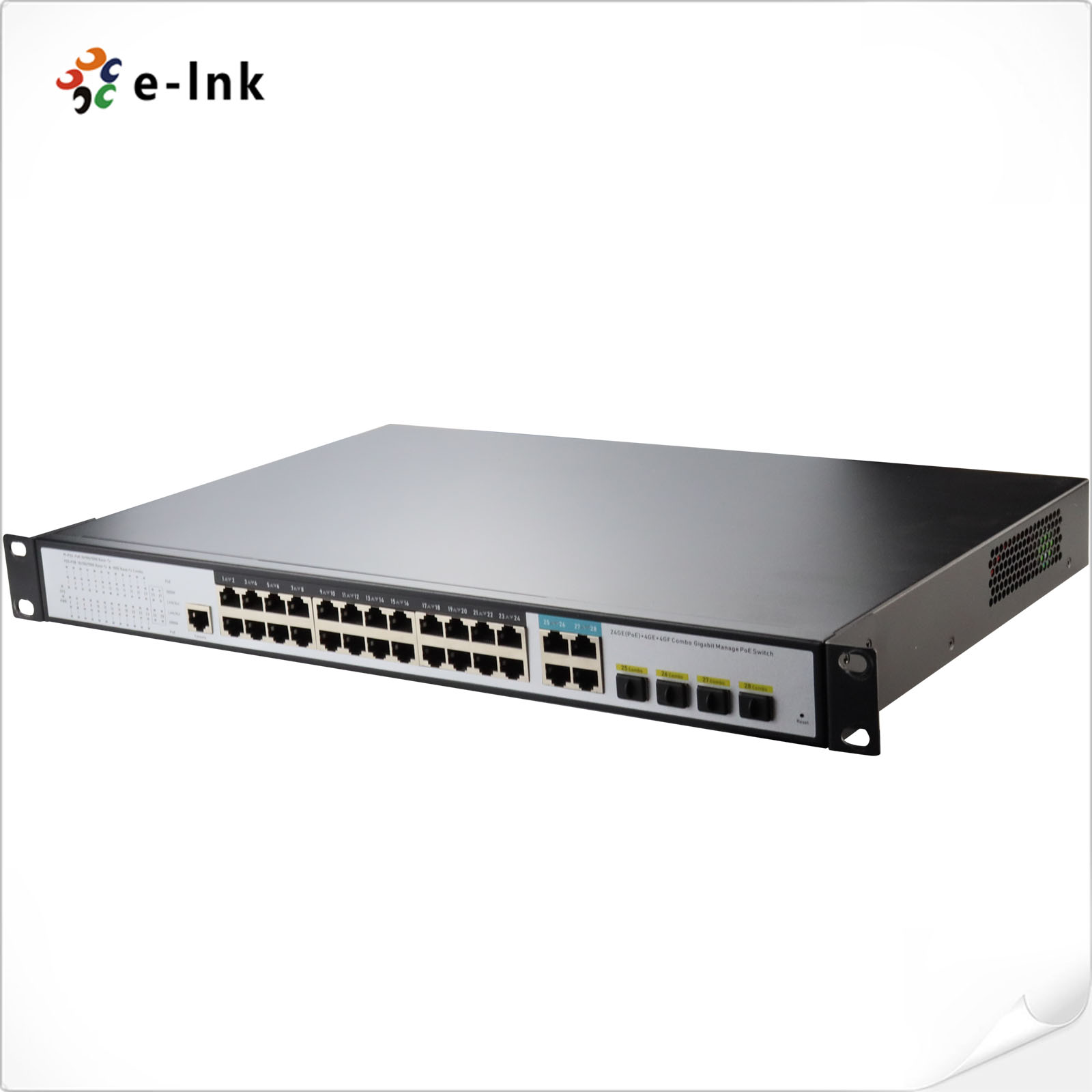

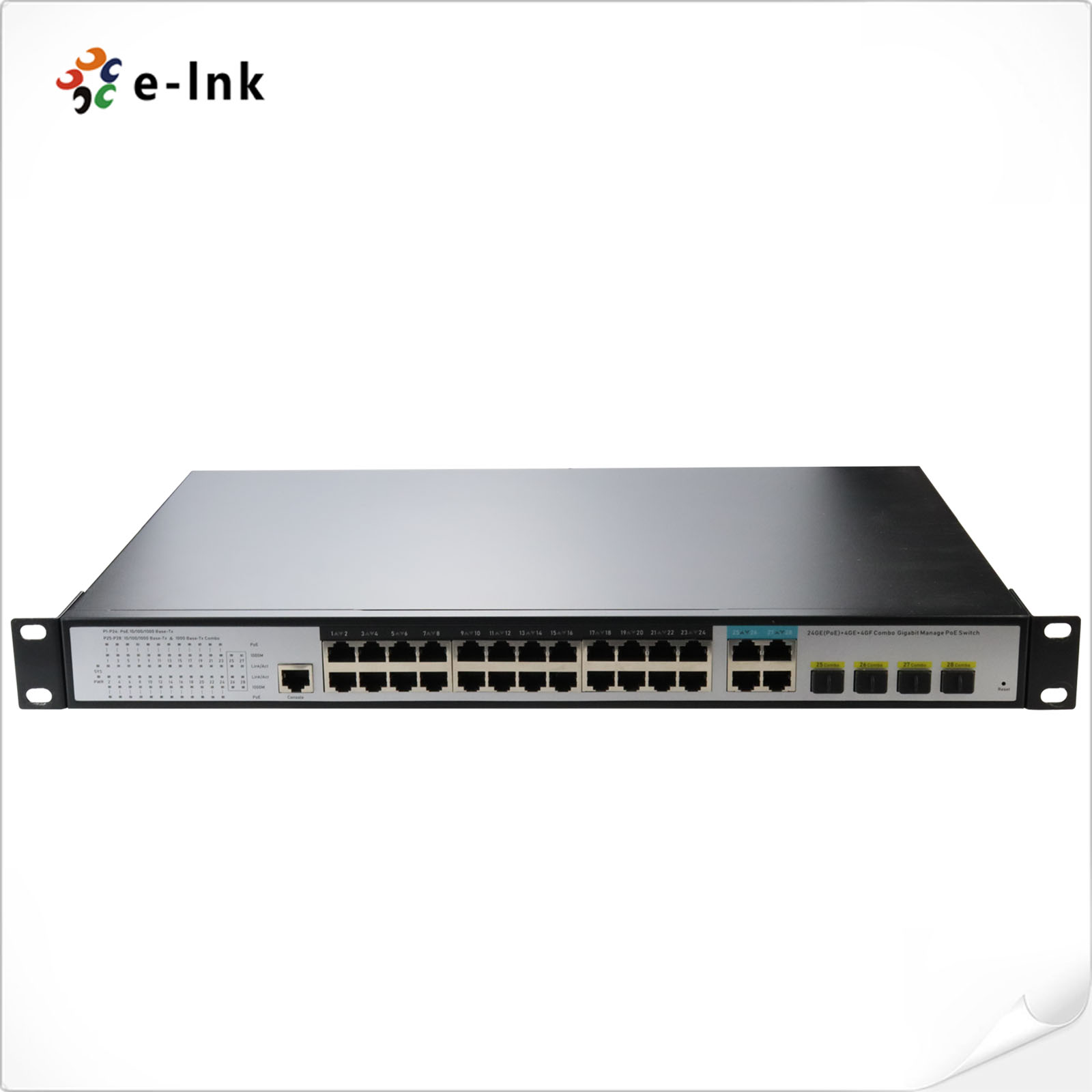

L2+ 24-Port 10/100/1000T 802.3at PoE + 4-Port Gigabit TP/SFP Combo Managed Switch
Model:TS-M324GP-4G4SFP
► 24-Port 10/100/1000BASE-T RJ45 copper with IEEE 802.3at/af Power over Ethernet Injector function
► 4-Port 10/100/1000Mbps TP and SFP shared combo interfaces, supporting 100/1000Mbps dual mode
► RJ45 console interface for basic management and setup
► Web smart management for easy application.
TS-M324GP-4G4SFP Layer 2 Managed Gigabit Switch provides 24 10/100/1000BASE-T ports featuring 36-watt 802.3at PoE+, and 4 extra Gigabit TP/SFP combo interfaces. Each of the eight Gigabit ports provides 36 watts of power, with a total power budget of up to 400 watts for the different types of PoE applications being employed. It provides a quick, safe and cost-effective Power over Ethernet network solution to IP security surveillance for small businesses and enterprises.

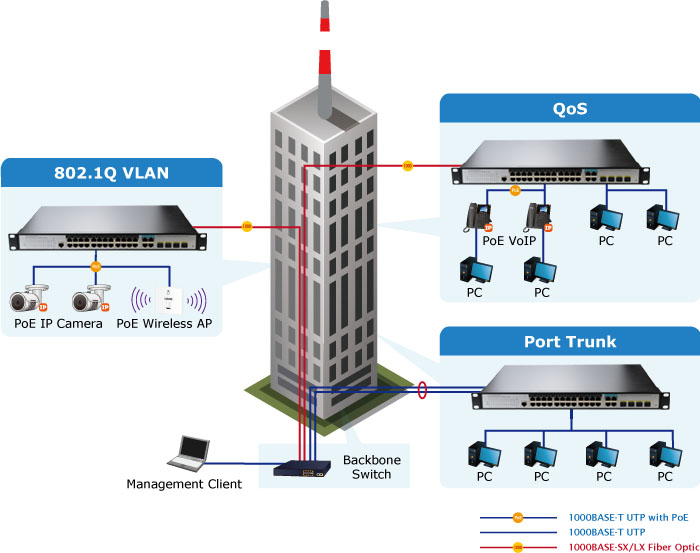

With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.► 24-Port 10/100/1000BASE-T RJ45 copper with IEEE 802.3at/af Power over Ethernet Injector function
► 4-Port 10/100/1000Mbps TP and SFP shared combo interfaces, supporting 100/1000Mbps dual mode
► RJ45 console interface for basic management and setup
► Web smart management for easy application.
► Bandwidth management based on port input and output
► SNMP V1/V2/V3 management
► Support loop protection, automatic recovery
► Plug & play, no configuration required
|
Physical Port |
|
|
RJ45 port and speed |
24x10/100/1000Base-TX 802.3at PoE |
|
Fiber port and speed |
4xGigabit TP/SFP Combo Managed Switch |
|
Parameters |
|
|
Ethernet standards |
IEEE 802.3 IEEE 802.3u 100BASE-TX IEEE 802.3ab1000BASE-T IEEE 802.3x IEEE 802.3z 1000BASE-X IEEE 802.3af/at IEEE 802.3ad IEEE 802.3q, IEEE 802.3q/p IEEE 802.1w, IEEE 802.1d, IEEE 802.1S STP (Spanning Tree Protocol) RSTP/MSTP (Rapid Spanning Tree Protocol) ERPS ring network protocol |
|
Packet buffer |
4Mbits |
|
MAC address table |
8K |
|
Transmission mode |
Store and Forward (full/half duplex mode) |
|
Exchange property |
Delay
time: < 7μs |
|
PoE |
|
|
PoE Standard |
24x IEEE 802.3af /IEEE 802.3at PoE |
|
Power budget |
Max. PoE output power budget 30W |
|
LED Indicator |
|
|
Power |
Connect-always |
|
RJ45 |
Link/Act: connect-always; Data exchange-twinkle Speed light: 100Mbps-always; 10Mbps-twinkle |
|
Fiber |
Link/Act: connect-always; Data exchange-twinkle |
|
Power Information |
|
|
Power |
Built-in power AC 100~240V 50/60Hz MAX Current 5.2A MAX Power 400W |
|
Physical Property |
|
|
Protection grade |
IP30 |
|
Dimensions |
440mm x 290mm x 45mm (L x W x H) |
|
Installation mode |
Rack Mounting |
|
Weight |
3600g |
|
Working Environment |
|
|
Operating Temperature |
-20℃~55℃ |
|
Storage Temperature |
-40℃~75℃ |
|
Warranty |
|
|
MTBF |
200,000 hours |
|
Defects Liability Period |
1 year warranty, lifetime technical support |
|
Certification Standard |
|
|
EMI |
FCC Part15 Subpart B Class A, EN 55022 Class A |
|
EMS |
EN61000-4-2(ESD), EN61000-4-3(RS), EN61000-4-4(EFT), EN61000-4-5(Surge), EN61000-4-6(CS), EN61000-4-8, EN61000-4-11 |
|
Collision |
IEC60068-2-27 |
|
Drop |
IEC60068-2-32 |
|
Vibration |
IEC60068-2-6 |
|
Safety grade |
EN60950-1 |
|
Software |
|
|
Software Features |
Redundant network: STP, RSTP, EAPS/ERPS |
|
Multicast: IGMP Snooping V1/V2/V3, GMRP |
|
|
Support port-based VLAN Up to 4096 VLANs Support Voice VLAN |
|
|
802.1p port queue priority algorithm Cos/Tos, QOS remark WRR (Weighted Round Robin), weighted priority rotation algorithm WRR, SP, priority scheduling modes |
|
|
WEB interface management CLI management based on Telnet, TFTIP, Console SNMP V1/V2/V3 management |
|
|
Support many-to-one port mirroring |
|
|
DHCP Snooping |
|
|
Security DHCP Snooping, Option 82, 802.1X, User hierarchical management, ACL, DDOS, port based MAC filtering / binding |
|
|
Half duplex based on Back pressure; Full duplex based on PAUSE frame |
|
- Download FileName：TS-M324GP-4G4SFP Managed 24G+4 Gigabit Combo PoE Switch Datasheet V1.0.pdf Size： 679KB
|
Model |
Description |
|
TS-M324GP-4G4SFP |
L2+ 24-Port 10/100/1000T 802.3at PoE + 4-Port Gigabit TP/SFP Combo Managed Switch, total power budget of up to 400 watts |
|
Mounting Options |
► Desktop or Rack Mounting Installation |
|
SFP Options |
► SFP option. Please select your SFP on our SFP Options Page |
|
► SFP module is to be purchased separately. |
