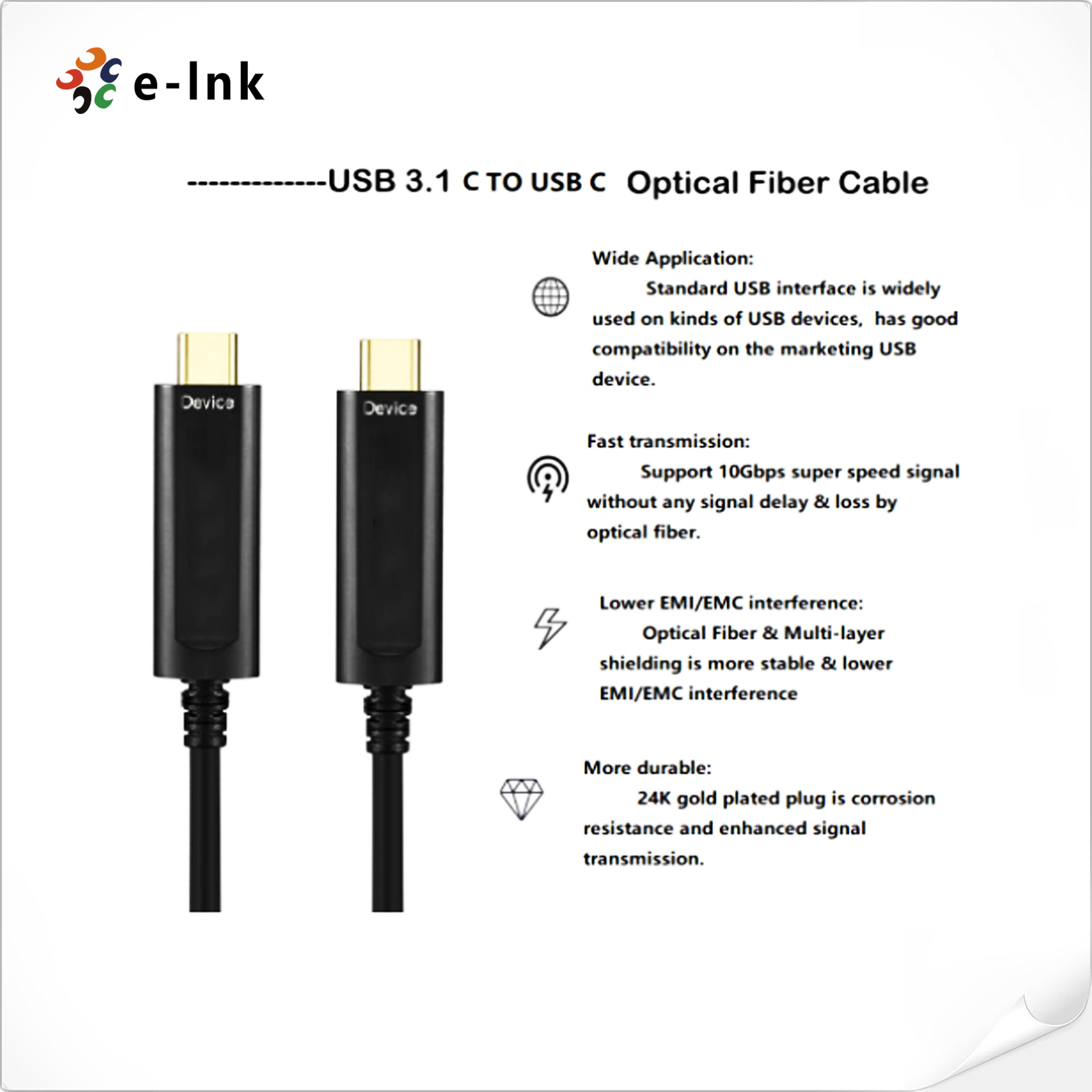

USB3.1 Type C to C Fiber Optical Cable
Model:LNK-U31-AOC series

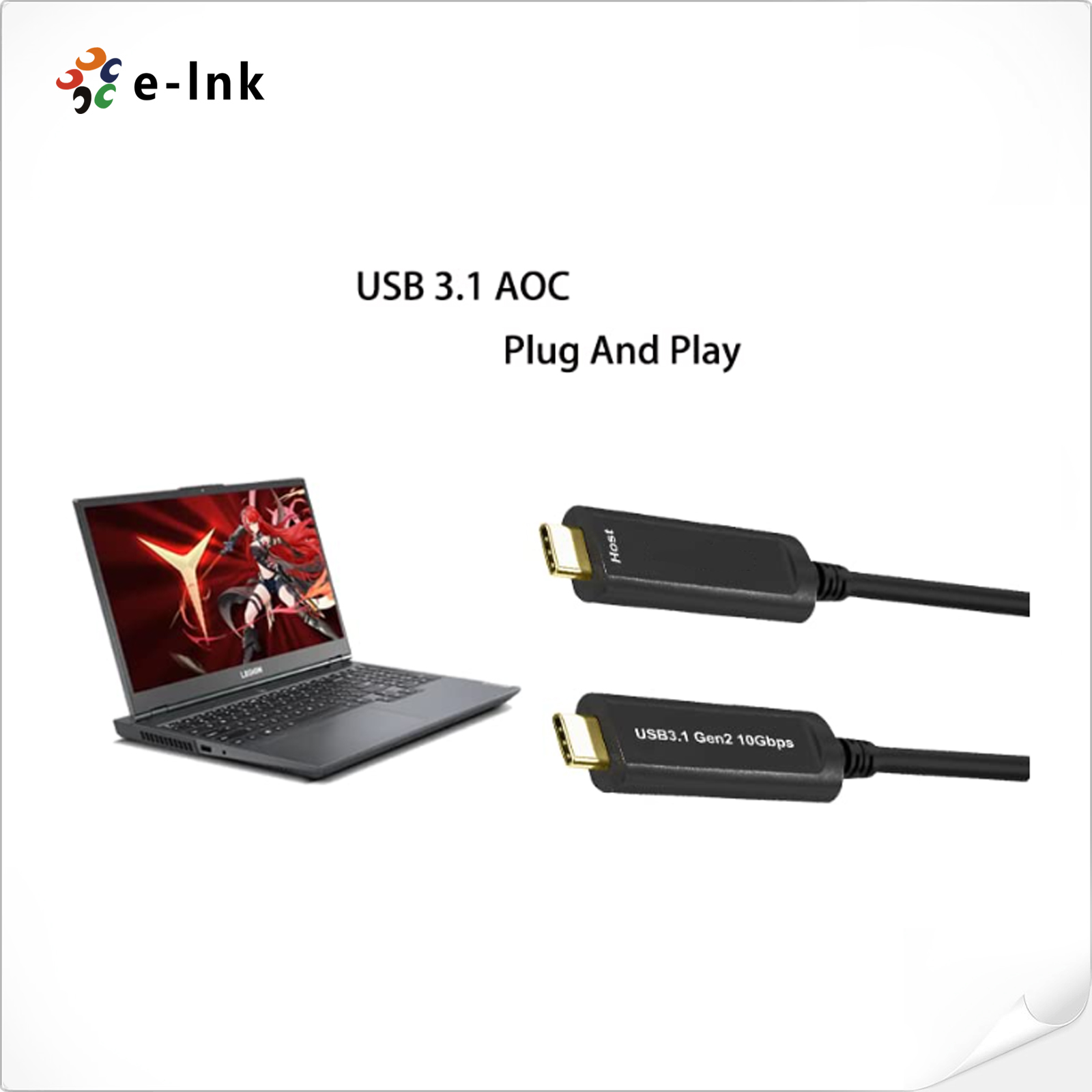

► Plug and play, no need external power supply.

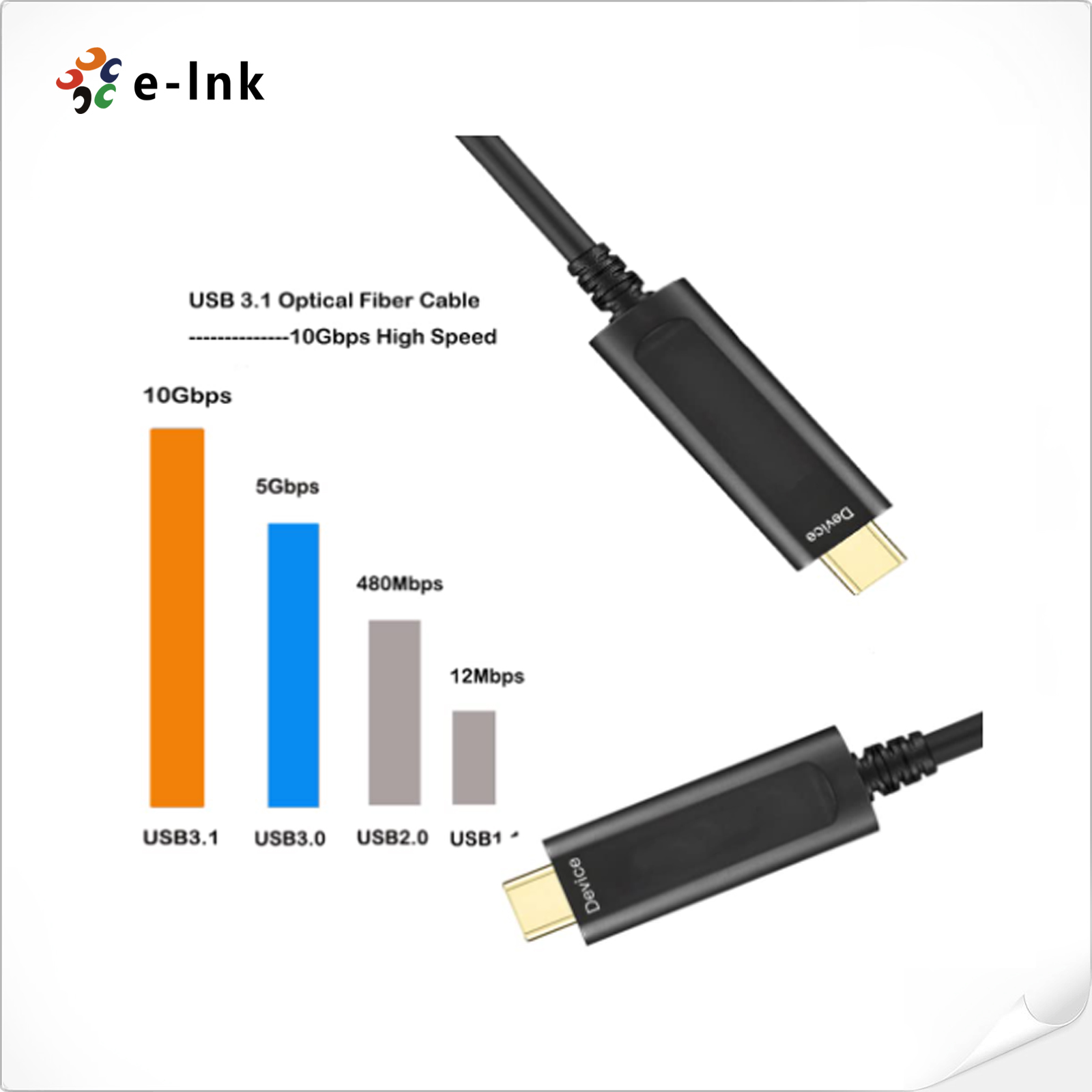

► Support USB 3.1 Gen 2 and full bandwidth reach up to 10Gbps.
► Supports both USB 2.0 and 3.1 in same cable up to 40 meters.
► Supports up to 100m (300ft.) cable length.
E-link USB 3.1 fiber optical cable Under the help of optical fiber design, cable OD only 4.8mm, easy for installation, support plug & play, no need external power supply. And has lower EMI interrupt, and without signal loss at high-speed signal transmission. Different USB devices with comprehensive compatibility testing before shipment, has perfect compatible with most USB device.

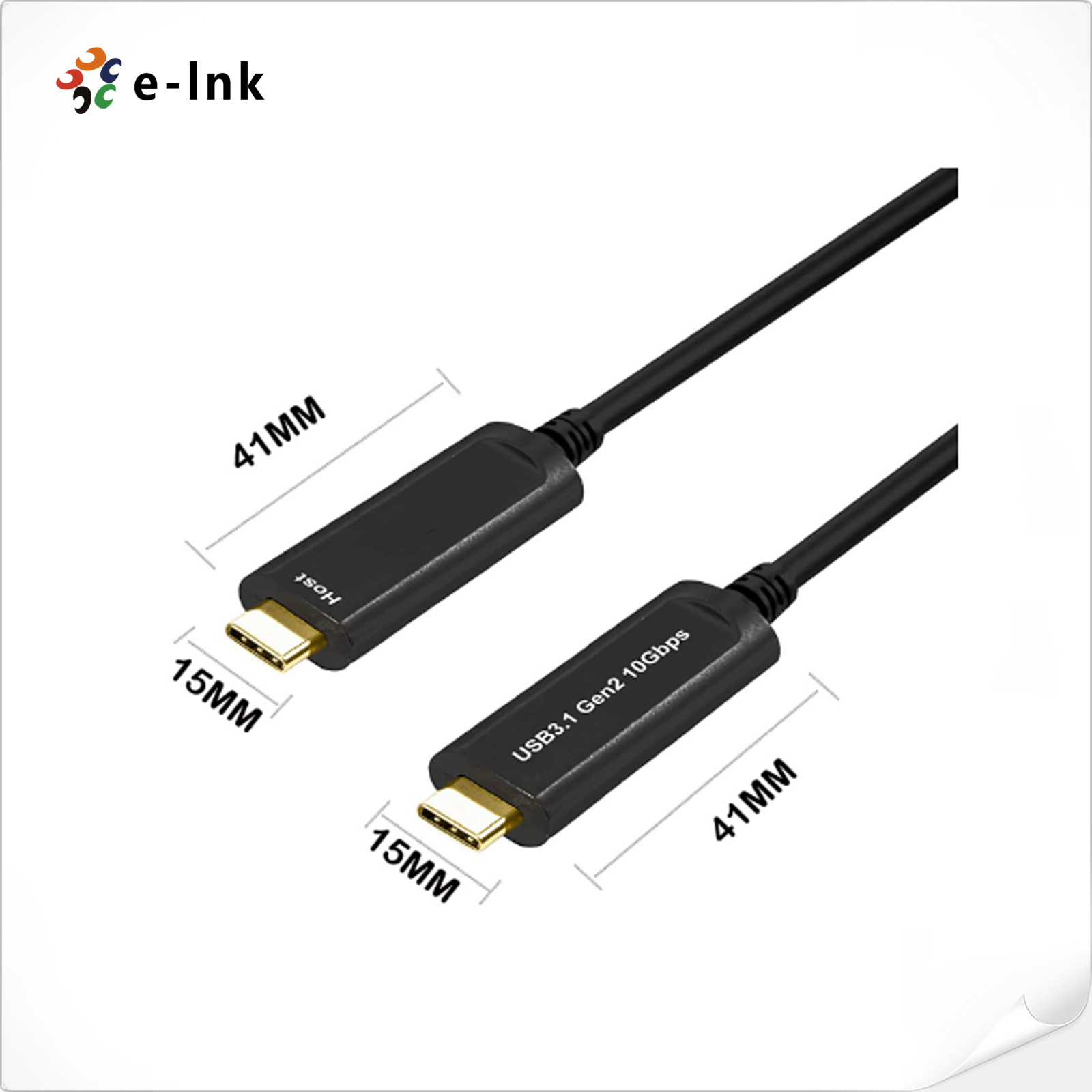

E-link USB 3.1 Active Optical Cable one side adopt standard USB type C male at Host (PC) side, and USB 3.1 type C at Device side, this can allow users can use E-link cable at USB type C interface device, it saves converting, space saving, it is most convenient for the application.
E-link USB cable support Windows, Linux, Mac OS, plug & play, no need installation firmware. Benefit on it is long distance (10m 15m 20m 30m 50m), it is widely used on CCTV, Industrial Camera, Machine Vision, Medical System, Pro-AV system integrator, Video Conference Room, Deep Vision applications.► Plug and play, no need external power supply.
► Support USB 3.1 Gen 2 and full bandwidth reach up to 10Gbps.
► Supports both USB 2.0 and 3.1 in same cable up to 40 meters.
► Supports up to 100m (300ft.) cable length.
► Low EMI (electromagnetic interference) protection.
► Standard operating temp: 0 to 50C.

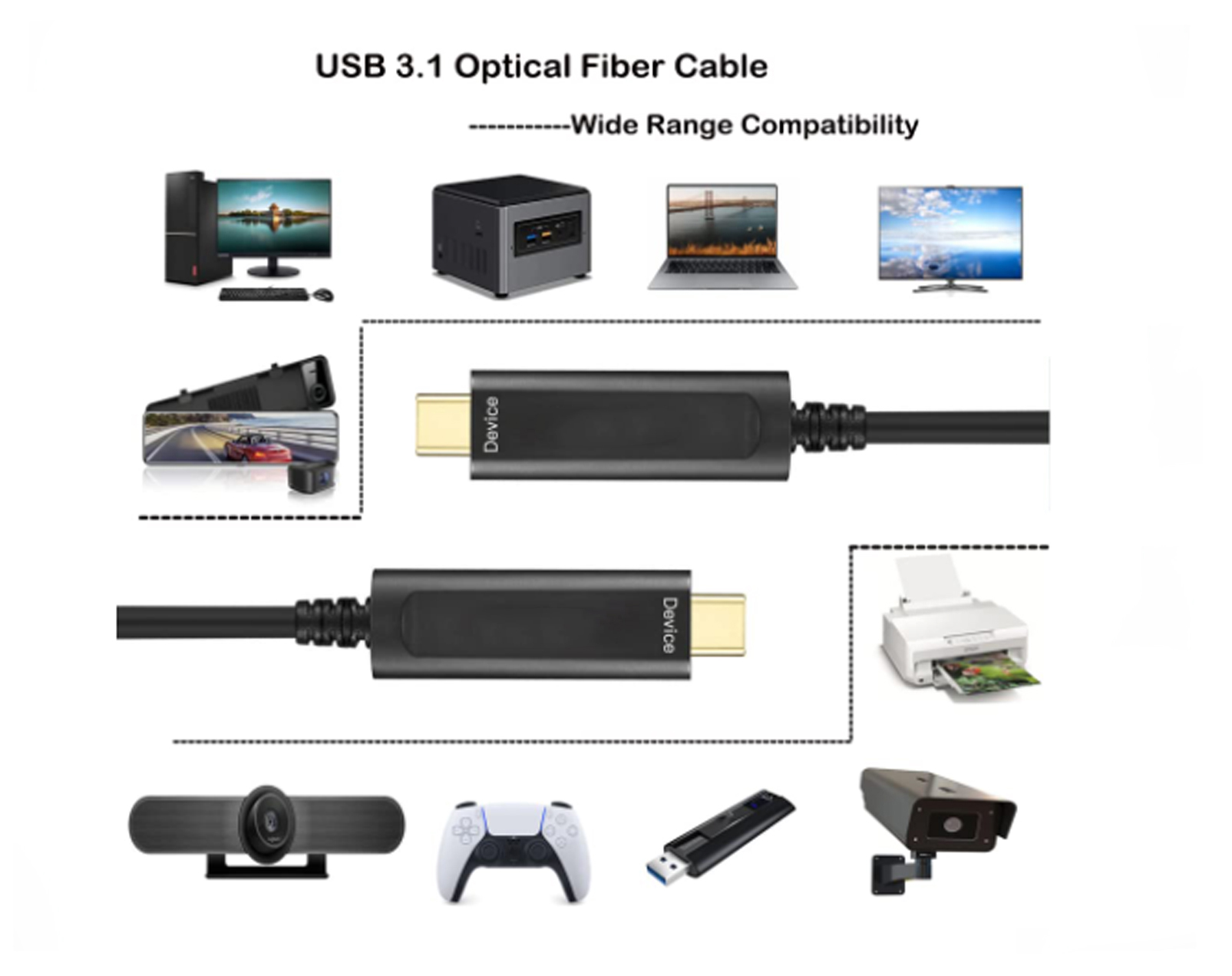

► Widely used on Industrial Camera, Machine Vision system, Medical System, Security Monitoring system, Conference system, Broadcasting system, High frequently used on Printer, Scanner, Touch Screen, Camera, Game Controller etc.
|
Performance |
|
|
Protocol Specification |
USB 3.1, USB 3.0, USB 2.0 (copper) |
|
Transmission Data Rate |
10Gbps |
|
Interface |
|
|
Input |
USB Type-C |
|
Output |
USB Type-C |
|
Power Supply |
Low power consumption, no external power supply required |
|
Cable |
|
|
Cable Type |
Optical fiber cable |
|
Fiber Type |
2-core MMF |
|
Cable Length Options |
1/2/5m |
|
Max. Cable Length |
5m |
|
Cable Jacket |
TPE/85A |
|
Color |
Black |
|
Cable Diameter |
4.3mm±0.15mm |
|
Weight |
Depends on length |
|
Min. Bending Radius |
12mm |
|
Max. Tensile Load |
221N |
|
Working Environment |
|
|
Operating Temperature |
0℃to +50℃ |
|
Storage Temperature |
-40℃to +80℃ |
|
Optical Power |
|
|
Input Voltage |
5~20V |
|
Power Supply Capability |
3A |
|
Power Consumption |
≤ 500mW |
|
Package |
|
|
Package List |
Anti-static bag, cable tie, transmission line, instruction manual |
|
Attention: During use, be careful to avoid excessive bending and breaking the fiber. For details, please refer to the bending radius. |
|
- Download FileName：E-link LNK-U31-AOC USB3.1 Type C to C Fiber Optical Cable Datasheet V1.0.pdf Size： 734KB
|
Model |
Description |
|
LNK-U31-AOC-5 |
USB3.1 Type C to C Fiber Optical Cable, 5 Meters |
|
LNK-U31-AOC-10 |
USB3.1 Type C to C Fiber Optical Cable, 10 Meters |
|
LNK-U31-AOC-15 |
USB3.1 Type C to C Fiber Optical Cable, 15 Meters |
|
LNK-U31-AOC-20 |
USB3.1 Type C to C Fiber Optical Cable, 20 Meters |
|
LNK-U31-AOC-30 |
USB3.1 Type C to C Fiber Optical Cable, 30 Meters |
