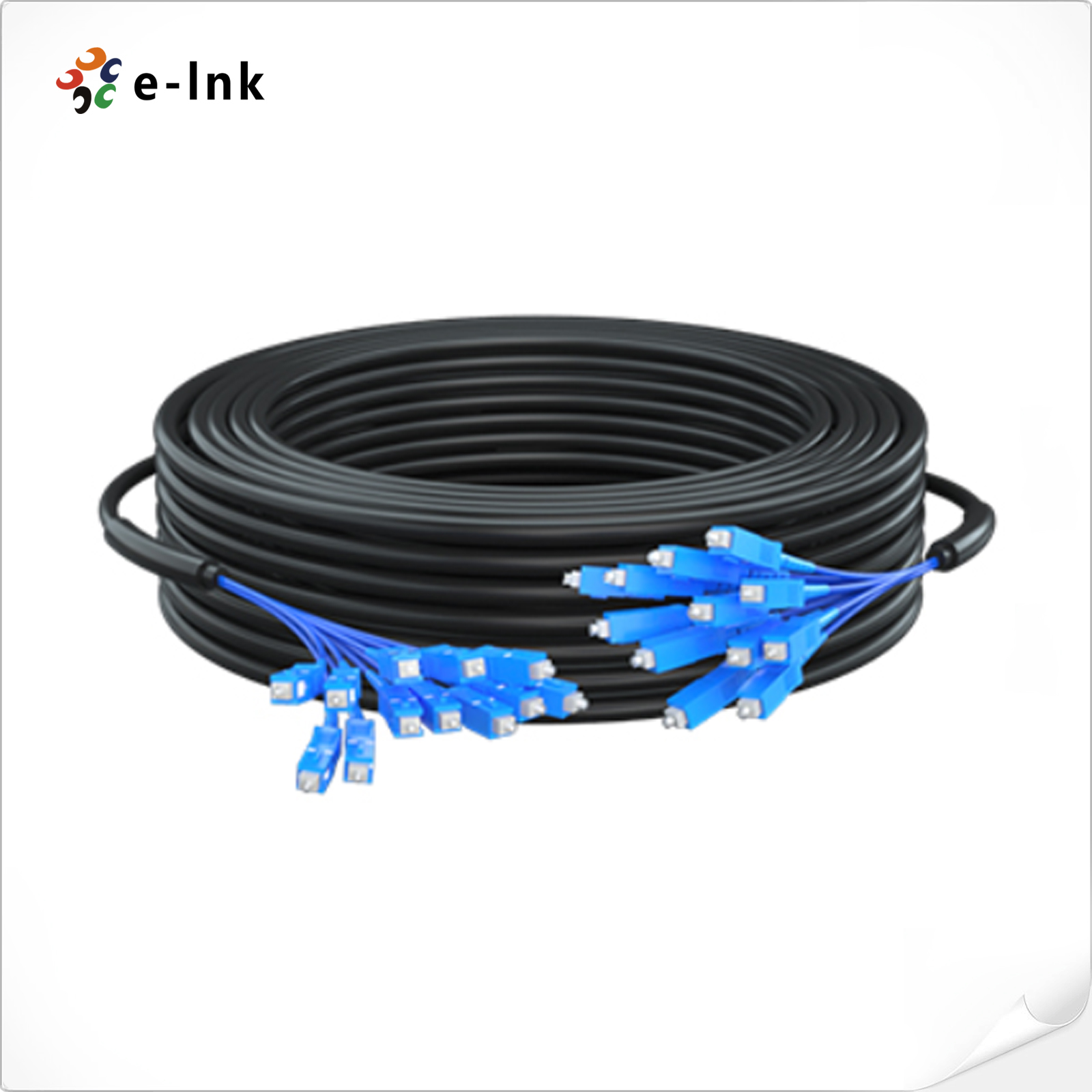

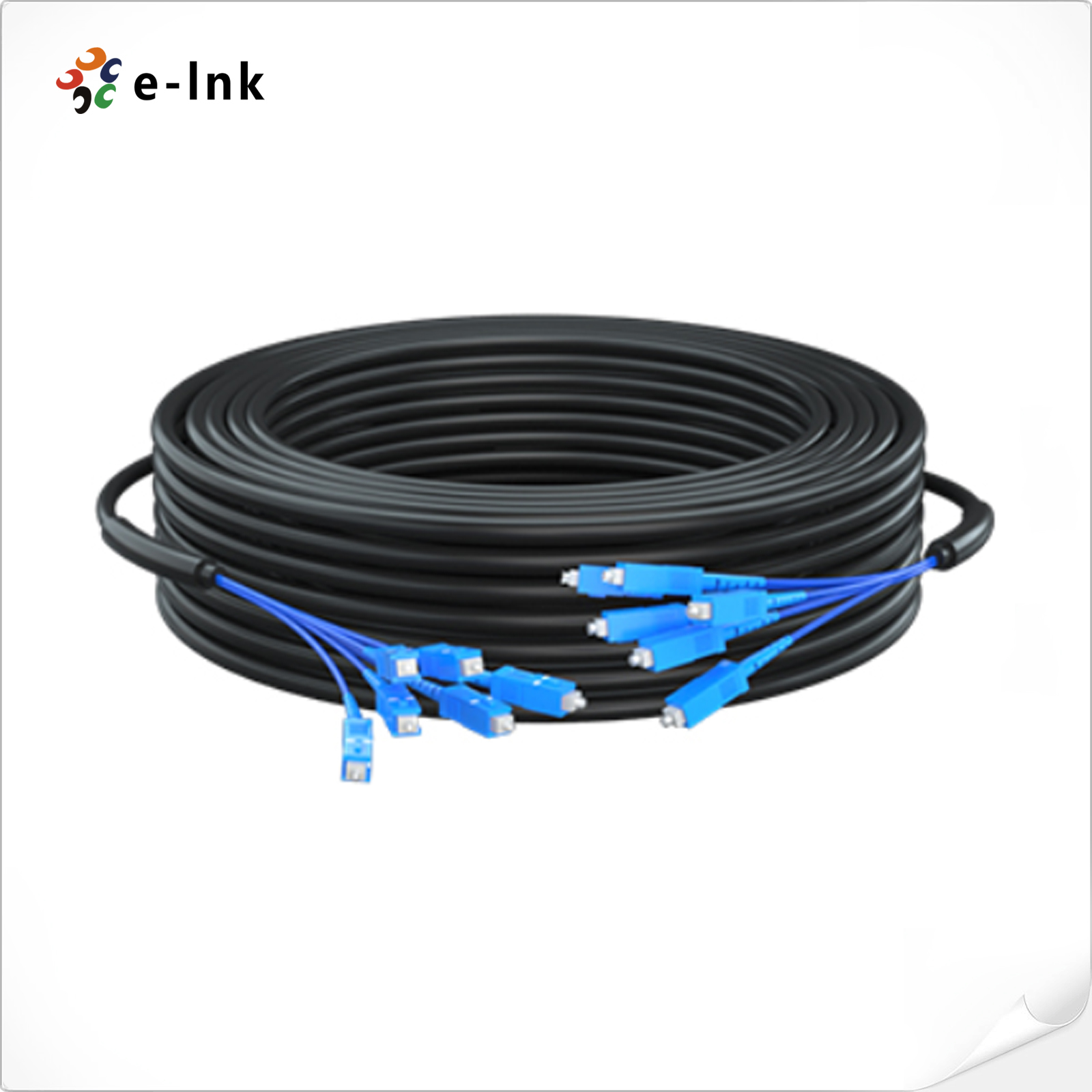

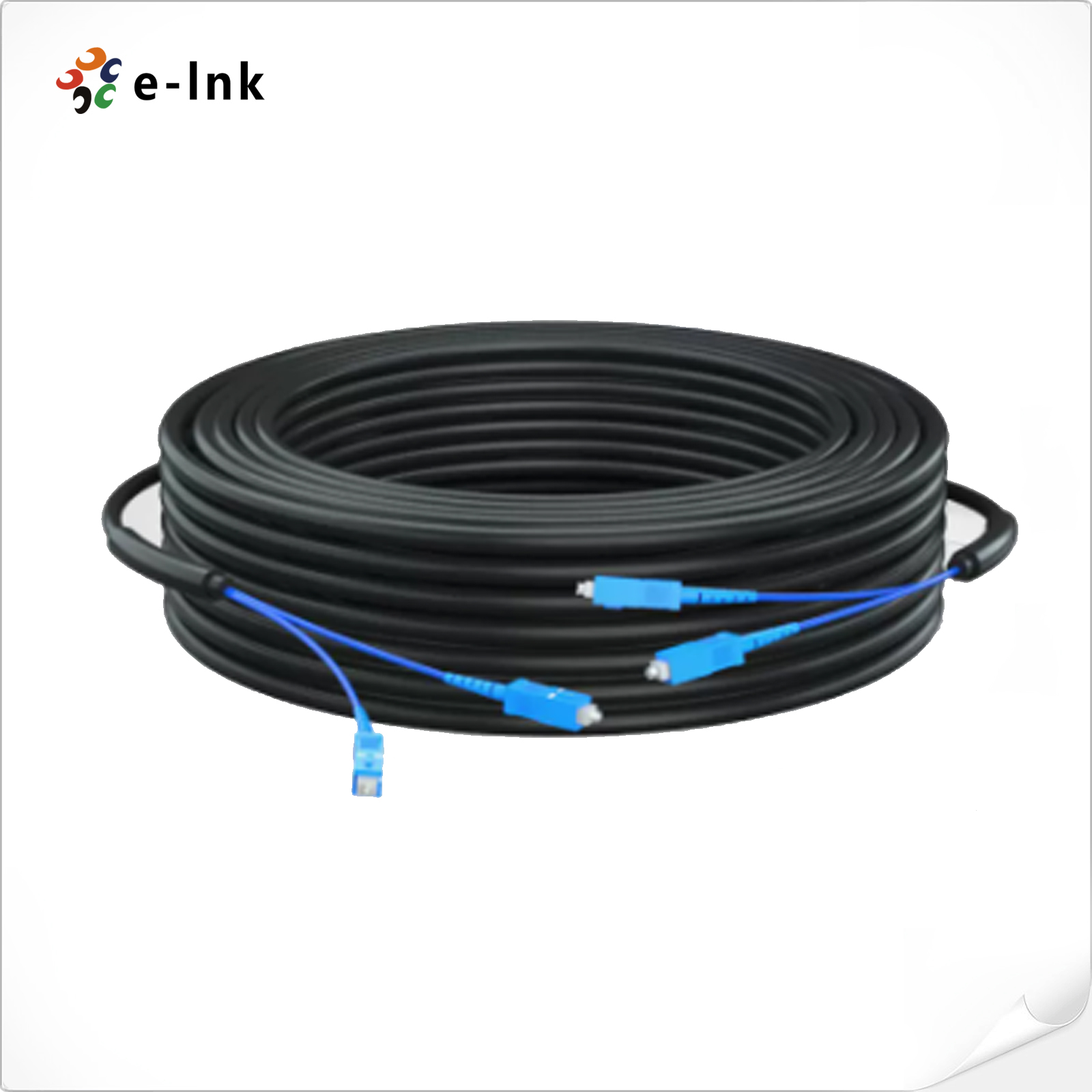

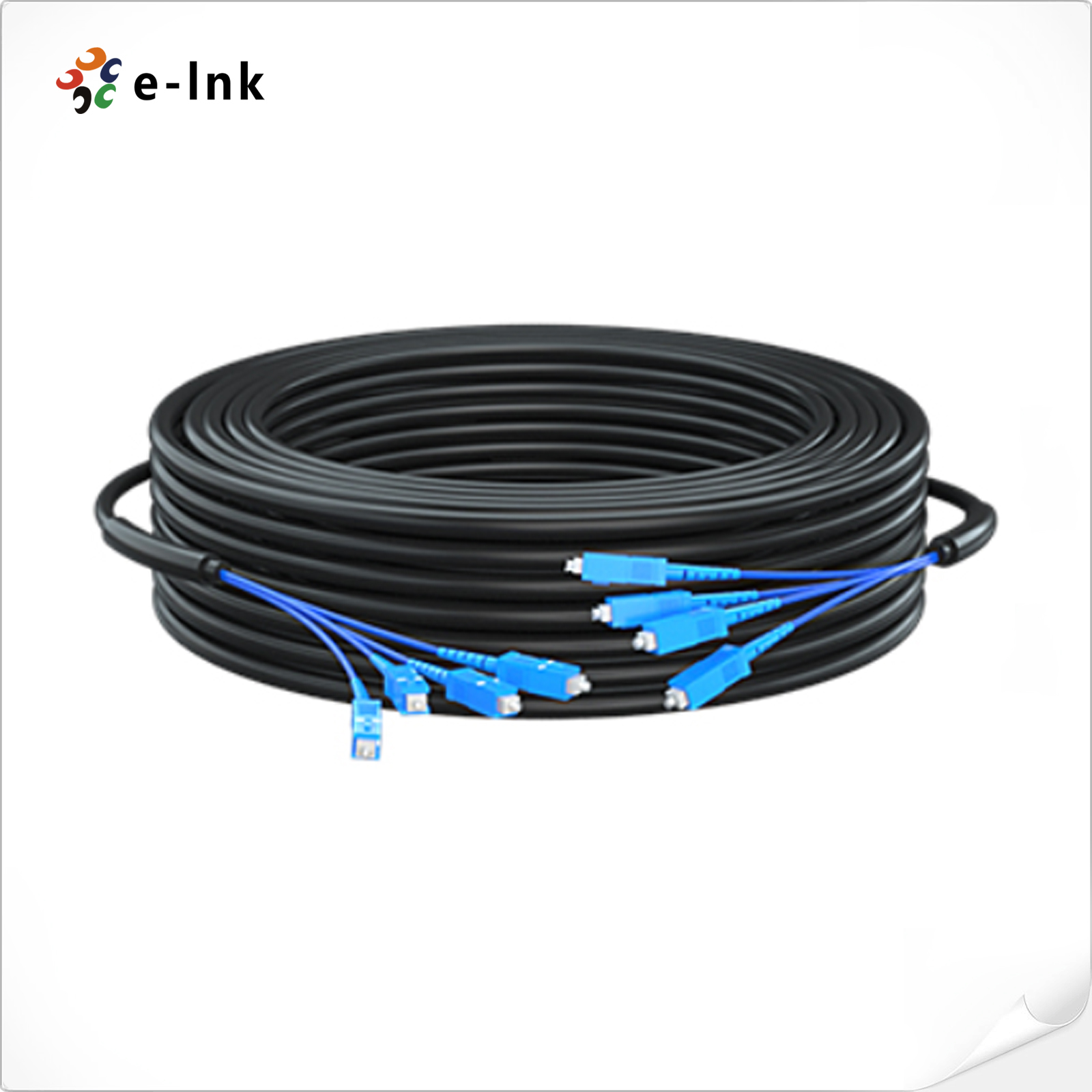

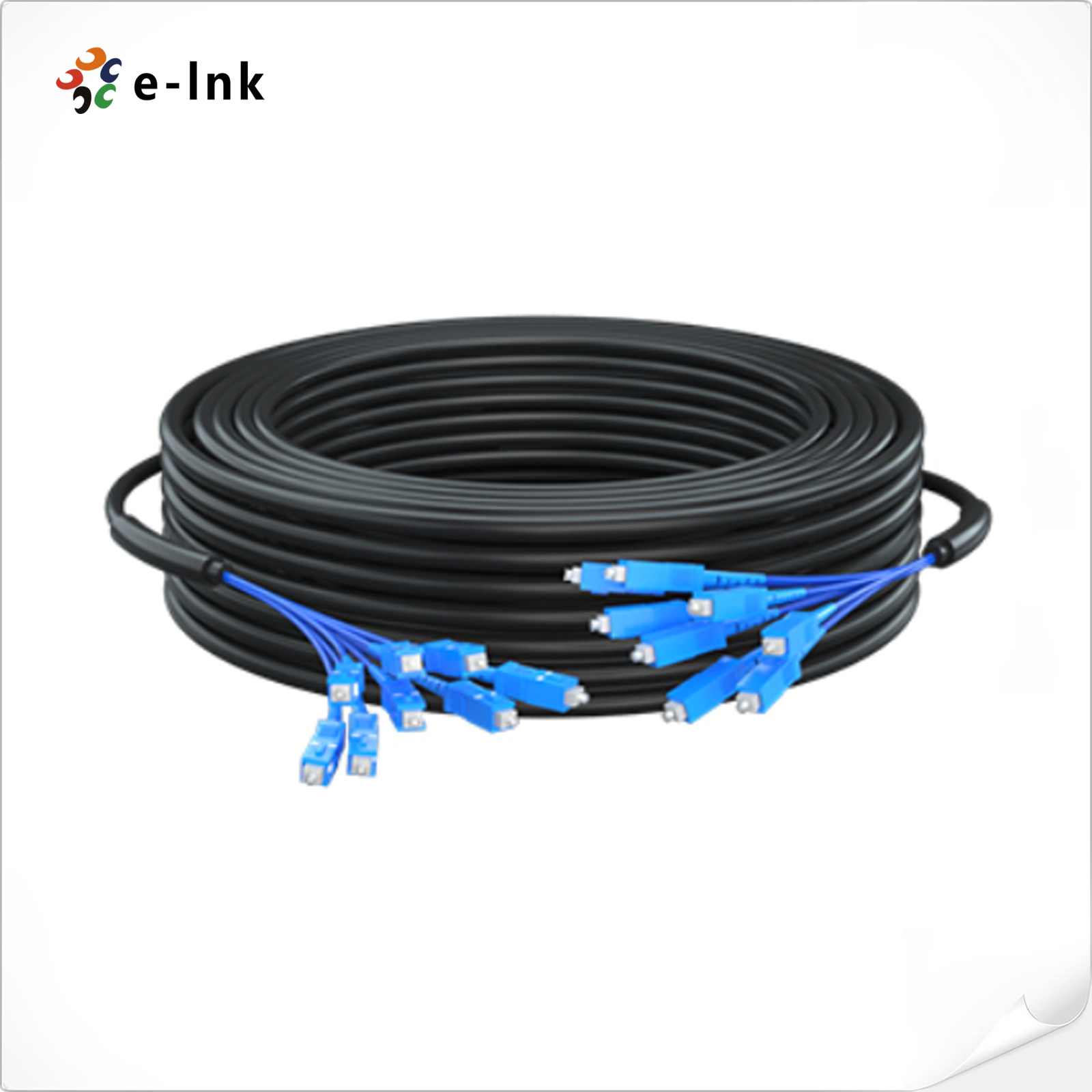

Outdoor Armored 2-12Core SM Fiber Patch Cable (SC, LC, FC, ST Connector Optional)
Model:LNK-2/4/6/8/12OFC Series
► Outdoor Armored Cable, 9/125, 2-12 Core, Single mode

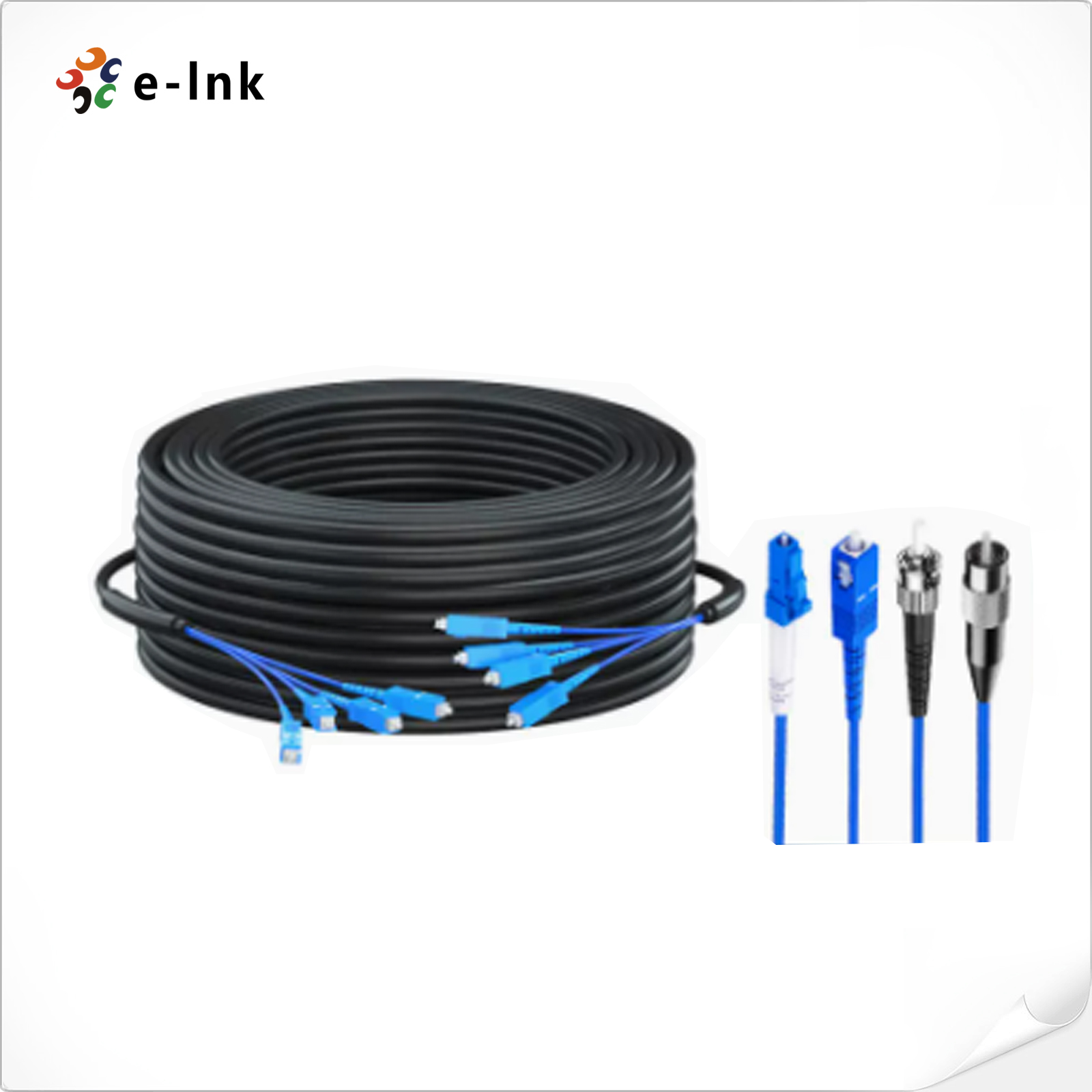

► SC, LC, FC, ST Connector Optional
► Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property
E-link Armored Fiber Patch Cable is considered ruggedized Fiber Optics. The transmission speeds are equal to common fiber optic cable, but the optical cable is equipped with a shield that is encased by a protective braid, which increases the durability. Armored Fiber Cable is designed to withstand in the harsh environments.
As Fiber Optics continue to modify the face of high-speed interconnection technology, E-link’s 2-12Core Armored Fiber raises the bar yet again. With the incorporation of the 2-12Core’s light weight design and additional connector options, it is a perfect fit for any high-speed system that needs to factor durability into their communication equation.► Outdoor Armored Cable, 9/125, 2-12 Core, Single mode
► SC, LC, FC, ST Connector Optional
► Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property
► Novel flute design, easily strip and splice, simplify the installation and maintenance
► Ceramic connectors ensure low signal loss, and high reliability
► All our products are 100% new fiber optic cable of carrier-class quality, and 100% test before delivery
► Low smoke, zero halogen and flame retardant sheath
► Adapt to harsh environments and man-made damage
|
Specifications |
||
|
Fiber Type |
OS2 9/125μm G.652D |
|
|
Fiber Core |
2-12 |
|
|
Buffered Fiber |
||
|
Material |
PVC |
|
|
Dimension |
850±50μm |
|
|
Armor Tube |
||
|
Dimension |
2.8±0.1 mm |
|
|
Material |
SUS 204 |
|
|
Strength Member |
||
|
Material |
Polyester yarn |
|
|
Jacket |
||
|
Dimension |
5.0±0.2mm |
|
|
Material |
LSZH |
|
|
Color |
Black |
|
|
Mechanical and Environmental Characteristics |
||
|
Items |
Unit |
Specifications |
|
Crush（Long Term） |
N/10cm |
300 |
|
Crush（Short Term） |
N/10cm |
1000 |
|
Min. Bend Radius(Dynamic) |
mm |
20D |
|
Min. Bend Radius(Static) |
mm |
10D |
|
Working Environment |
||
|
Operating Temperature |
-40℃to +85℃ |
|
|
Storage Temperature |
-40℃to +85℃ |
|
- Download FileName：E-link 2-12 Core Outdoor Amoured Fiber Patch Cable Datasheet V1.0.pdf Size： 702KB
|
Model |
Description |
|
LNK-2OFC-SC-SC-50 |
50 Meters SC to SC Outdoor Armored 2-Core SM Fiber Patch Cable |
|
LNK-2OFC-SC-SC-100 |
100 Meters SC to SC Outdoor Armored 2-Core SM Fiber Patch Cable |
|
LNK-4OFC-SC-SC-50 |
50 Meters SC to SC Outdoor Armored 4-Core SM Fiber Patch Cable |
|
LNK-4OFC-SC-SC-100 |
100 Meters SC to SC Outdoor Armored 4-Core SM Fiber Patch Cable |
|
LNK-6OFC-SC-SC-50 |
50 Meters SC to SC Outdoor Armored 6-Core SM Fiber Patch Cable |
|
LNK-6OFC-SC-SC-100 |
100 Meters SC to SC Outdoor Armored 6-Core SM Fiber Patch Cable |
|
LNK-8OFC-SC-SC-50 |
50 Meters SC to SC Outdoor Armored 8-Core SM Fiber Patch Cable |
|
LNK-8OFC-SC-SC-100 |
100 Meters SC to SC Outdoor Armored 8-Core SM Fiber Patch Cable |
|
LNK-12OFC-SC-SC-50 |
50 Meters SC to SC Outdoor Armored 12-Core SM Fiber Patch Cable |
|
LNK-12OFC-SC-SC-100 |
100 Meters SC to SC Outdoor Armored 12-Core SM Fiber Patch Cable |
Note: Default SC Connector, LC/FC/ST Connector Optional
