► 100/1G/2.5G/5G/10G BASE-T RJ45 interface with auto MDI/MDI-X function, 10GBASE-X SFP+ slot interface
► Compliant with IEEE802.3af/at/bt protocol
► Supports auto-negotiation 100Mbps, 1Gbps half/full duplex and 2.5/5/10Gbps full duplex mode
► Extensive LED indicators for network diagnostics
► 48~57VDC Terminal Block Power Input
Overview

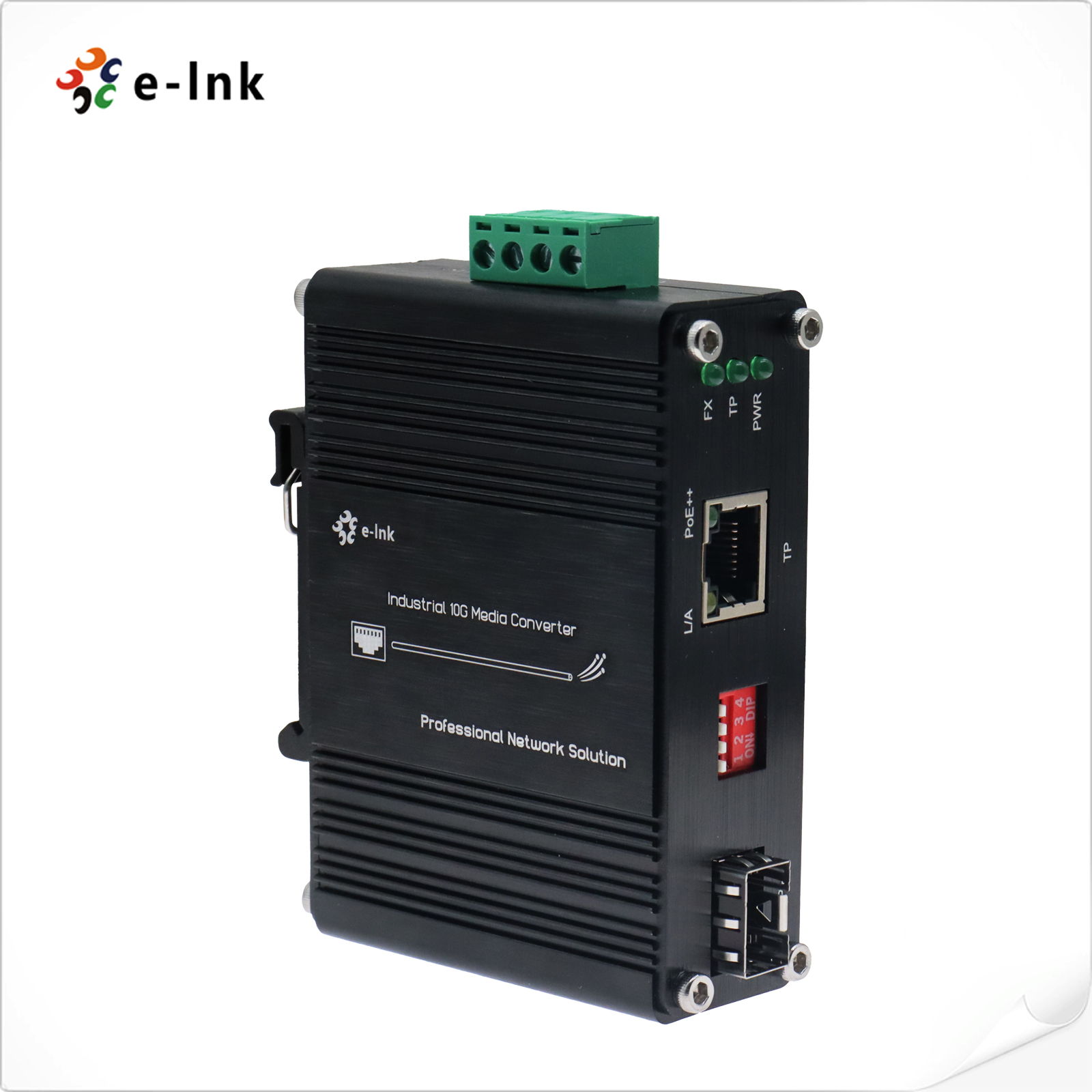

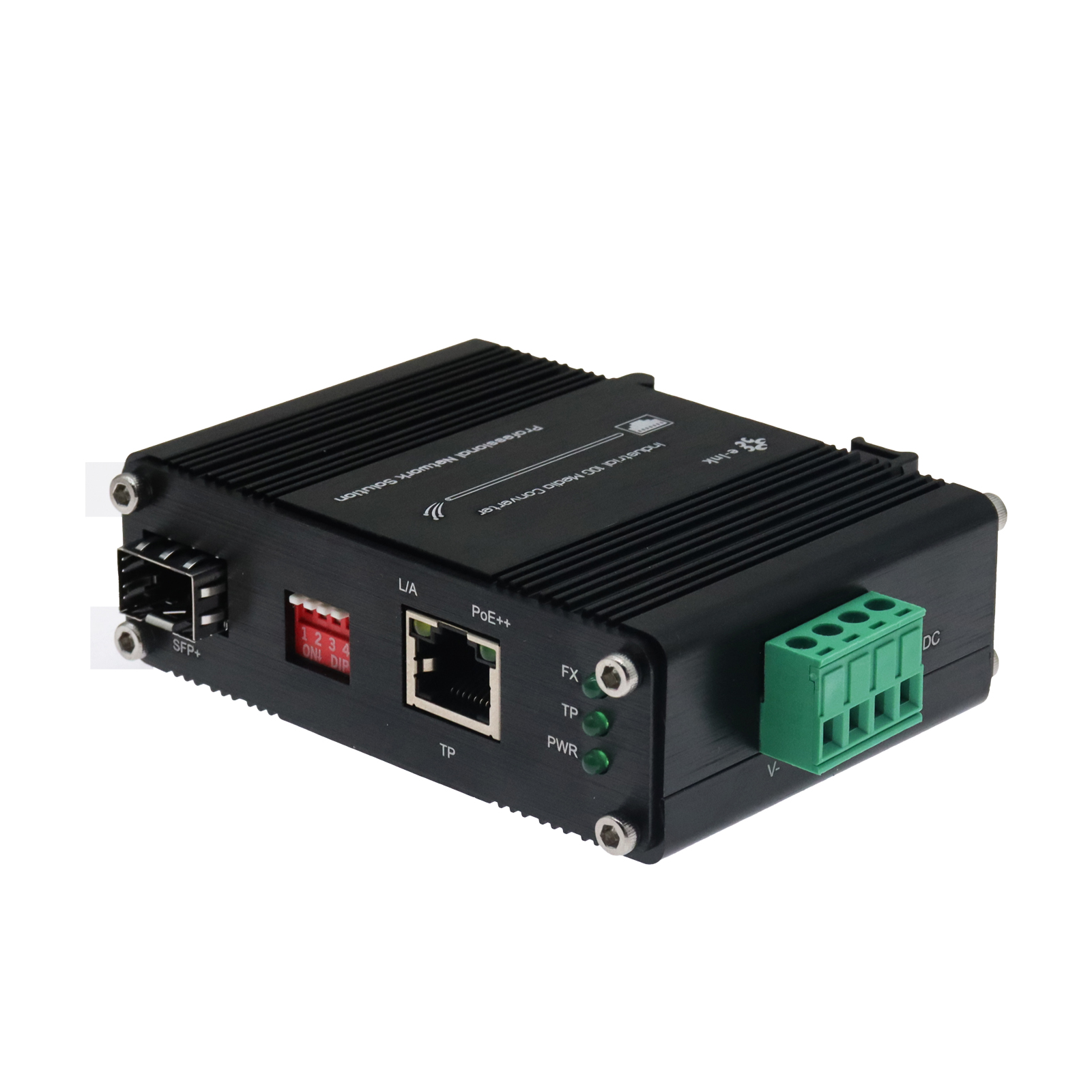

LNK-IMC10GP-SFP+ Series is Industrial-grade 10G 802.3bt PoE Media Converter providing non-blocking wire-speed performance and great flexibility for 10Gigabit Ethernet extension in harsh industrial environment. It is equipped with one 100Mbps/1Gbps/2.5Gbps/5Gbps/10GBASE-T RJ45 copper interface and one 10GBASE-X SFP+ fiber optic interface delivered in an IP40 rugged but compact-sized case with redundant power system. The LNK-IMC10GP-SFP+ Seriesis ideal for wide applications from copper to fiber media conversion wherever 10Gigabit bandwidth is required in climatically demanding environments with wide temperature ranging from -40℃ to 80℃.
Features
► 100/1G/2.5G/5G/10G BASE-T RJ45 interface with auto MDI/MDI-X function, 10GBASE-X SFP+ slot interface
► Compliant with IEEE802.3af/at/bt protocol
► Supports auto-negotiation 100Mbps, 1Gbps half/full duplex and 2.5/5/10Gbps full duplex mode
► Extensive LED indicators for network diagnostics
► 48~57VDC Terminal Block Power Input

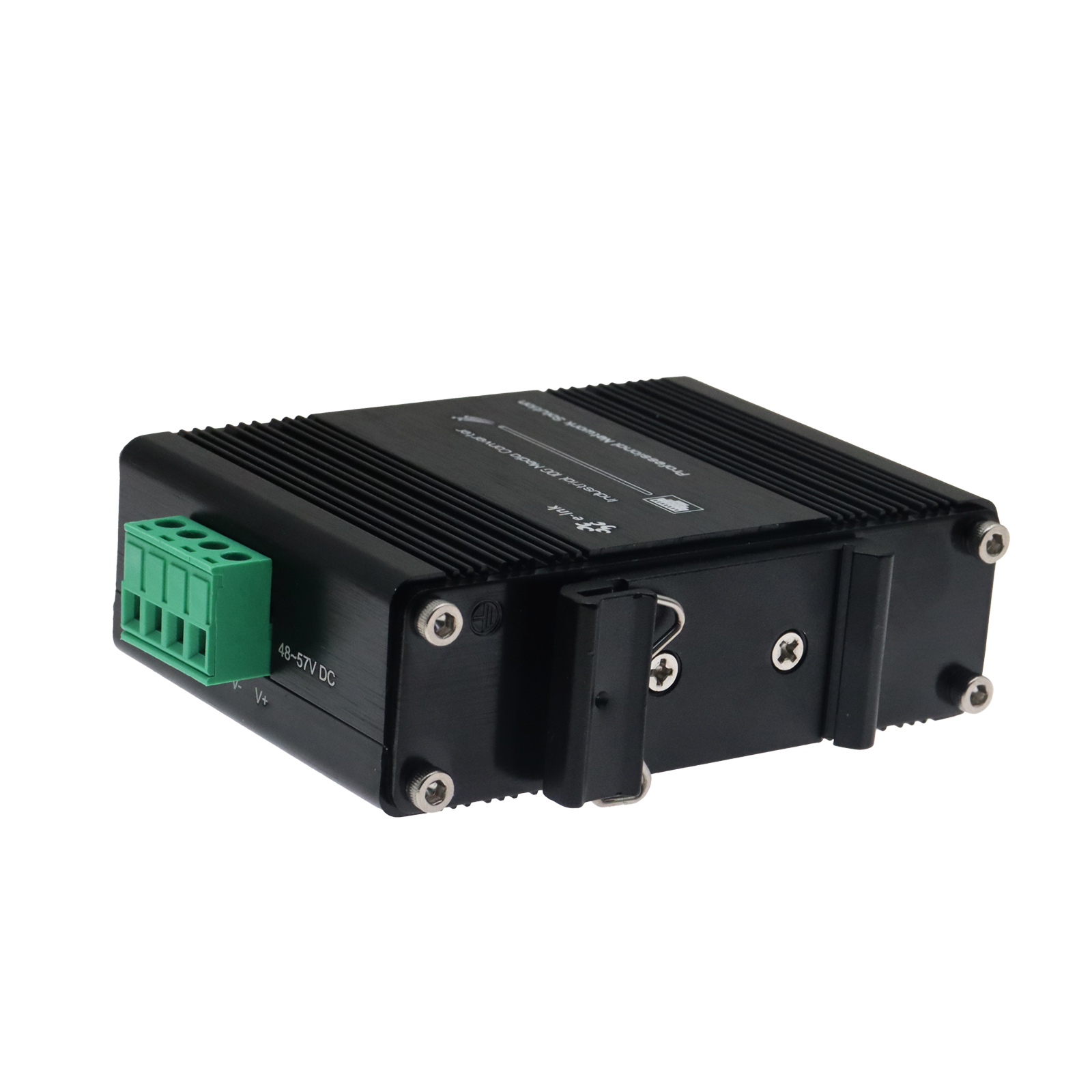

► Supports DIN-Rail & Wall-mount installation
► Environmentally hardened -40°C to 75°C
(-40°F to 167°F) operating temperature

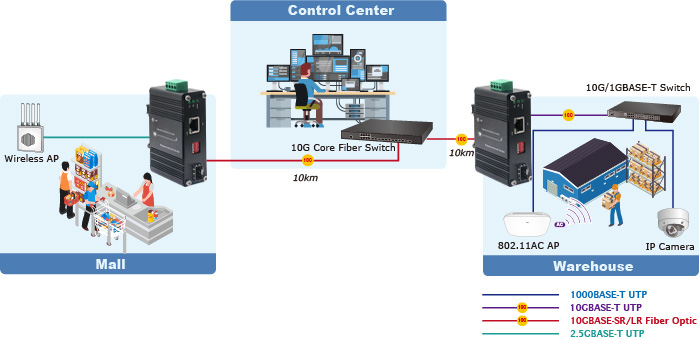

Application
Specification
Ethernet |
||||
PoE Standard |
IEEE802.3af/at/bt |
|||
Forward & Filtering Rate: |
100Mbps |
|||
1000Mbps |
||||
2.5Gbps |
||||
5Gbps |
||||
10Gbps |
||||
Network Cables: |
10G/5G/2.5G/1G/100M BASE-T: 10G – Cat 6A/7 5G – Cat 6/6A/7 1G/2.5G – Cat 5e/6/6A/7 100M – Cat 5/5e/6/6A/7 Cat 5/5e/6/6A/7 UTP cable (100 meters, max.) EIA/TIA-568 100-ohm STP (100 meters, max.) 10GBASE-LR/SR/BX: 50/125μm or 62.5/125μm multi-mode fiber optic cable, up to 300m 9/125μm single-mode fiber optic cable, up to 80km |
|||
Processing Type: |
Store-and-Forward |
|||
Fabric: |
20Gbps |
|||
Jumbo Frame: |
16K |
|||
Address Table: |
9K entries, automatic source address learning and aging |
|||
Interface |
||||
Connector: |
1 x RJ45 |
|||
Optical Port: |
1 x SFP+ |
|||
Environmental |
||||
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|||
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|||
Relative Humidity: |
5% to 95% non-condensing |
|||
MTBF |
> 200,000 hrs |
|||
Electrical and Mechanical |
||||
Input Power: |
48~57VDC,Redundant Power (4-pin Terminal Block) |
|||
Power Consumption: |
35W/65W/95W Max |
|||
Protection: |
||||
Power Input Overload: |
Automatic Resettable |
|||
Reverse Polarity: |
Present |
|||
DIP Switch |
||||
4-digit DIP switch function |
DIP |
Function |
Settings |
|
SW 1 |
Reserved |
ON - Reserved |
OFF - Reserved |
|
SW 2 |
Reserved |
ON - Reserved |
OFF - Reserved |
|
SW 3 |
Reserved |
ON - Reserved |
OFF - Reserved |
|
SW 4 |
Reserved |
ON - Reserved |
OFF - Reserved |
|
Note: DIP Switch’s function can be customized based on client’s requirements. |
||||
Dimensions (WxDxH): |
95 x 70 x 30 mm |
|||
Weight: |
0.25Kg |
|||
Casing: |
Aluminum Case |
|||
Mounting Options: |
DIN-Rail/Wall-mount |
|||
Regulatory Approvals |
||||
ISO9001, CE, RoHS, FCC |
||||
EN55022:2010+AC: 2011, Class A |
||||
EN 61000-3-2: 2006+A1: 2009+A2: 2009 |
||||
EN 61000-3-3: 2013 |
||||
EN55024:2010 |
||||
IEC 61000-4-2: 2008 (ESD) |
||||
IEC 61000-4-3: 2010 (RS) |
||||
IEC 61000-4-4: 2012 (EFT) |
||||
IEC 61000-4-5: 2014 (Surge) |
||||
IEC 61000-4-6: 2013 (CS) |
||||
IEC 61000-4-8: 2009 (PFMF) |
Order Information
Model |
Description |
LNK-IMC10GP30-SFP+ |
MiniIndustrial 10G/5G/2.5G/1G/100M 802.3at 30W to 10GBASE-X SFP+ Media Converter |
LNK-IMC10GP60-SFP+ |
MiniIndustrial 10G/5G/2.5G/1G/100M 802.3at 60W to 10GBASE-X SFP+ Media Converter |
LNK-IMC10GP95-SFP+ |
MiniIndustrial 10G/5G/2.5G/1G/100M 802.3bt 95W to 10GBASE-X SFP+ Media Converter |
SFP Options |
► SFP+ option. Please select your SFP+ on our SFP+ Options Page (Industrial SFP). |
► SFP+ module is to be purchased separately. |
|
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
Power Options |
► Power Supply is to be purchased separately. |
